Installation Procedure

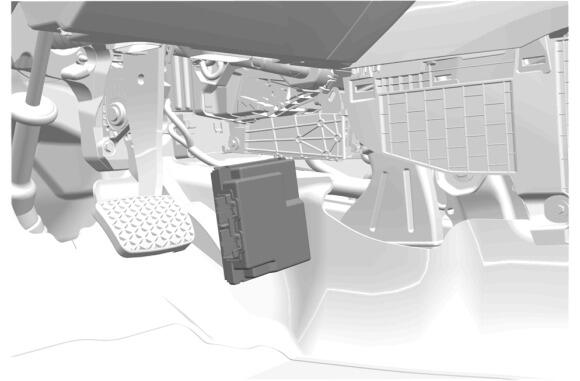

Keyless Entry Control Module (1) - Install
- Connect the electrical connectors.

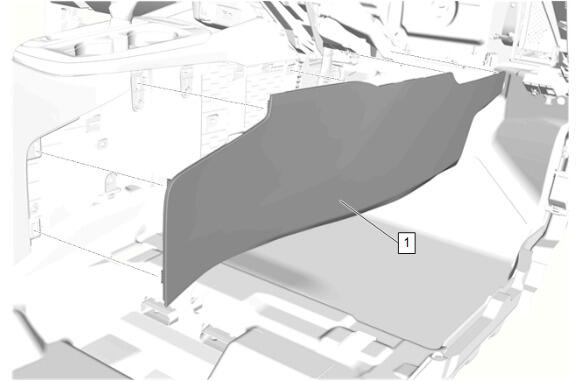

Front Floor Console Extension Panel - Right Side (1) - Install

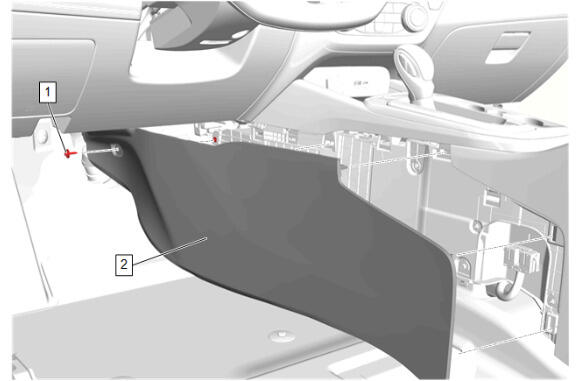

Front Floor Console Extension Panel - Left Side (2) - Install
- Front Floor Console Extension Panel Bolt (1) - Install and tighten - Fastener Specifications
- Return the seat to its original position.
- Perform the necessary programming and setup procedure: Control Module References
CAUTION:
Refer to Fastener Caution .
