Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Remote Function Actuator Module (1) - Install
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Feed the rear seat belt through the quarter lower rear trim panel.

Quarter Lower Rear Trim Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

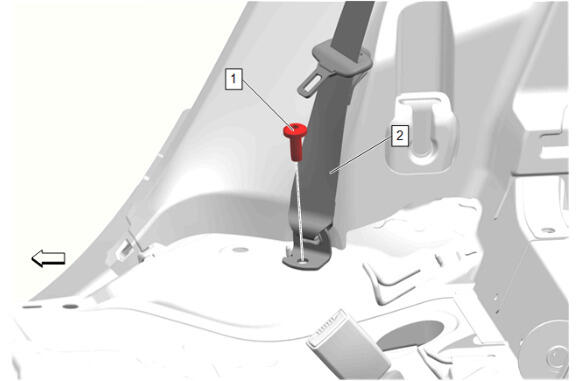

Rear Seat Belt Retractor (2) - Install

CAUTION:

Rear Seat Belt Retractor Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Rear Side Door Sill Garnish Molding (1) - Install
Courtesy of GENERAL MOTORS COMPANY

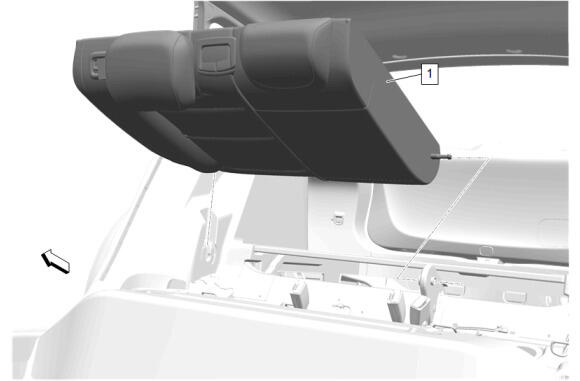

Rear Seat Back Cushion (1) - Install - Rear Seat Back Cushion Removal and Installation (60 Percent Seat) - 60%
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Body Lock Pillar Upper Trim Panel (2) - Install
Quarter Window Trim Finish Panel Bolt (1) - Install
Close the quarter window trim finish panel bolt cap.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Connect the electrical connector.
Rear Compartment Courtesy Lamp (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Both sides shown. The quantity is for the one side.

NOTE:
Left side shown, right side similar.

Cargo Tie Down Loop - Right Side (2) - Remove
Cargo Tie Down Loop Fastener - Right Side (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Liftgate Sill Garnish Molding (1) - Install
Courtesy of GENERAL MOTORS COMPANY

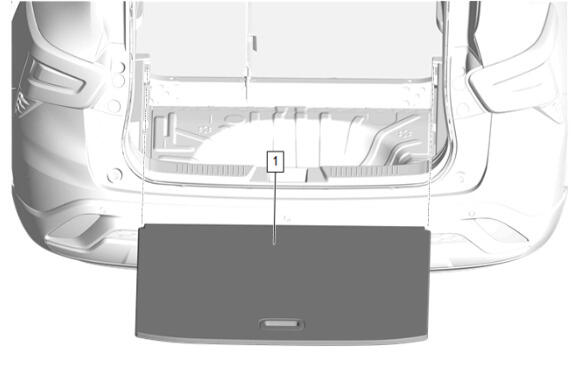

Load Floor Stowage Compartment Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

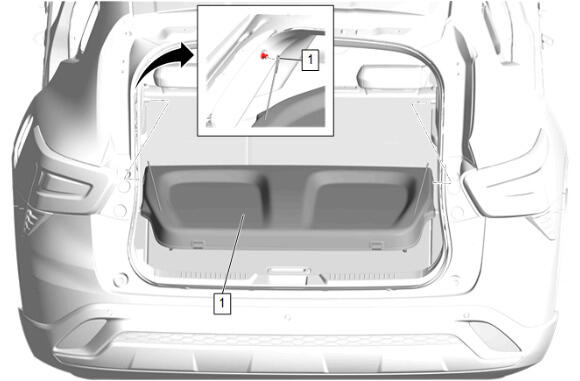

Luggage Shade (1) - Install
1. Install the luggage shade straps to the luggage shade pivot on both sides.
2. Close the liftgate.
