Installation Procedure

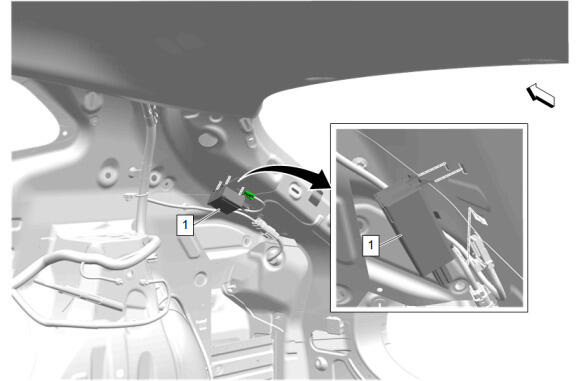

Remote Function Actuator Module (1) - Install
- Connect the electrical connectors.

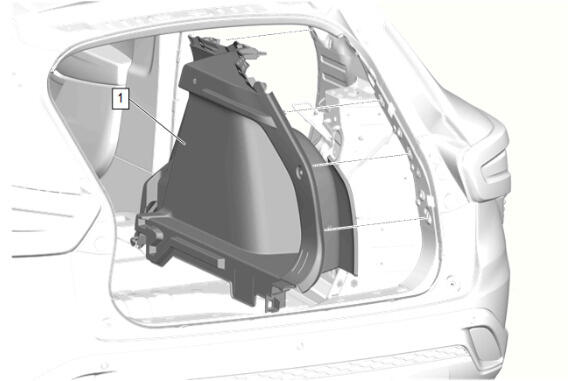

Quarter Lower Rear Trim Panel (1) - Install

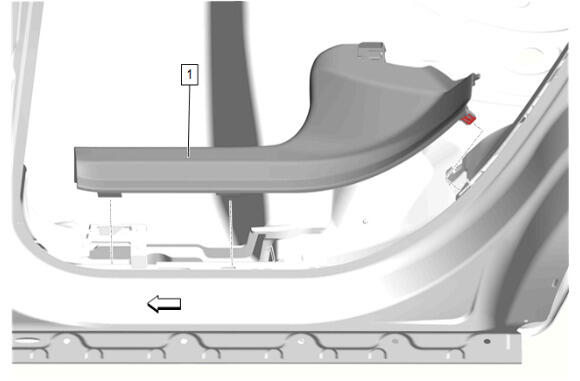

Rear Side Door Sill Garnish Molding - Right Side (1) - Install
Load Floor Trim Panel (2) - Install

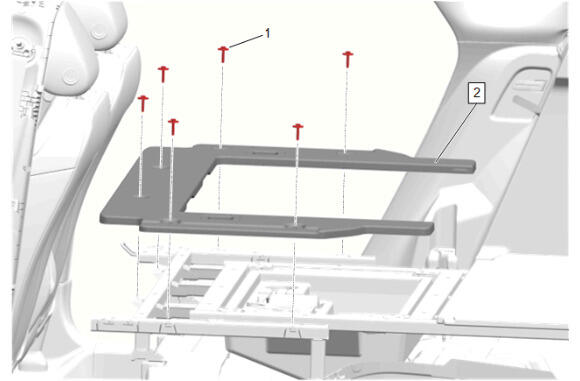

- Rear Compartment Floor Stowage Compartment Bracket Bolt (1) - Install and tighten [6x] - Fastener Specifications

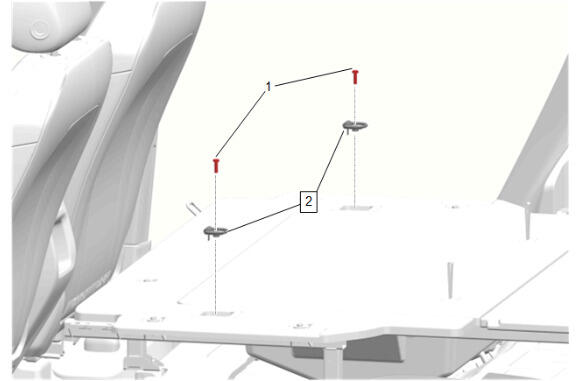

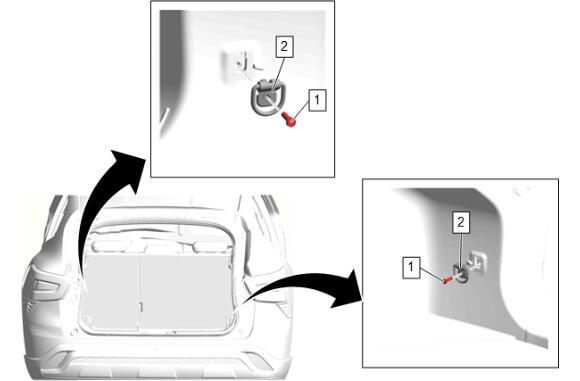

Cargo Tie Down Loop (2) - Install [2x]
- Cargo Tie Down Loop Fastener (1) - Install and tighten [2x] - Fastener Specifications
Load Floor Rear Compartment Cover (1) - Install
Rear Compartment Panel Reinforcement - Right Side (2) - Install
- Rear Compartment Panel Bolt - Right Side (1) - Install and tighten [2x] - Fastener Specifications

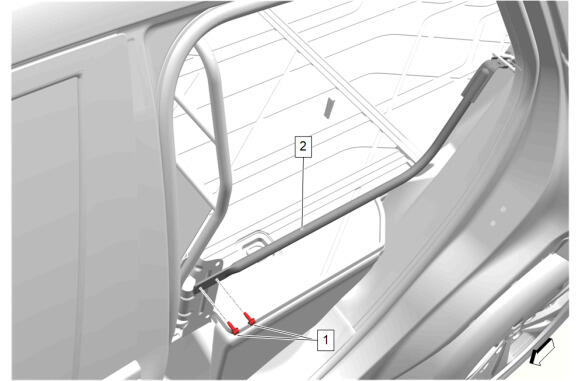

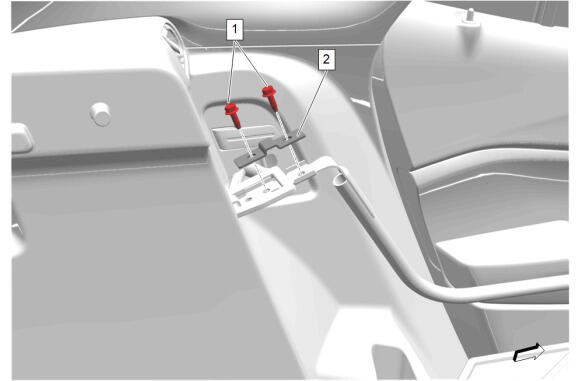

Cargo Partition Rail Bracket - Right Side (2) - Install
- Rear Compartment Panel Bolt - Right Side (1) - Install and tighten [2x] - Fastener Specifications

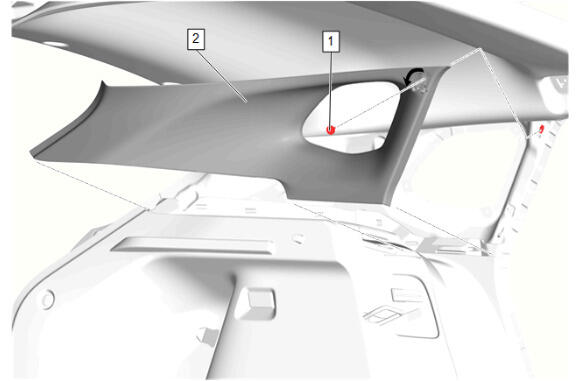

Body Lock Pillar Upper Trim Panel - Right Side (2) - Install
- Quarter Window Trim Finish Panel Bolt - Right Side (1) - Install and tighten - Fastener Specifications
- Close the quarter window trim finish panel bolt cap.
Connect the electrical connector.

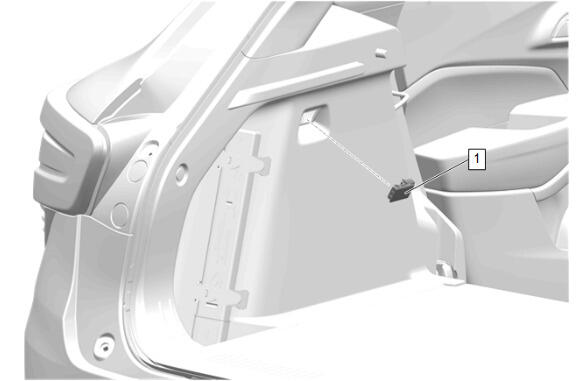

- Rear Compartment Courtesy Lamp - Right Side (1) - Install
- NOTE:
Both sides shown. The quantity is for the one side.
Cargo Tie Down Loop - Right Side (2) - Remove
- Cargo Tie Down Loop Fastener - Right Side (1) - Install and tighten - Fastener Specifications

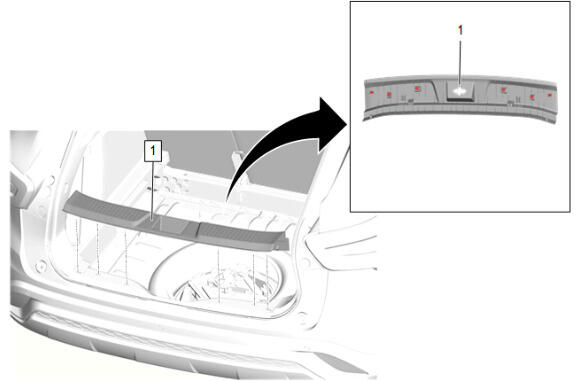

Liftgate Sill Garnish Molding (1) - Install

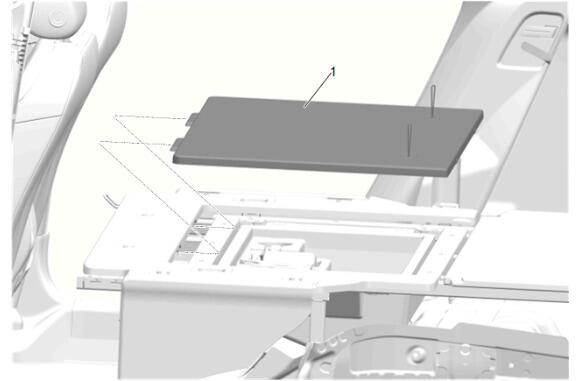

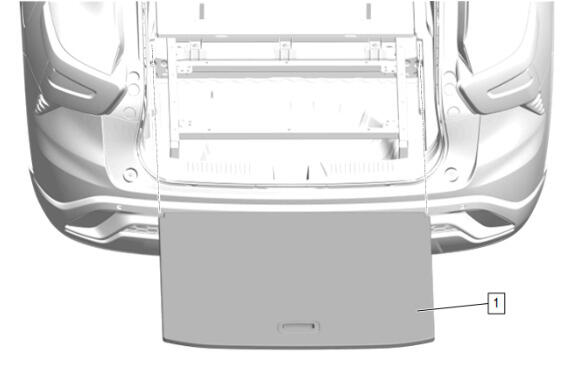

Load Floor Stowage Compartment Cover (1) - Install

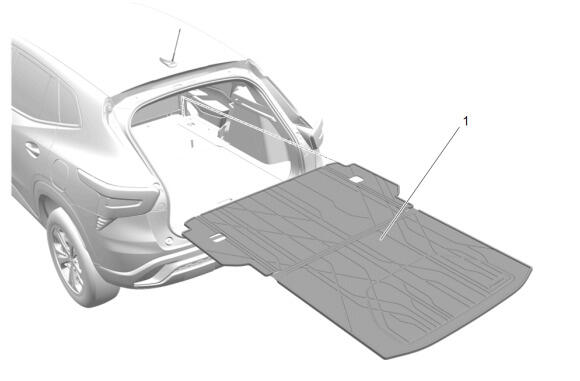

Load Floor Mat (1) - Install
- Close the liftgate.
CAUTION:
Refer to Fastener Caution .
