Charging Systems: Alternators: Overhaul: Reassembly: Notes

On all but 100 amp. alternators, position grease retainer and press on rotor shaft using suitable installer (C-3921). Retainer is properly positioned when inner bore of tool bottoms on rotor shaft.
On all models, position rectifier end shield bearing on base of tool (C-4330 for 100 amp. or C-4201 all others). Place end shield on top of bearing, aligning it properly. Press on top part of tool, until end shield bottoms against base of press.
Insert drive end bearing in drive end shield and install bearing retainer plate (on 100 amp. install mounting screws). Position bearing and shield on rotor shaft and while supporting base of rotor shaft, press bearing and end shield into position. Use arbor press and C-3858 tool.

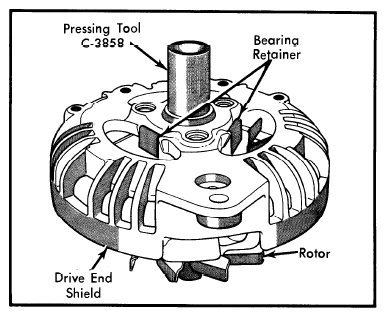

Fig 1: Installing Drive End Shield Bearing (All Except 100 Amp. Shown)
Courtesy of CHRYSLER GROUP, LLC

CAUTION: Make sure bearing is installed squarely to prevent damage. Press onto shaft until bearing contacts shoulder on rotor spacer (100 amp.) or rotor shaft fan hub (all others).
Install pulley on rotor shaft, supporting shaft so that all pressing is on pulley hub and rotor shaft. Do not hammer.
