Engine Sensors

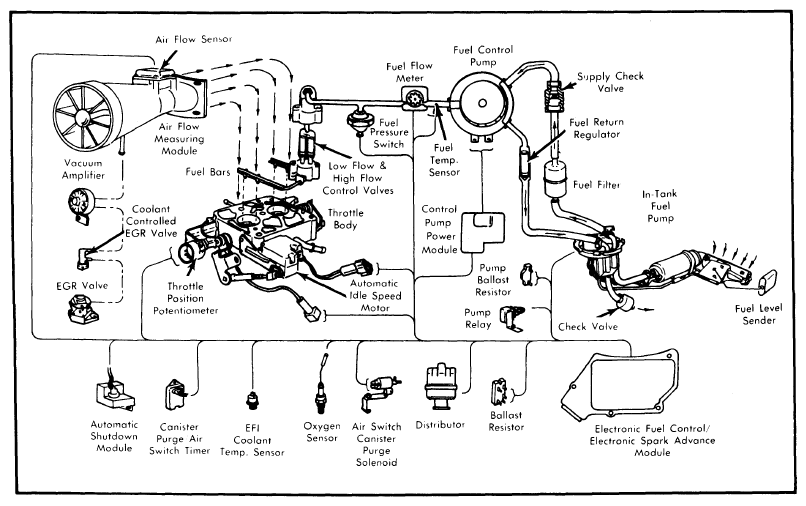

The CCC needs sensor inputs to determine engine operating characteristics. The following sensors are used with this system:
- Intake Airflow Sensor
- Intake Air Temperature Sensor
- Fuel Flowmeter
- Fuel Temperature Sensor
- Fuel Pressure Switch
- Throttle Position Potentionmeter
- Closed Throttle Switch (with Back-up Circuit)
- Coolant Temperature Sensor
- Oxygen Sensor
- Engine Speed (from a distributor signal)
- Air Conditioner "On" Switch
- Detonation Sensor
In addition to these sensors, the CCC also receives information from the ignition switch, has a timer to determine operating time, and determines engine load by comparing airflow with engine speed.
