Coolant Control EGR Valve (CCEGR)

NOTE: Location of CCEGR valve is as follows: On 4 cylinder engines, valve is in thermostat housing. On 6 cylinder engines, valve is in cylinder head. On V8 engines, valve is in intake manifold.

CCEGR Color Code & Temperature Chart

Color Code	Opening Temp. (°F)
Black	98
Yellow	125
Red	150

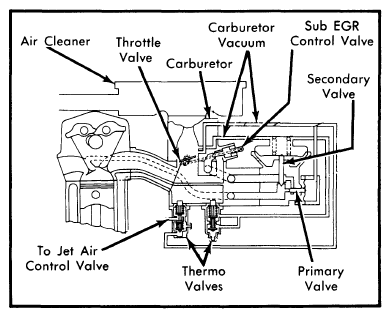

Fig 1: 2.6 Liter Engine EGR System

Courtesy of CHRYSLER GROUP, LLC

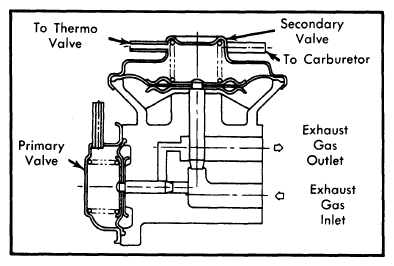

Fig 2: Dual EGR Control Valve

Courtesy of CHRYSLER GROUP, LLC

Fig 3: Sub EGR Control Valve

Courtesy of CHRYSLER GROUP, LLC
