Toe-In Adjustment

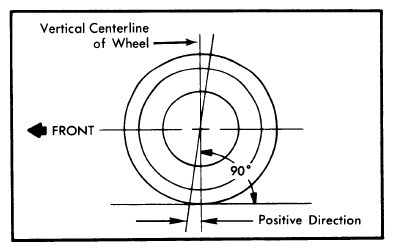

Fig 1: Determining Caster Angle

Courtesy of NOT AVAILABLE

Toe-in is the difference in the distance measured between the front and rear of the front wheels. To adjust:

1. Measure toe-in with front wheels in straight ahead position and steering wheel centered. To adjust toe-in, loosen clamps and turn adjusting sleeve or adjustable end on right and left hand tie rods. See Fig 2 and Fig 2.
2. Turn equally and in opposite directions to maintain steering wheel in centered position.
   CAUTION: Face of tie rod end must be parallel with machined surface of steering rod end to prevent cocking and binding of the ball end in service.

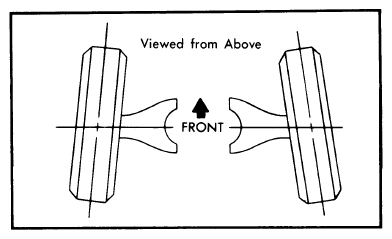

   Fig 2: Illustrating Wheel Toe-In

   Courtesy of NOT AVAILABLE
3. When tightening clamps, make certain that clamp bolts are positioned so there will be no interference with other parts throughout the entire travel of linkage.
