Speed Control Switch

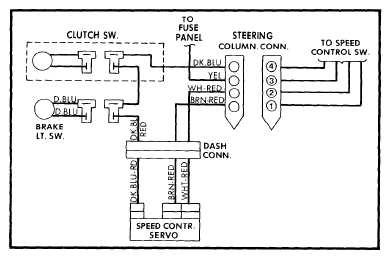

- Disconnect 4-wire connector at steering column. Connect a 12 volt positive source to terminal 3 in connector going to speed control switch. With switch in "ON" position, connect a test lamp between connector terminal 1 and ground. Lamp should light and then go out when speed set button is depressed. See Figure .
- Move test lamp lead to terminal 4. Lamp should light with switch in "ON" position and go out when switch is moved to "OFF" position. With switch in "ON" position, move test lamp lead to terminal 2. Lamp should light when speed set button is depressed or switch moved to "RESUME" position.
- If switch does not operate properly in all tests, replace it. If switch operates properly in all tests, complete brake switch and servo unit tests.
