Carburetor Switch

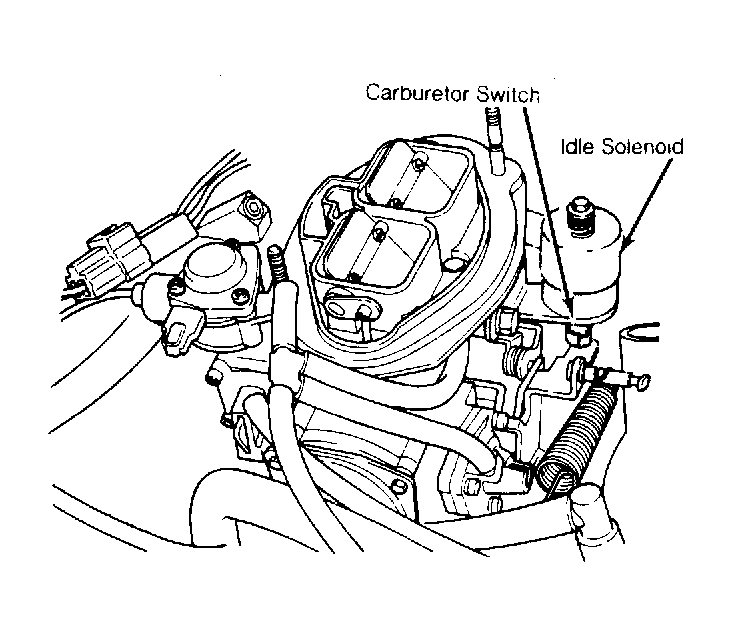

This switch is located on the end of the idle stop to signal the computer when the engine is at idle. When the carburetor switch contacts the throttle lever ground, there will be a cancellation of spark advance and idle control of the air/fuel mixture. See Fig 1 .
