Connector Terminal Identification

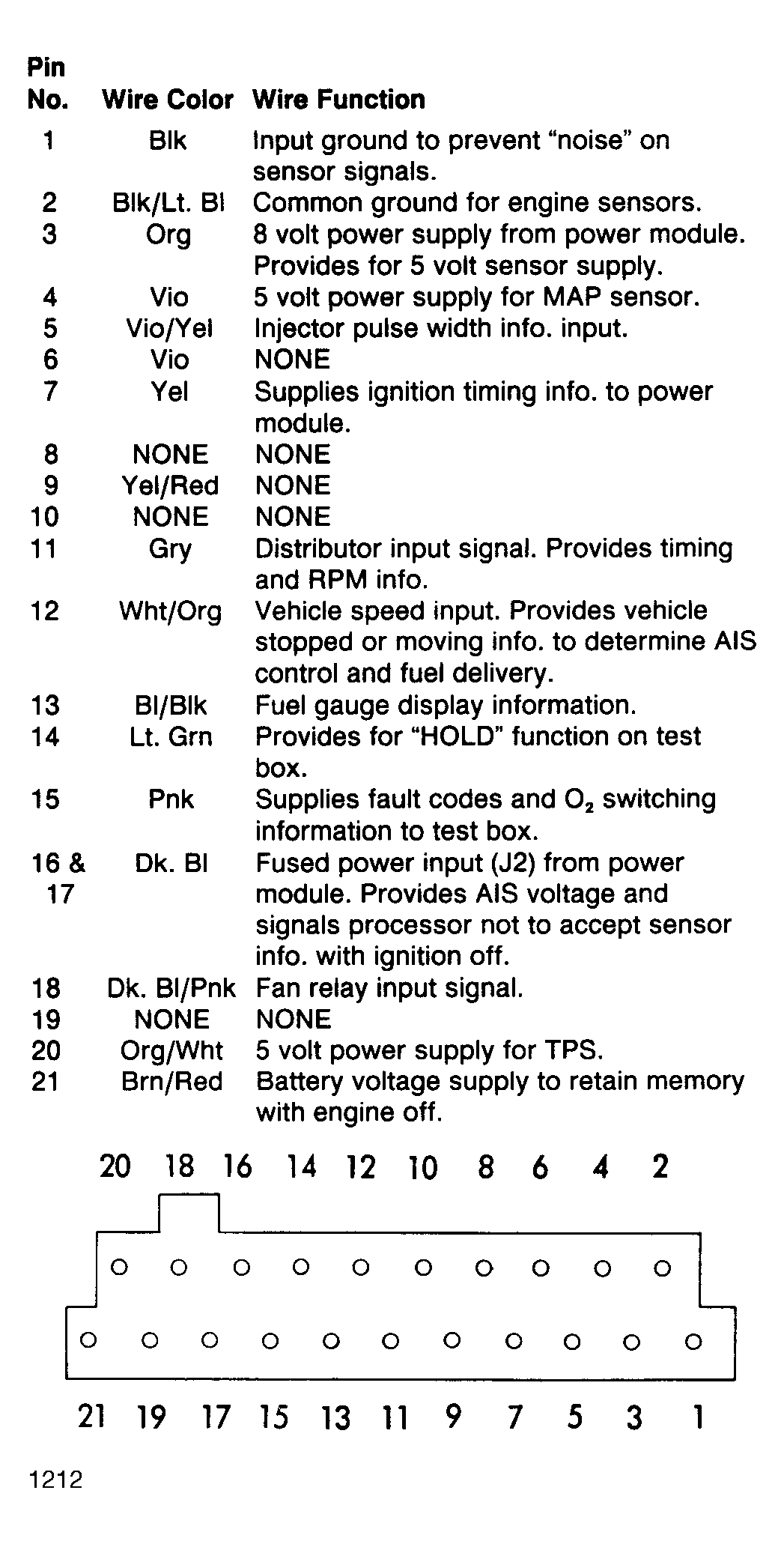

Fig 1: Logic Module Pins - Connector No. 1

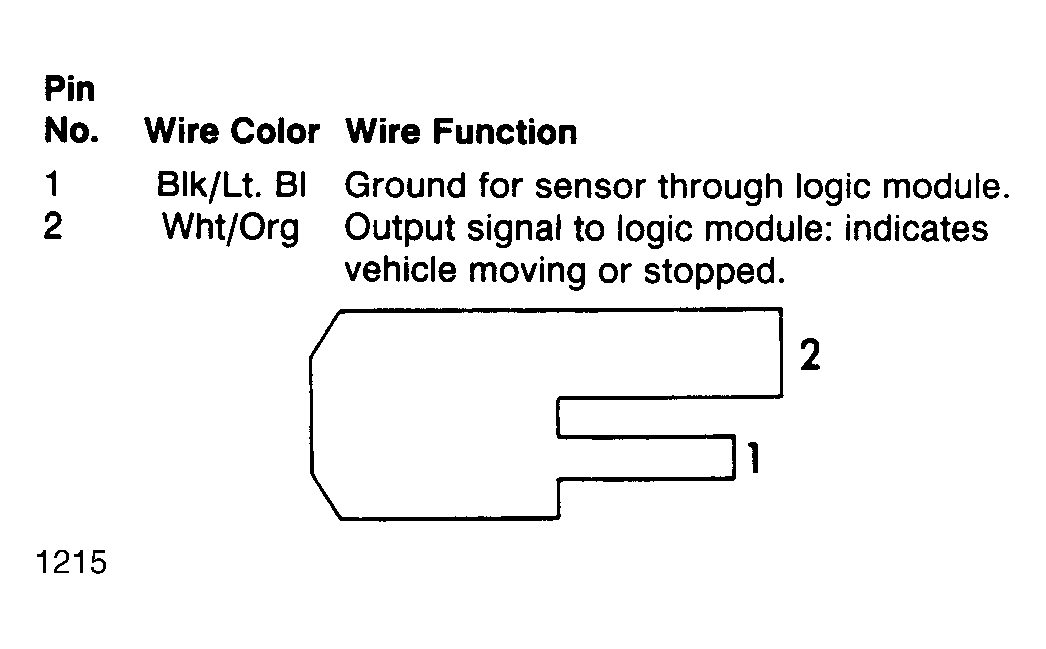

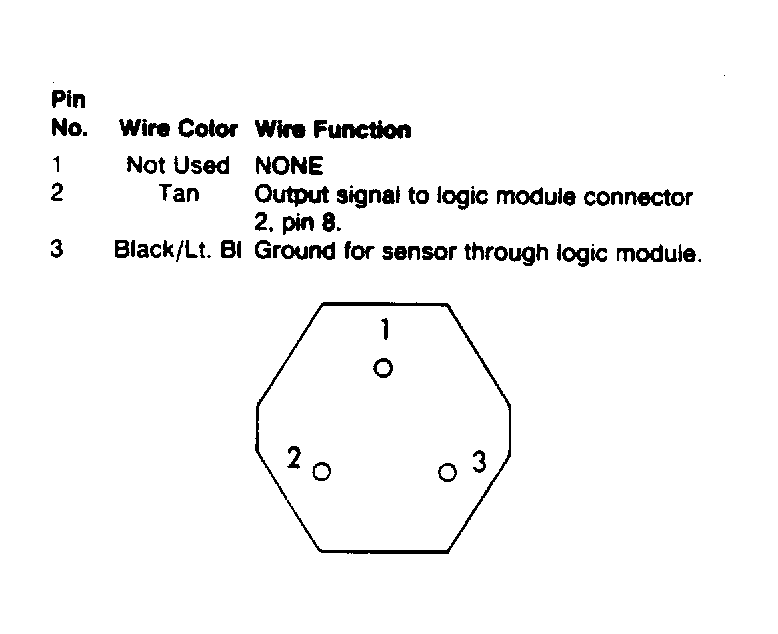

Fig 2: Speed Sensor Connector Terminals

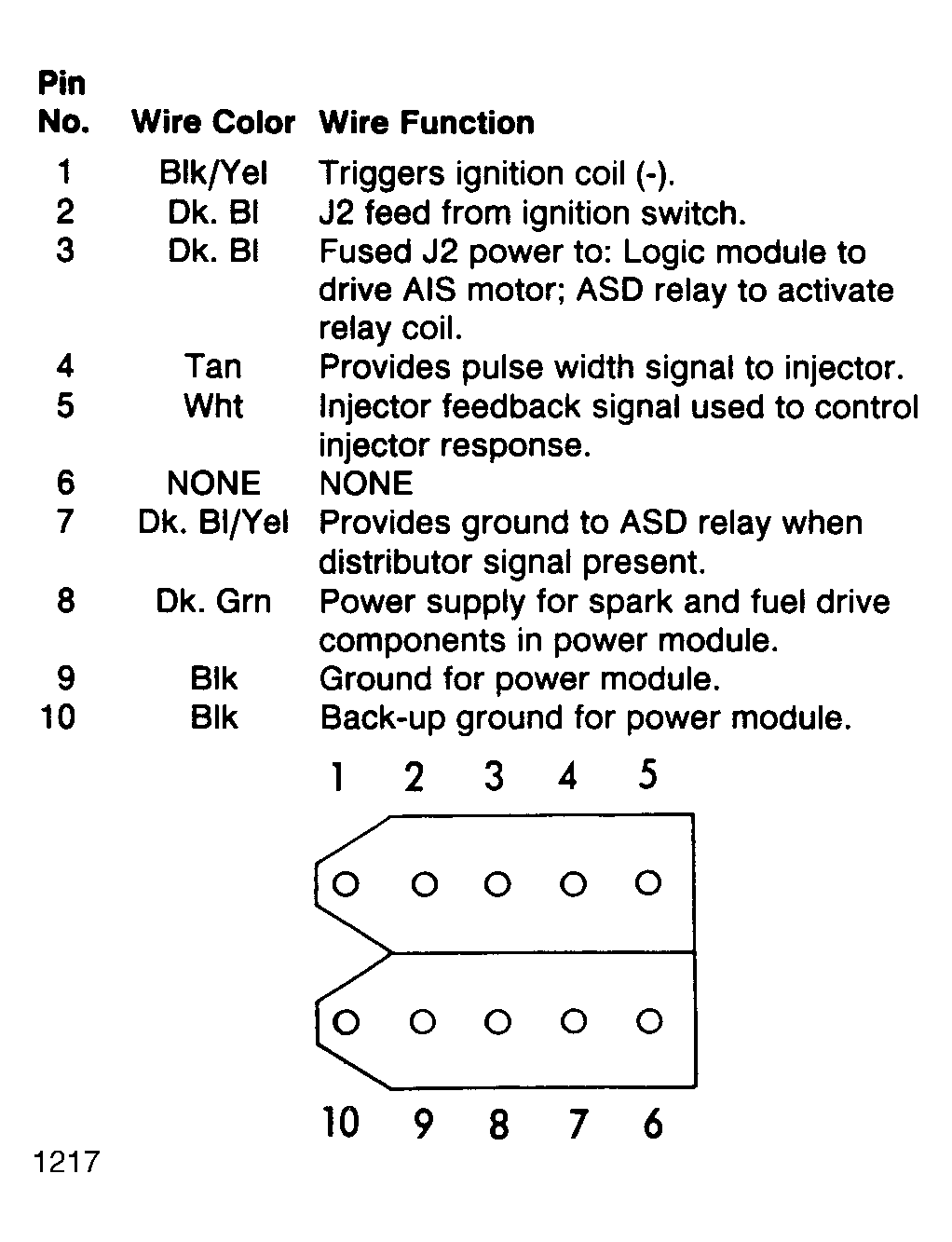

Fig 3: Power Module Pins - 10-Pin Connector

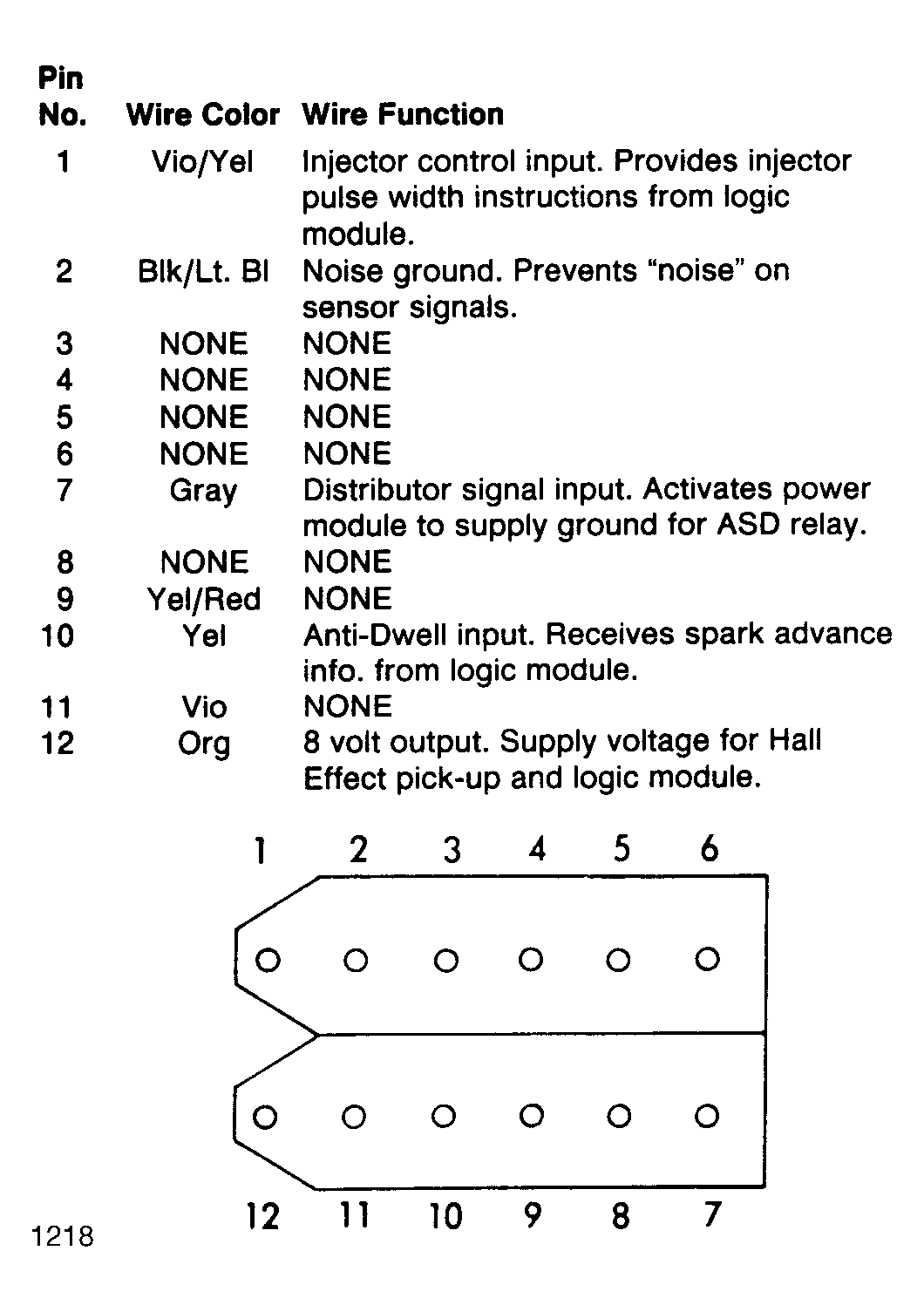

Fig 4: Power Module Pins - 12-Pin Connector

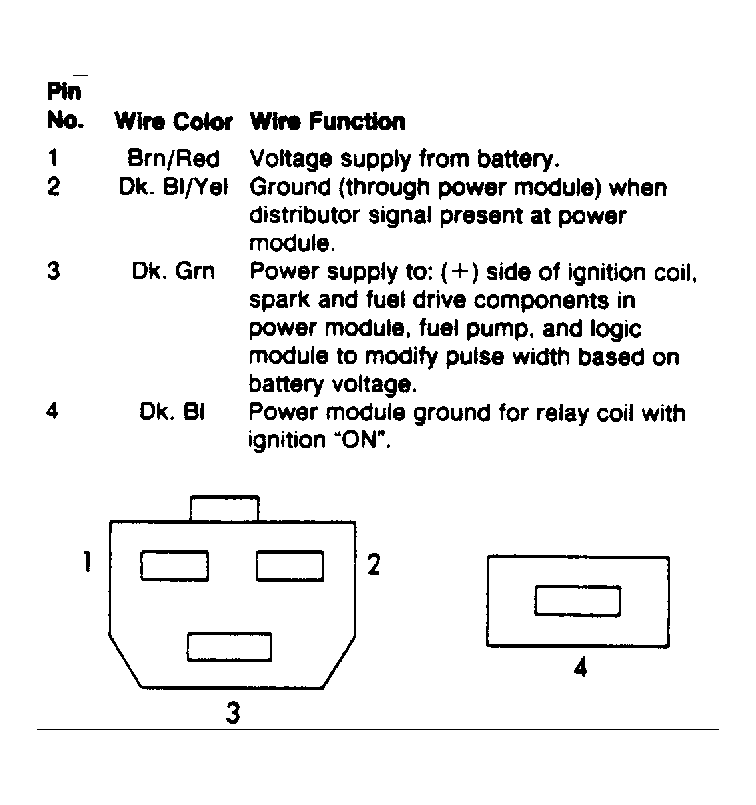

Fig 5: ASD Relay Connector Terminals

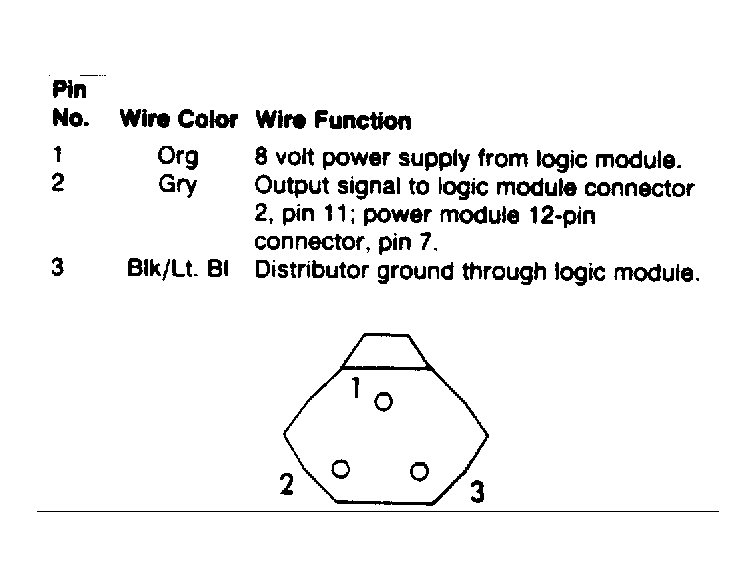

Fig 6: Distributor Connector Terminals

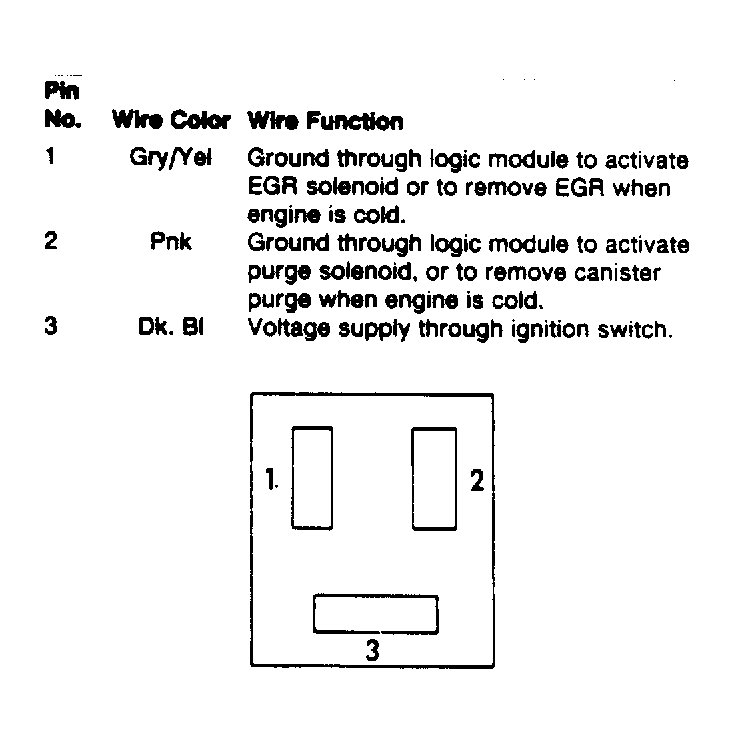

Fig 7: EGR/Purge Solenoid Connector Terminals

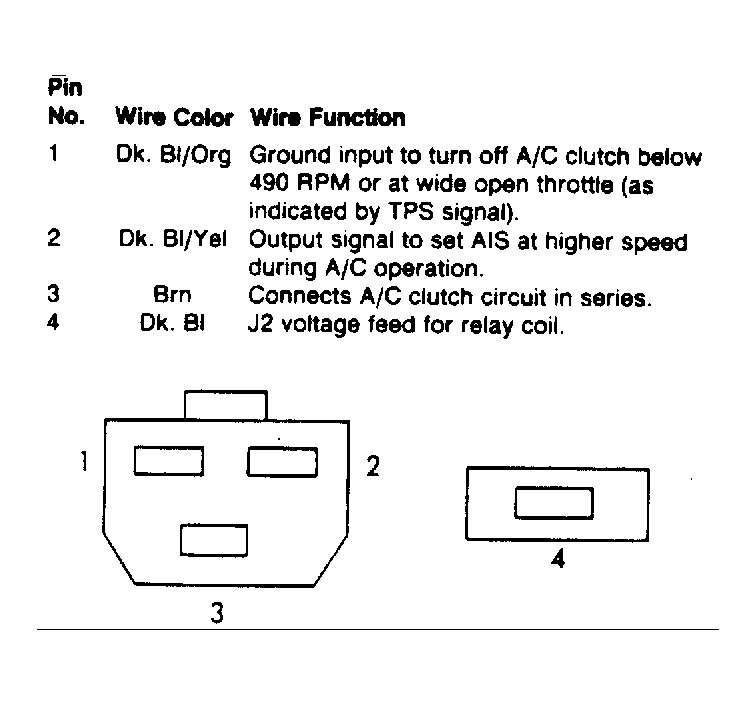

Fig 8: Wide Open Throttle A/C Relay Connector Terminals

Fig 9: Coolant Temperature Sensor Connector Terminals

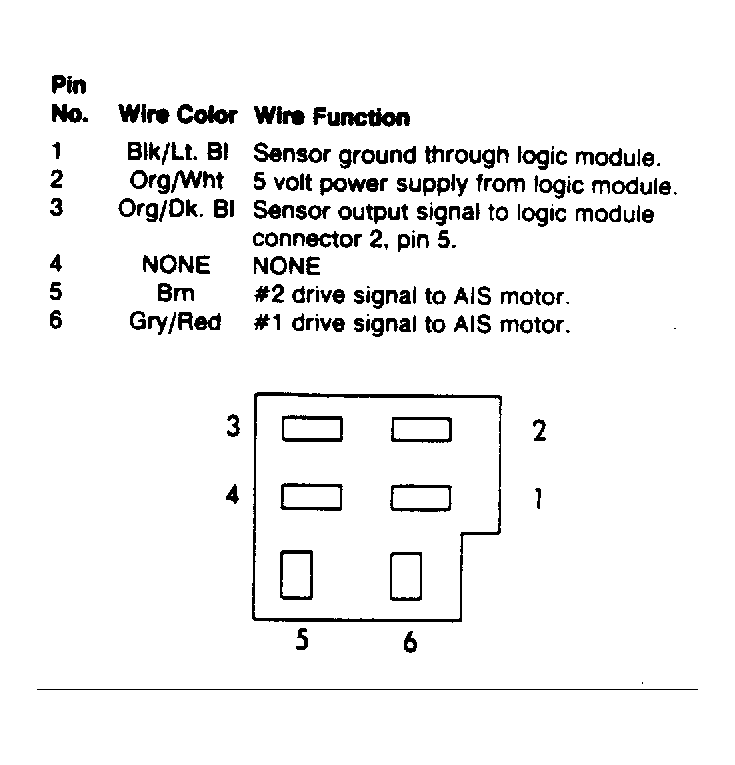

Fig 10: Throttle Position /AIS Motor Connector Terminals

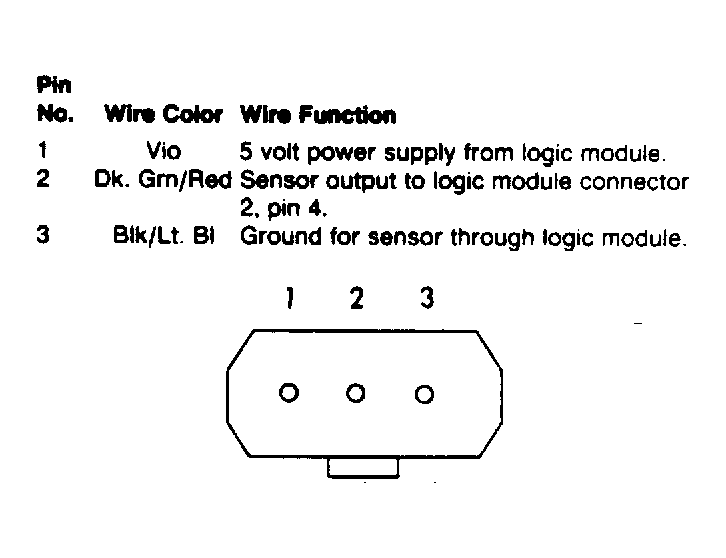

Fig 11: MAP Sensor Connector Terminals

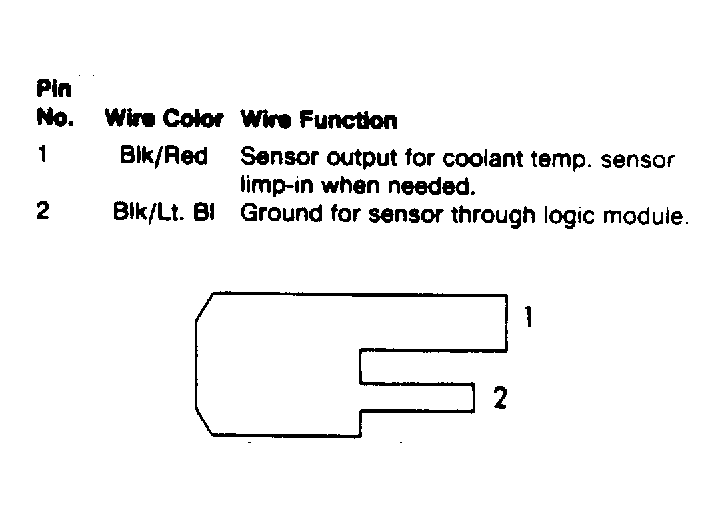

Fig 12: Charge Temperature Sensor Connector Terminals
