Miscellaneous Components

MISCELLANEOUS COMPONENTS COMPONENT LOCATION

Component Location

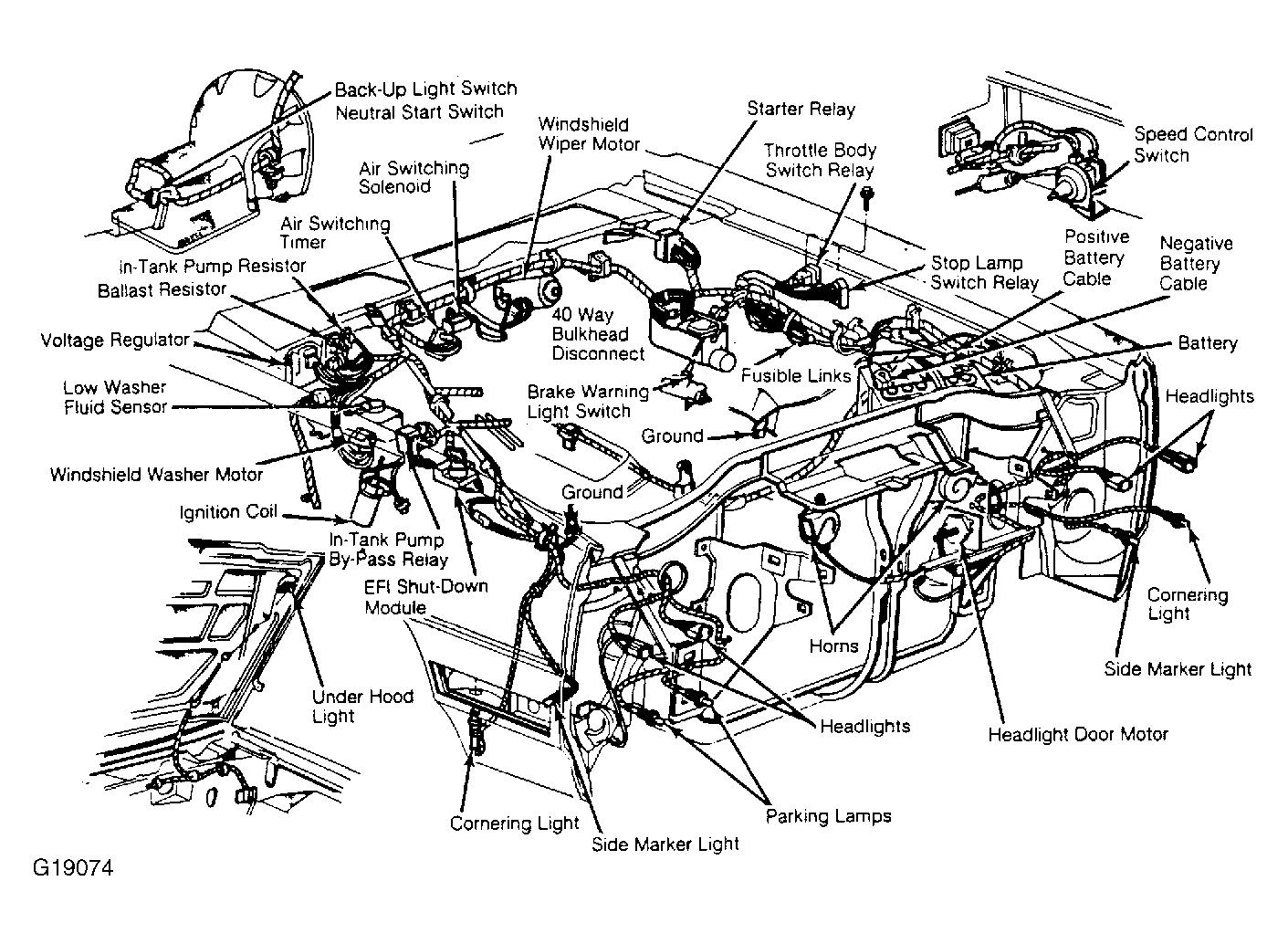

Ballast Resistor Right side of firewall. See Figure.

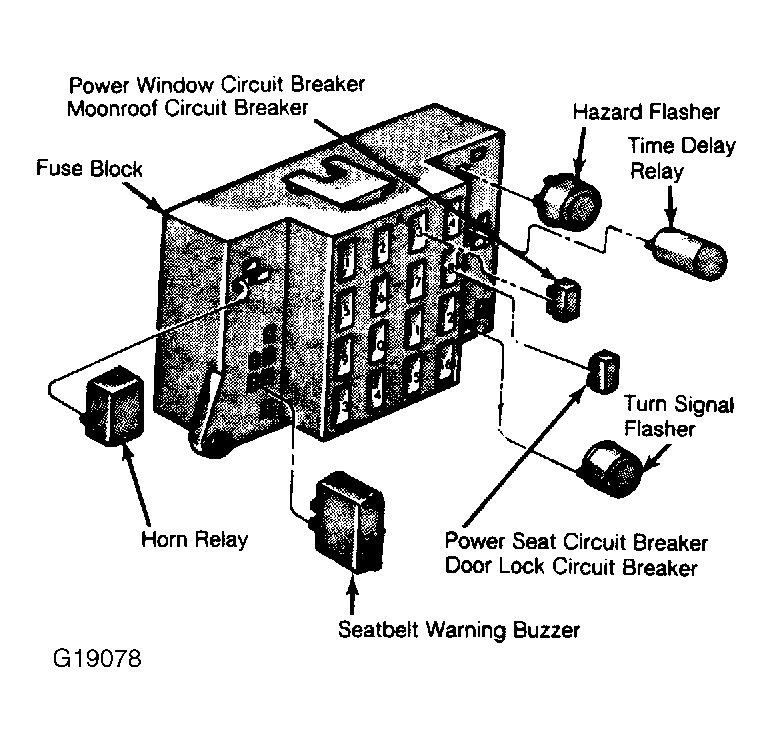

Door Lock Circuit Breaker In fuse block on left side of pedal support bracket. See Figure.

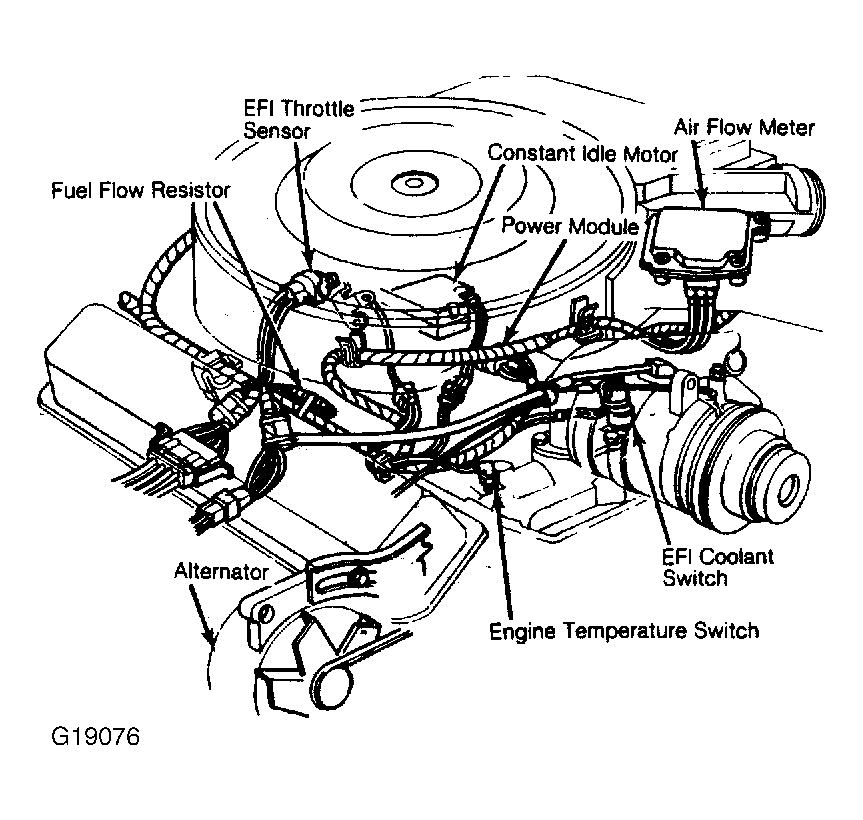

Fuel Flow Resistor Upper right center of engine block. See Figure.
In-Tank Pump Resistor Right side of firewall. See Figure.
Moonroof Circuit Breaker In fuse block on left side of pedal support bracket. See Figure.
Power Seat Circuit Breaker In fuse block on left side of pedal support bracket. See Figure.
Power Window Circuit Breaker In fuse block on left side of pedal support bracket. See Figure.
Temperature Control Resistor Behind glovebox.
