Front Wheels

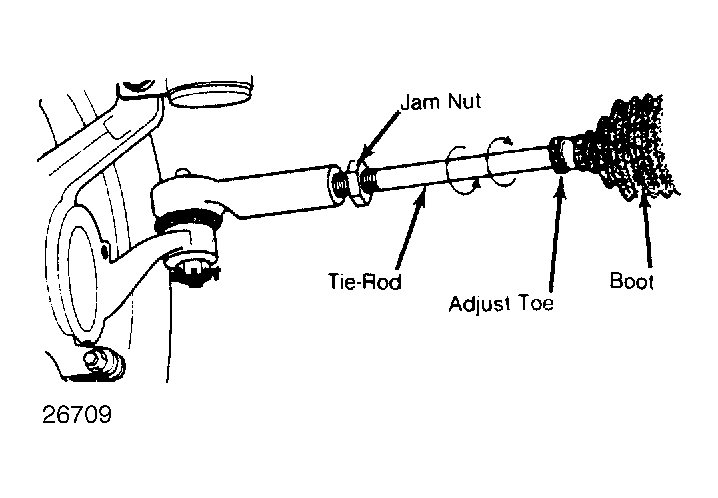

Center steering wheel and hold with steering wheel clamp. Loosen tie rod lock nuts. Rotate rods to align toe to specifications. Tighten lock nuts to specifications. Be sure boot on tie rod is not twisted. See Figure .
