Terminal Identification

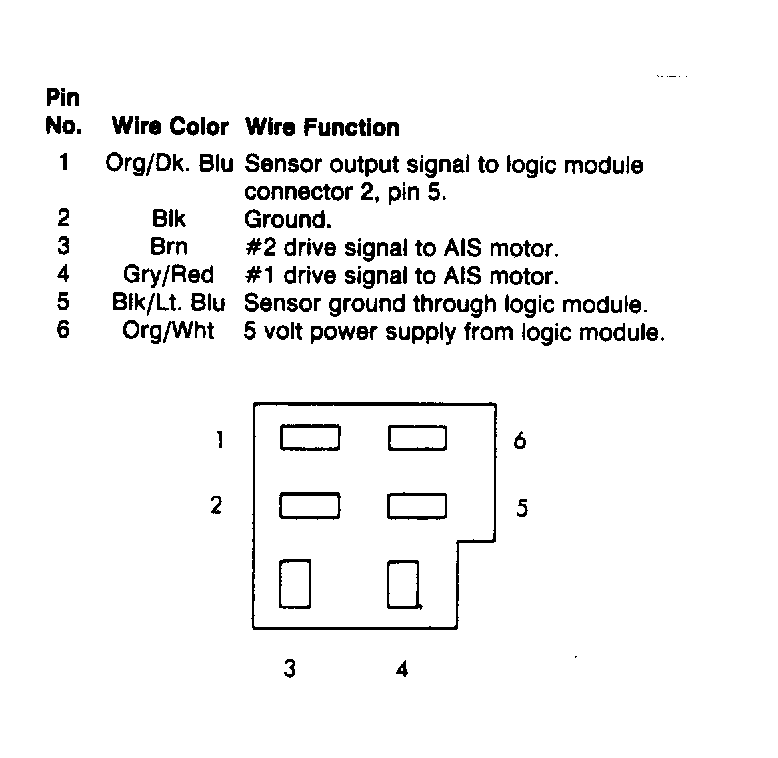

Fig 1: Throttle Position/AIS Motor Terminal Identification

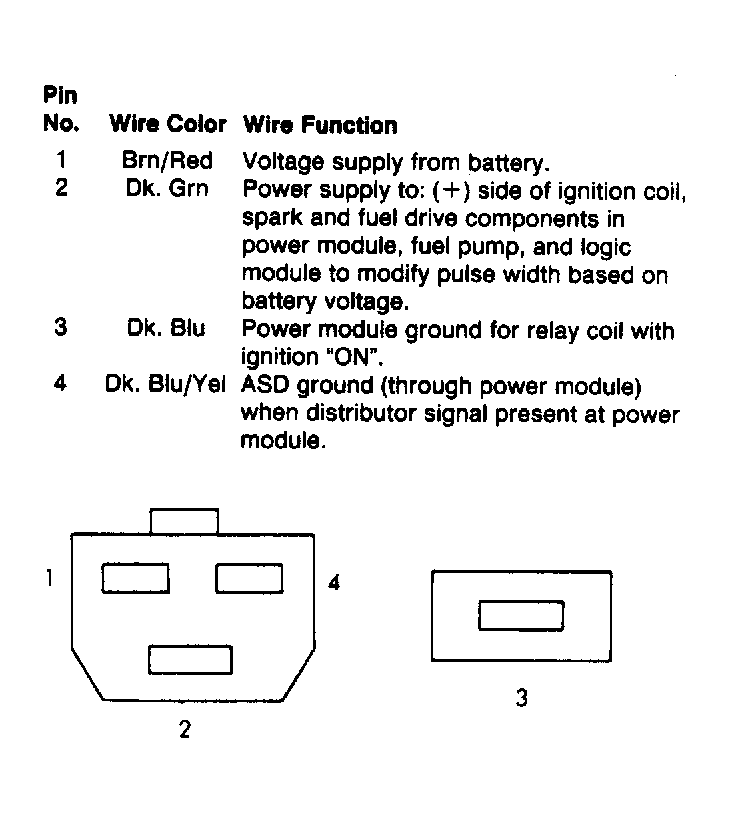

Fig 2: ASD Relay Connector Terminals

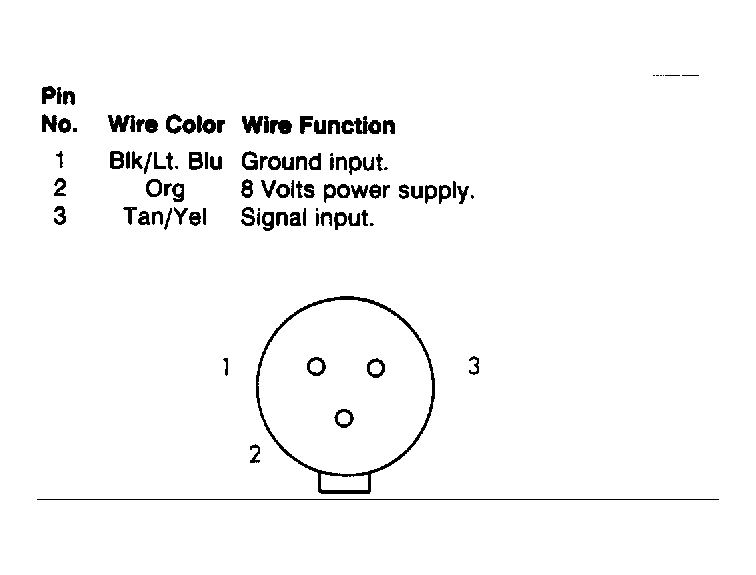

Fig 3: Distributor Connector Terminals

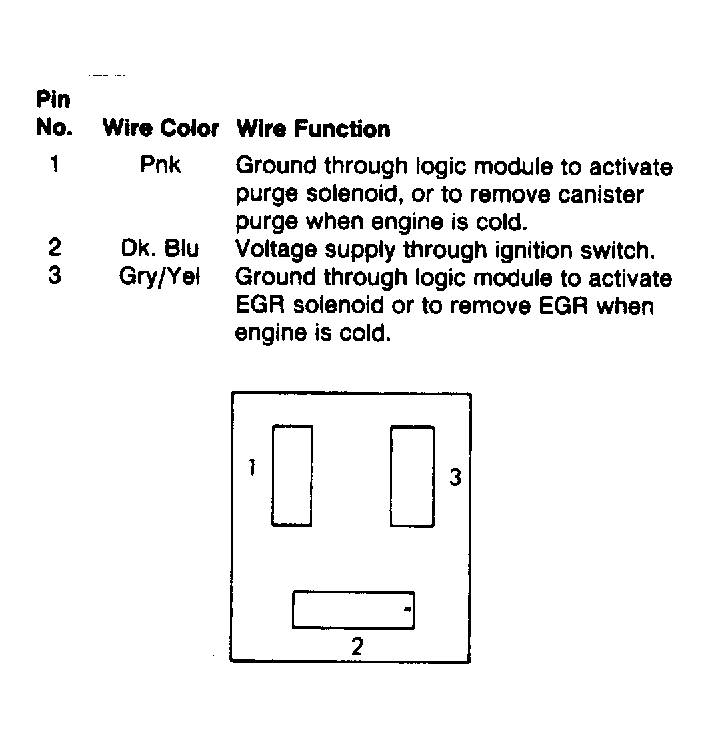

Fig 4: EGR/Purge Solenoid Connector Terminals

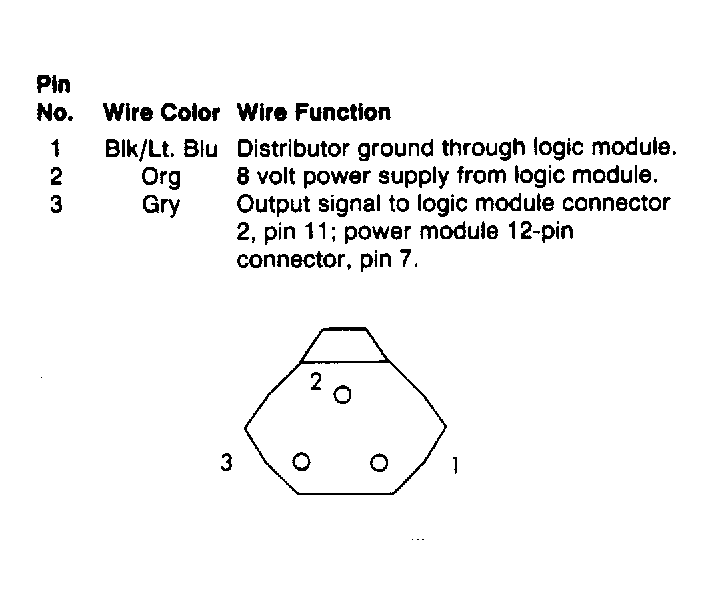

Fig 5: Distributor Synch Pick-up Terminals

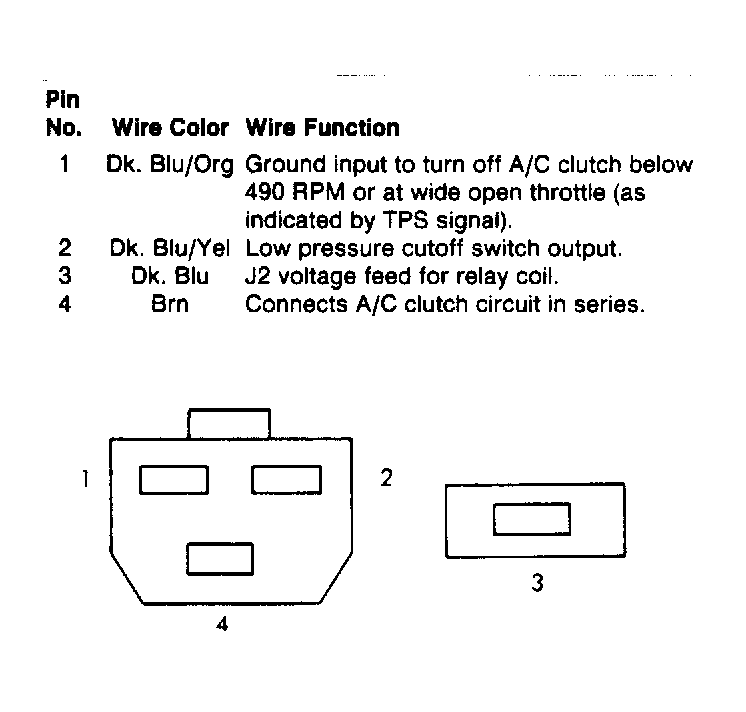

Fig 6: Wide Open Throttle A/C Relay Connector Terminals

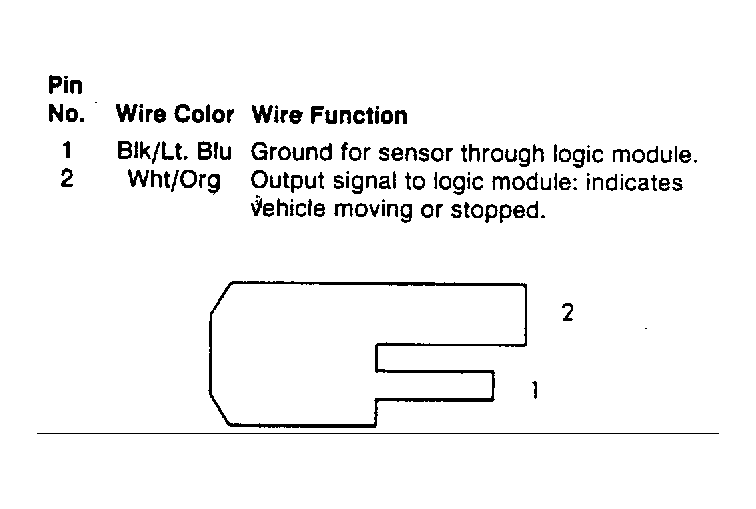

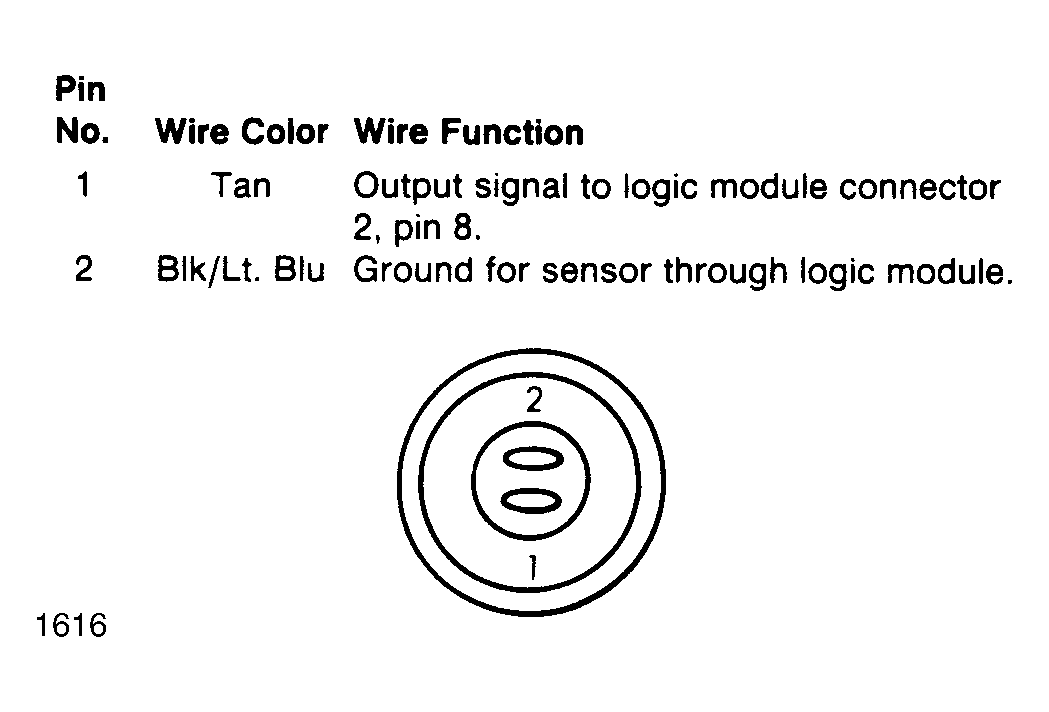

Fig 7: Speed Sensor Connector Terminals

Fig 8: Charge Temperature Sensor Connector Terminals

Fig 9: Coolant Temperature Sensor Connector Terminals

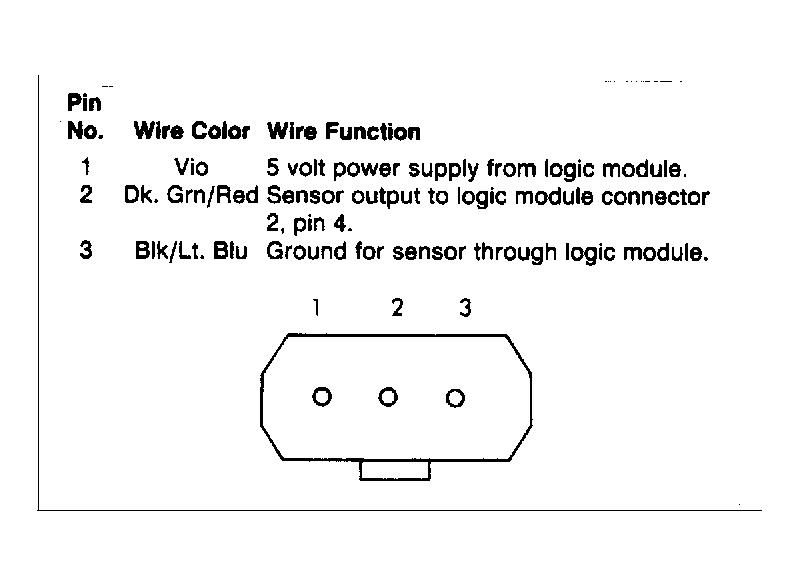

Fig 10: Map Sensor Connector Terminals
