Component Connector Identification Charts

NOTE: Information on this system is also covered in the COMPUTERIZED ENGINE CONTROLS section. Additional diagnostic information that relates strictly to the engine control portion of this system can be found in the CHRYSLER CORP. ELECTRONIC FUEL CONTROL article.

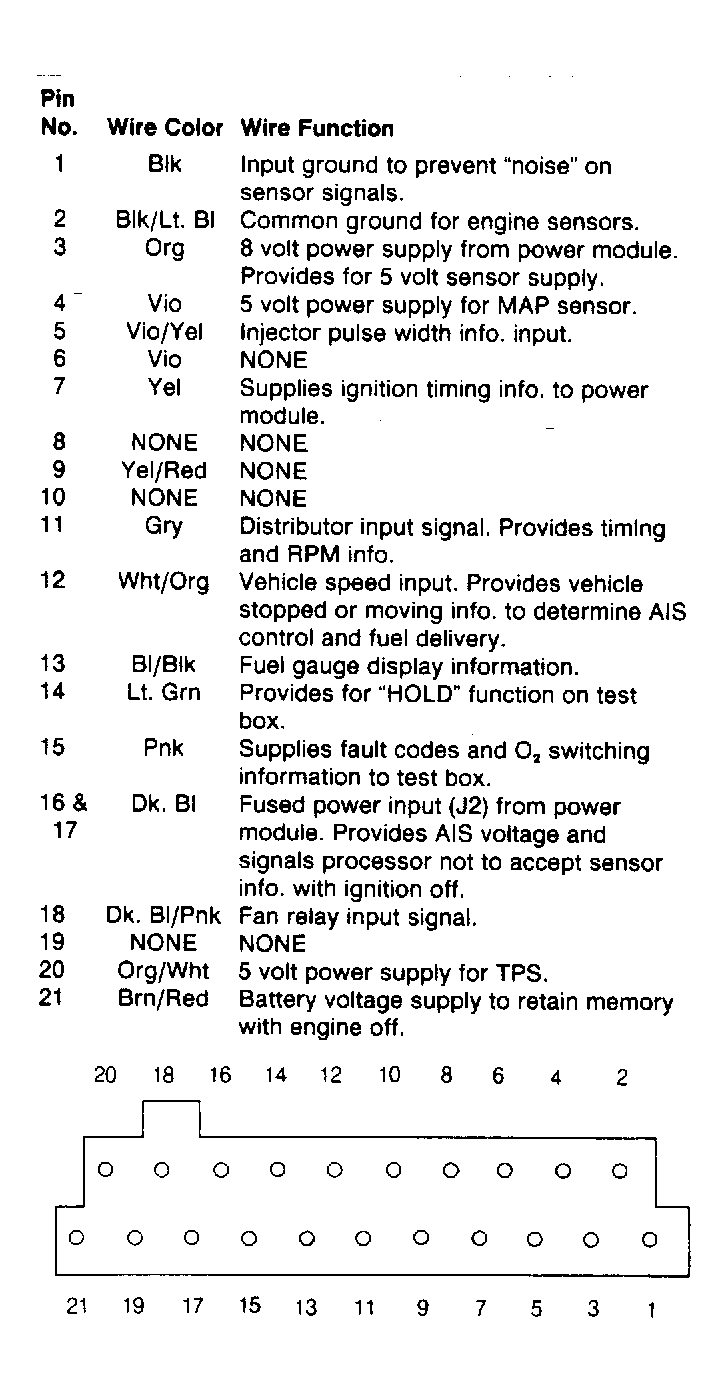

Fig 1: Logic Module Pins - Connector 1

G1621

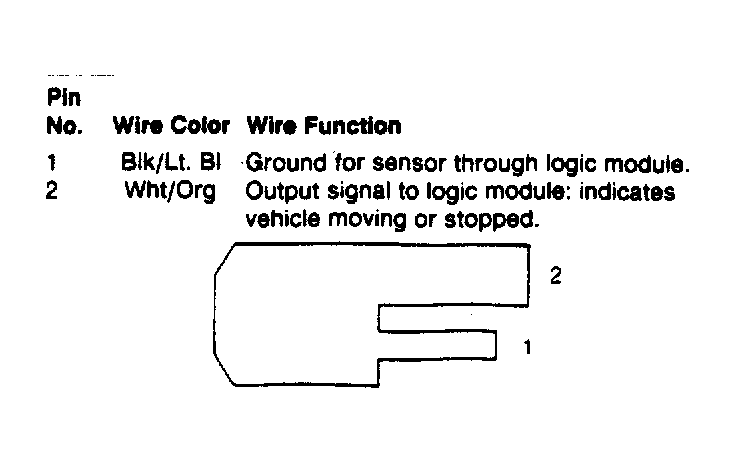

Fig 2: Speed Sensor Connector Terminals

G6476

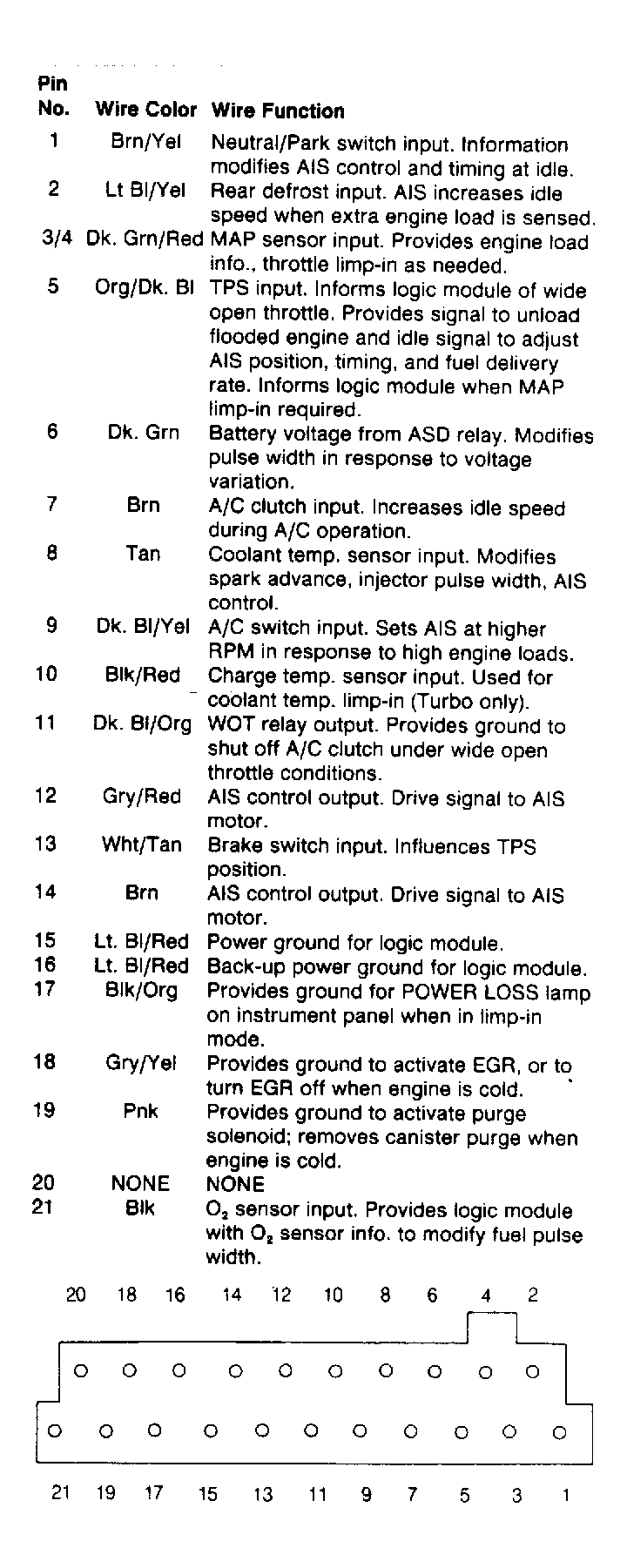

Fig 3: Logic Module Pins - Connector 2

G1622

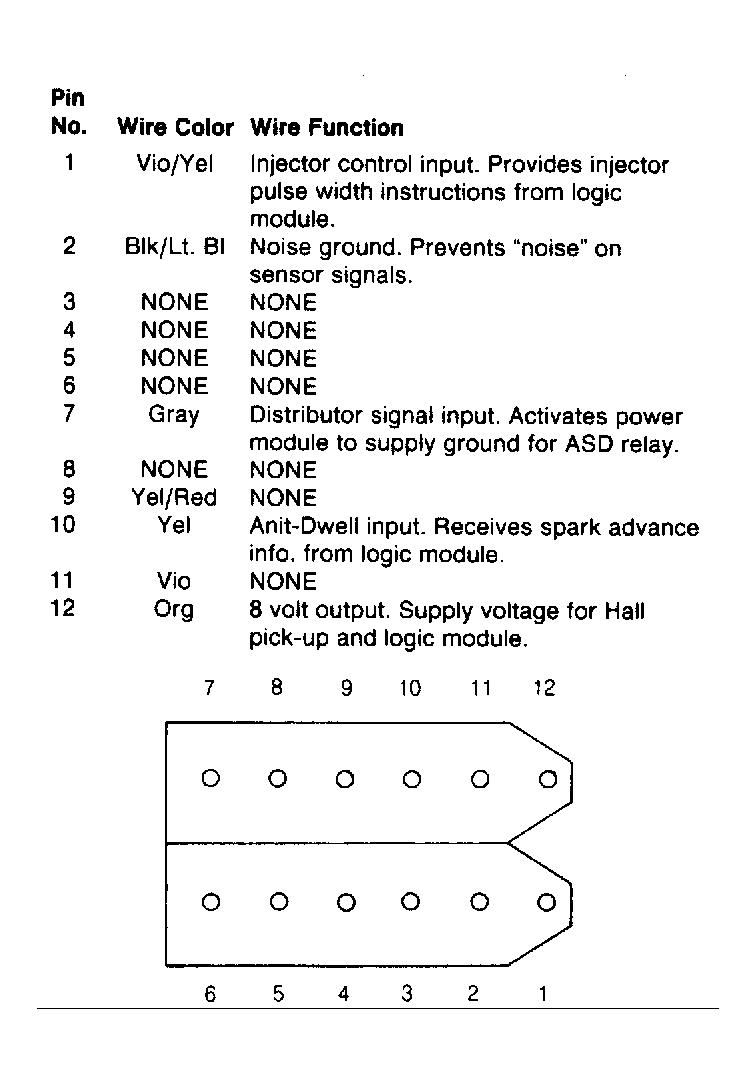

Fig 4: Power Module Pins - 12-Pin Connector

G1623

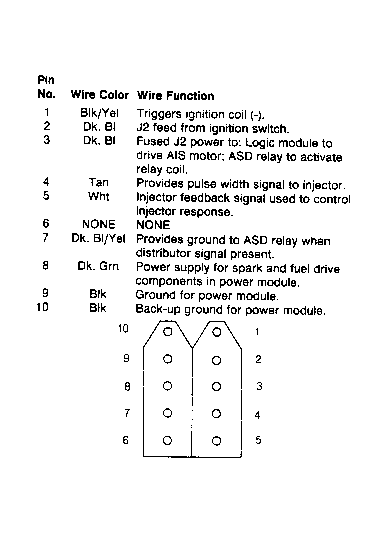

Fig 5: Power Module Pins - 10-Pin Connector

G1624

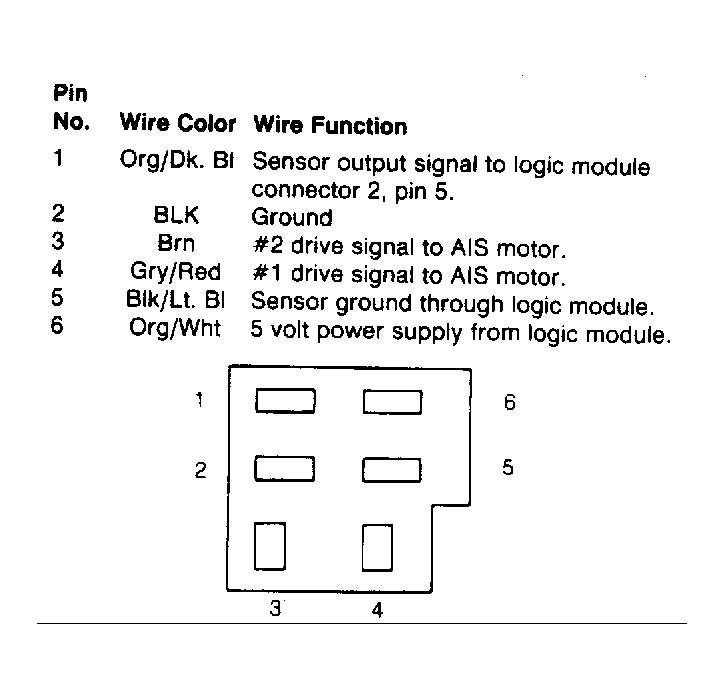

Fig 6: Throttle Position/AIS Motor Connector Terminals

G1625

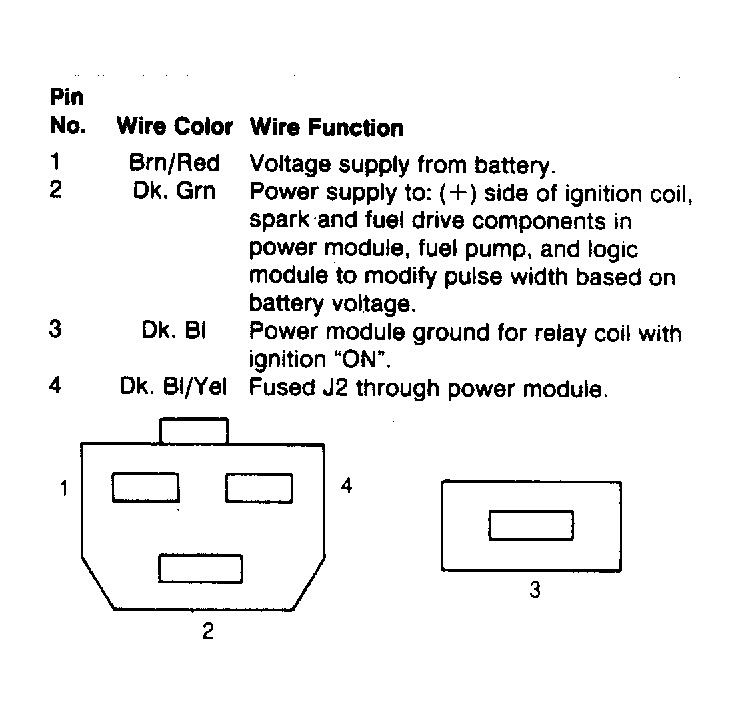

Fig 7: ASD Relay Connector Terminals

G1626

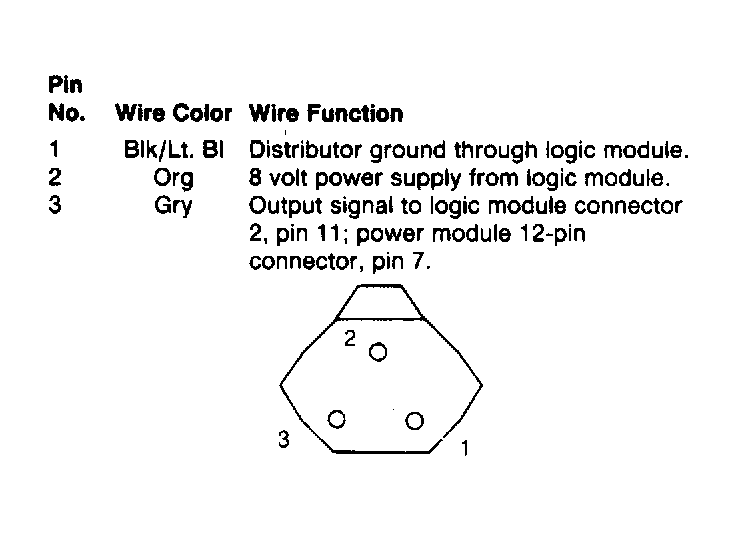

Fig 8: Distributor Connector Terminals

G1627

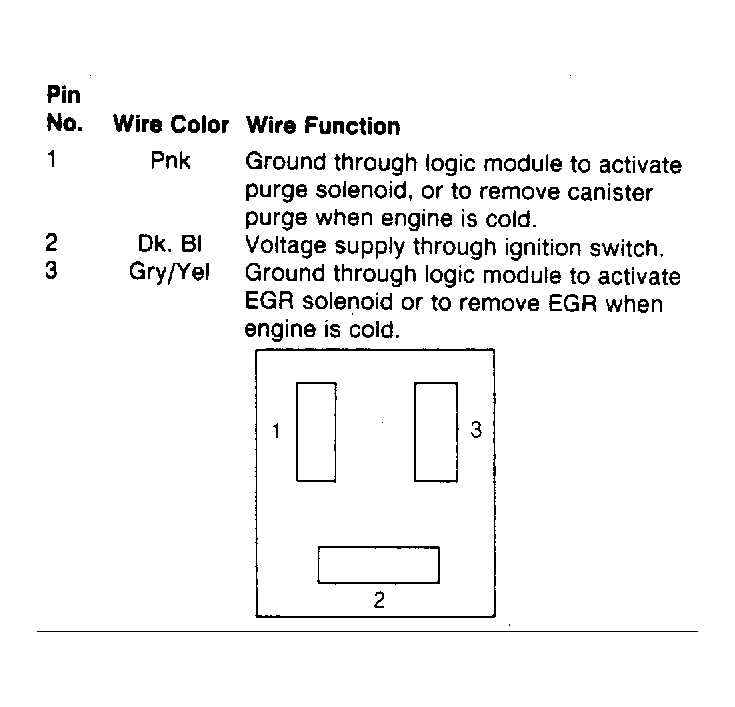

Fig 9: EGR/Purge Solenoid Connector Terminals

G1628

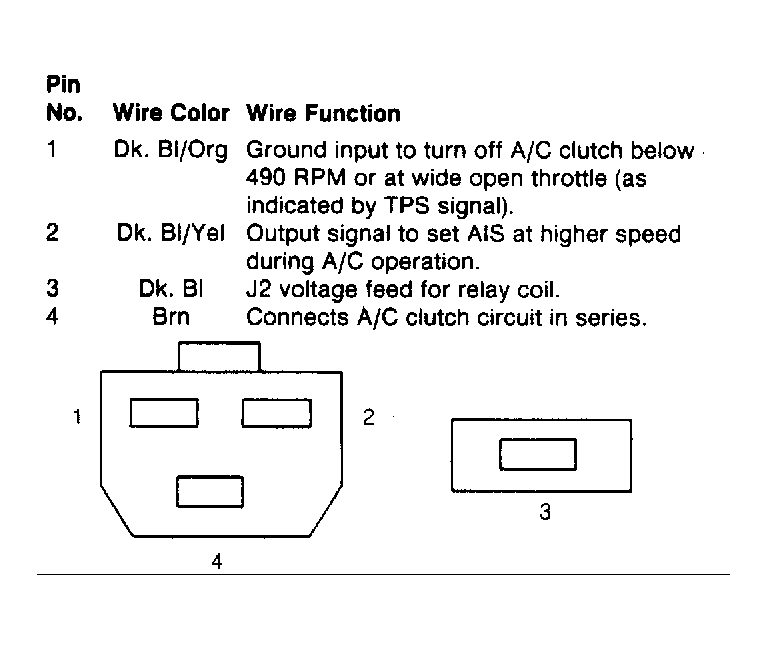

Fig 10: Wide Open Throttle A/C Relay Connector Terminals

G1629

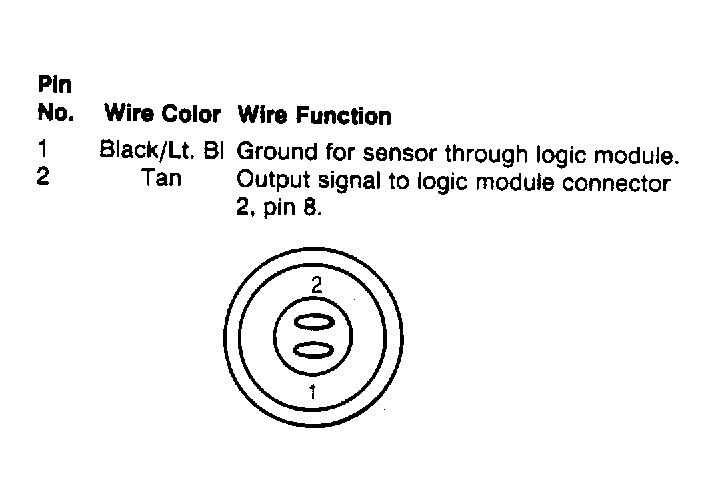

Fig 11: Coolant Temperature Sensor Connector Terminals

G1630

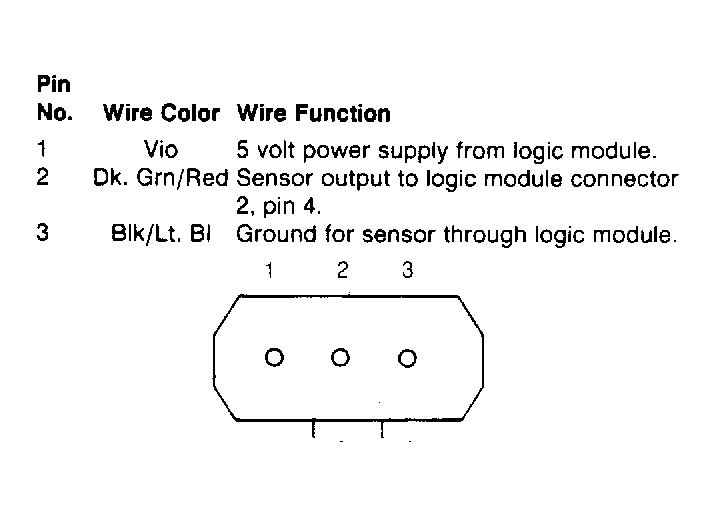

Fig 12: Map Sensor Connector Terminals (All Models)

G1631
