Pick-Up Coil Resistance

Connect an ohmmeter to terminals shown in Fig 1 . With ignition switch "OFF", resistance should read 920-1120 ohms. If not, replace pick-up coil assembly.

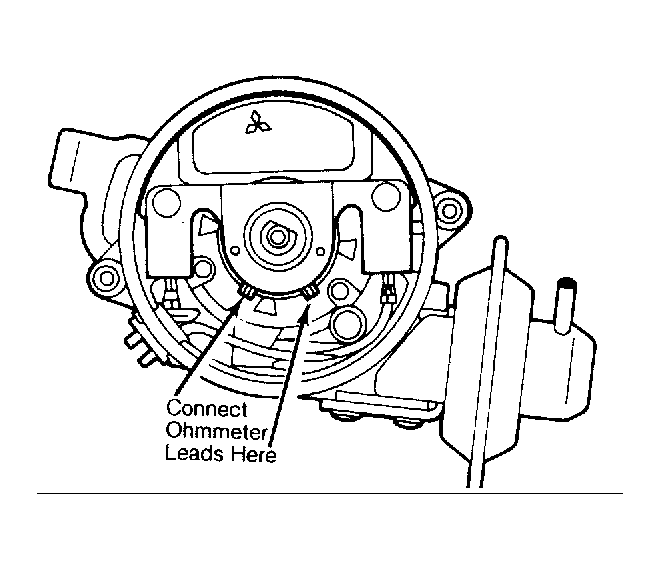

Fig 1: Measuring Pick-Up Coil Resistance
G684
