Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

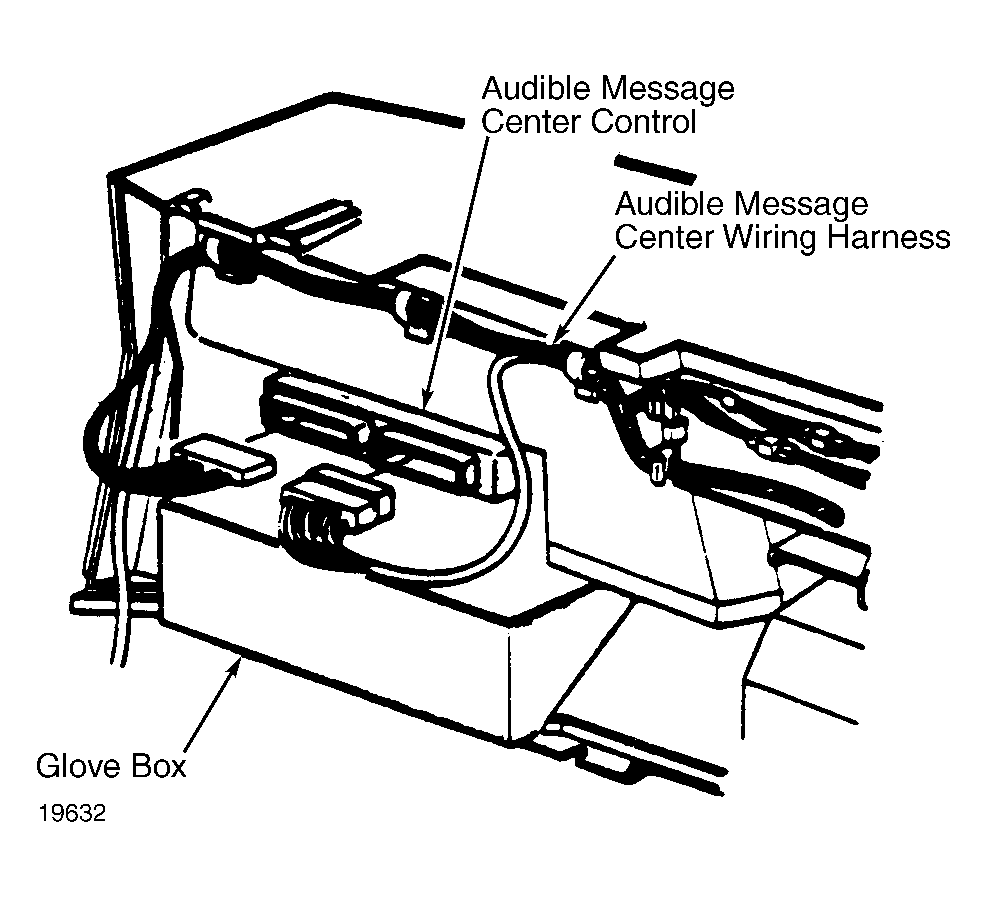

| Audible Message Center Control | Under dash above glove box. See Figure. |
| Chime Module | Behind glove box under instrument panel. |
| EFI Logic Module | On right kick panel. See Figure. |
| EFI Power Module | In front left corner of engine bay. |
| Turbo Boost Vacuum Module | On right kick panel above logic module. |
