Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| A/C-Heater Blower Motor Resistor | On heater box. |
| Air Horn Compressor | On right rear of radiator support. |

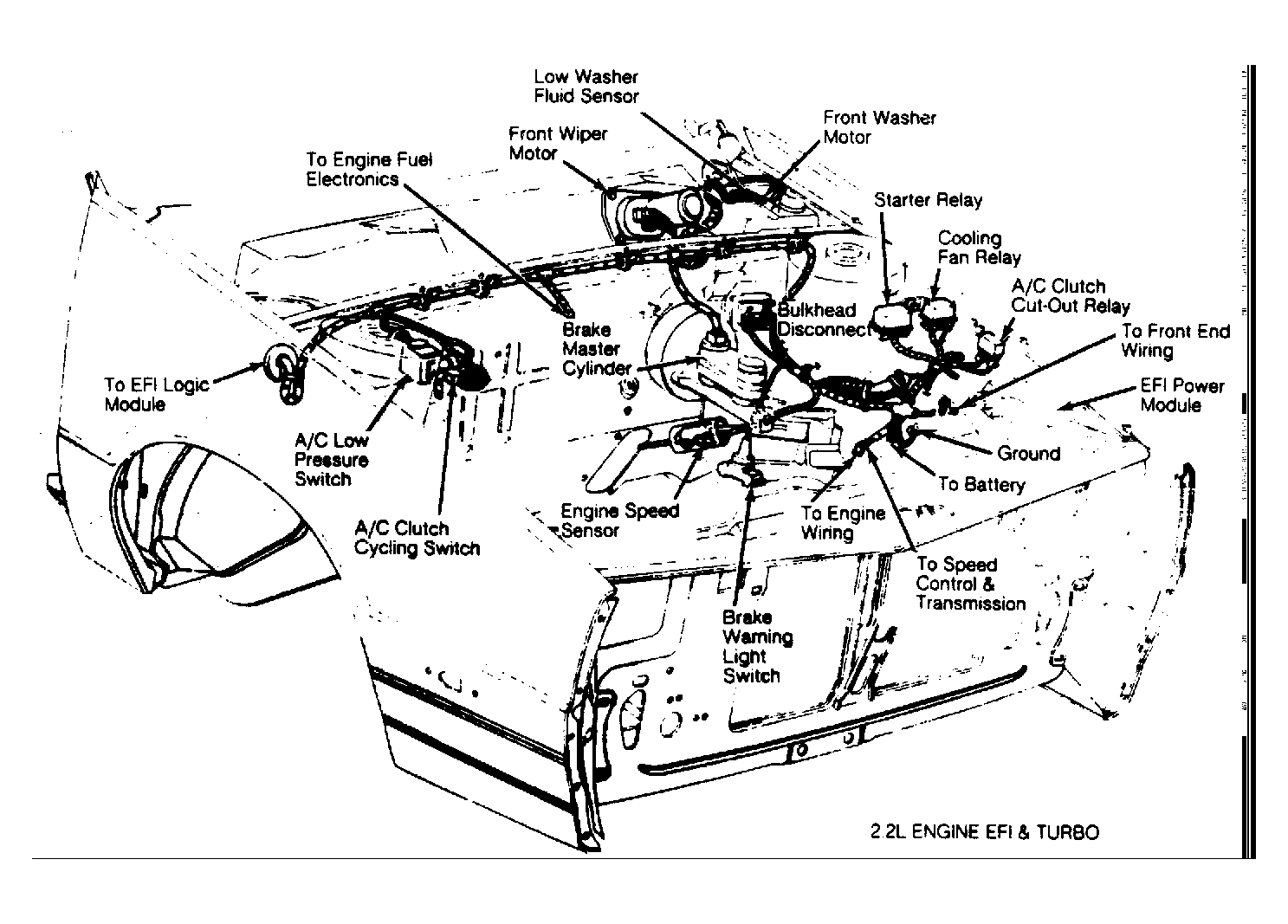

| Bulkhead Disconnect | At left rear of engine bay. See Figure. |
| Diagnostic Connector | On right inner fender panel. |

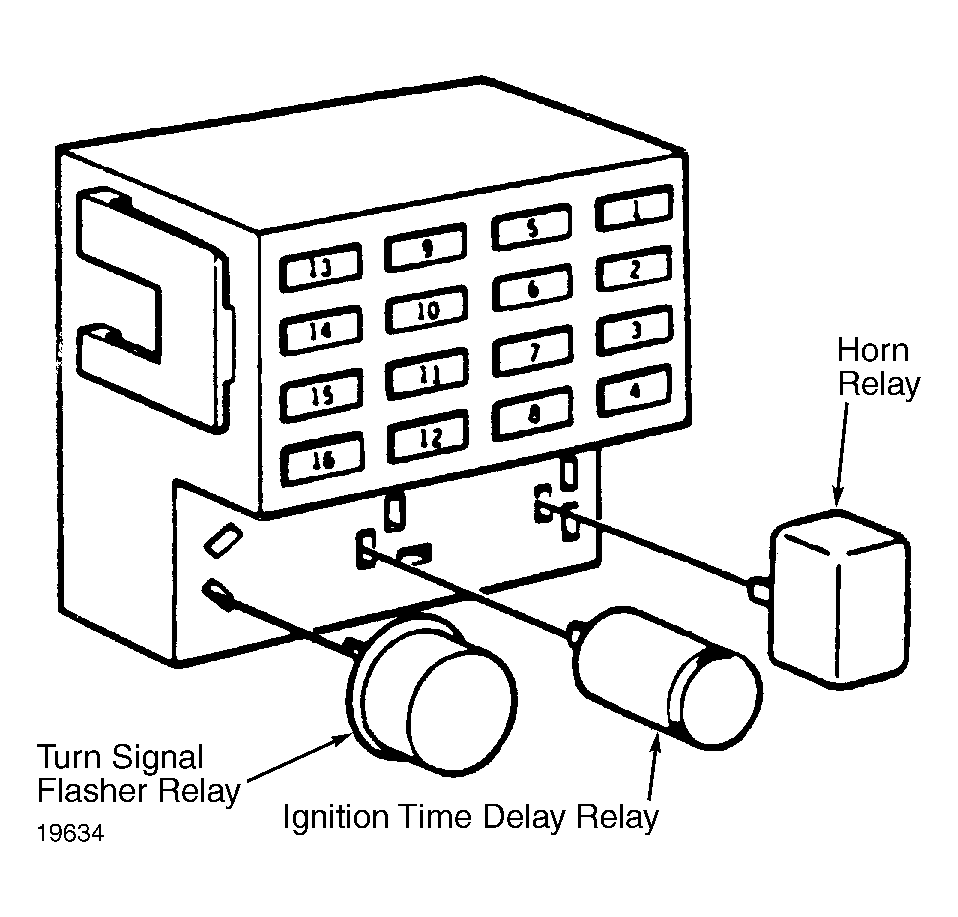

| Fuse & Relay Block | On left kick panel. See Figure. |
| Fusible Links | On right inner fender panel below starter relay. |
| Liftgate Release Circuit Breaker | In fuse and relay block cavity No. 14. |
| Power Seat/Power Door Lock Circuit Breaker | In fuse and relay block cavity No. 8. |
| Power Window Circuit Breaker | In fuse and relay block cavity No. 3. |
