Wiring Diagrams

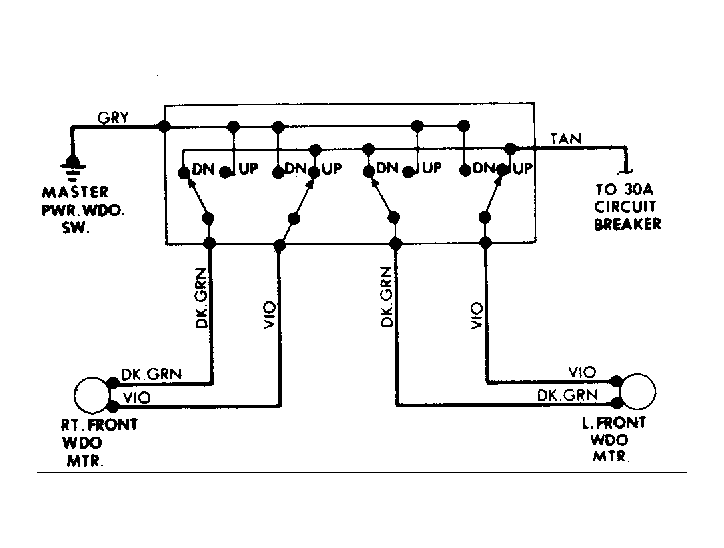

Fig 1: All RWD & LeBaron & Lancer Hatchback Power Window Schematic

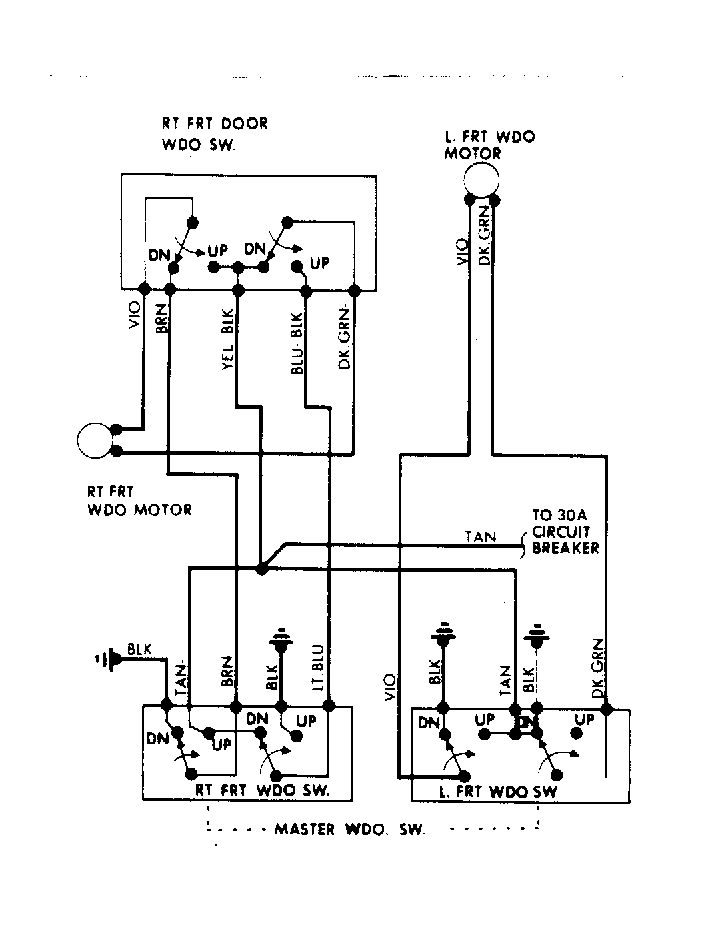

Fig 2: Aries and Reliant Power Window Schematic

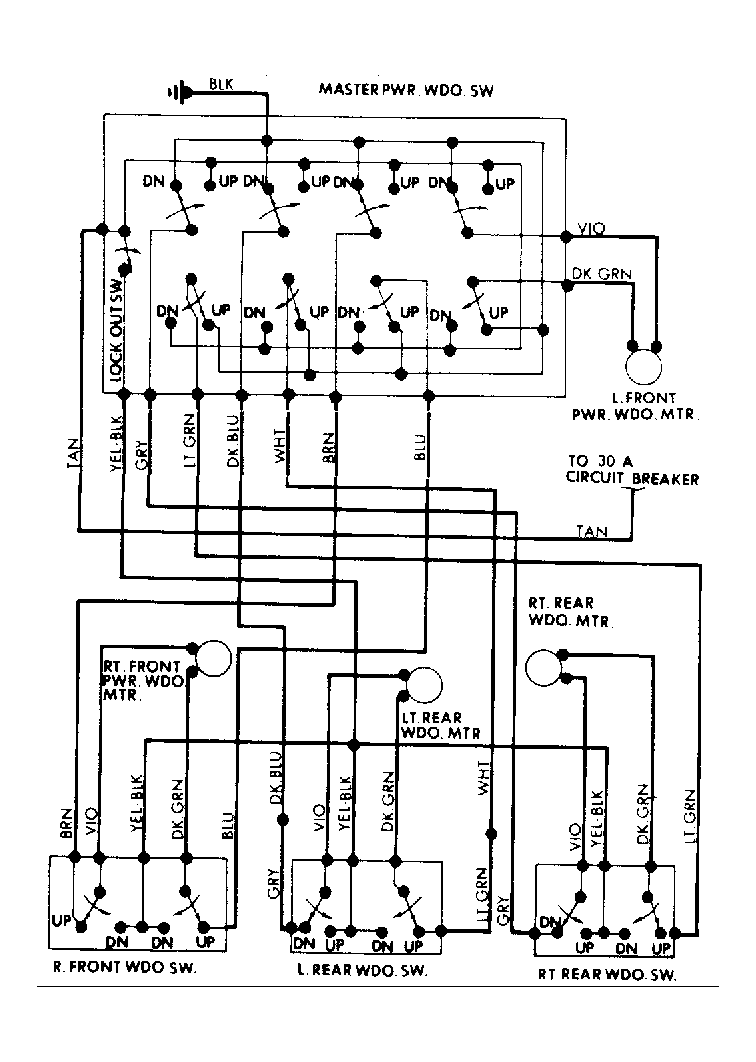

Fig 3: Daytona and Laser Power Window Schematic

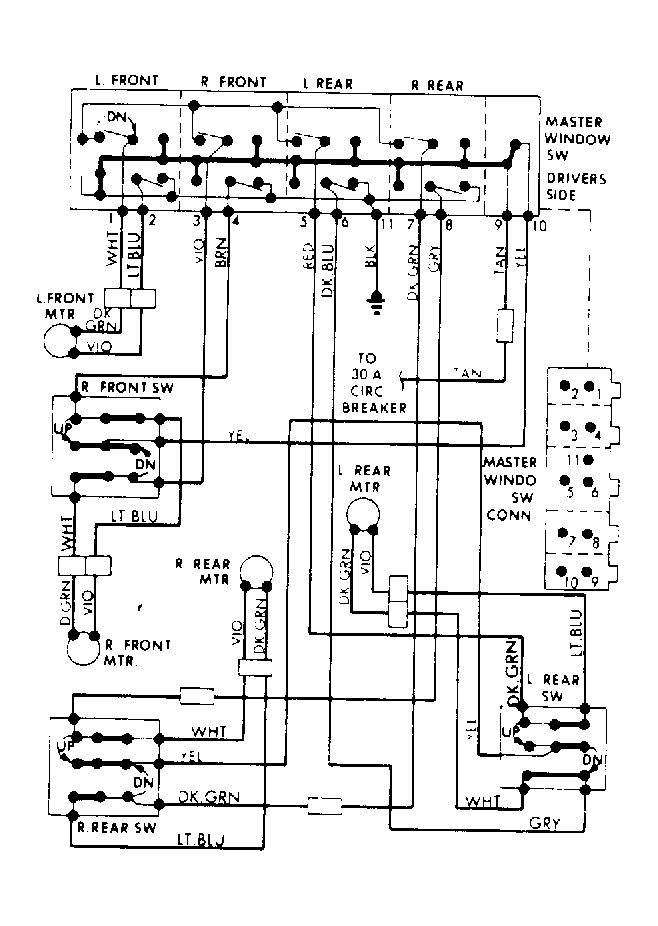

Fig 4: LeBaron and 600 Convertible Power Window Schematic

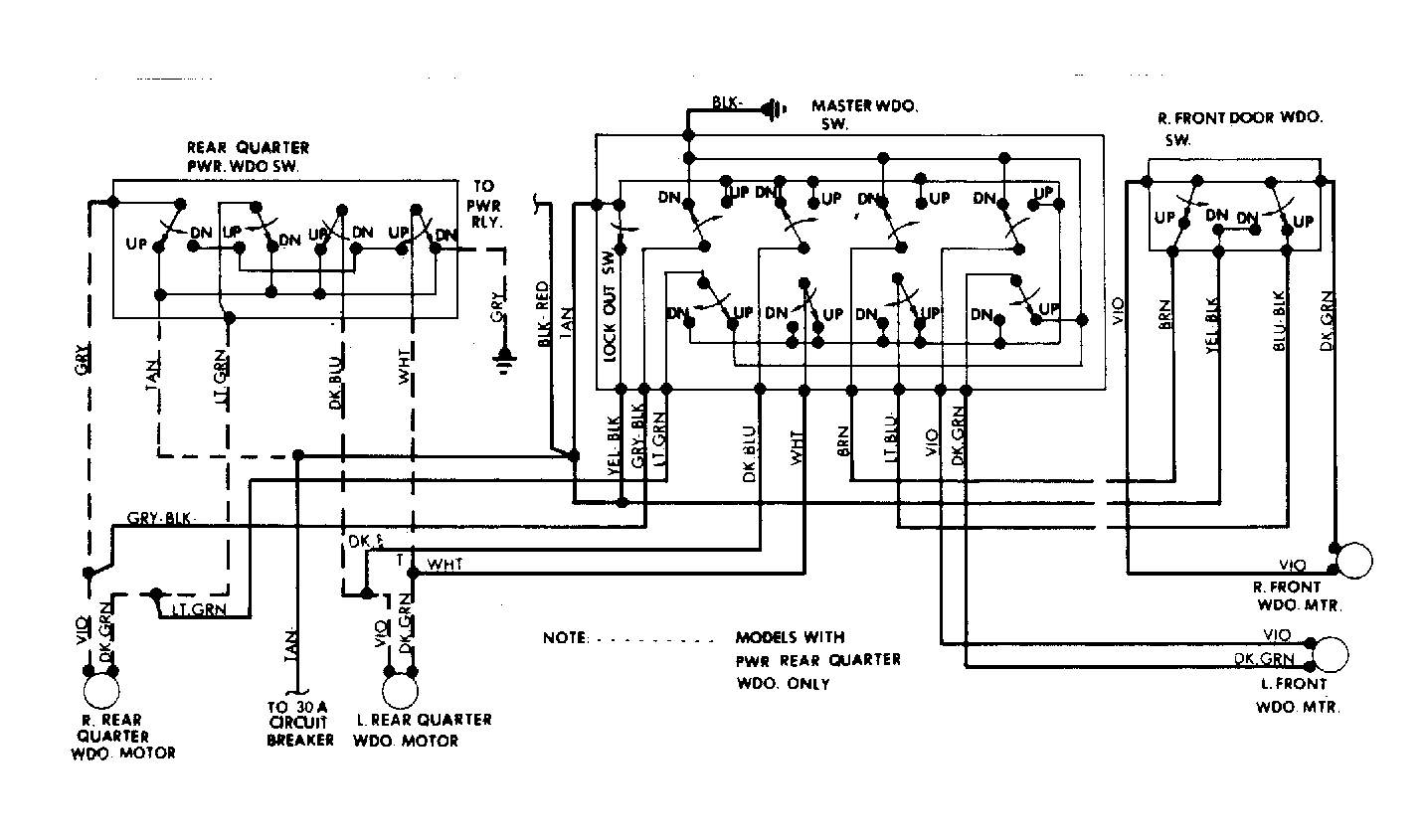

Fig 5: LeBaron and 600 Sedan and Wagon Power Window Schematic

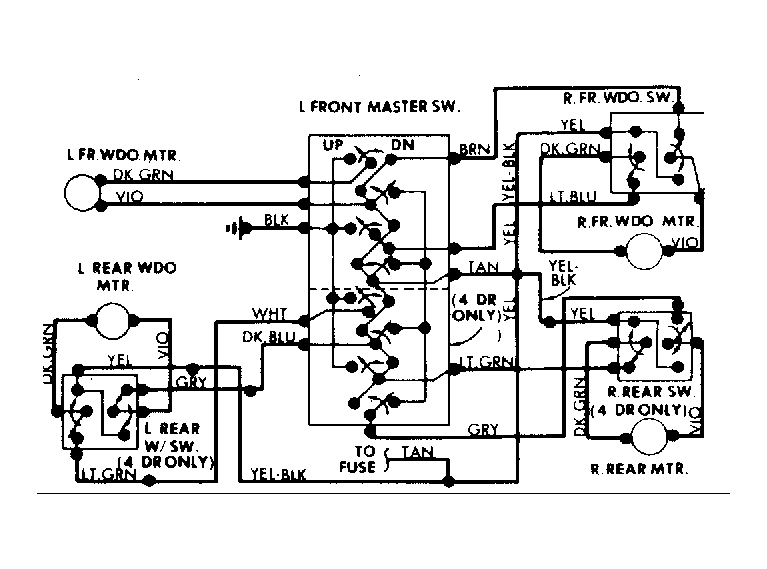

Fig 6: LeBaron and 600 Special Hardtop Power Window Schematic
