Connector Id Charts

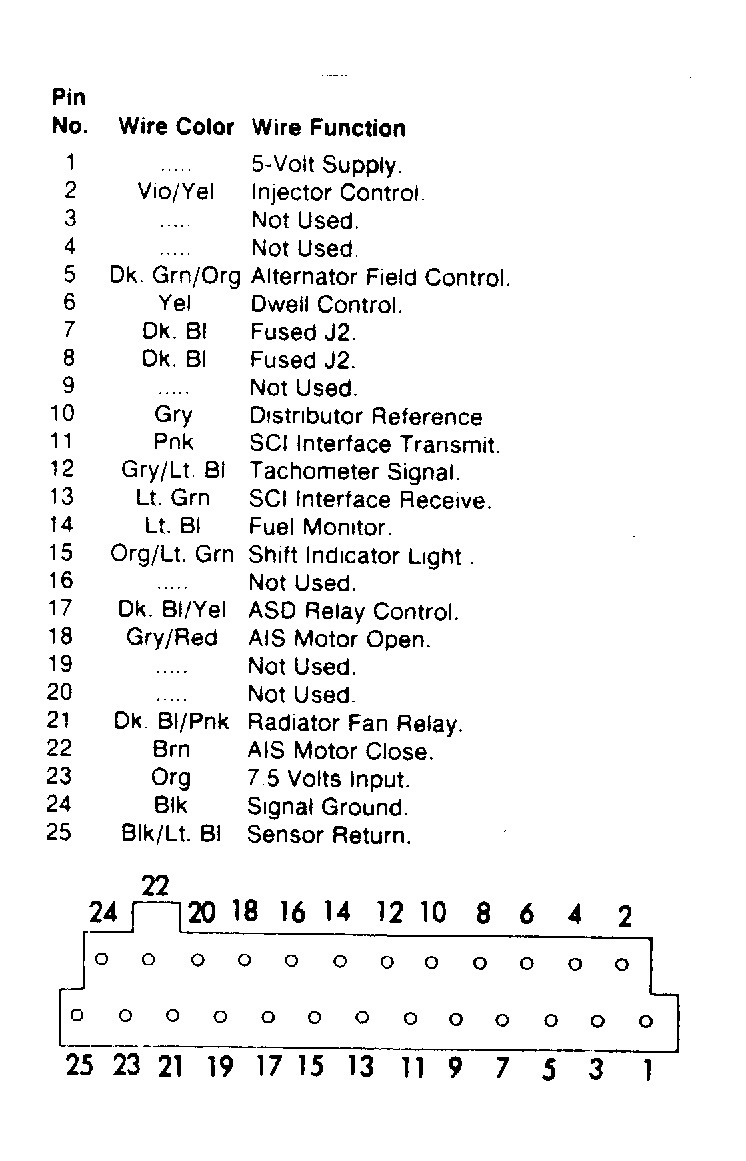

Fig 1: Logic Module Pins - Connector 1 (Non-Turbo)

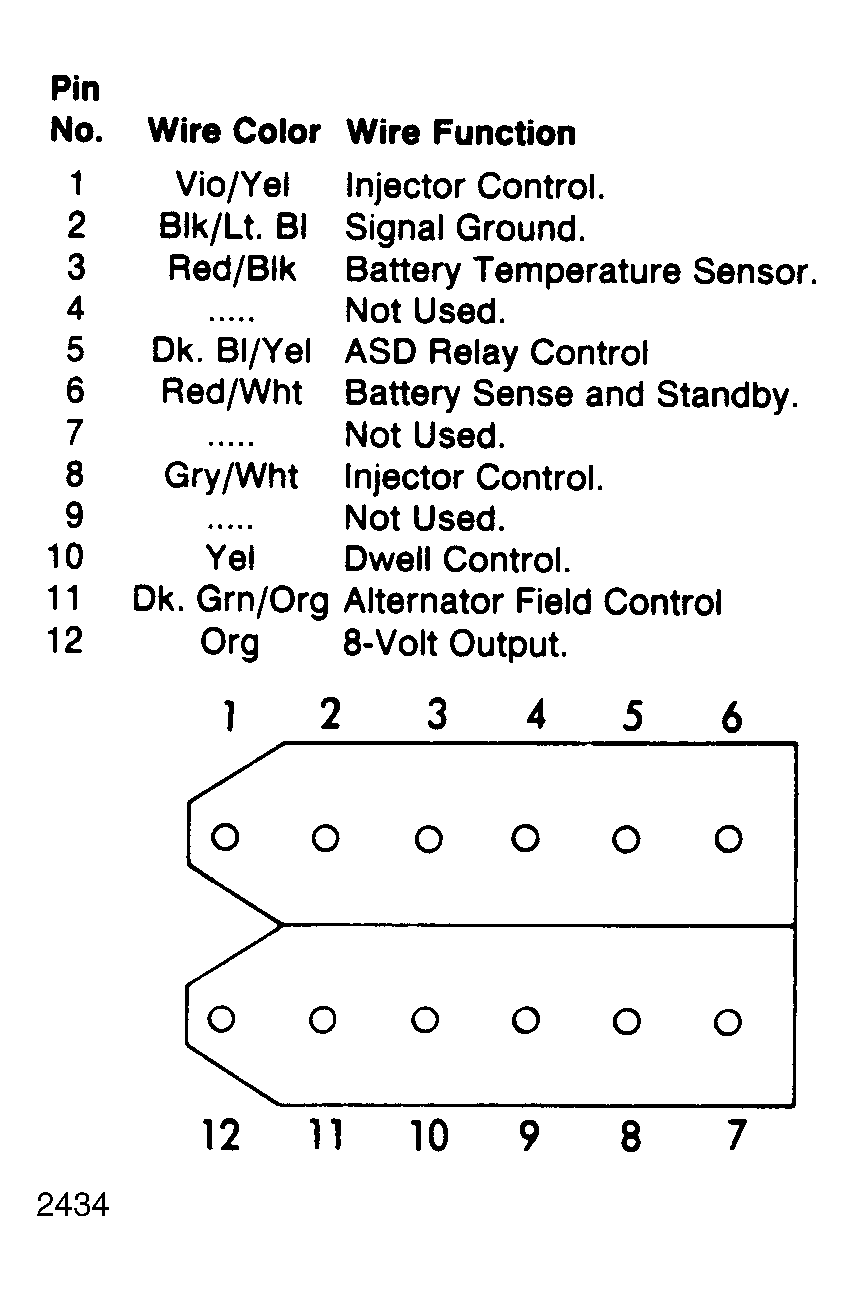

Fig 2: Power Module Pins - 12-Pin Connector (Non-Turbo)

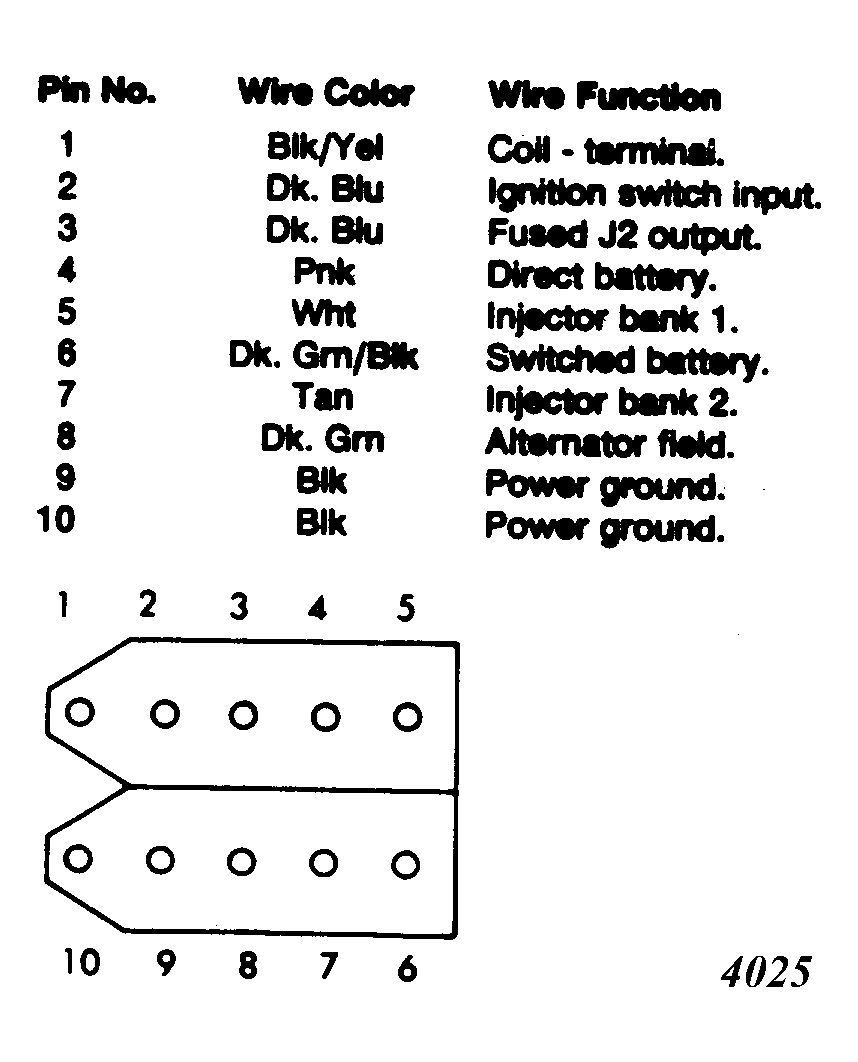

Fig 3: Power Module Pins - 10-Pin Connector (Non-Turbo)

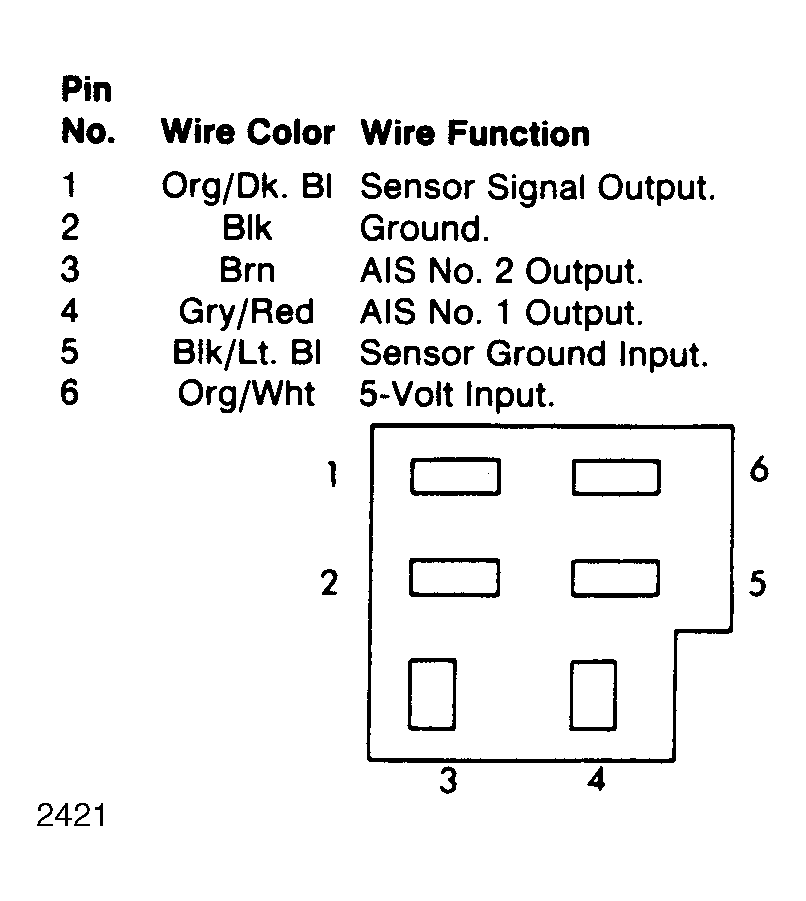

Fig 4: Throttle Position/AIS Motor Connector Terminals (All)

Fig 5: ASD Relay Connector Terminals (All Models)

Fig 6: Distributor Connector Terminals (All Models)

Fig 7: Purge Solenoid Connector Terminals (Non-Turbo)

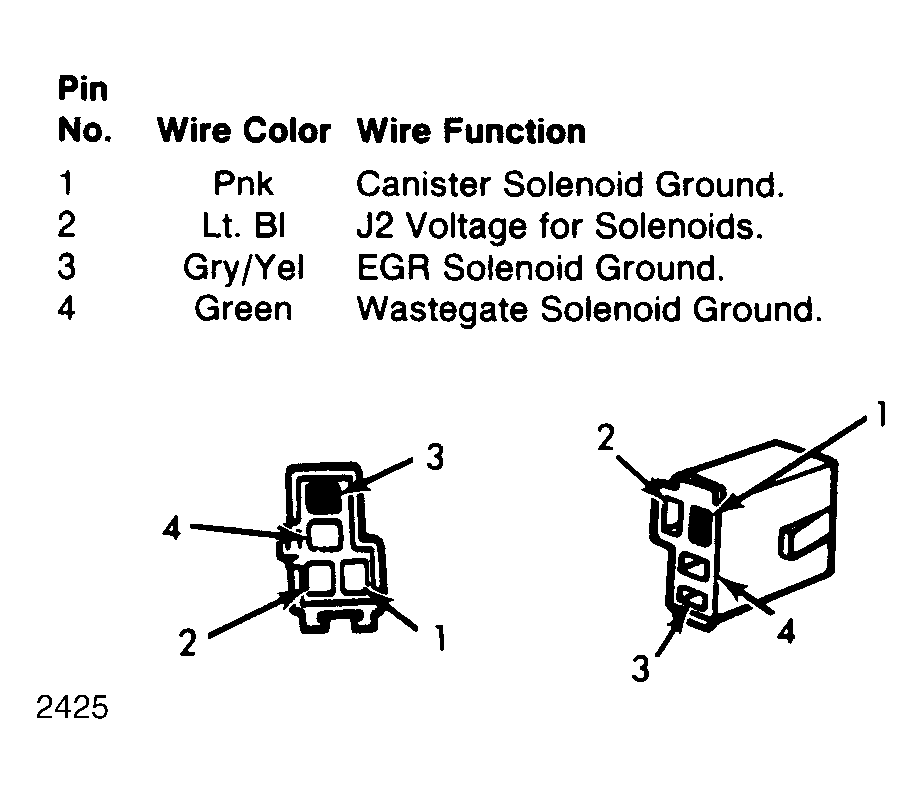

Fig 8: EGR/Purge Solenoid Connector Terminals (Turbo)

Fig 9: Wide Open Throttle A/C Relay Connector Terminals (All)

Fig 10: Speed Sensor Connector Terminals (All Models)

Fig 11: Charge Temperature Sensor Connector Terminals (Turbo)

Fig 12: Coolant Temperature Sensor Connector Terminals (All)

Fig 13: MAP Sensor Connector Terminals (Non-Turbo)

Fig 14: MAP Sensor Connector Terminals (Turbo)

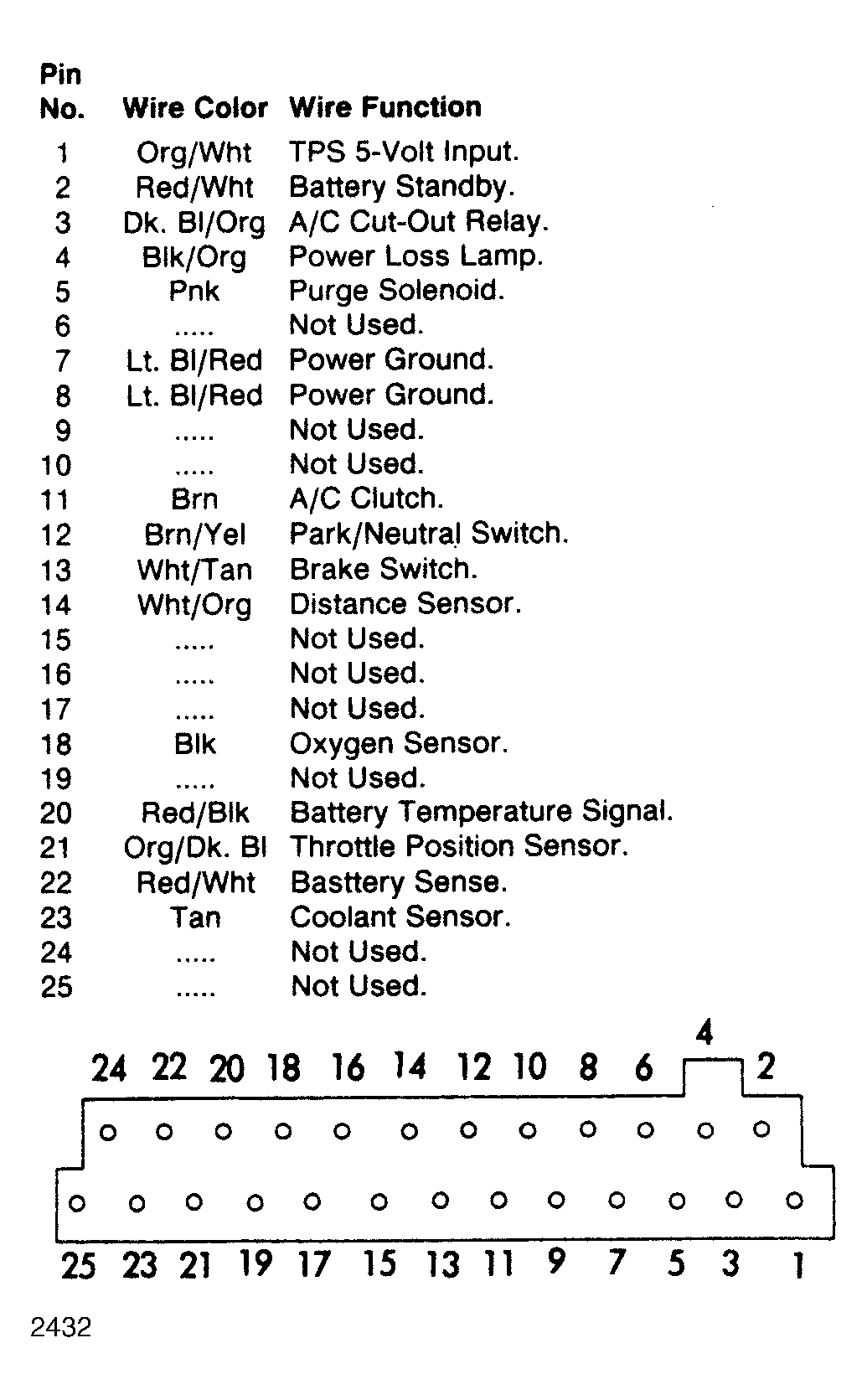

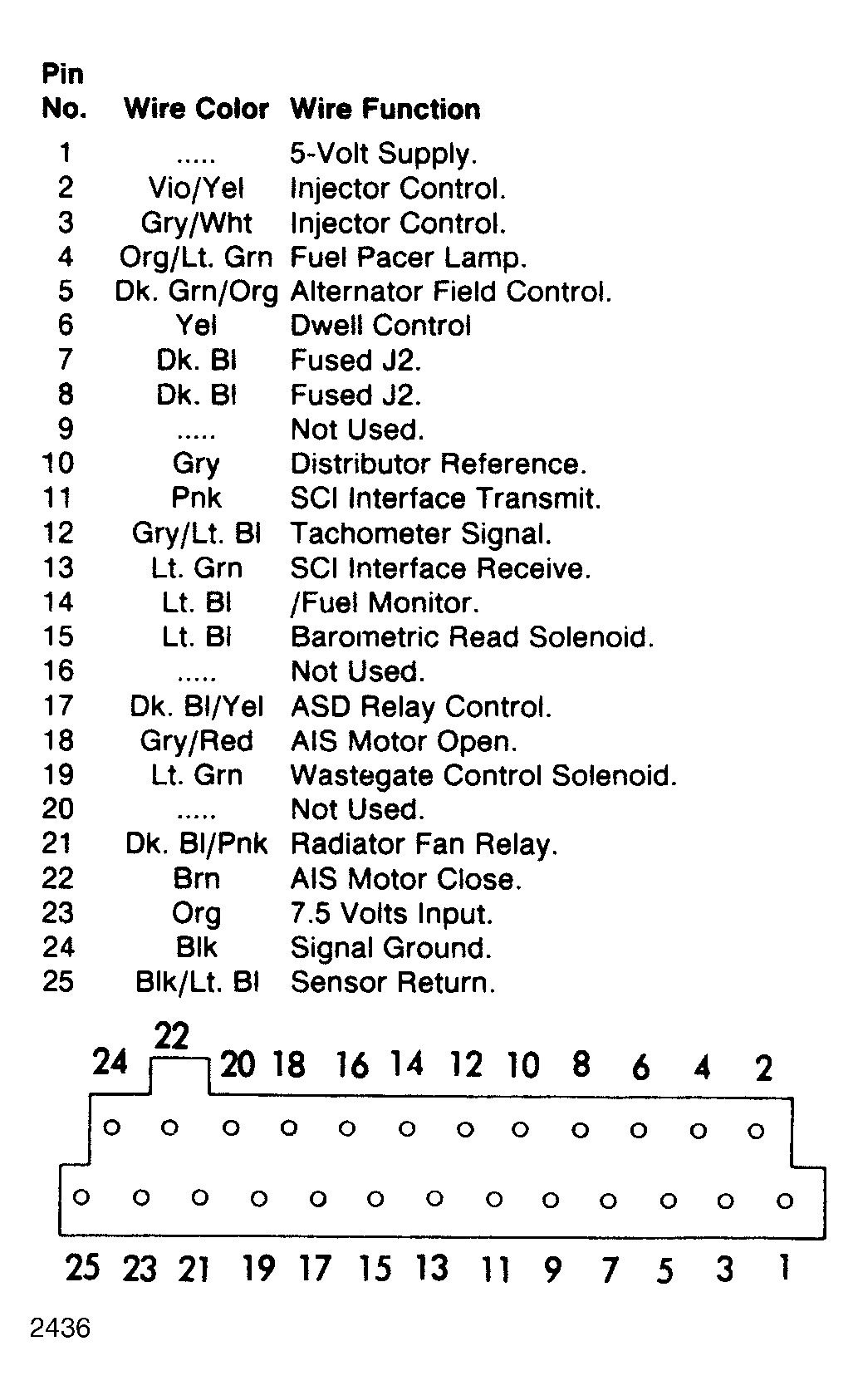

Fig 15: Logic Module Pins - Connector 2 (Non-Turbo)

Fig 16: Logic Module Pins - Connector 2 (Turbo)

Fig 17: Power Module Pins - 12-Pin Connector (Turbo)

Fig 18: Power Module Pins - 10-Pin Connector (Turbo)

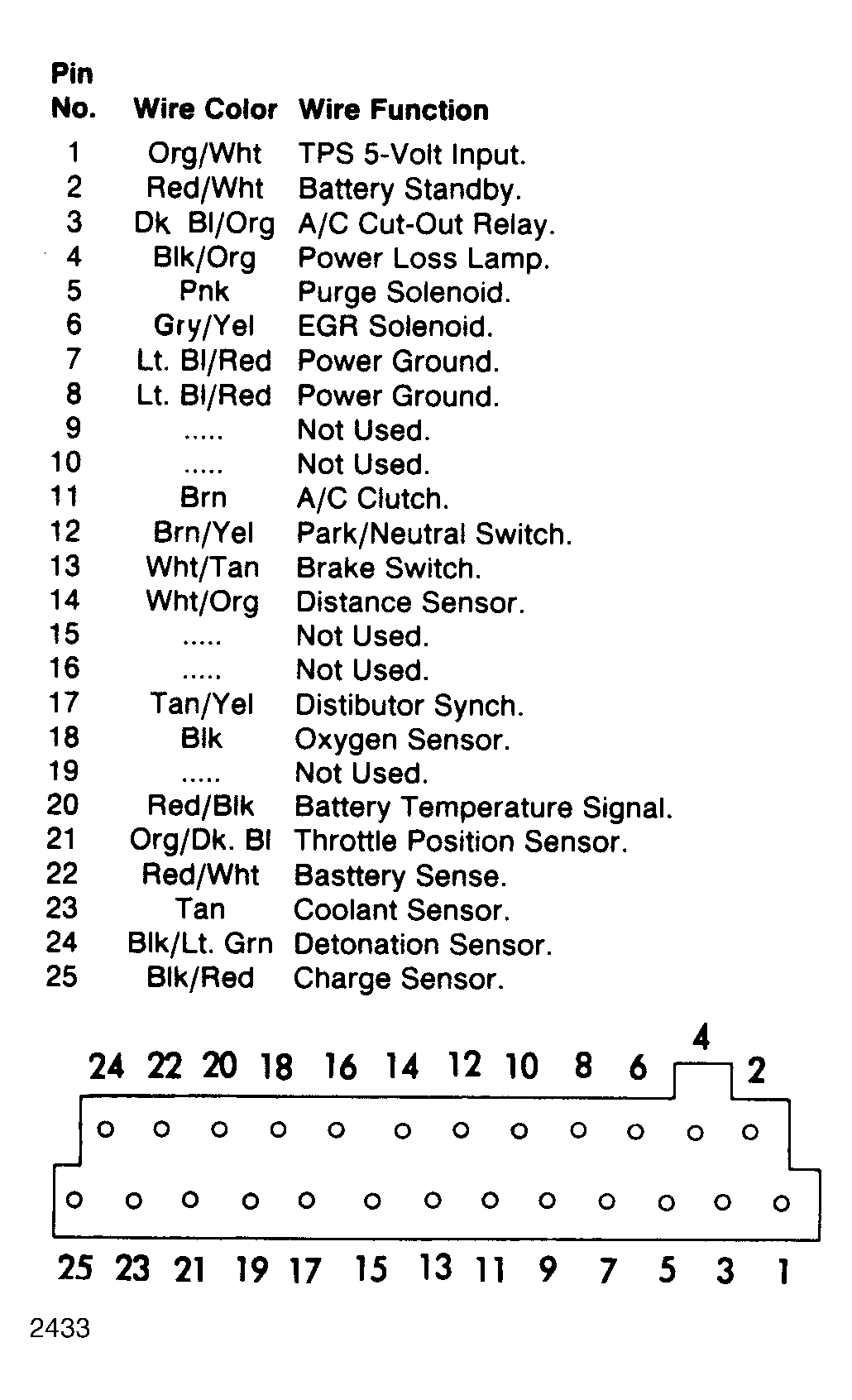

Fig 19: Logic Module Pins - Connector 1 (Turbo)

POWER LOSS LAMP I/P CIRCUIT BOARD - (NON-TURBO)

Pin No.	Wire Color	Wire Function
10	Dark Blue	Ignition Switch Input
34	Black/Orange	Ground Input

Fig 20: Oxygen Sensor Connector Terminals (Non-Turbo)

Fig 21: Distributor Synchronizer Connector Terminals (Turbo)
