Fuel Injection System - TBI: Description

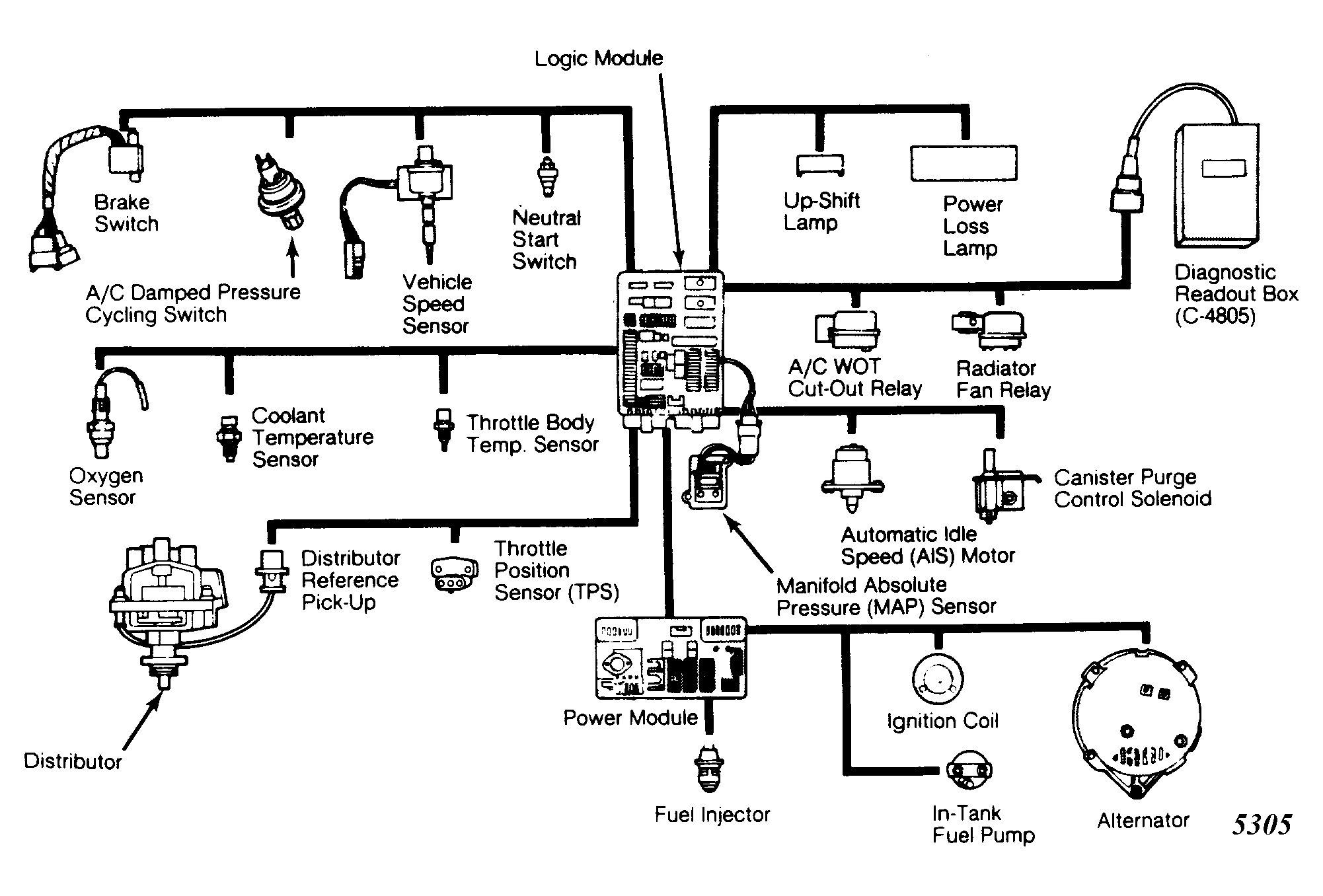

Chrysler Corp. throttle body fuel injection system is controlled by pre-programmed digital computer (logic module). Logic module controls ignition timing, emission control devices, idle speed and air/fuel ratio. Logic module converts input signals from sensors and switches into control signals.
Input sensors used by logic module are Manifold Absolute Pressure (MAP) Sensor, Throttle Position (TPS) Sensor, oxygen sensor, coolant temperature sensor, throttle body temperature sensor and vehicle distance sensor. Switches used include idle switch, neutral safety switch, A/C clutch switch and brake light switch.
Control (output) signals from logic module are sent to power module. Power module then sends electrical signal to appropriate component in order to alter mixture and/or ignition timing. Amount of fuel metered through injector is controlling factor in air/fuel ratio.
