Magnetic Pick-Up Coil Resistance Test

Turn ignition off. Set ohmmeter to x100 scale. Attach leads to pick-up coil's distributor connector terminals. See Fig 1. Compare resistance readings obtained with table. See PICK-UP COIL RESISTANCE table.

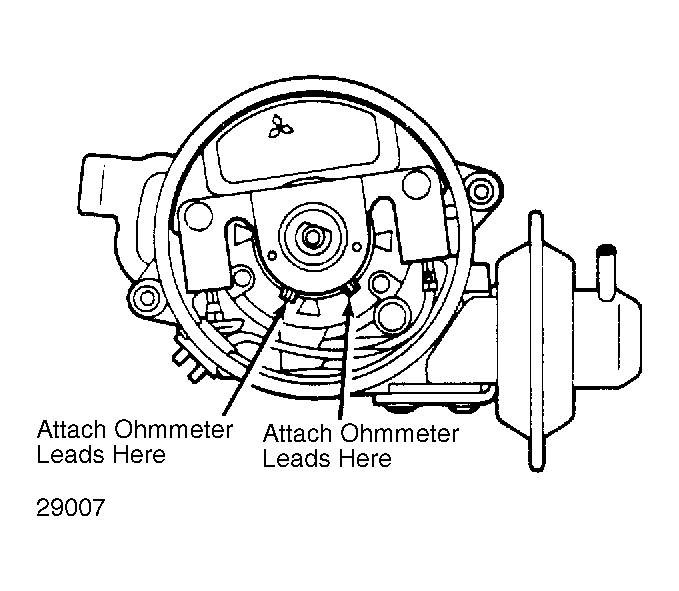

Fig 1: Checking Pick-Up Coil Resistance

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

PICK-UP COIL RESISTANCE

Application

Ohms

Chrysler Motors⁽¹⁾

920-1120

⁽¹⁾	Chrysler Motors and Mitsubishi 2.0L specification is 130-190 ohms.
