Crank Angle Sensor

See TESTS W/CODES article.

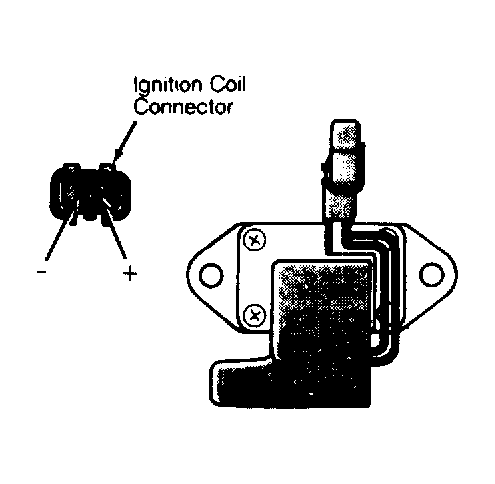

Fig 1: Ignition Coil Terminal ID (Colt & Colt Wagon 1.5L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

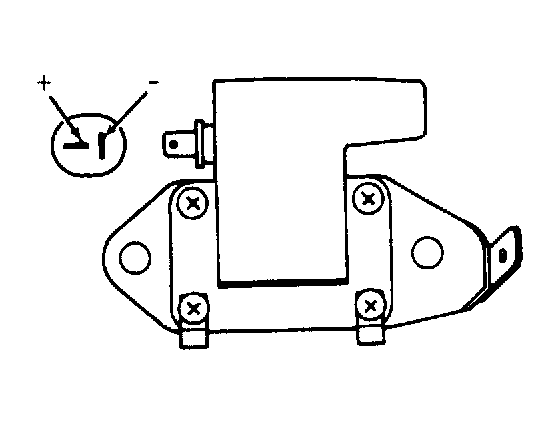

Fig 2: Ignition Coil Terminal Identification (Colt 1.6L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Ignition Coil Terminal ID (Colt Vista & Raider 3.0L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

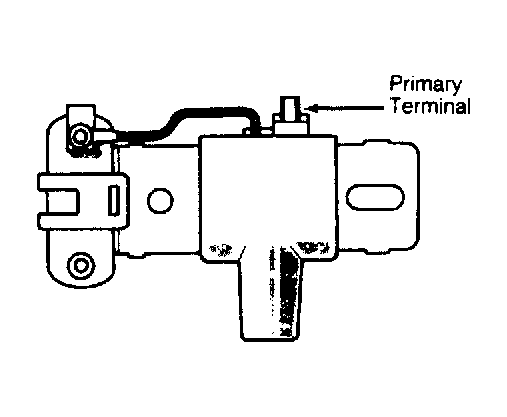

Fig 4: Ignition Coil Terminal Identification (Ram-50)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

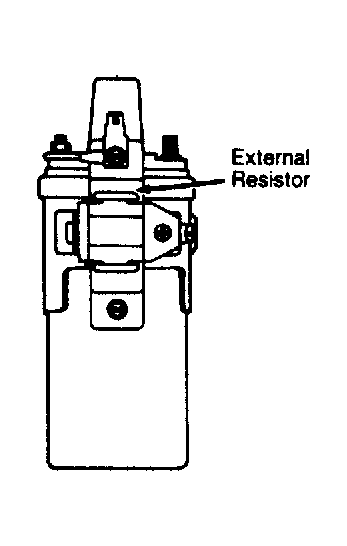

Fig 5: Ignition Coil Terminal Identification (Conquest & Raider)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

DIS IGNITION COIL RESISTANCE - Ohms @ 68°F (20°C)

Application	Primary	Secondary
Colt	.77-.95	10.3-13.9
