Switch Functional Test

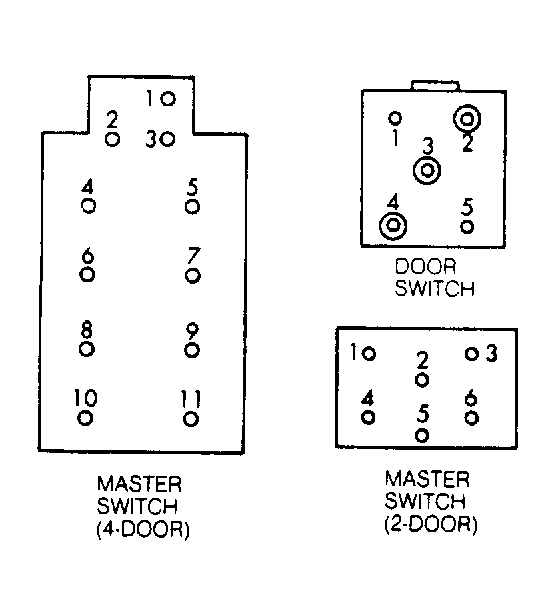

Remove master or door switch its mounting position. Use ohmmeter and refer to appropriate MASTER WINDOW SWITCH CONTINUITY CHART or DOOR SWITCH CONTINUITY CHART and Fig 1 for test procedure. Refer to MODEL IDENTIFICATION for body classification. Replace switch in question if it fails any continuity test.
MODEL IDENTIFICATION
| Model Name | Body Type |
|---|---|
| Daytona | G Body |
| Dynasty & New Yorker | C Body |
| LeBaron Coupe/Convertible | J Body |
| Shadow & Sundance | P Body |
MASTER WINDOW SWITCH CONTINUITY CHART (C BODY & J BODY CONVERTIBLE)
| Switch Position | Check Continuity Between |
|---|---|
| OFF | Pins 2 & 4; Pins 2 & 5 |
| Pins 2 & 6; Pins 2 & 7 | |
| Pins 2 & 8; Pins 2 & 9 | |
| Pins 2 & 10; Pins 2 & 11 | |
| DRIVER'S UP | Pins 3 & 5; Pins 2 & 7 |
| RIGHT FRONT UP | Pins 3 & 4; Pins 2 & 6 |
| LEFT REAR UP | Pins 3 & 9; Pins 2 & 11 |
| RIGHT REAR UP | Pins 3 & 8; Pins 2 & 10 |
| DRIVER'S DOWN | Pins 3 & 7; Pins 2 & 5 |
| RIGHT FRONT DOWN | Pins 3 & 6; Pins 2 & 4 |
| LEFT REAR DOWN | Pins 3 & 11; Pins 2 & 9 |
| RIGHT REAR DOWN | Pins 2 & 8; Pins 3 & 10 |
| WINDOW LOCK | Pins 1 & 3 |
MASTER WINDOW SWITCH CONTINUITY CHART (G BODY, J BODY COUPE & P BODY)
| Switch Position | Check Continuity Between |
|---|---|
| OFF | Pins 1 & 2; Pins 2 & 3 |
| Pins 2 & 4; Pins 2 & 6 | |
| DRIVER'S UP | Pins 1 & 2; Pins 4 & 5 |
| PASSENGER'S UP | Pins 5 & 6; Pins 2 & 3 |
| DRIVER'S DOWN | Pins 1 & 5; Pins 2 & 4 |
| PASSENGER'S DOWN | Pins 3 & 5; Pins 2 & 6 |
DOOR SWITCH CONTINUITY CHART RIGHT FRONT DOOR (C BODY)
| Switch Position | Check Continuity Between |
|---|---|
| OFF | Pins 1 & 4; Pins 2 & 5 |
| UP | Pins 3 & 4; Pins 2 & 5 |
| DOWN | Pins 2 & 3; Pins 1 & 4 |
DOOR SWITCH CONTINUITY CHART REAR DOORS (P BODY)
| Switch Position | Check Continuity Between |
|---|---|
| OFF | Pins 1 & 4; Pins 2 & 5 |
| UP | Pins 3 & 4; Pins 2 & 5 |
| DOWN | Pins 2 & 3; Pins 1 & 4 |
