Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

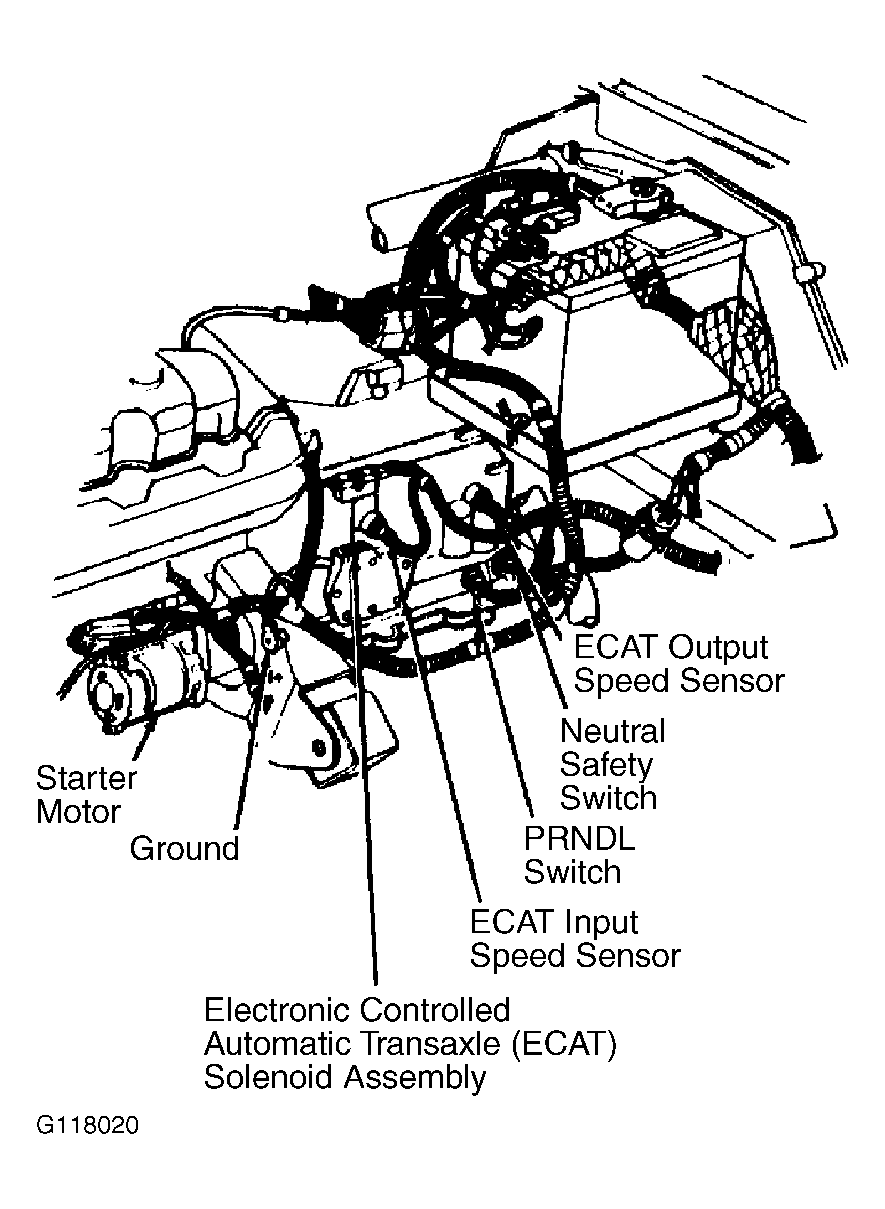

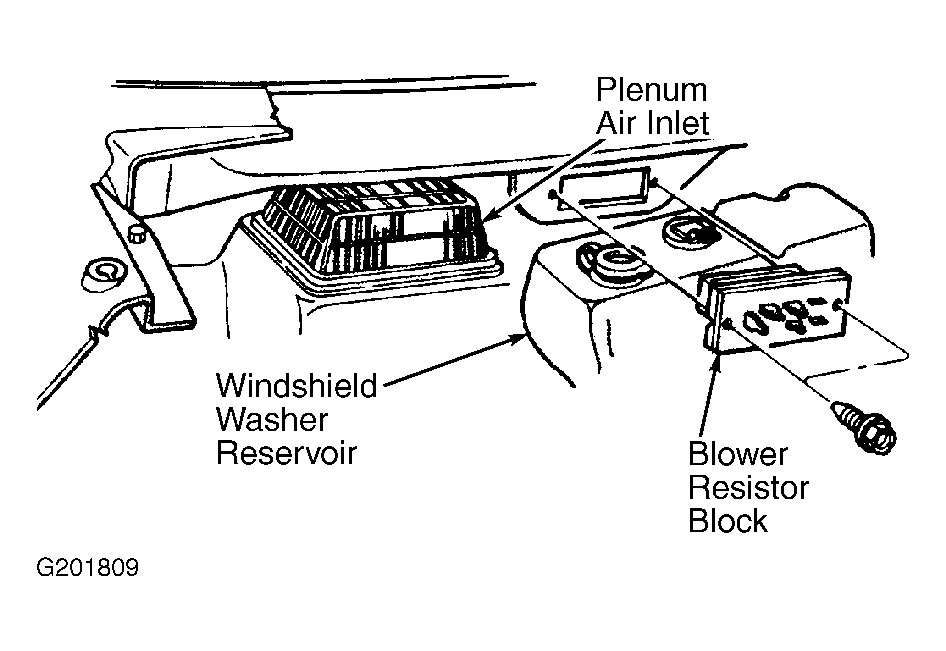

Fig 1: Component Locations (1 Of 17)

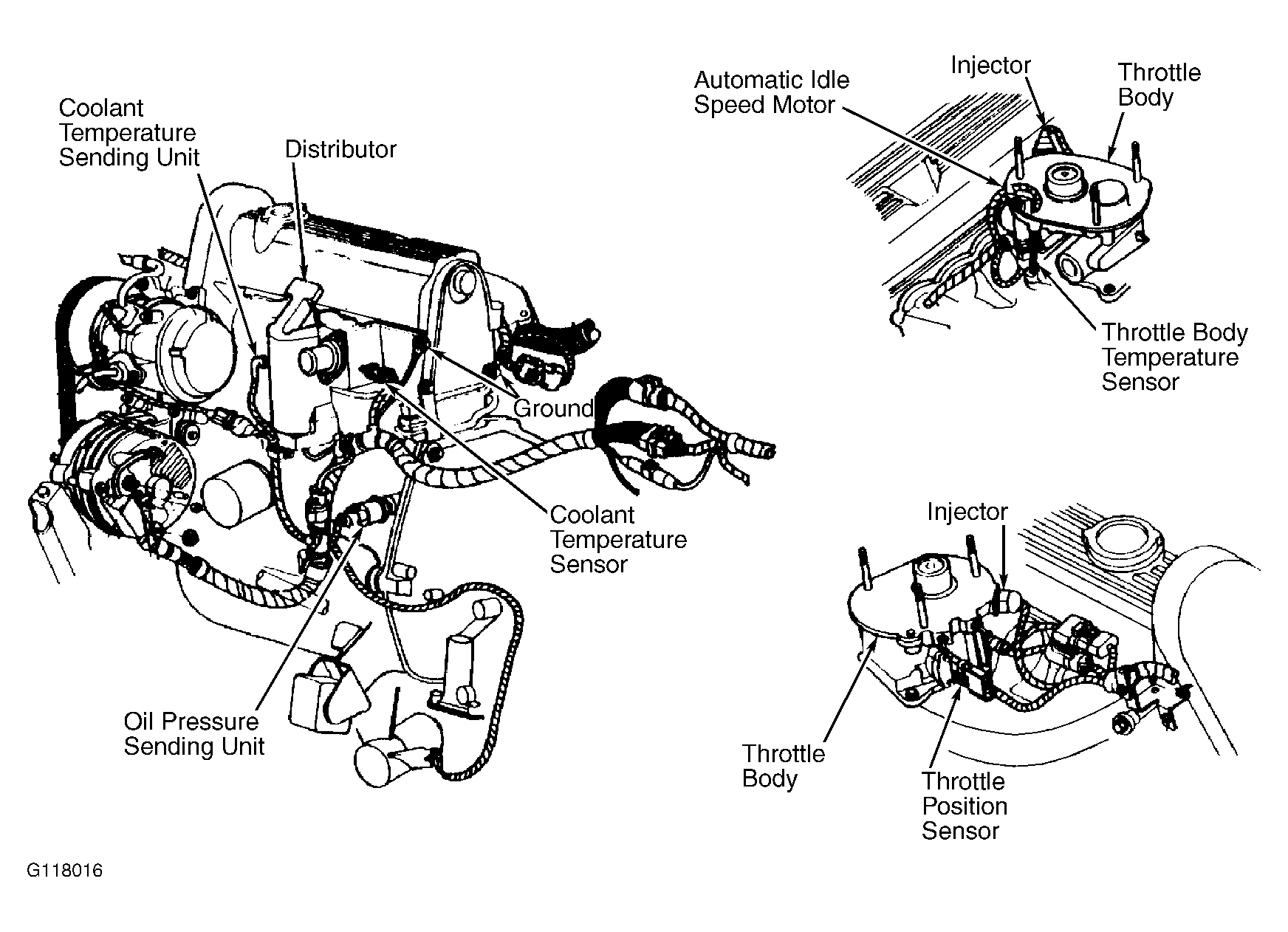

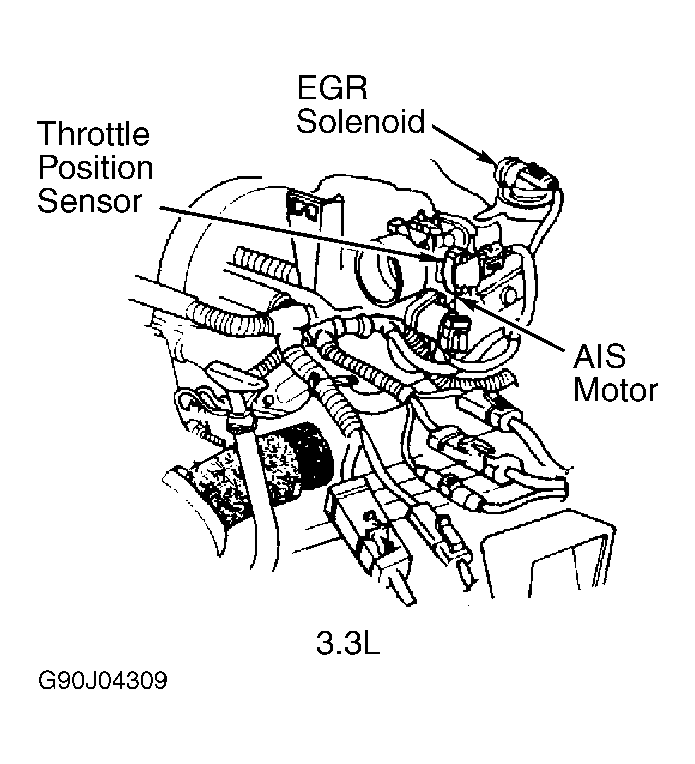

Fig 2: Component Locations (2 Of 17)

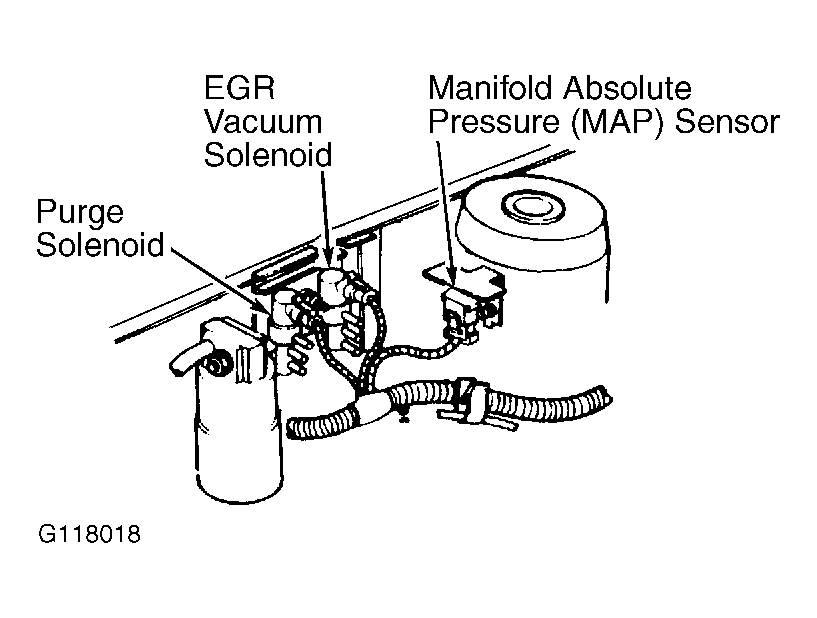

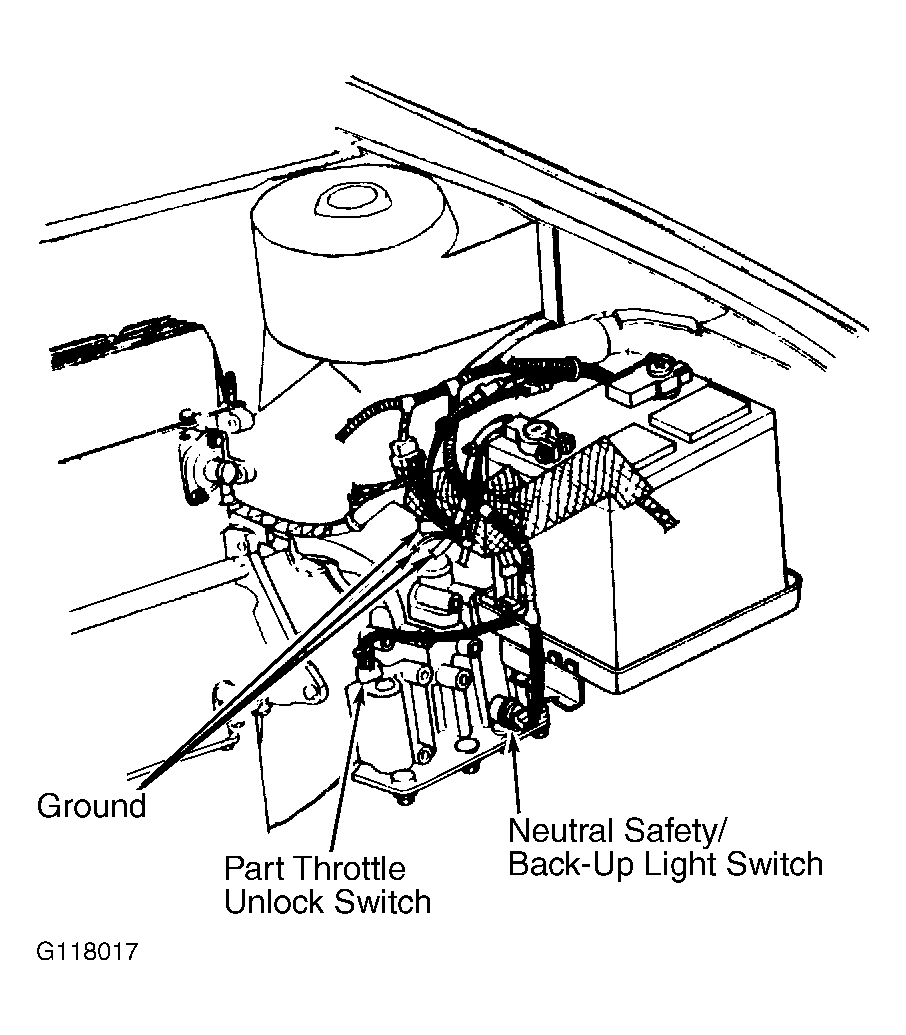

Fig 3: Component Locations (3 Of 17)

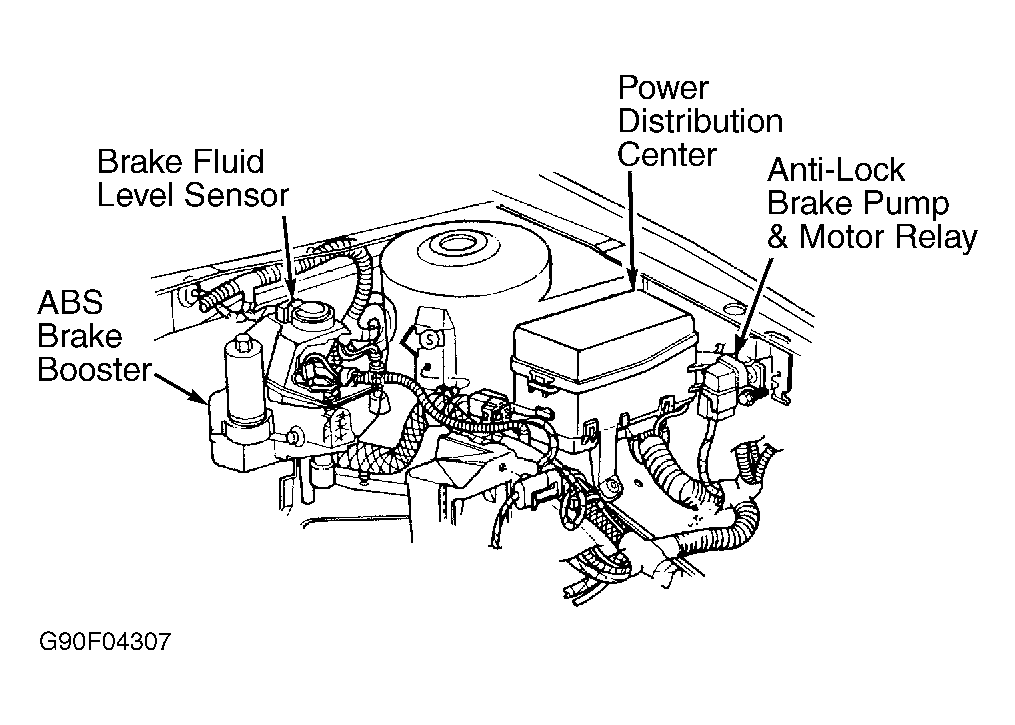

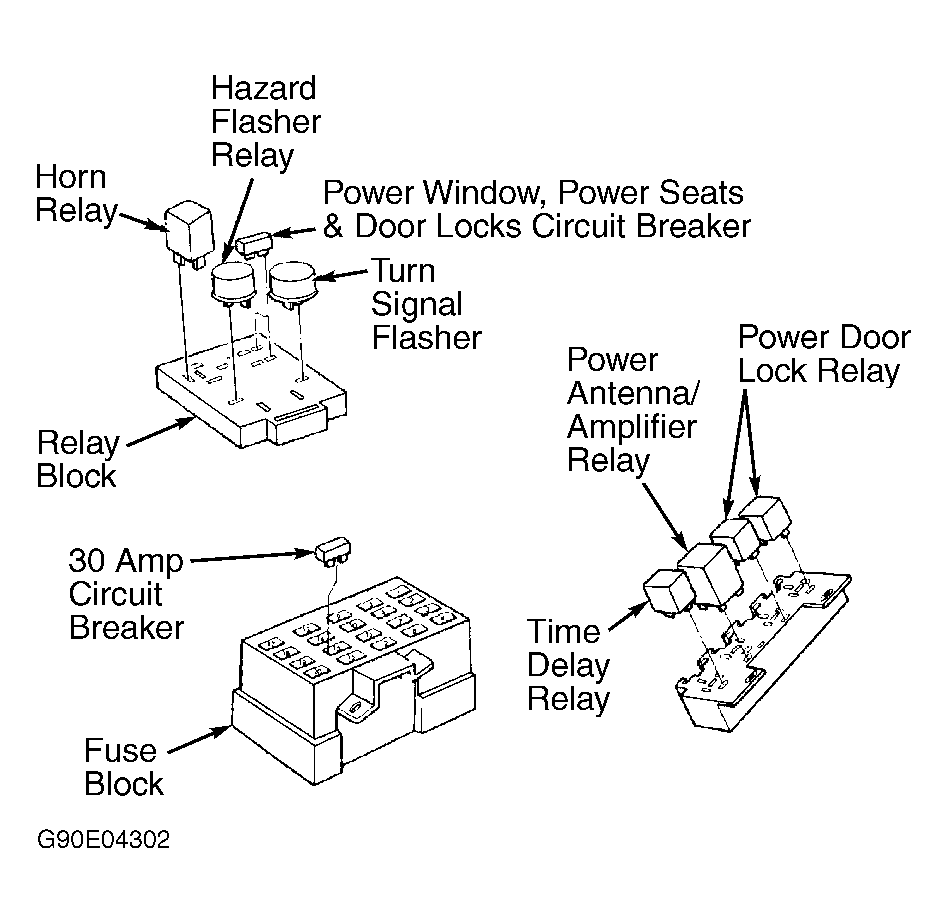

Fig 4: Component Locations (4 Of 17)

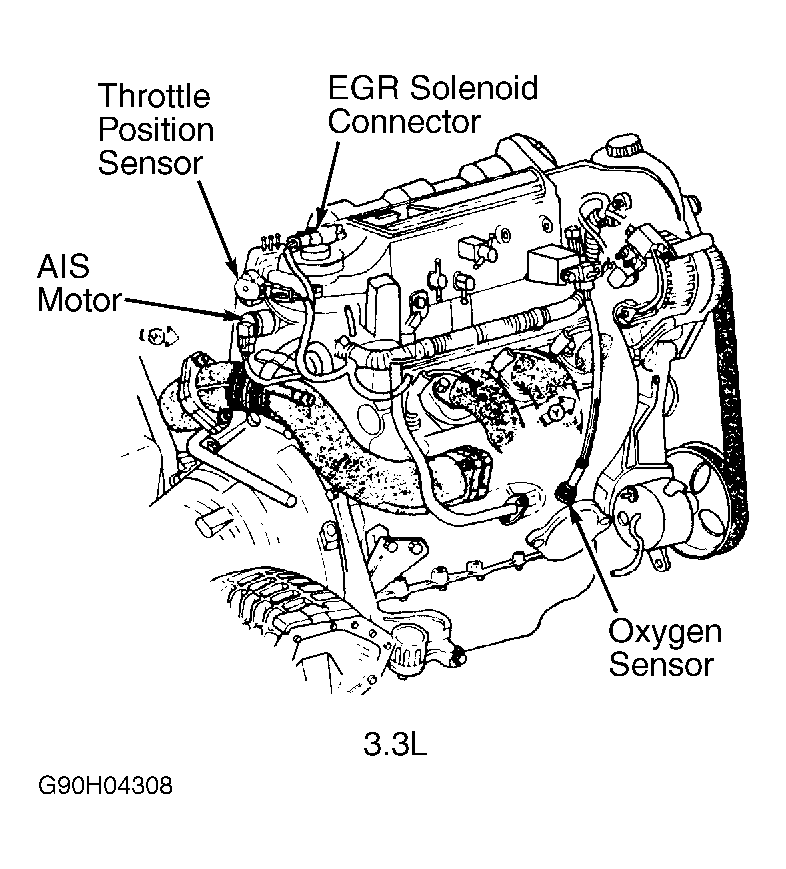

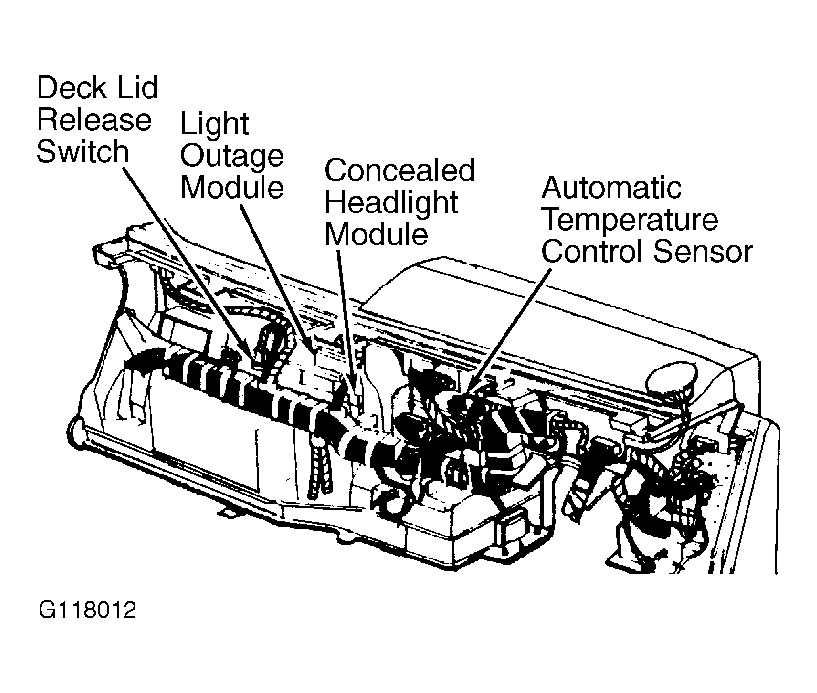

Fig 5: Component Locations (5 Of 17)

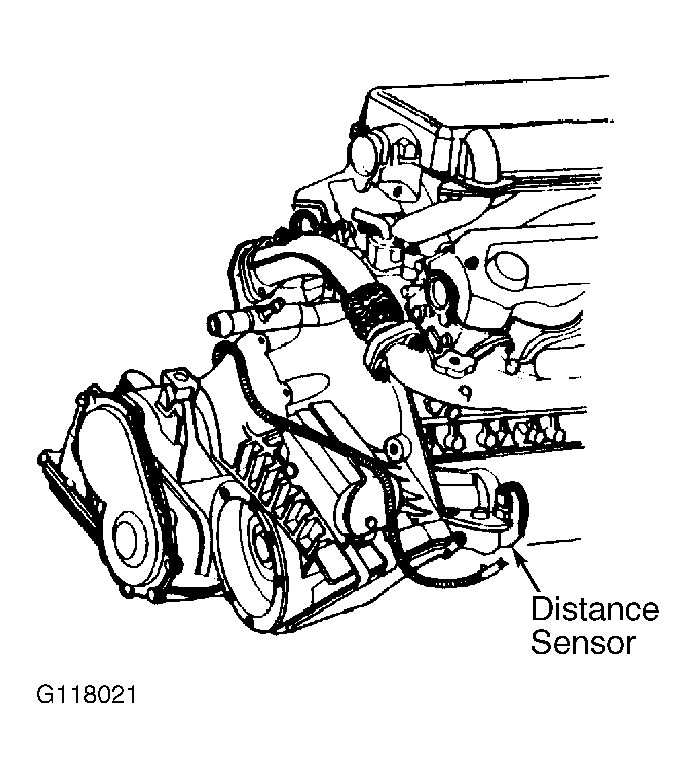

Fig 6: Component Locations (6 Of 17)

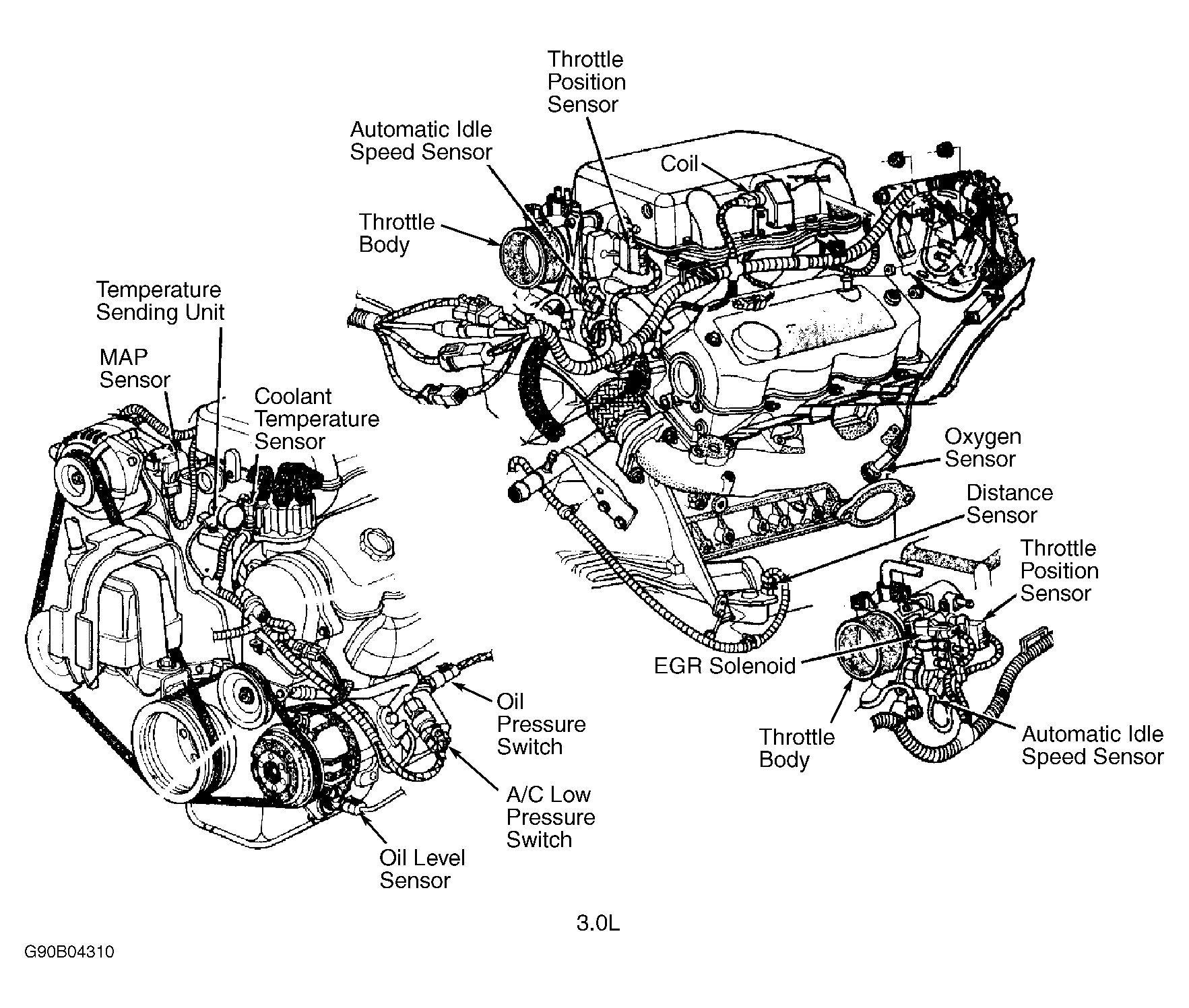

Fig 7: Component Locations (7 Of 17)

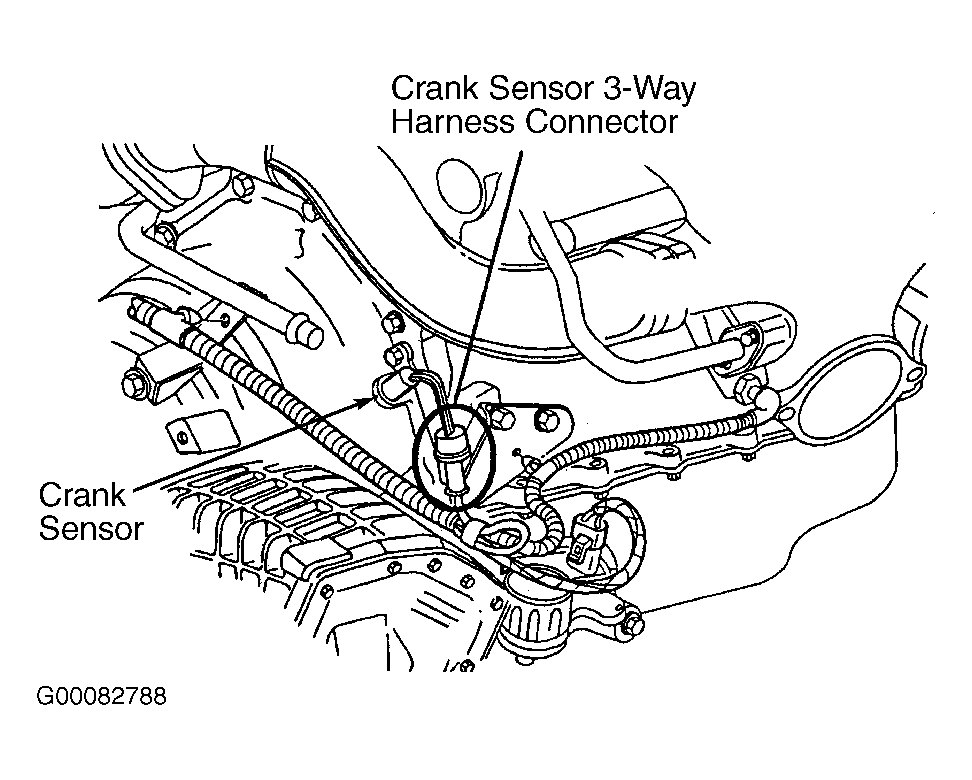

Fig 8: Component Locations (8 Of 17)

Fig 9: Component Locations (9 Of 17)

Fig 10: Component Locations (10 Of 17)

Fig 11: Component Locations (11 Of 17)

Courtesy of CHRYSLER CORP.

Fig 12: Component Locations (12 Of 17)

Fig 13: Component Locations (13 Of 17)

Fig 14: Component Locations (14 Of 17)

Fig 15: Component Locations (15 Of 17)

Fig 16: Component Locations (16 Of 17)

Fig 17: Component Locations (17 Of 17)
