Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Module | In trunk, on rear seat panel. | |
| ATC Power Module | On lower right side of dash. | |
| Automatic Level Control Module | In luggage compartment, on right side. | |
| Body Control Module (BCM) | At right side kick panel. | |
| Chime Module | Behind dash, above glove box. | |
| Concealed Headlight Module | Behind dash, above glove box. | |

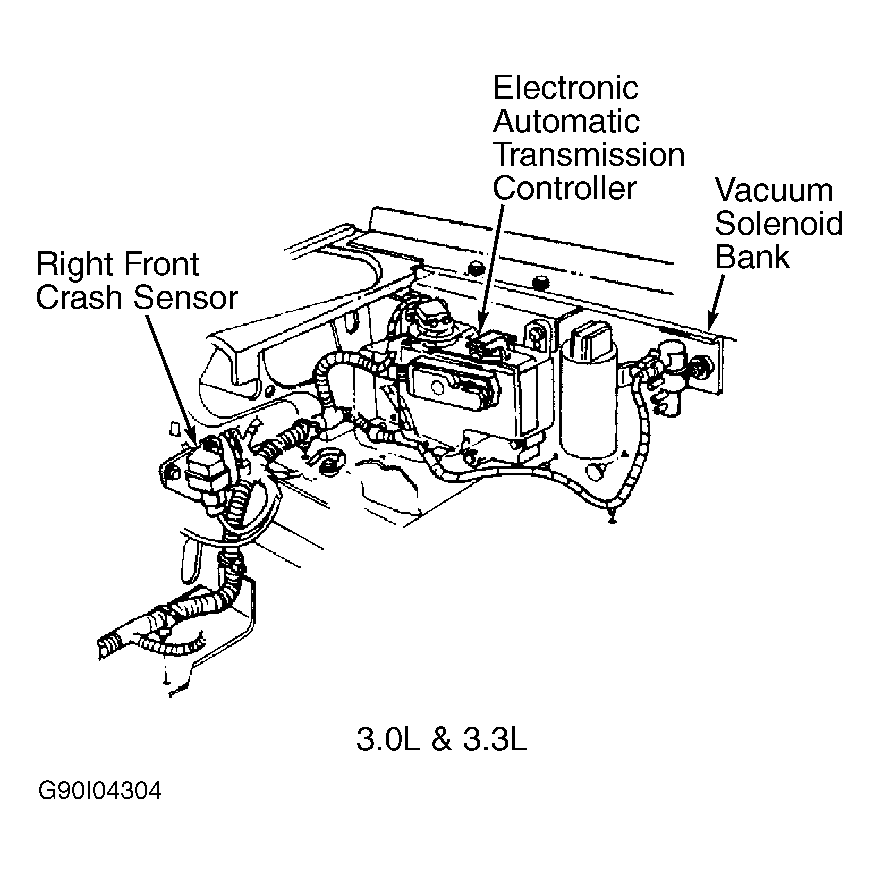

| EATX Control Module | On right fender panel, in front of strut tower. See Figure . | |

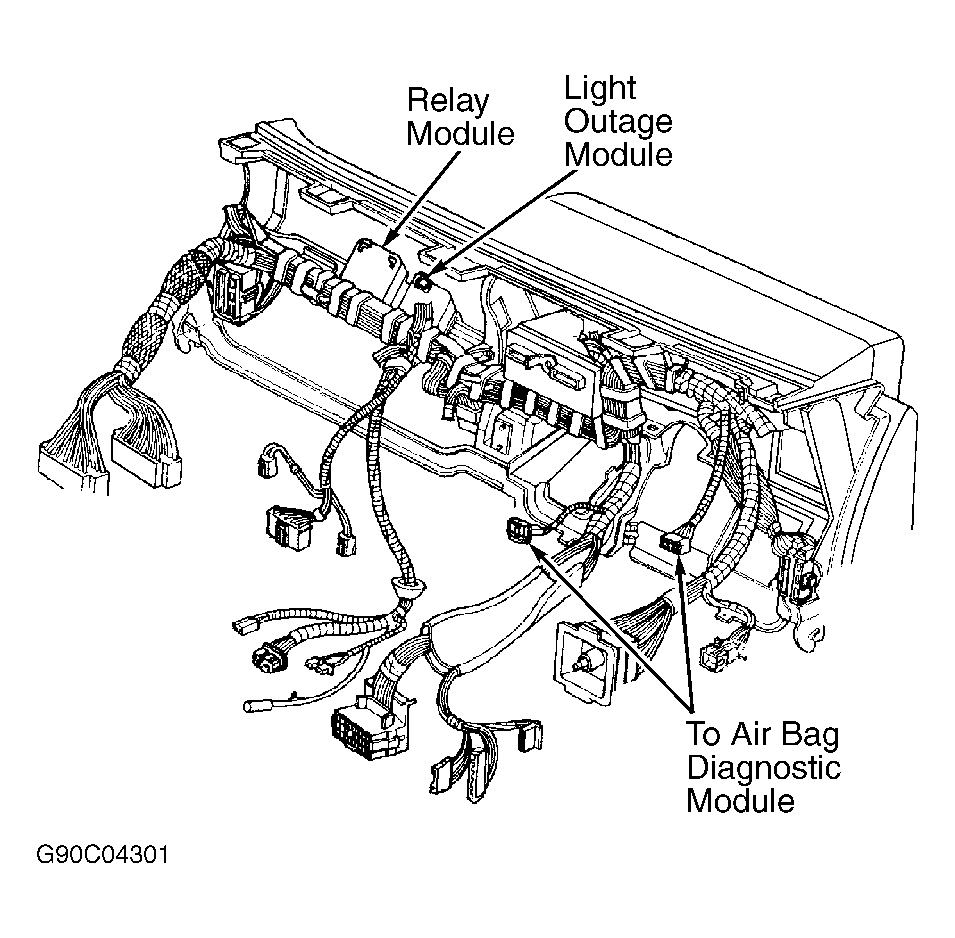

| Light Outage Module | Behind dash, above concealed headlight module. See Figure . | |
| Memory Seat Module | Under seat. | |
| Relay Module | Behind center of dash. See Figure . | |
| Single Board Engine Controller (SBEC) | At left front corner of engine bay. | |
| Single Module Engine Controller (SMEC) | ||

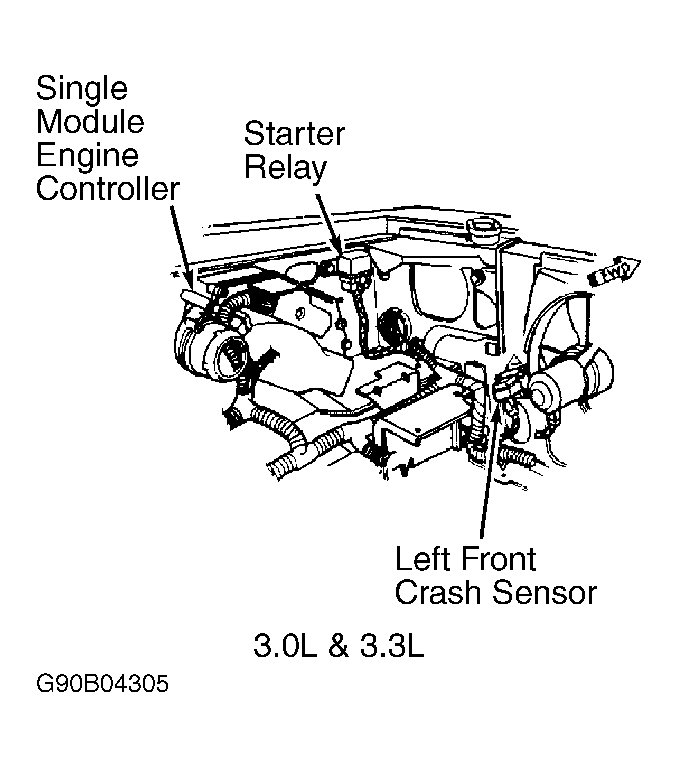

| Viewed From Front of Vehicle | At left front corner of engine bay. See Figure . | |

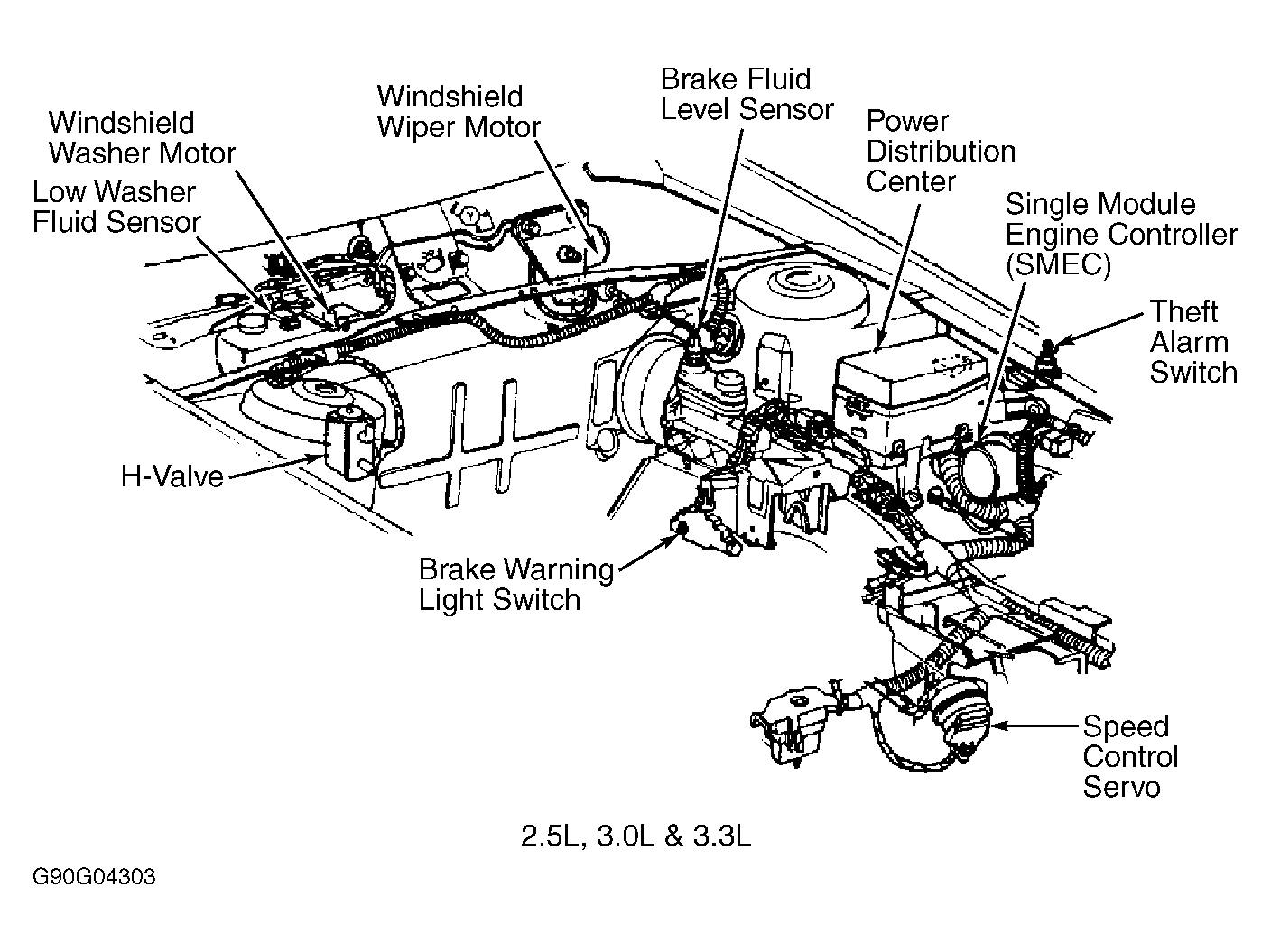

| Viewed From Right Side of Vehicle | At left front corner of engine bay. See Figure . | |
| Sun Roof Module | Under headliner, at rear of sun roof opening. | |
| Theft Alarm Module | Above glove box, to right of light outage module. | |
