Fuel Pressure Release
- Fuel pressure must be fully released before opening fuel system or removing any fuel carrying components. To release pressure in tank, open fuel tank cap slowly.

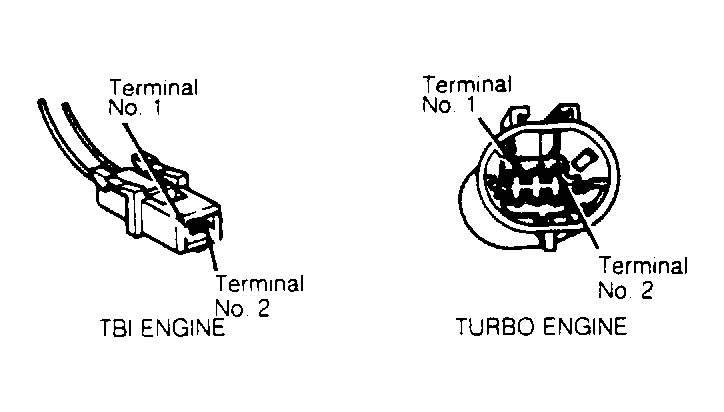

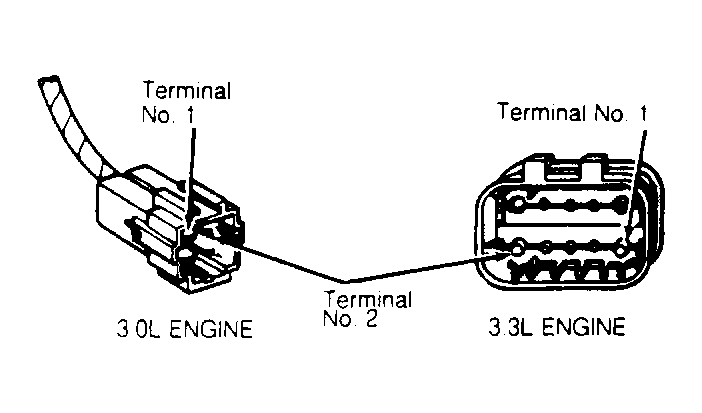

- To release remaining pressure in system, disconnect injector wiring harness. Using jumper wire, connect injector harness ground terminal No. 1 to ground. Connect injector harness positive terminal No. 2 to positive battery terminal with second jumper wire. See Fig 1 or Fig 2 .
- DO NOT keep injector connector to positive battery terminal for longer than 5 seconds. Remove jumper wires. Fuel injection system can now be opened and fuel carrying components removed as pressure is fully released.
NOTE:
Perform fuel pump test with fuel tank at least half full. Before disconnecting a fuel line during testing, repeat fuel pressure release procedure.
