Fixed Column With Column Shift Overhaul: Notes

WARNING: On vehicles equipped with air bag restraint system, use extreme caution when servicing to avoid personal injury and vehicle damage. See AIR BAG RESTRAINT SYSTEM article in ACCESSORIES/SAFETY EQUIP section before servicing steering wheel or column.

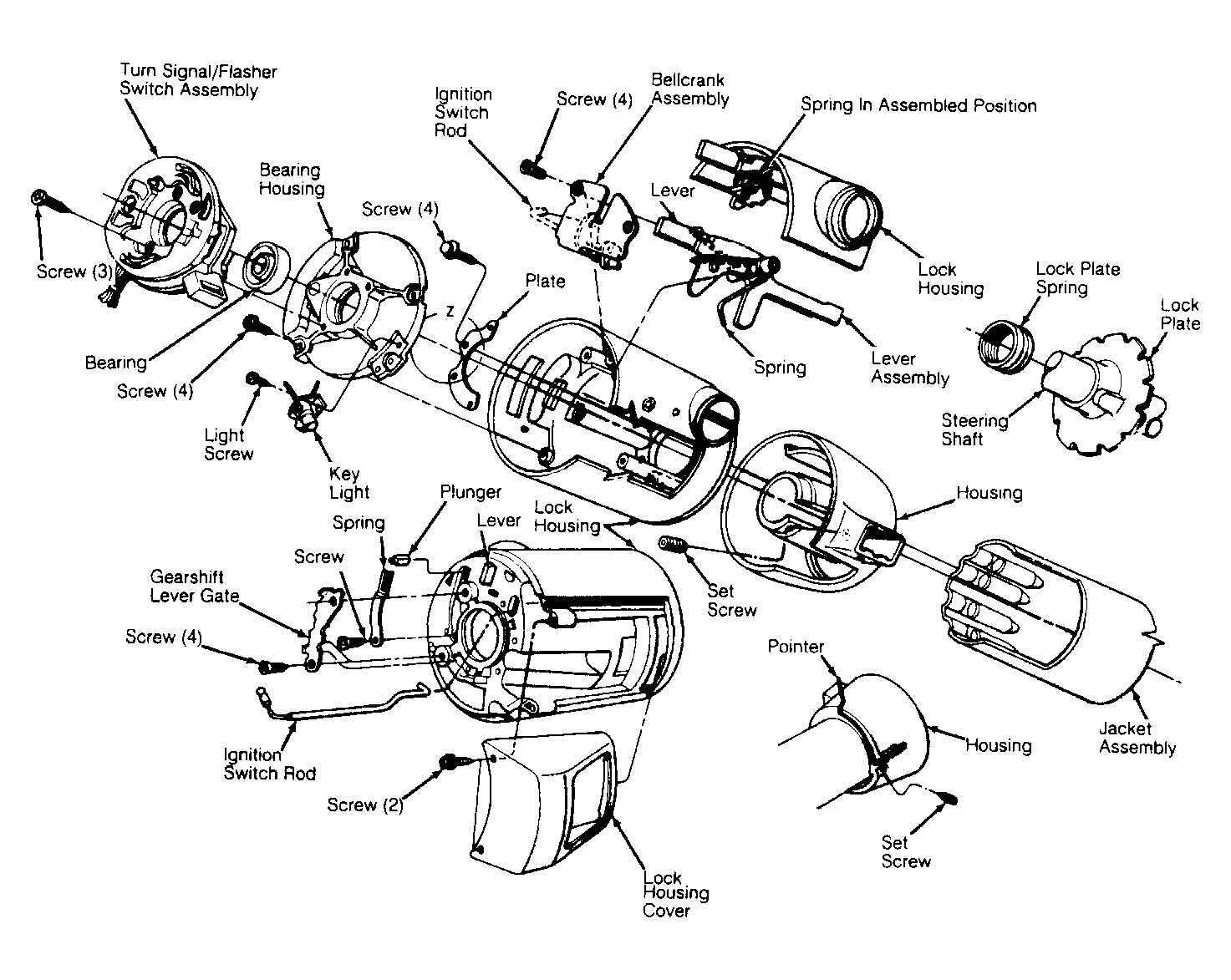

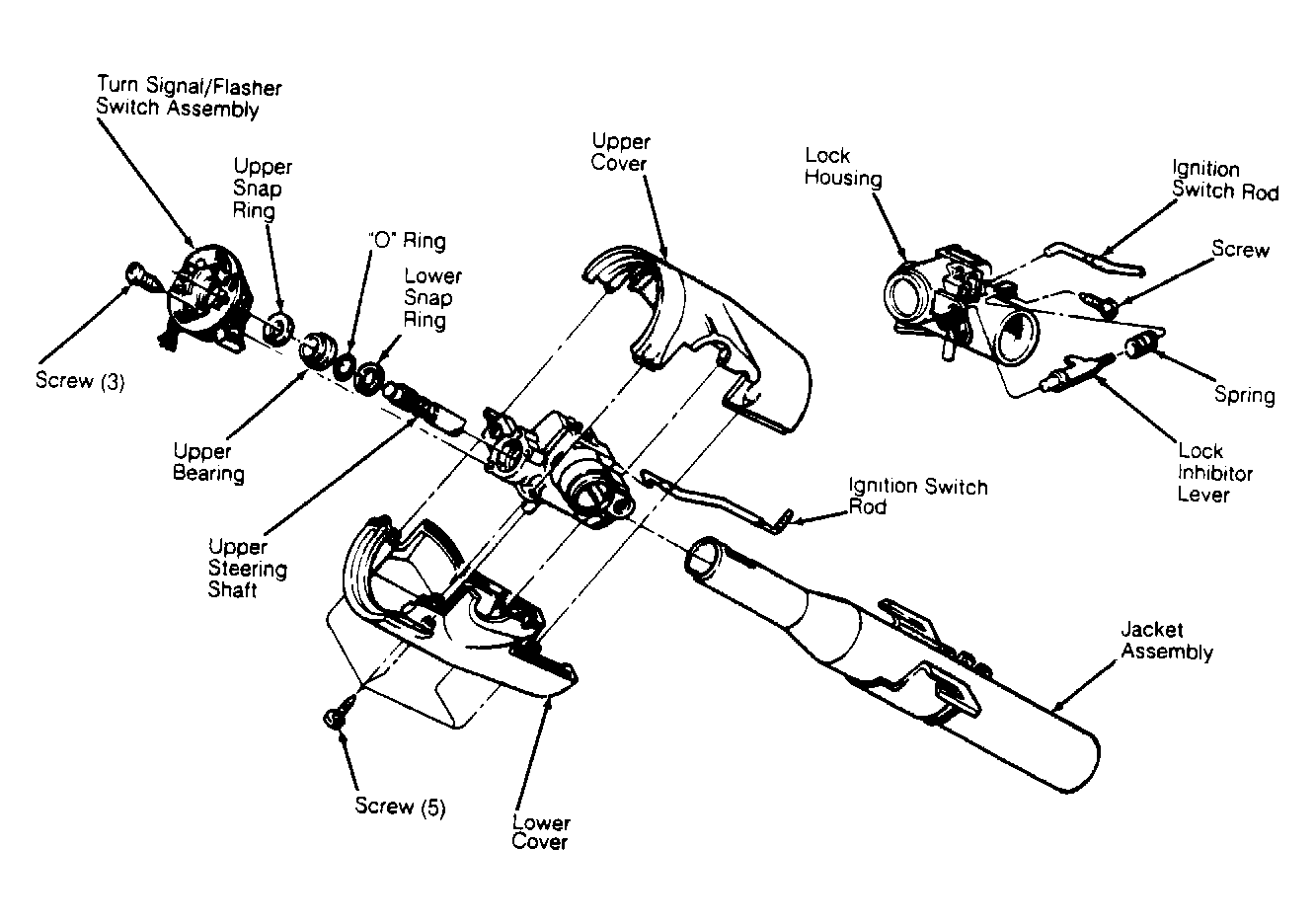

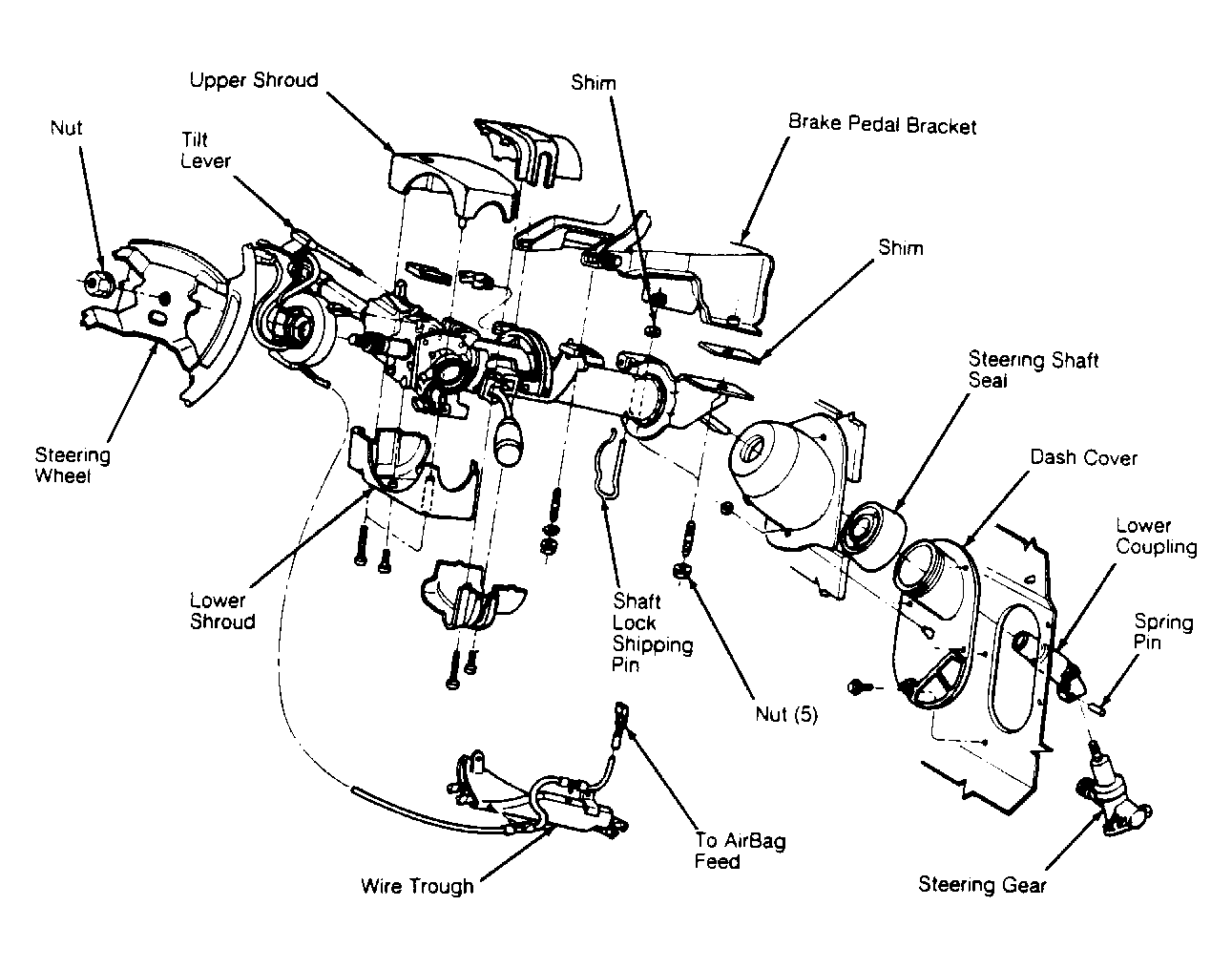

NOTE: For steering column exploded views, refer to the following figures: For fixed column with column shift, see Figure. For fixed column with floor shift, see Figure. For tilt column, see Figure.
