Continuity Test

Remove the switch from its mounting. Using an ohmmeter, check for continuity as shown. SeeFig 1 . If results are not specified, replace the switch.

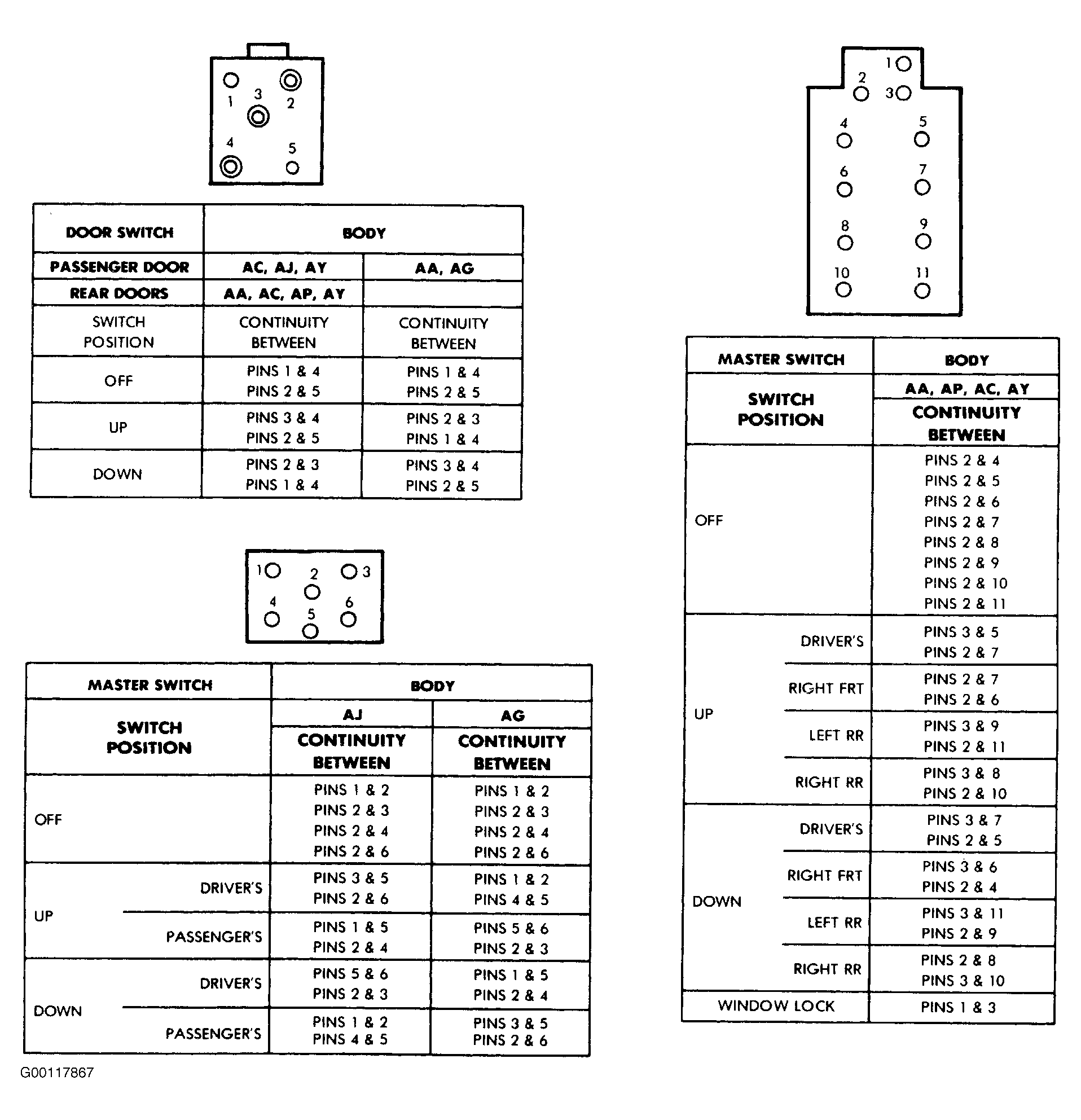

Fig 1: Window Switch Terminal Identification & Continuity Test

Courtesy of CHRYSLER CORP.
