Wiring Diagrams

NOTE: For body identification, see MODEL IDENTIFICATION .

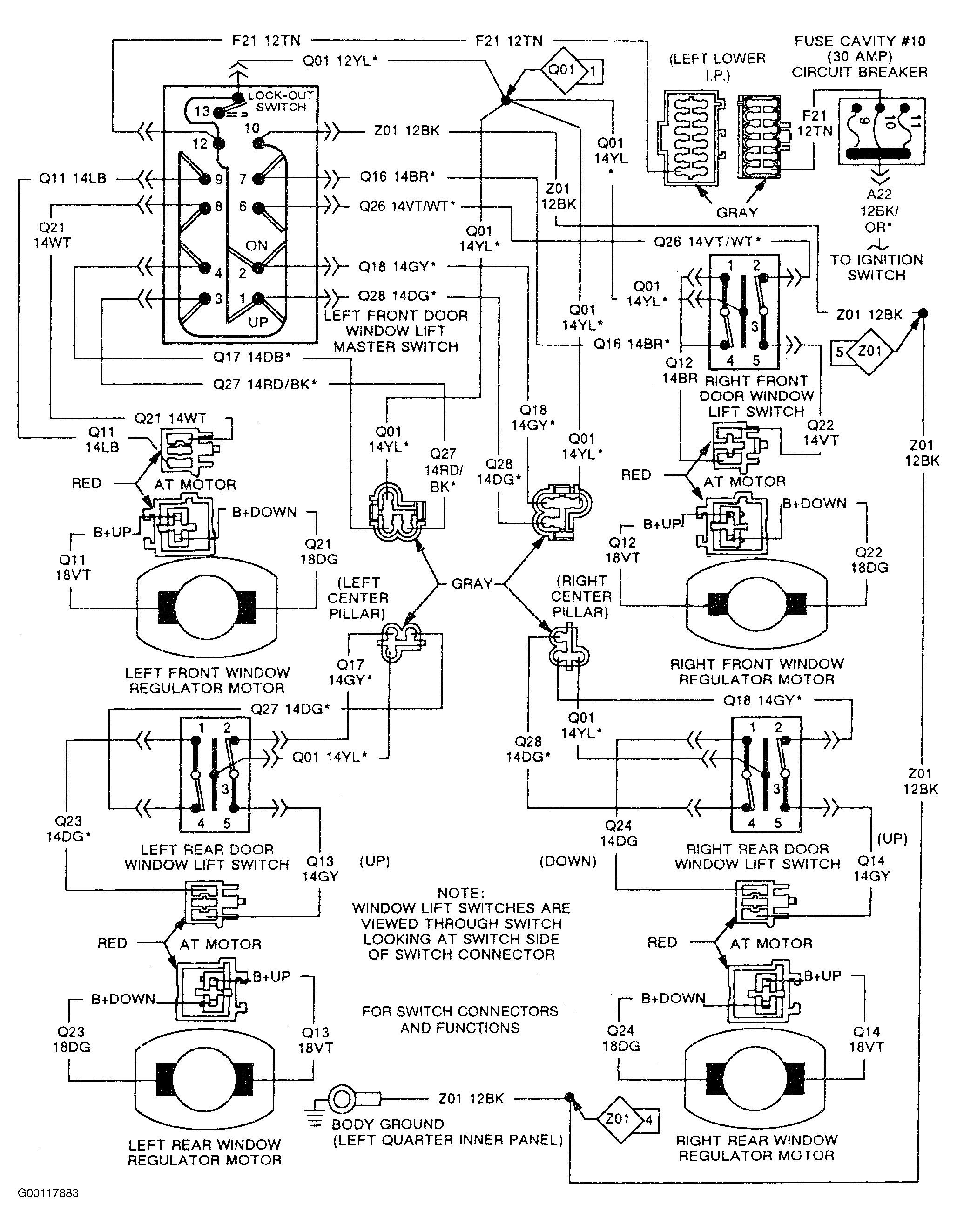

Fig 1: Power Window Circuit Wiring Diagram - AA Body

Courtesy of CHRYSLER CORP.

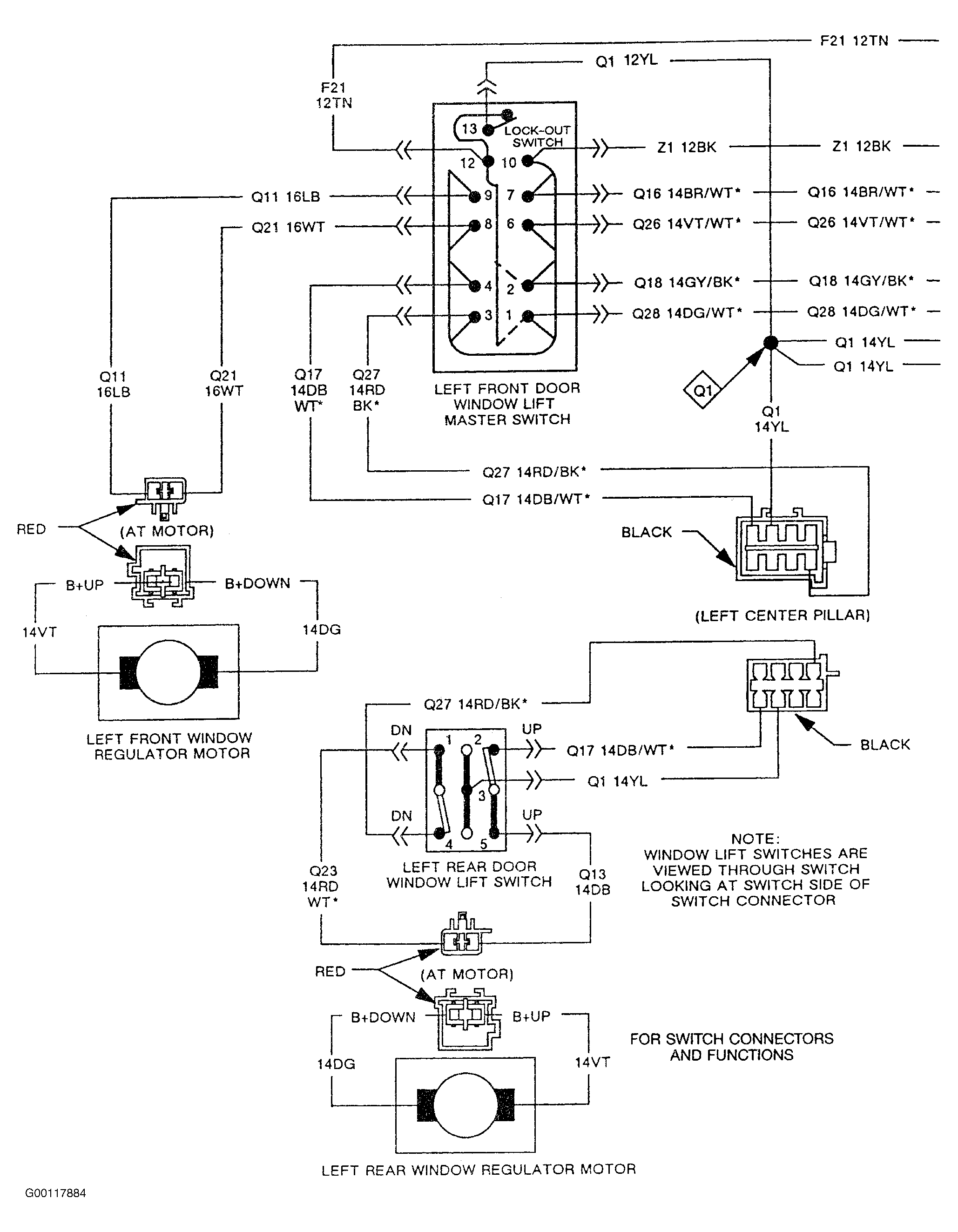

Fig 2: Power Window Circuit Wiring Diagram - AC & AY Body (1 of 2)

Courtesy of CHRYSLER CORP.

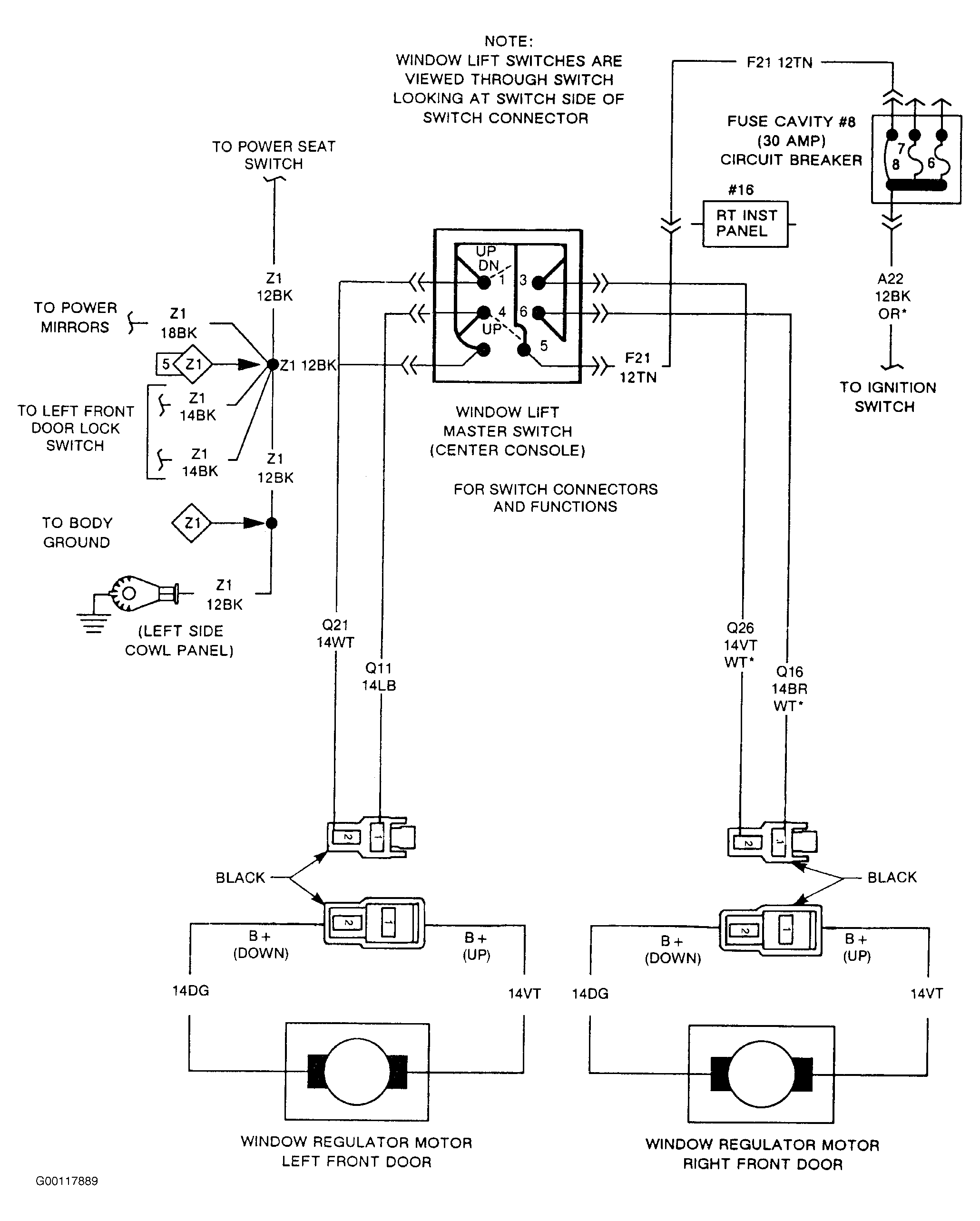

Fig 3: Power Window Circuit Wiring Diagram - AC & AY Body (2 of 2)

Courtesy of CHRYSLER CORP.

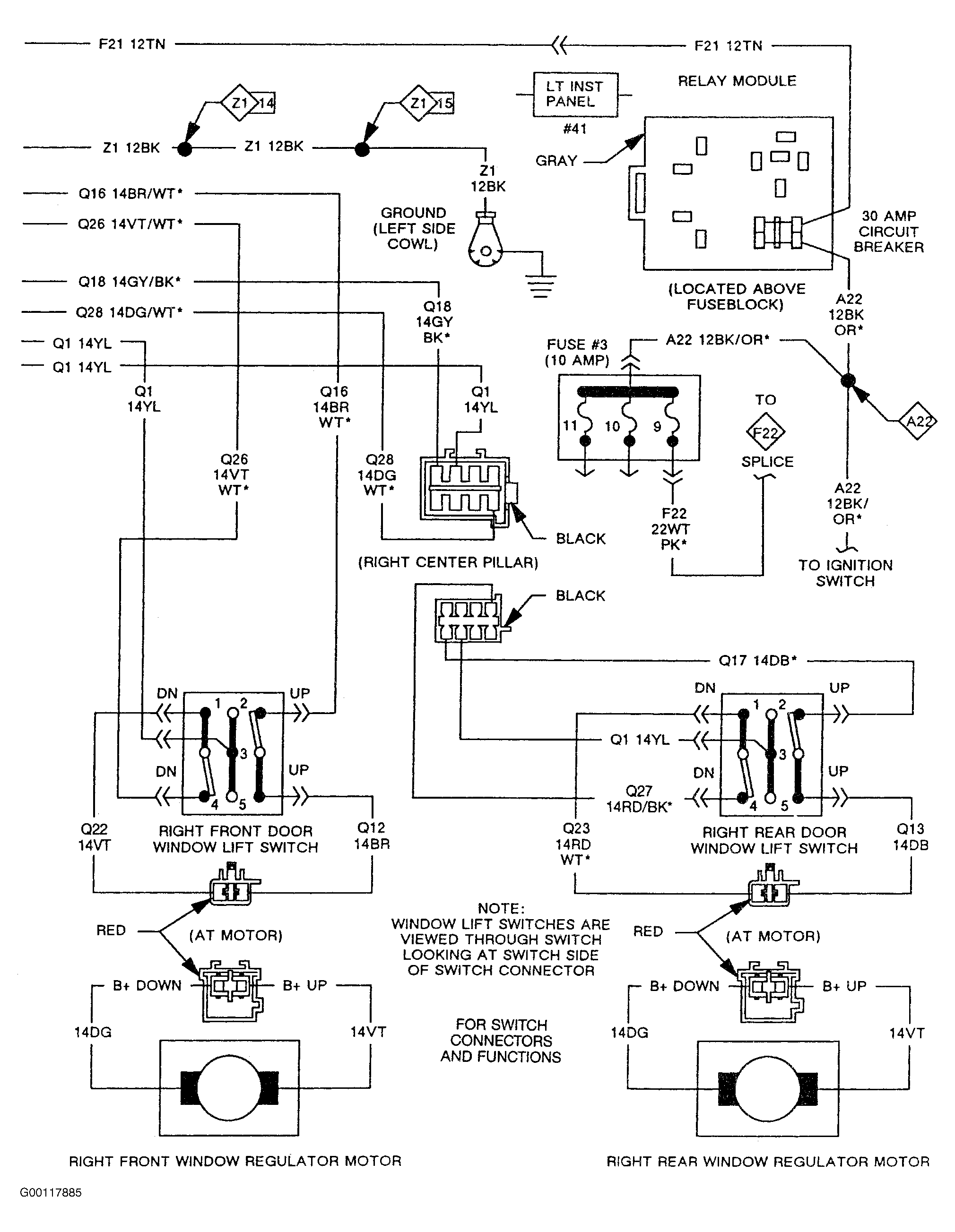

Fig 4: Power Window Circuit Wiring Diagram - AG & AJ Body (1 of 3)

Courtesy of CHRYSLER CORP.

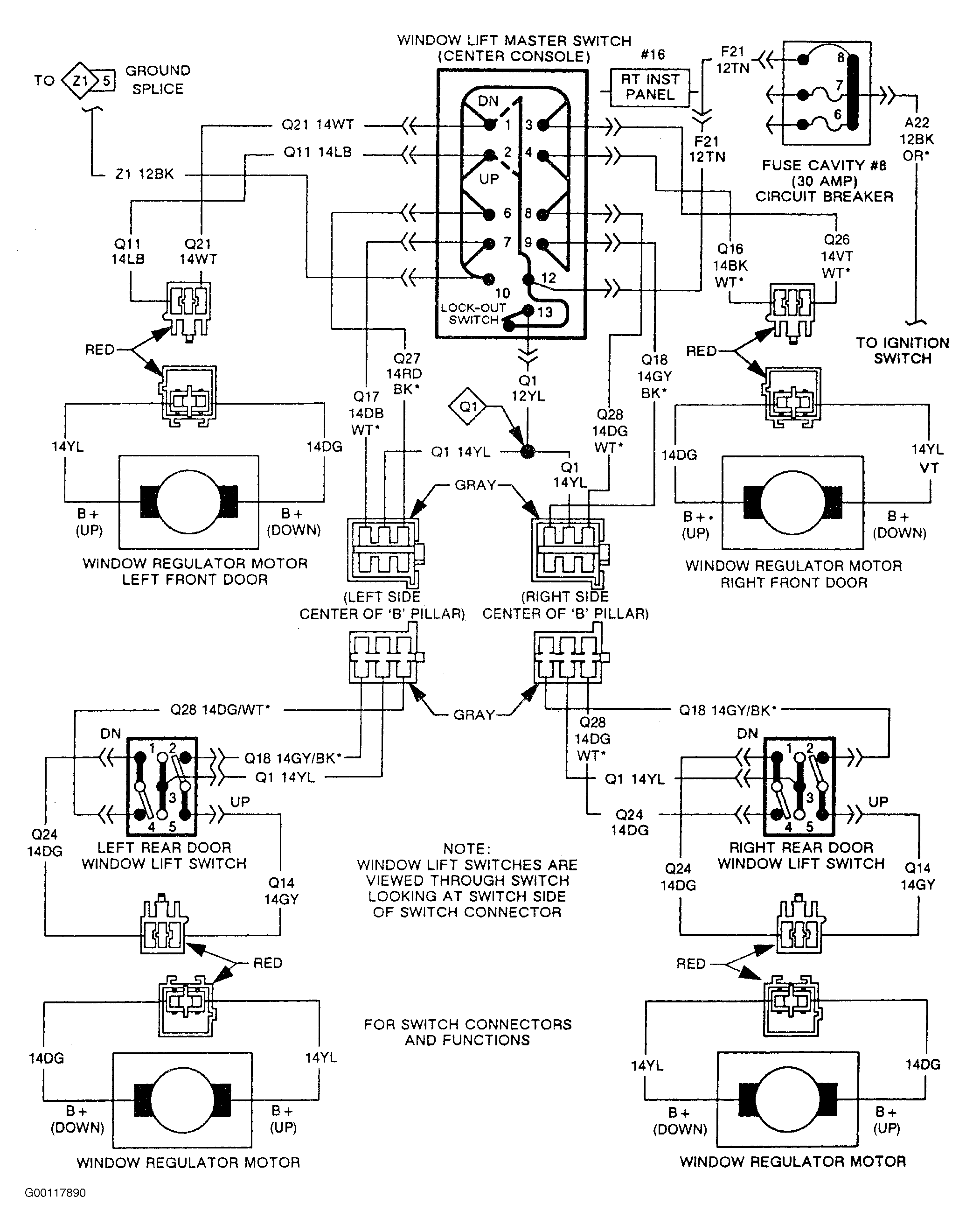

Fig 5: Power Window Circuit Wiring Diagram - AG & AJ Body (2 of 3)

Courtesy of CHRYSLER CORP.

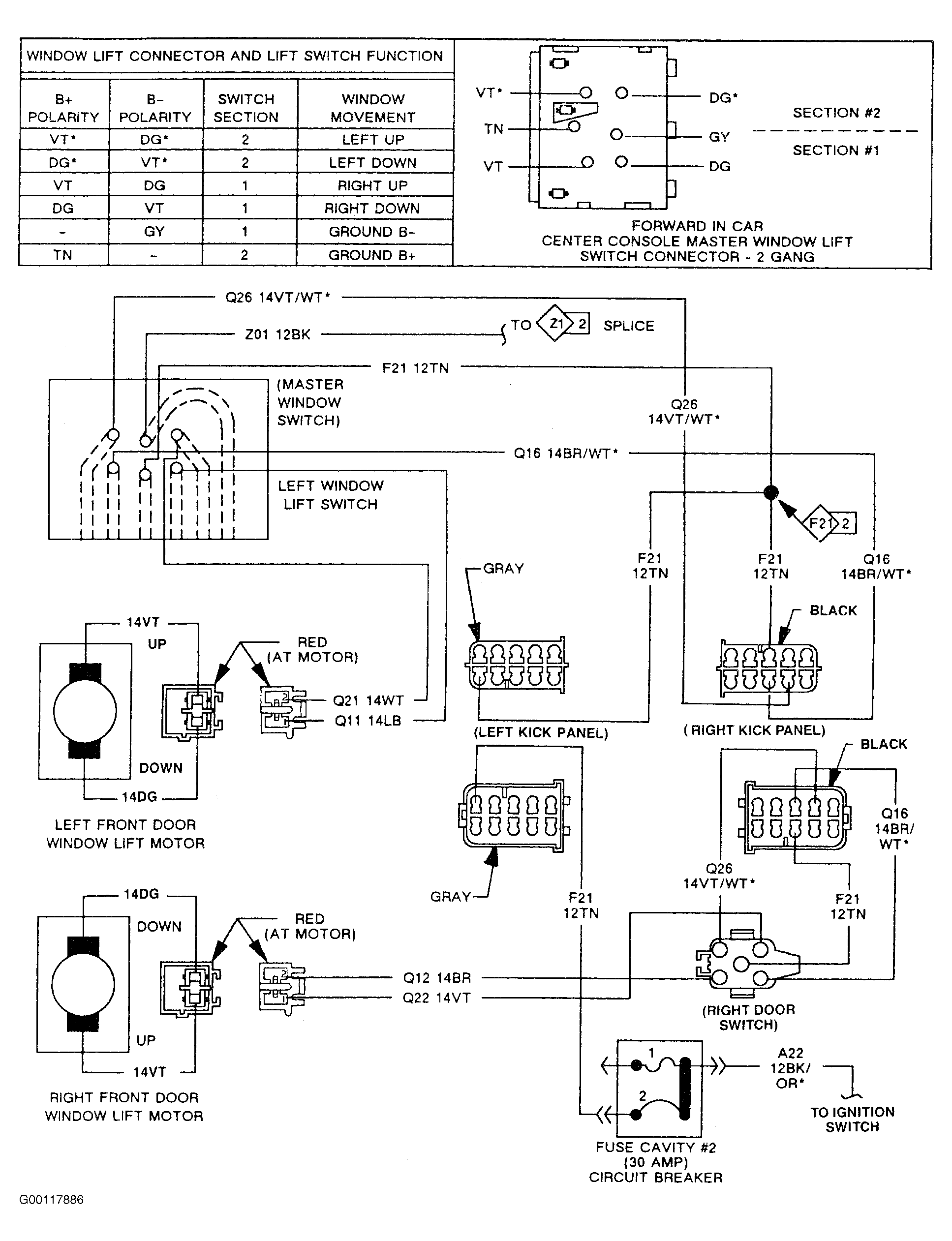

Fig 6: Power Window Circuit Wiring Diagram - AG & AJ Body (3 of 3)

Courtesy of CHRYSLER CORP.

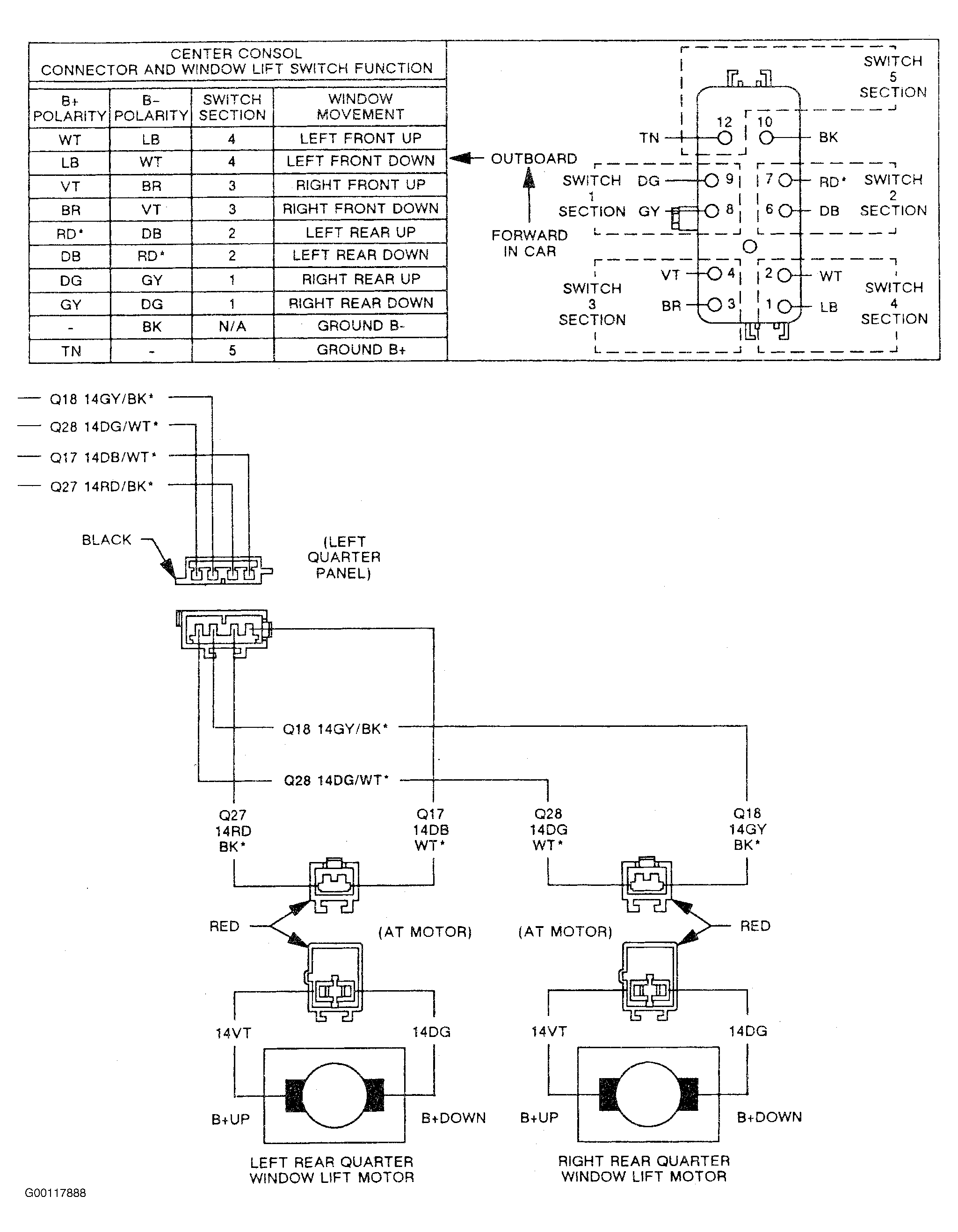

Fig 7: Power Window Circuit Wiring Diagram - AP Body (1 of 2)

Courtesy of CHRYSLER CORP.

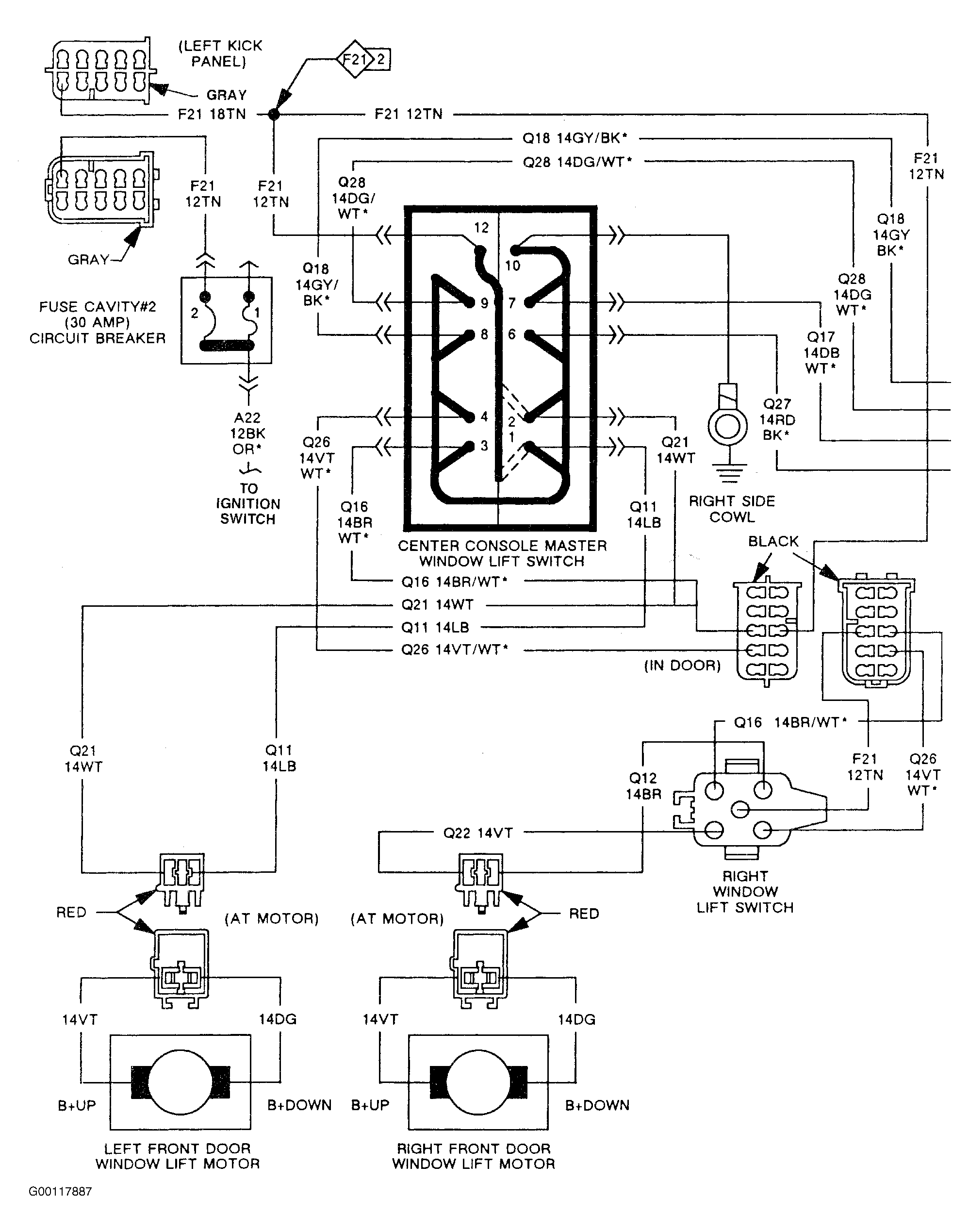

Fig 8: Power Window Circuit Wiring Diagram - AP Body (2 of 2)

Courtesy of CHRYSLER CORP.
