Column Shift Models

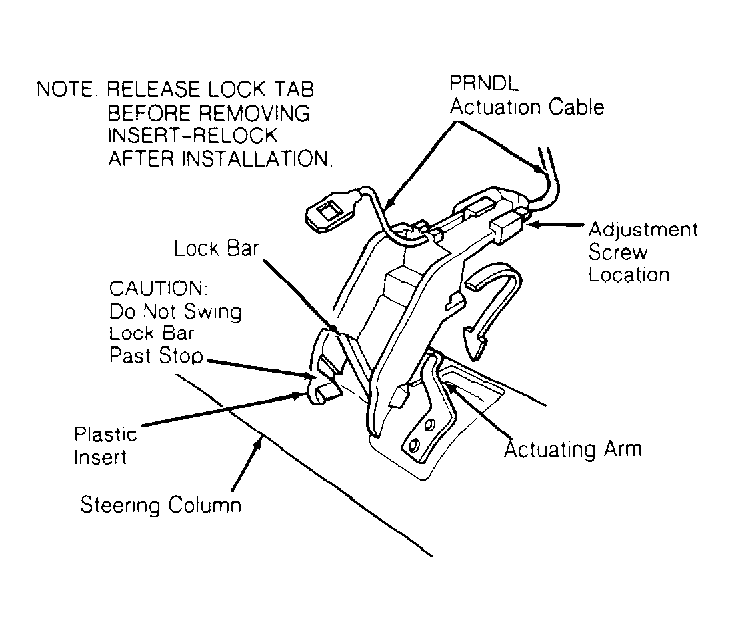

  1. Move column gear select lever to NEUTRAL position. If pointer does not indicate NEUTRAL position, remove instrument panel lower trim panel. Locate PRNDL actuation cable plastic insert on lower steering column. See Figure
  2. Using 9/64" Allen head driver or wrench, adjust cable until indicator pointer is centered on "N" (NEUTRAL position). Install instrument panel lower trim panel.
