Steering Column: Overhaul

CAUTION: When overhauling steering columns or repairing ignition switch binding problems, DO NOT remove shaft lock plate retainer, shaft lock plate or ignition locking link. See Fig 1.

NOTE: When overhauling or repairing steering columns, refer to exploded view. See Fig 2.

Fig 1: Identifying Non-Serviceable Steering Column Components

Courtesy of CHRYSLER MOTORS

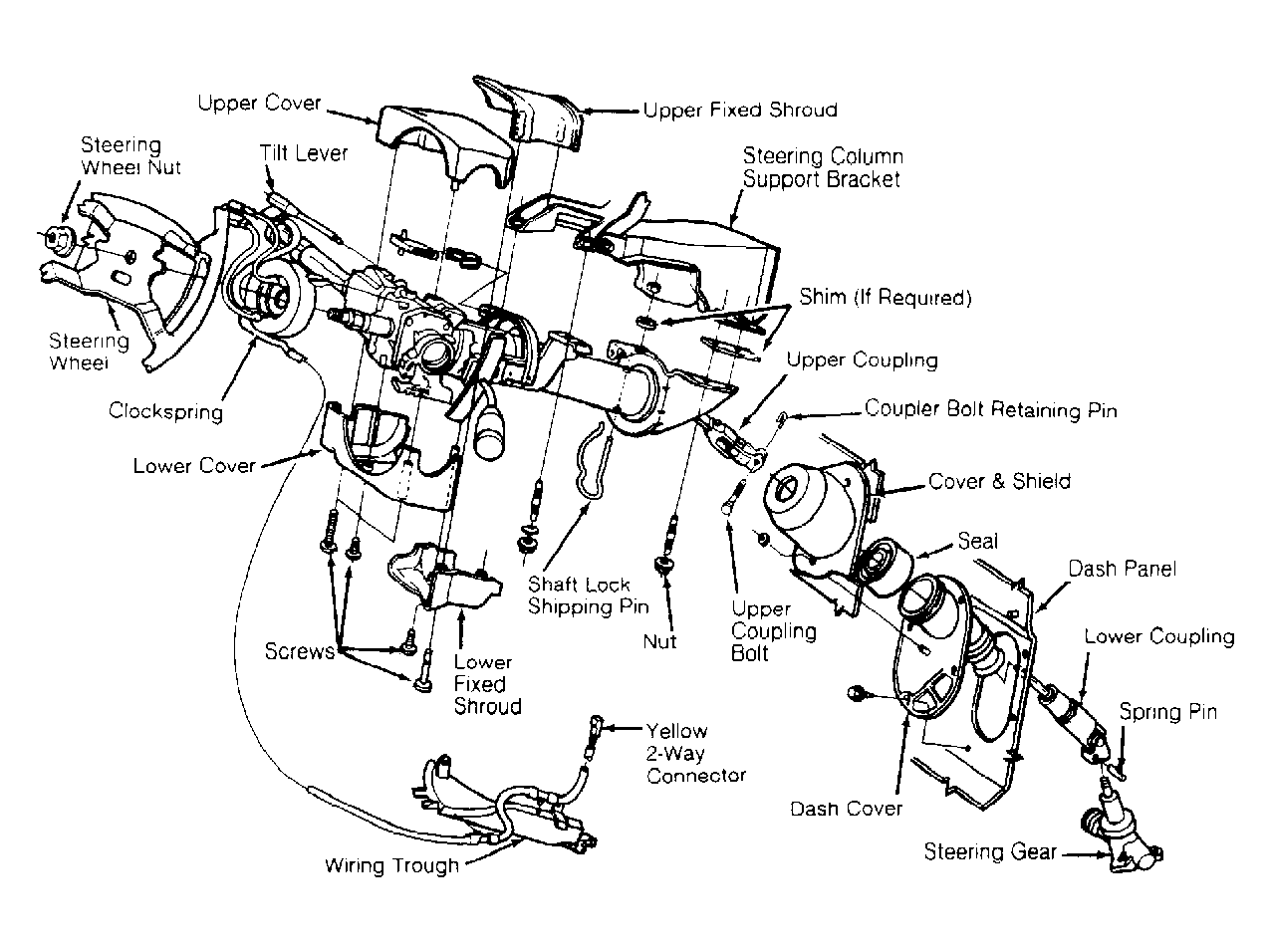

Fig 2: Exploded View of Standard & Tilt Steering Column (Column Shift Models Shown; Console Shift Models Are Similar)

Courtesy of CHRYSLER MOTORS
