Wiring Diagrams

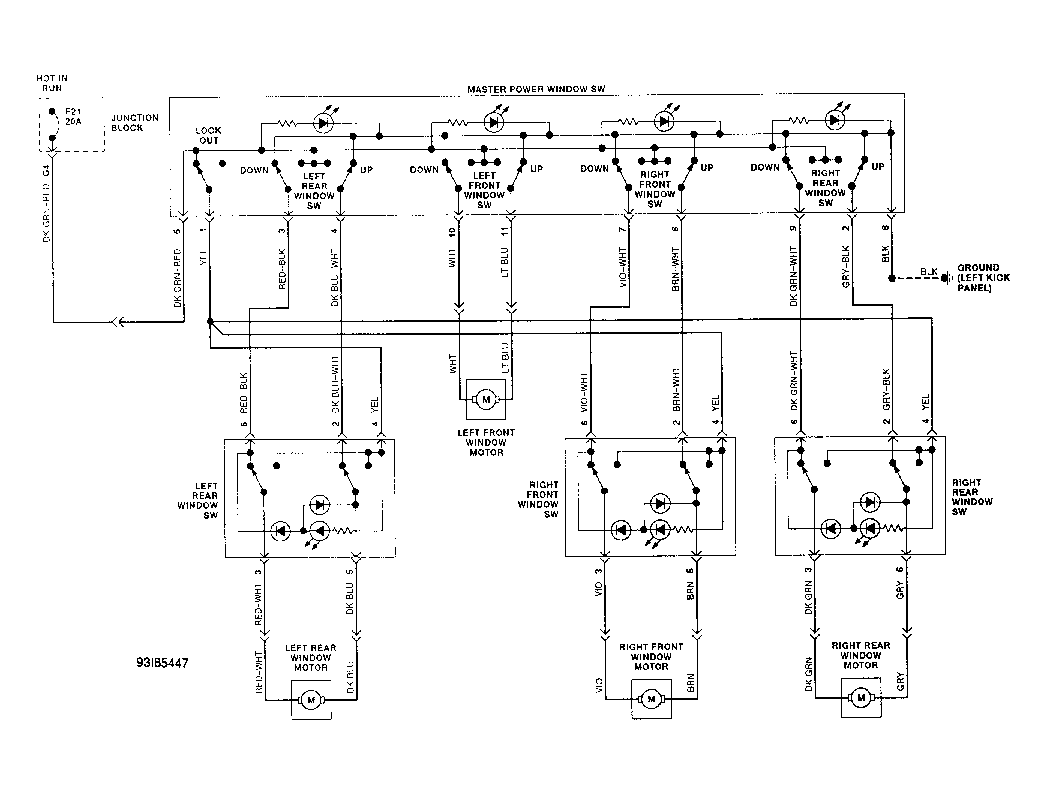

Fig 1: Wiring Diagram (Acclaim, LeBaron Sedan & Spirit)

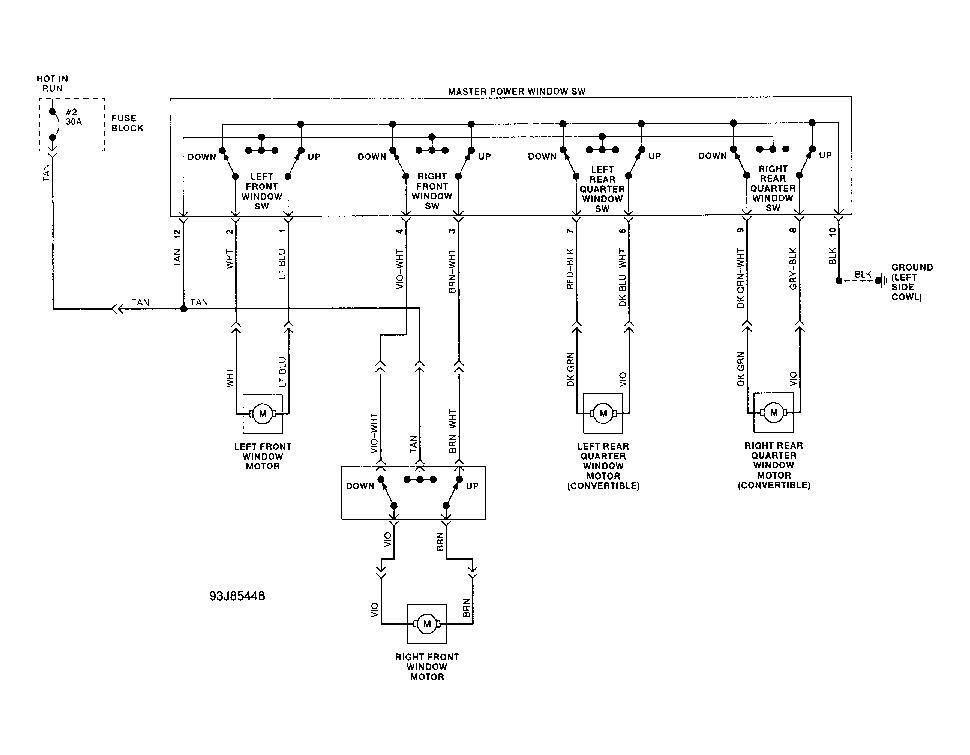

Fig 2: Wiring Diagram (Concorde, Intrepid & Vision)

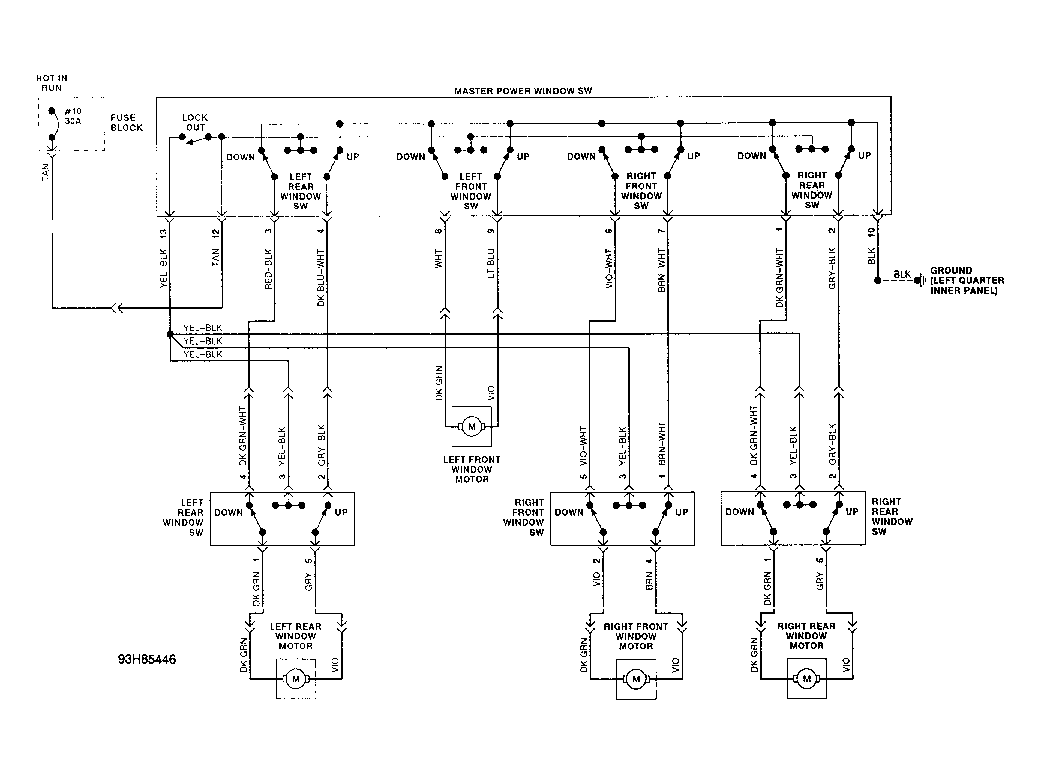

Fig 3: Wiring Diagram (Daytona & LeBaron Convertible)

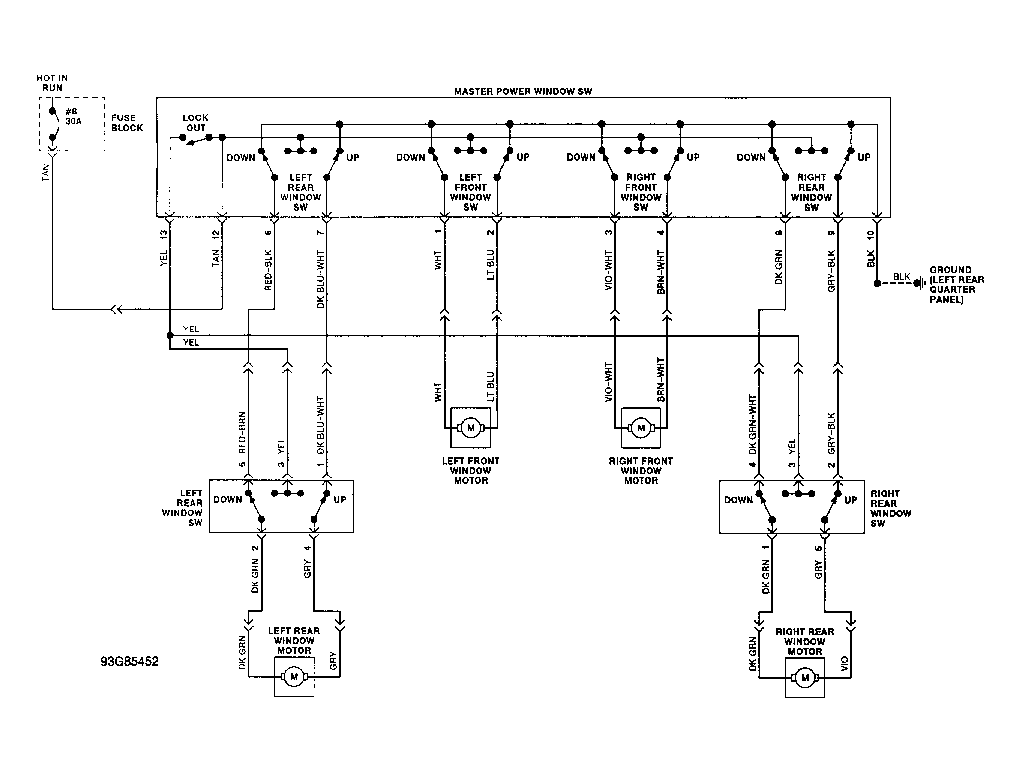

Fig 4: Wiring Diagram (Dynasty, Fifth Avenue, Imperial, New Yorker)

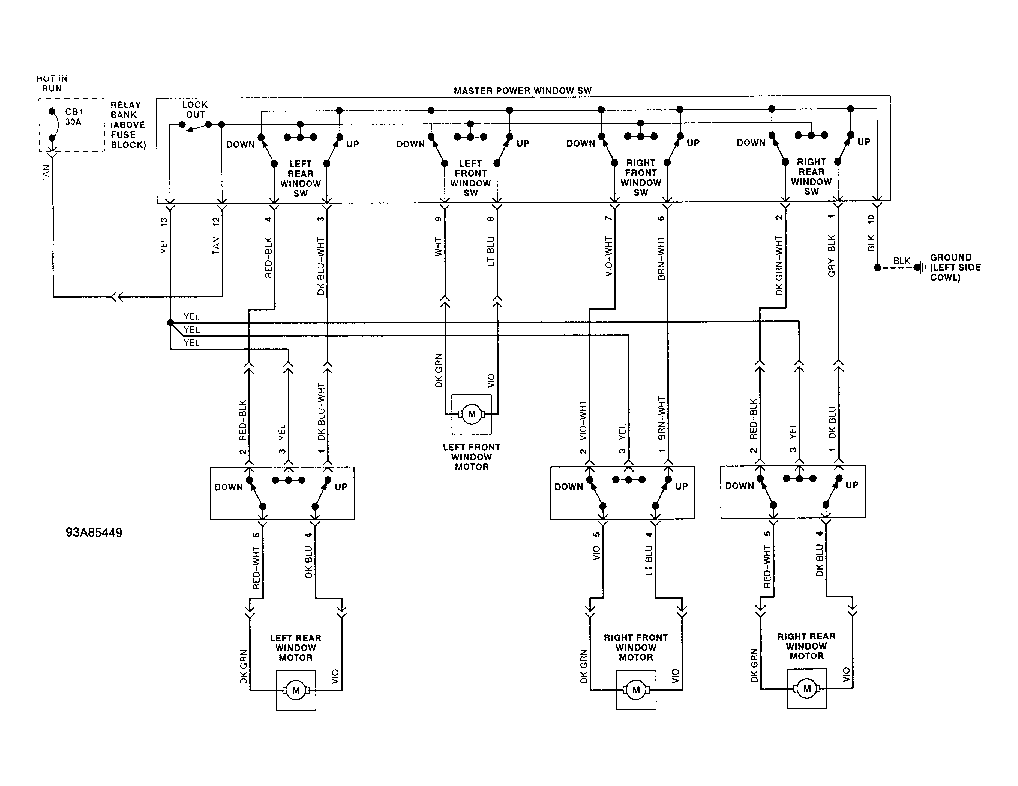

Fig 5: Wiring Diagram (Shadow & Sundance - 2-Door)

Fig 6: Wiring Diagram (LeBaron Coupe)

Fig 7: Wiring Diagram (Shadow & Sundance - 4-Door)
