Rear Wheel Speed Sensor: Installation

To install, reverse removal procedure. Coat sensor with high-temperature multipurpose grease before installing. Tighten sensor screw to 60 INCH lbs. (7 N.m). There is no air gap adjustment.

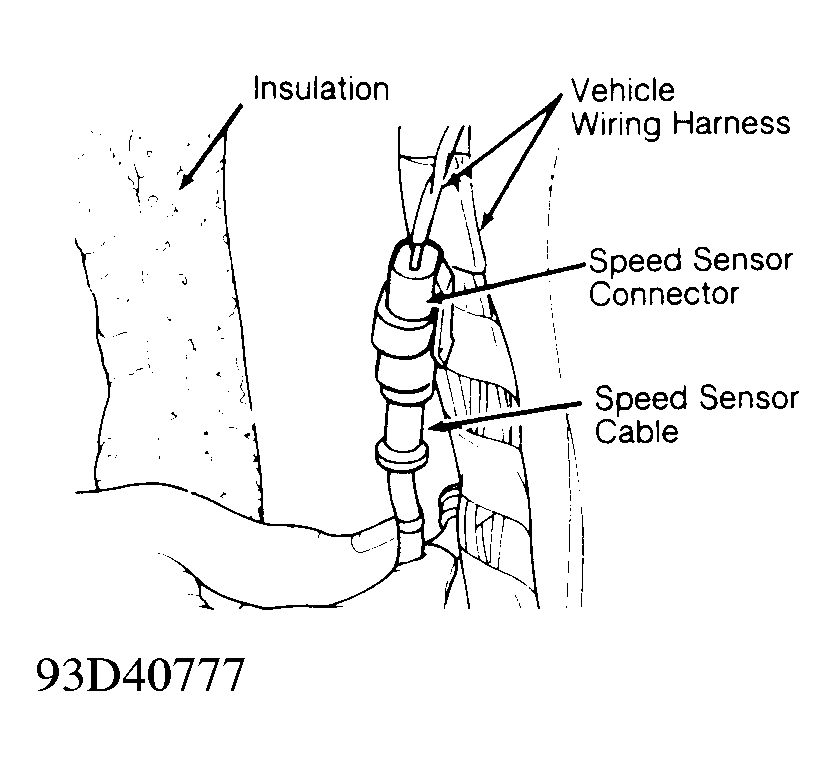

Fig 1: Locating Rear Speed Sensor Connector

Courtesy of CHRYSLER CORP.
