Engine Code Location

ENGINE CODE

ENGINE CODE LOCATION

Application		Location
LeBaron, Sprit, Acclaim, Shadow & Sundance
3.0L V6		Lower Right Rear Side Of Engine Block, Stamped On Boss, Below Crossover Pipe. See Fig 1
2.2L/2.5L/3.3L & 3.8L		Back Of Engine Block, Near Transaxle, Near & To The Right Of Transaxle Dip Stick. See Fig 2
New Yorker, LHS, Concorde, Intrepid & Vision
3.3L V6 & 3.5L V6		Rear Of Cylinder Block, Below Driver's Side Cylinder Head Surface, Just Above Flywheel. See Fig 3
Laser & Talon
1.8L 4 Cyl. Non-Turbo		Front Of Cylinder Block, Just Behind Alternator. See Fig 4
2.0L 4 Cyl. Turbo		Front Of Cylinder Block, Just Behind Alternator. See Fig 3
Viper
	8.0L V10	Front Right Hand Side Of Cylinder Block, Near The Oil Filter. See Fig 5

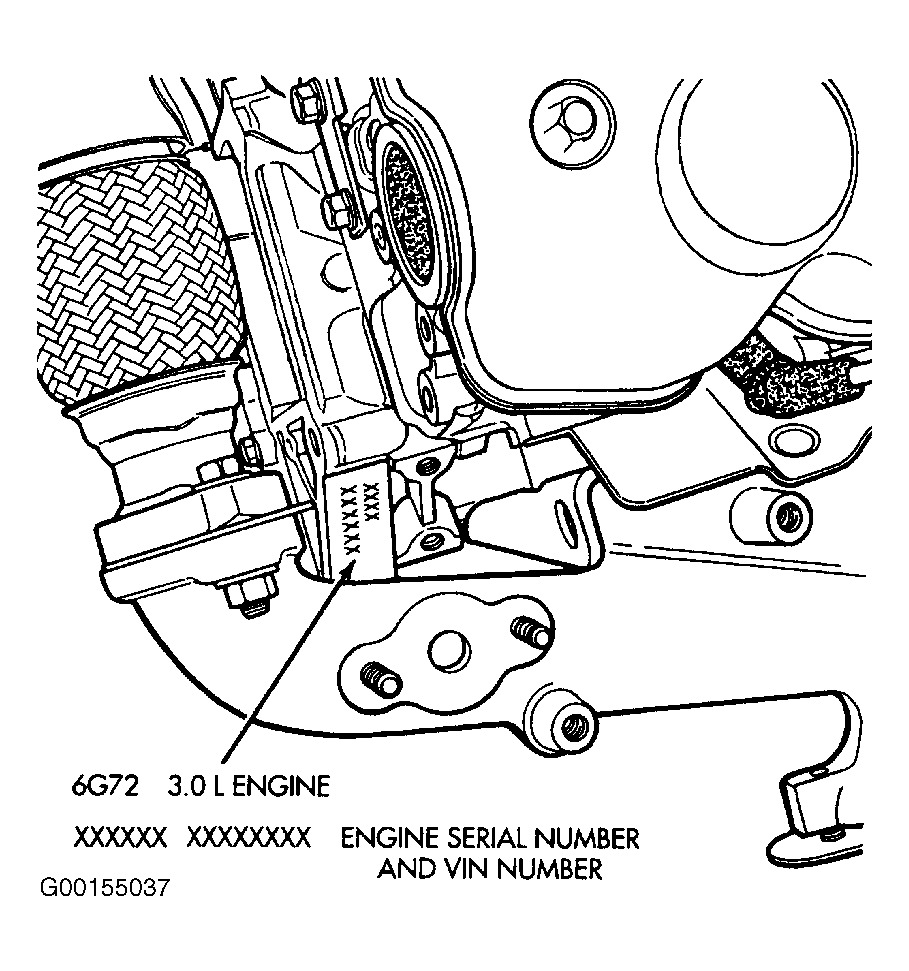

Fig 1: Locating Engine Identification Code (3.0L V6 - LeBaron, Sprit, Acclaim, Shadow & Sundance)

Courtesy of CHRYSLER CORP.

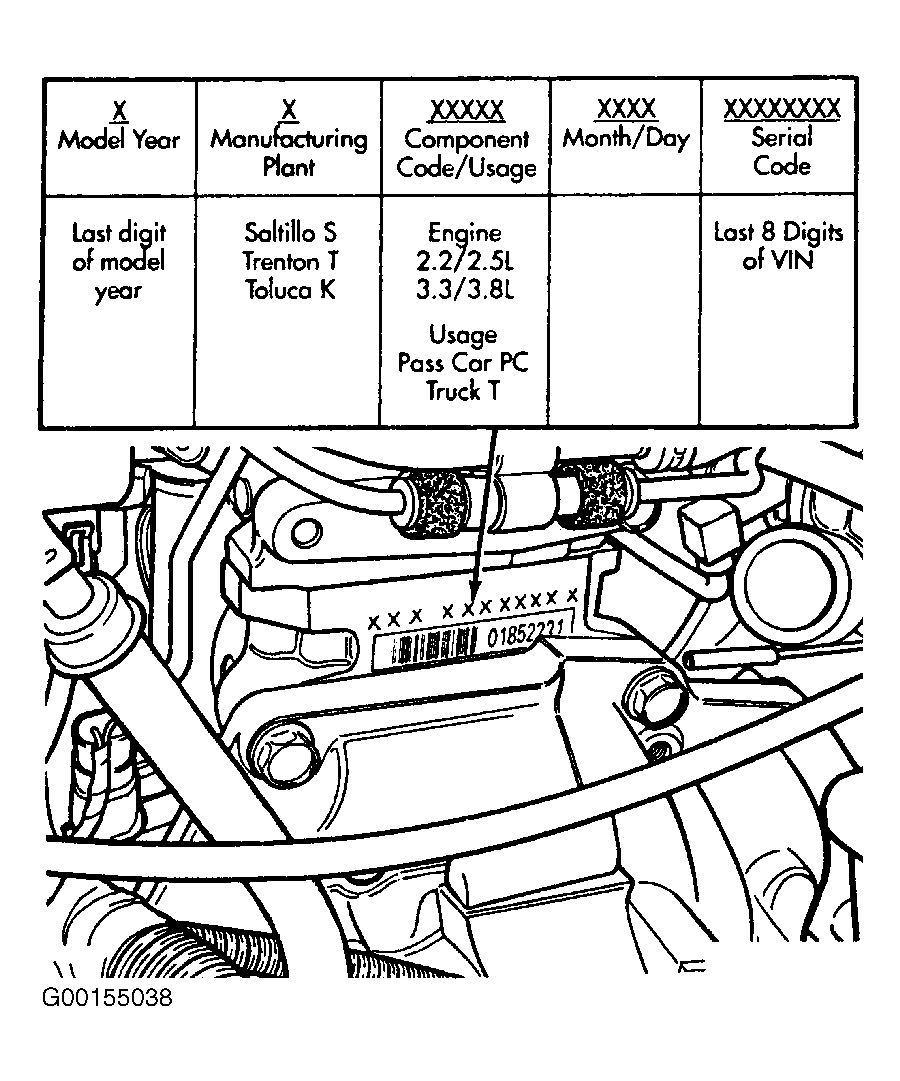

Fig 2: Locating Engine Identification Code (2.2L/2.5L/3.3L & 3.8L - LeBaron, Sprit, Acclaim, Shadow & Sundance)

Courtesy of CHRYSLER CORP.

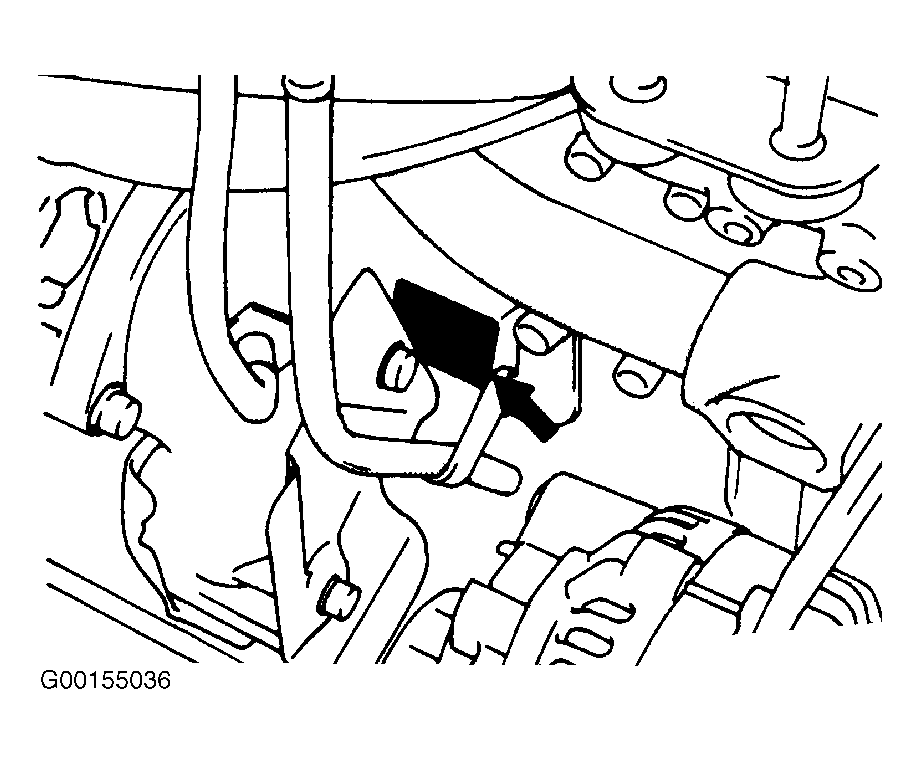

Fig 3: Locating Engine Identification Code (3.3L & 3.5L V6 - New Yorker, LHS, Concorde, Intrepid & Vision)

Courtesy of CHRYSLER CORP.

Fig 4: Locating Engine Identification Code (1.8L & 2.0L 4Cyl. - Laser & Talon)

Courtesy of CHRYSLER CORP.

Fig 5: Locating Engine Identification Code (8.0L V10 - Viper)

Courtesy of CHRYSLER CORP.
