Ignition System: Distributor: Installation

  1. Ensure piston No. 1 is still at TDC of compression stroke. Install distributor. Ensure distributor "O" ring is properly seated on engine block. To complete installation, reverse removal procedure.
  2. Adjust ignition timing. See appropriate ADJUSTMENTS article. Tighten distributor bolt.

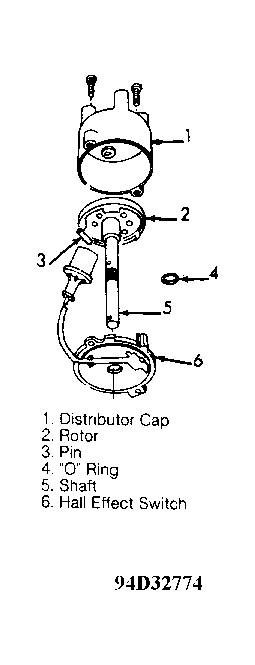

Fig 1: Exploded View Of Distributor (2.2L & 2.5L TBI)
G94D32774Courtesy of CHRYSLER CORP.

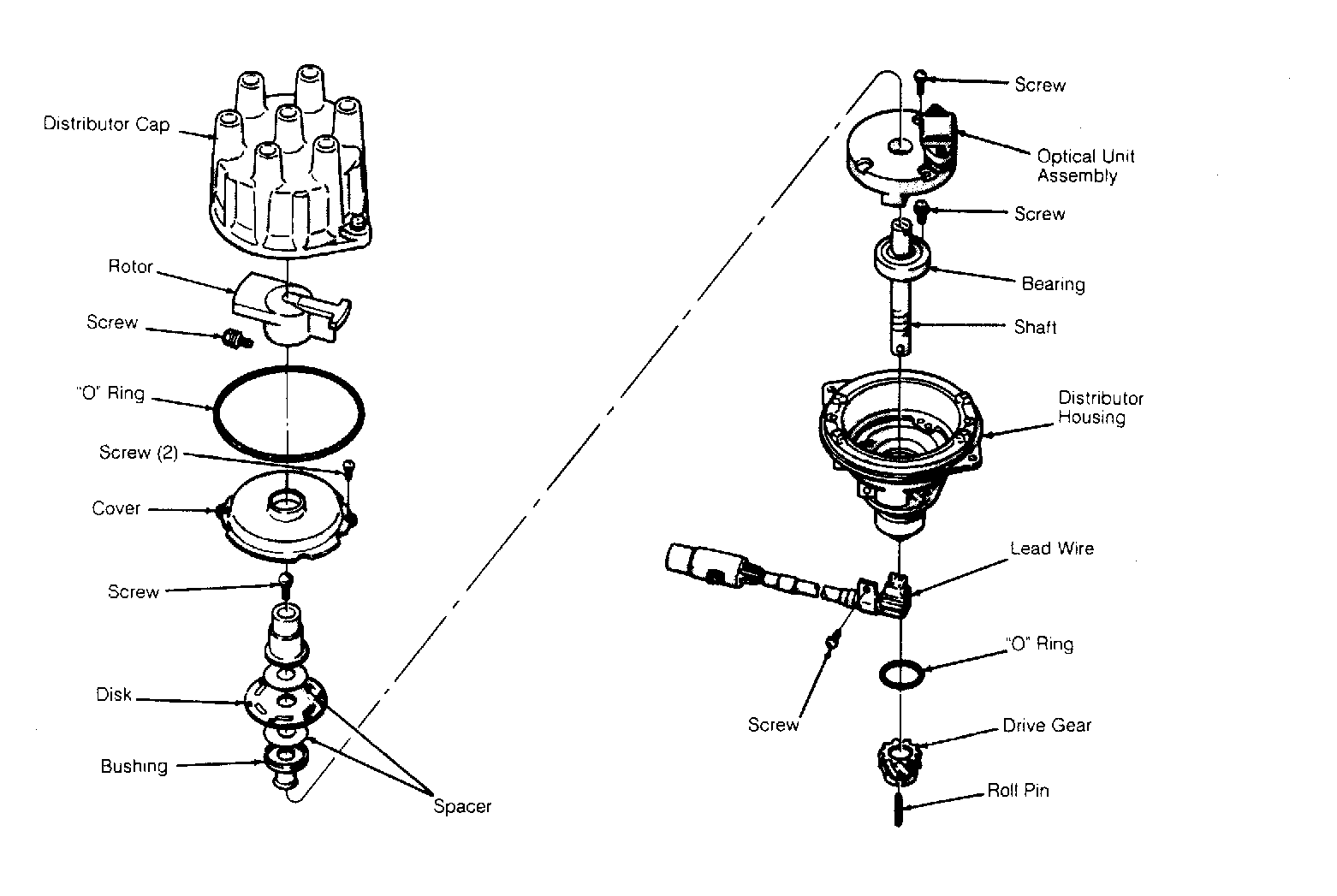

Fig 2: Exploded View Of Distributor (3.0L)
G90E13312Courtesy of CHRYSLER CORP.
