Transmitter Programming

  1. Remove upper center bezel from instrument panel and locate traction control Black connector. See Fig 1 . Disconnect connector. Turn ignition switch to ON position.
  2. Ground connector terminal No. 4. See Fig 2 . Door locks will lock and unlock to indicate that system is ready to receive codes. Trunk solenoid will not cycle at this time. Press any button on transmitter to set code. Locks will cycle to confirm programming.
  3. If a second transmitter is used, it must be set at this time. Press any button on second transmitter and wait for locks to cycle. Disconnect program line from ground. This returns system to normal operation. Replace upper center bezel to instrument panel.

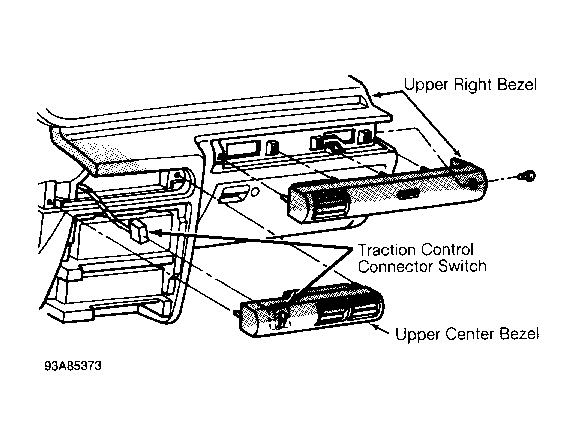

Fig 1: Locating Traction Control Switch
G93A85373Courtesy of CHRYSLER CORP.

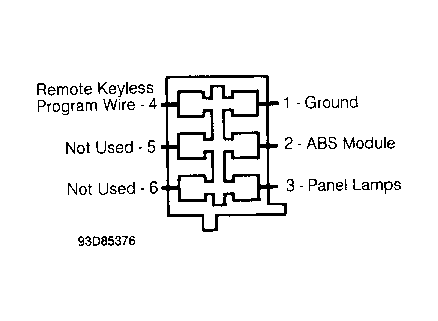

Fig 2: Identifying Traction Control Switch Connector Terminals
G93D85376Courtesy of CHRYSLER CORP.
