Lift Switch Test

Remove control switch from trim panel. Using ohmmeter, check continuity of switch. See appropriate MASTER WINDOW SWITCH CONTINUITY CHART or DOOR SWITCH CONTINUITY CHART table. See Figure . If switch continuity is not as specified, replace switch.
LH bodies are equipped with an Auto Down feature. Driver's window can be lowered without having to hold the switch in the down position. Auto Down feature can be activated by pressing down switch past the first detent (Stop).
To test Auto Down feature, operate switch in normal up and down mode. If window operates properly in normal mode, but does not operate in Auto Down mode, replace switch.

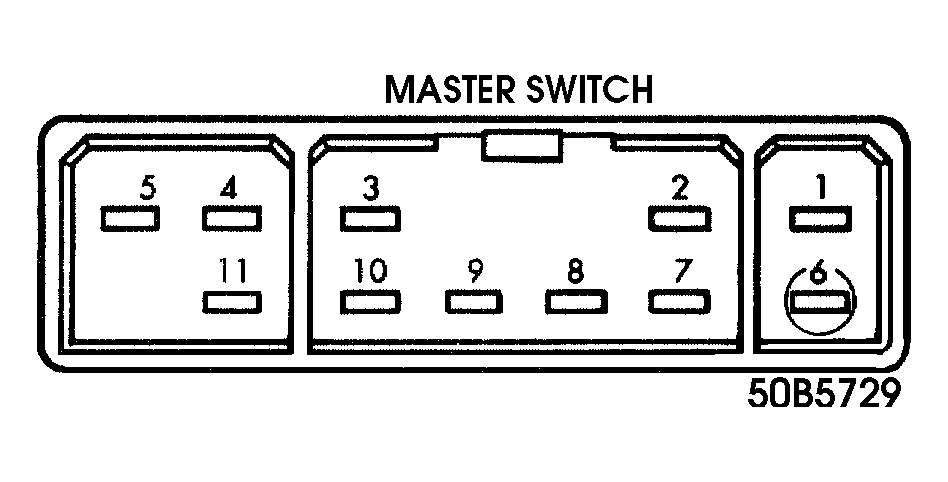

Fig 1: Power Window Control Master Switch Pin ID (LHS & New Yorker)

Courtesy of CHRYSLER CORP.

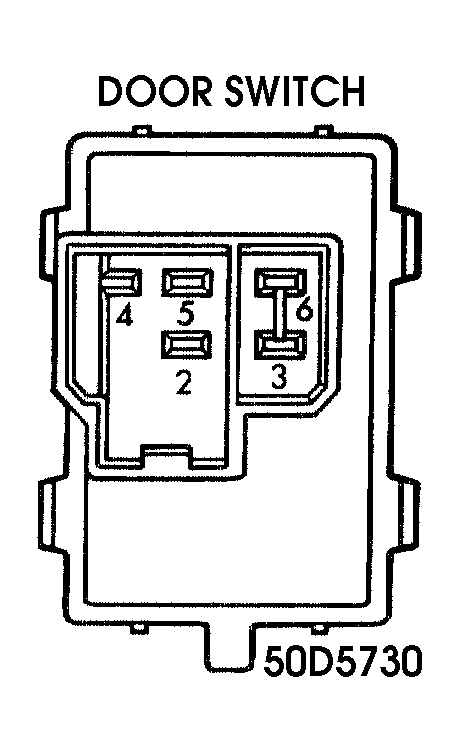

Fig 2: Power Window Control Door Switch Pin ID (LHS & New Yorker)

Courtesy of CHRYSLER CORP.

MASTER WINDOW SWITCH CONTINUITY CHART

Switch Position	Check Continuity Between
OFF	Pins 2 & 8; Pins 3 & 8; Pins 4 & 8; Pins 6 & 8; Pins 7 & 8; Pins 8 & 9; Pins 8 & 10; Pins 8 & 11
Driver's UP	Pins 5 & 11 Pins 8 & 10
Right Front UP	Pins 5 & 6; Pins 7 & 8
Left Rear UP	Pins 3 & 8; Pins 4 & 5
Right Rear UP	Pins 2 & 5; Pins 8 & 9
Driver's DOWN	Pins 5 & 10; Pins 8 & 11
Right Front DOWN	Pins 5 & 7; Pins 6 & 8
Left Rear DOWN	Pins 3 & 5; Pins 4 & 8
Right Rear DOWN	Pins 2 & 8; Pins 5 & 9
Window Lock	Pins 1 & 5

DOOR SWITCH CONTINUITY CHART RIGHT FRONT DOOR
