Bleeding Hydraulic Control Unit
WARNING:
Ensure manual or pressure bleeding procedure is performed before bleeding Hydraulic Control Unit (HCU).

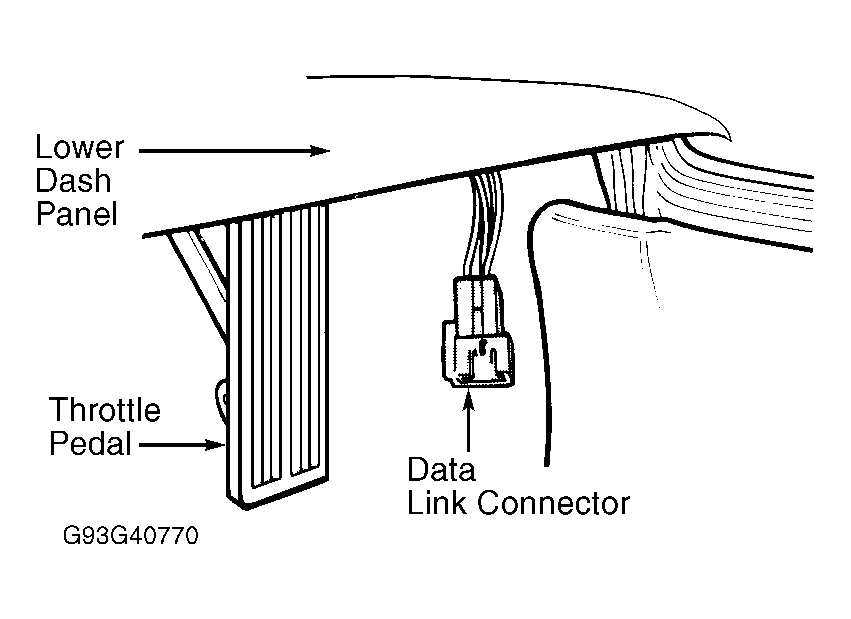

- Bleed base brake system using standard manual or pressure bleeding procedures. See MANUAL BLEEDING or PRESSURE BLEEDING. Connect scan tool to Blue 6-pin Chrysler Collision Detection (CCD) data link connector, located under lower dash panel, right of steering column. See Fig 1 .
- Using scan tool, check for any stored fault codes. If any fault codes are present, erase them using scan tool. Follow screen prompts on scan tool to bleed anti-lock brake system. Disconnect scan tool. Repeat manual or pressure bleeding procedure.
