Lift Switch Test

  1. Remove control switch from trim panel. Using ohmmeter, check continuity of switch. See appropriate MASTER WINDOW SWITCH CONTINUITY CHART or DOOR SWITCH CONTINUITY CHART table. See Fig 1 -8. If switch continuity is not as specified, replace switch.
  2. LH bodies are equipped with an Auto Down feature. Driver's window can be lowered without having to hold the switch in the down position. Auto Down feature can be activated by pressing down switch past the first detent (Stop).
  3. To test Auto Down feature, operate switch in normal up and down mode. If window operates properly in normal mode, but does not operate in Auto Down mode, replace switch.

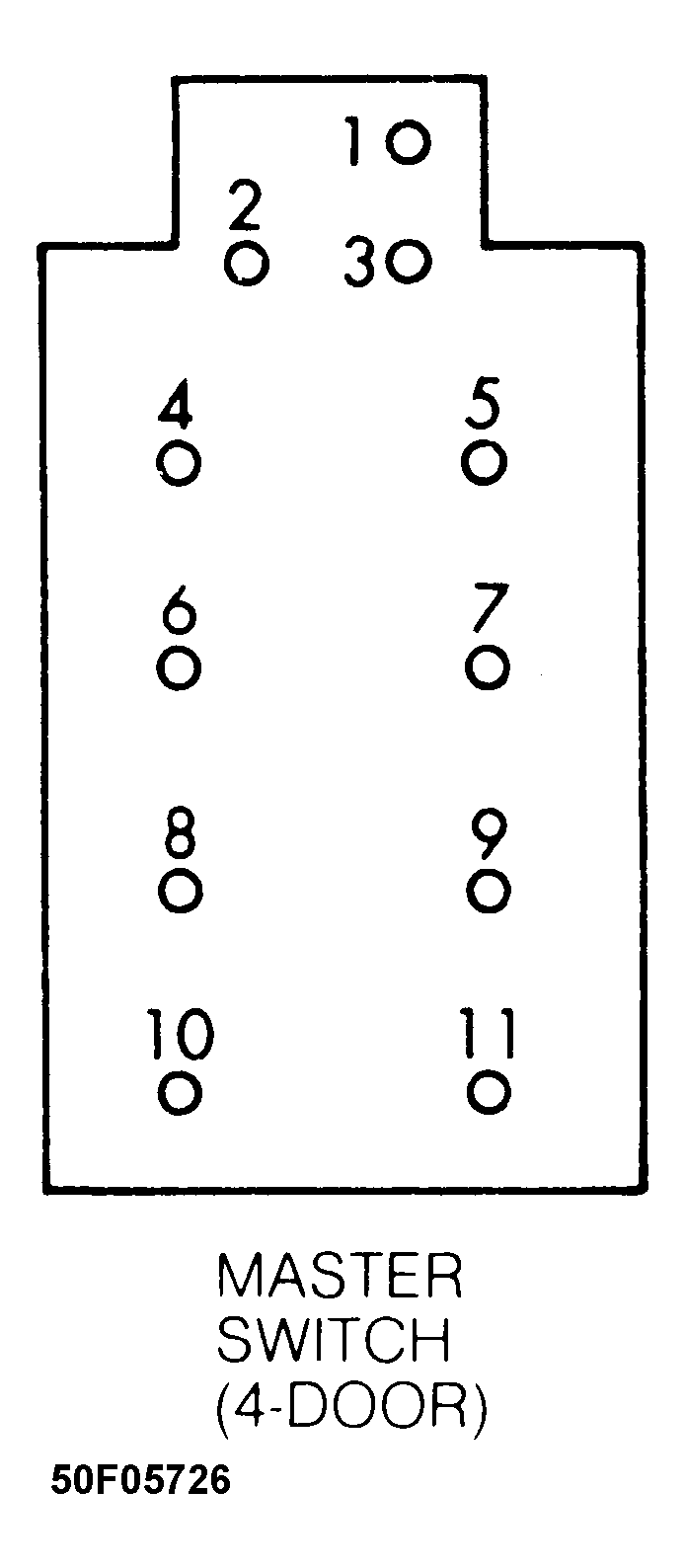

Fig 1: Power Window Control Master Switch Pin ID (4-Door)
G50F05726Courtesy of CHRYSLER CORP.

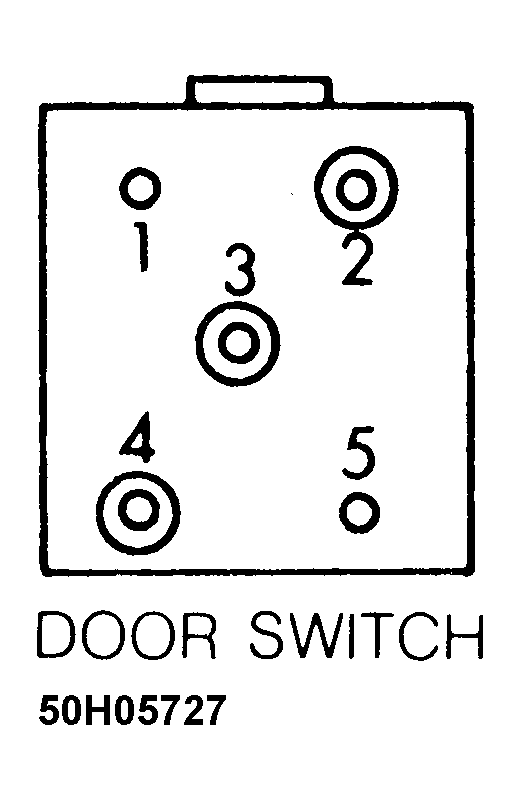

Fig 2: Power Window Control Door Switch Pin ID (LeBaron Convertible)
G50H05727Courtesy of CHRYSLER CORP.

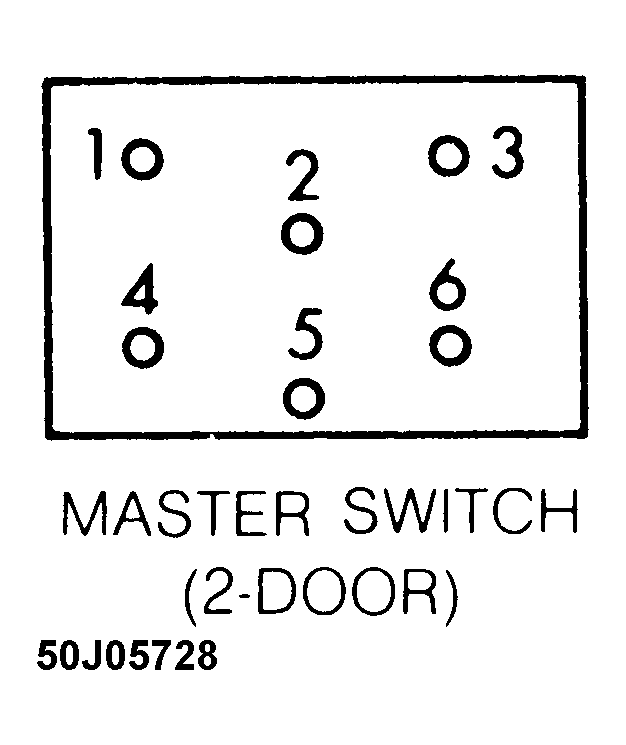

Fig 3: Power Window Control Master Switch Pin ID (2-Door)
G50J05728Courtesy of CHRYSLER CORP.
MASTER WINDOW SWITCH CONTINUITY CHART

Switch Position Check Continuity Between
OFF Pins 1 & 2; Pins 2 & 3; Pins 2 & 4; Pins 2 & 6
Driver's UP Pins 2 & 6; Pins 3 & 5
Right Front UP Pins 1 & 5; Pins 2 & 4
Driver's DOWN Pins 2 & 3; Pins 5 & 6
Right Front DOWN Pins 1 & 2; Pins 4 & 5
DOOR SWITCH CONTINUITY CHART RIGHT FRONT DOOR

Switch Position Check Continuity Between
OFF Pins 1 & 4; Pins 2 & 5
UP Pins 2 & 5; Pins 3 & 4
DOWN Pins 1 & 4; Pins 2 & 5
