Body Control System Connectors

NOTE: For terminal identification of body control system connectors, see Fig 1-28. Connector terminal numbers are molded into connectors. If connector terminal identification differs from that shown in figure, use wire colors to ensure correct circuit is being tested. For wiring diagrams, see WIRING DIAGRAMS - 3.0L article in ENGINE PERFORMANCE.

Fig 1: Identifying Body Control Module Black Connector Terminals

G95A14282

Courtesy of CHRYSLER CORP.

Fig 2: Identifying Body Control Module Natural Connector Terminals

G95B14283

Courtesy of CHRYSLER CORP.

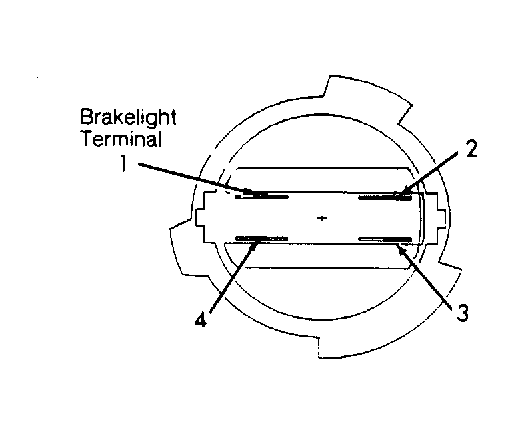

Fig 3: Identifying Body Control Module Connector Terminals

G92G05755

Courtesy of CHRYSLER CORP.

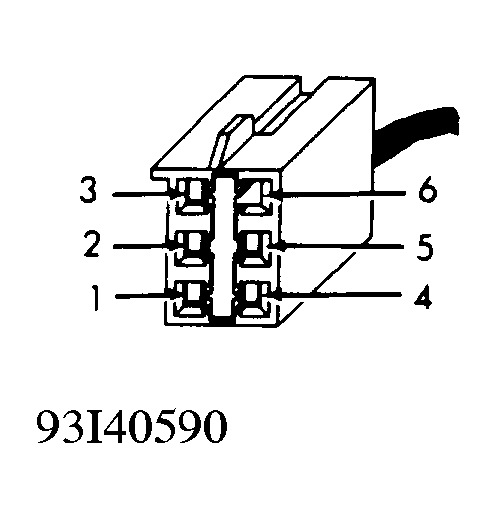

Fig 4: Identifying Brakelight Switch Connector Terminals

G93I40590

Courtesy of CHRYSLER CORP.

Fig 5: Identifying Data Link Connector (DLC) Terminals

G93J40591

Courtesy of CHRYSLER CORP.

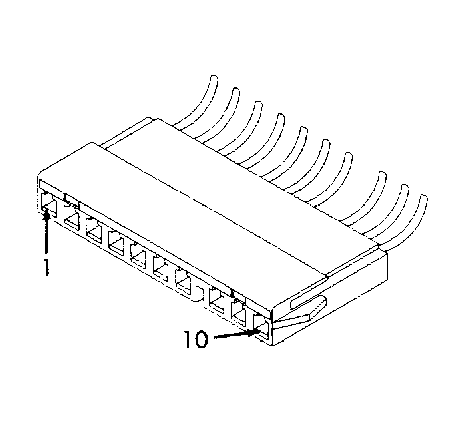

Fig 6: Identifying Compass/Temperature Connector Terminals

G92C05758

Courtesy of CHRYSLER CORP.

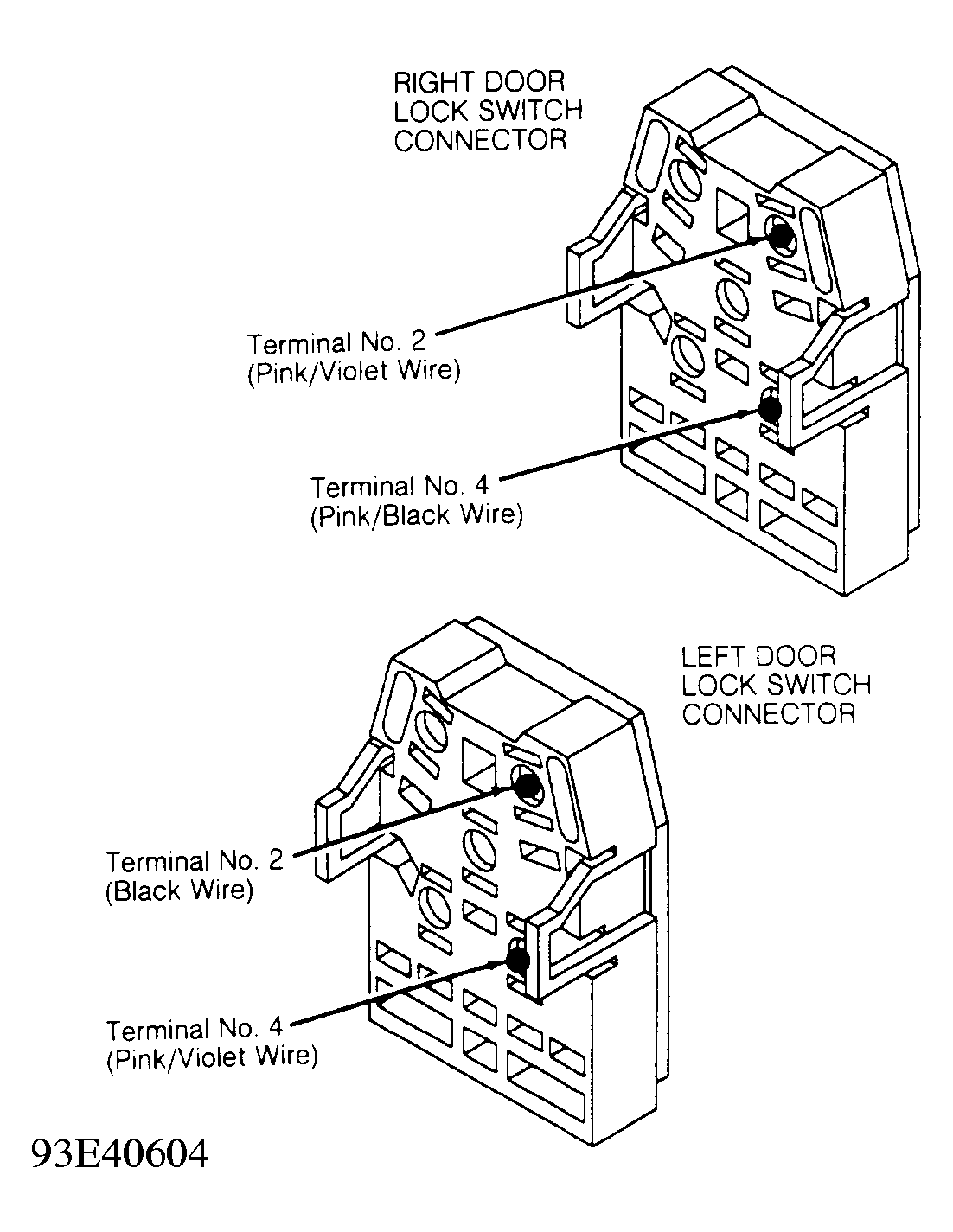

Fig 7: Identifying Door Lock Switch Connector Terminals

G93E40604

Courtesy of CHRYSLER CORP.

Fig 8: Identifying Instrument Cluster Connector Terminals

G95A14290

Courtesy of CHRYSLER CORP.

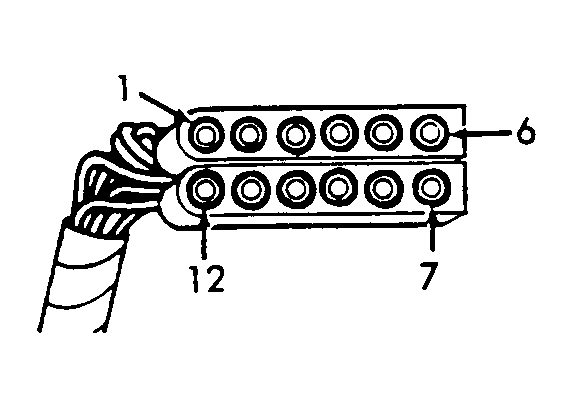

Fig 9: Identifying Engine Node Connector Terminals

G92I01522

Courtesy of CHRYSLER CORP.

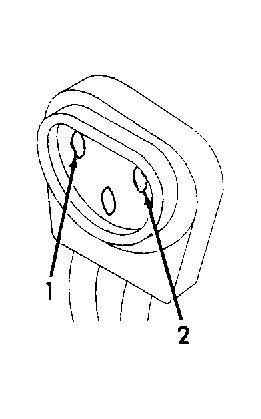

Fig 10: Identifying Fuel Tank Sending Unit Connector Terminals

G92I05761

Courtesy of CHRYSLER CORP.

Fig 11: Identifying Ignition Switch Connector Terminals

G93G40606

Courtesy of CHRYSLER CORP.

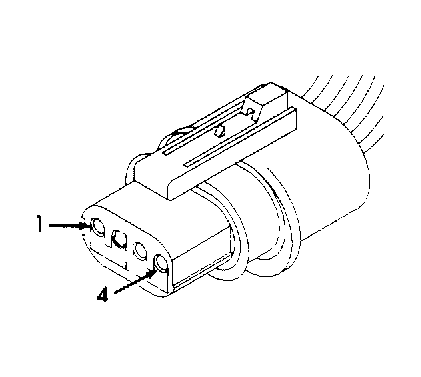

Fig 12: Identifying Illuminated Entry Switch Connector Terminals

G92J05766

Courtesy of CHRYSLER CORP.

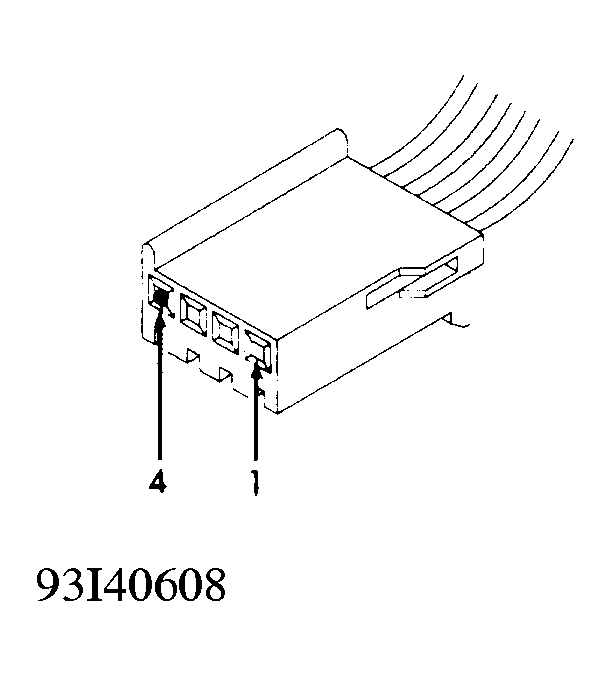

Fig 13: Identifying Key-In Light Connector Terminals

G93I40608

Courtesy of CHRYSLER CORP.

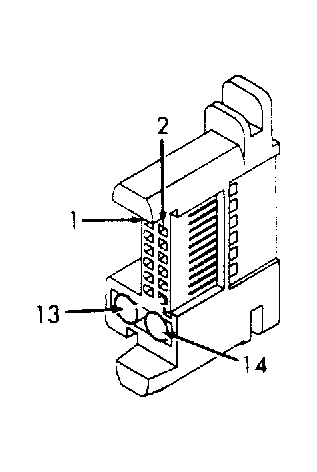

Fig 14: Identifying Left Side Pod Switch Connector Terminals

G92F05769

Courtesy of CHRYSLER CORP.

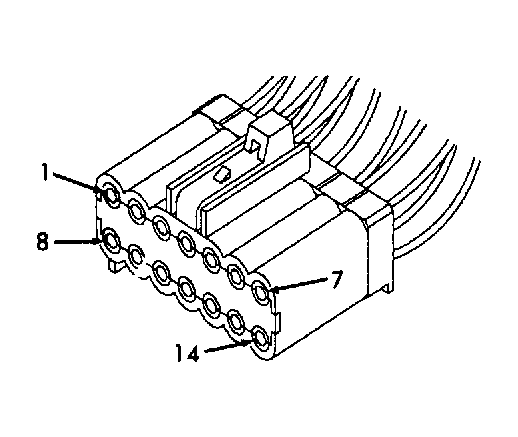

Fig 15: Identifying Light Outage Module 14-Pin Connector Terminals

G92J05785

Courtesy of CHRYSLER CORP.

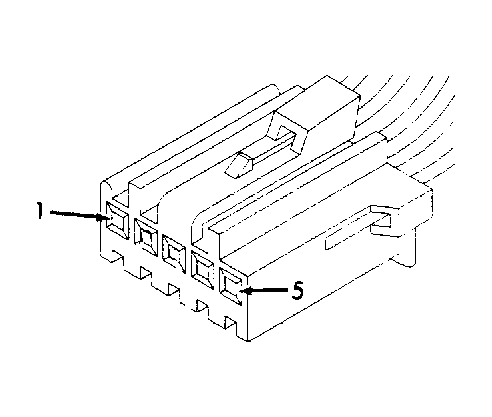

Fig 16: Identifying Light Outage Module 5-Pin Connector Terminals

G92J05771

Courtesy of CHRYSLER CORP.

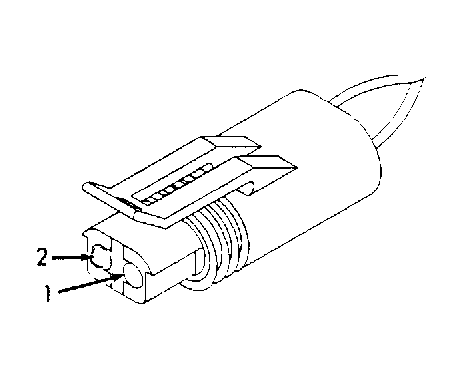

Fig 17: Identifying Oil Pressure Switch/Sending Unit & Ambient Temperature Sensor Connector Terminals

G92I05775

Courtesy of CHRYSLER CORP.

Fig 18: Identifying Powertrain Control Module & Transmission Control Module Connector Terminals

G92I05780

Courtesy of CHRYSLER CORP.

Fig 19: Identifying Powertrain Control Module

G95I12680

Courtesy of CHRYSLER CORP.

Fig 20: Identifying Relay Connector Terminals

G92C05763

Courtesy of CHRYSLER CORP.

Fig 21: Identifying Remote Keyless Entry (RKE) Module Connector Terminals

G95C14292

Courtesy of CHRYSLER CORP.

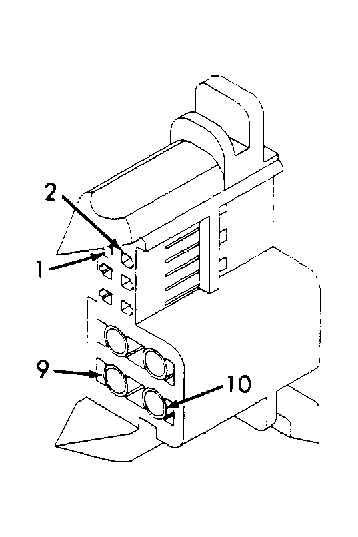

Fig 22: Identifying Right Side Pod Switch Connector Terminals

G92E05778

Courtesy of CHRYSLER CORP.

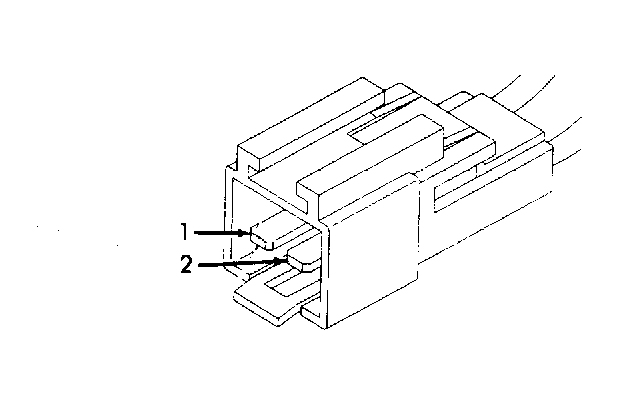

Fig 23: Identifying Seat Belt Switch Connector Terminals

G92G05779

Courtesy of CHRYSLER CORP.

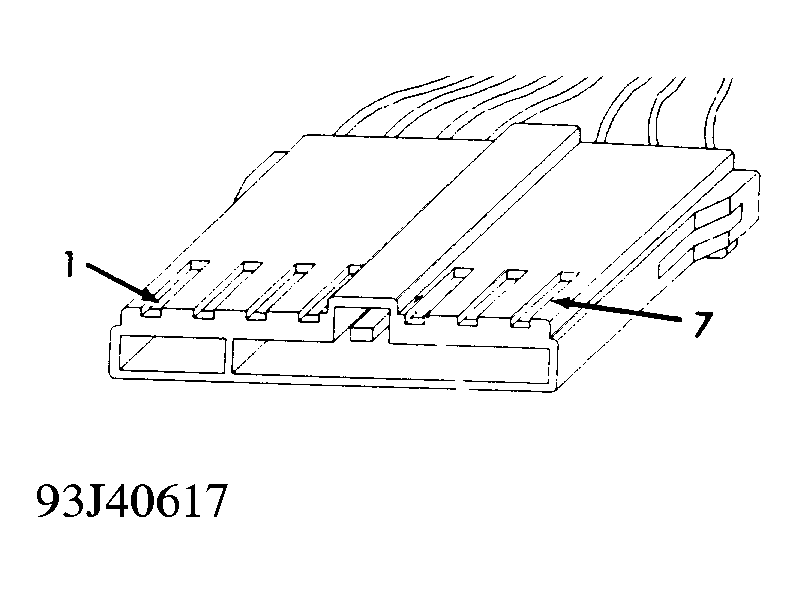

Fig 24: Identifying Traveler & Electronic Vehicle Information Center (EVIC) Connector Terminals

G93J40617

Courtesy of CHRYSLER CORP.

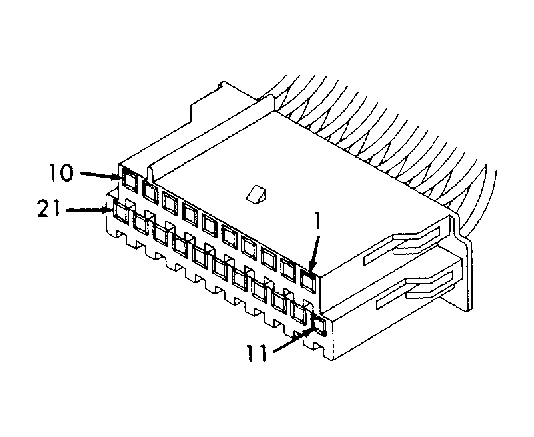

Fig 25: Identifying Vehicle Theft Security System Module Connector Terminals

G92E05783

Courtesy of CHRYSLER CORP.

Fig 26: Identifying Visual Message Center, Light Outage Module, & Instrument Cluster Connector Terminals

G92J05785

Courtesy of CHRYSLER CORP.

Fig 27: Identifying Wiper Motor Connector Terminals

G95D14293

Courtesy of CHRYSLER CORP.
