Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| A/C Heater Control | Behind center of dash. |
| Air Bag Control Module | Center of dash, on floor tunnel. |
| ATC Power Module | Right side of HVAC. |
| Automatic Temperature Control Module | Behind center of dash. |
| Body Control Module (BCM) | Right kick panel. |

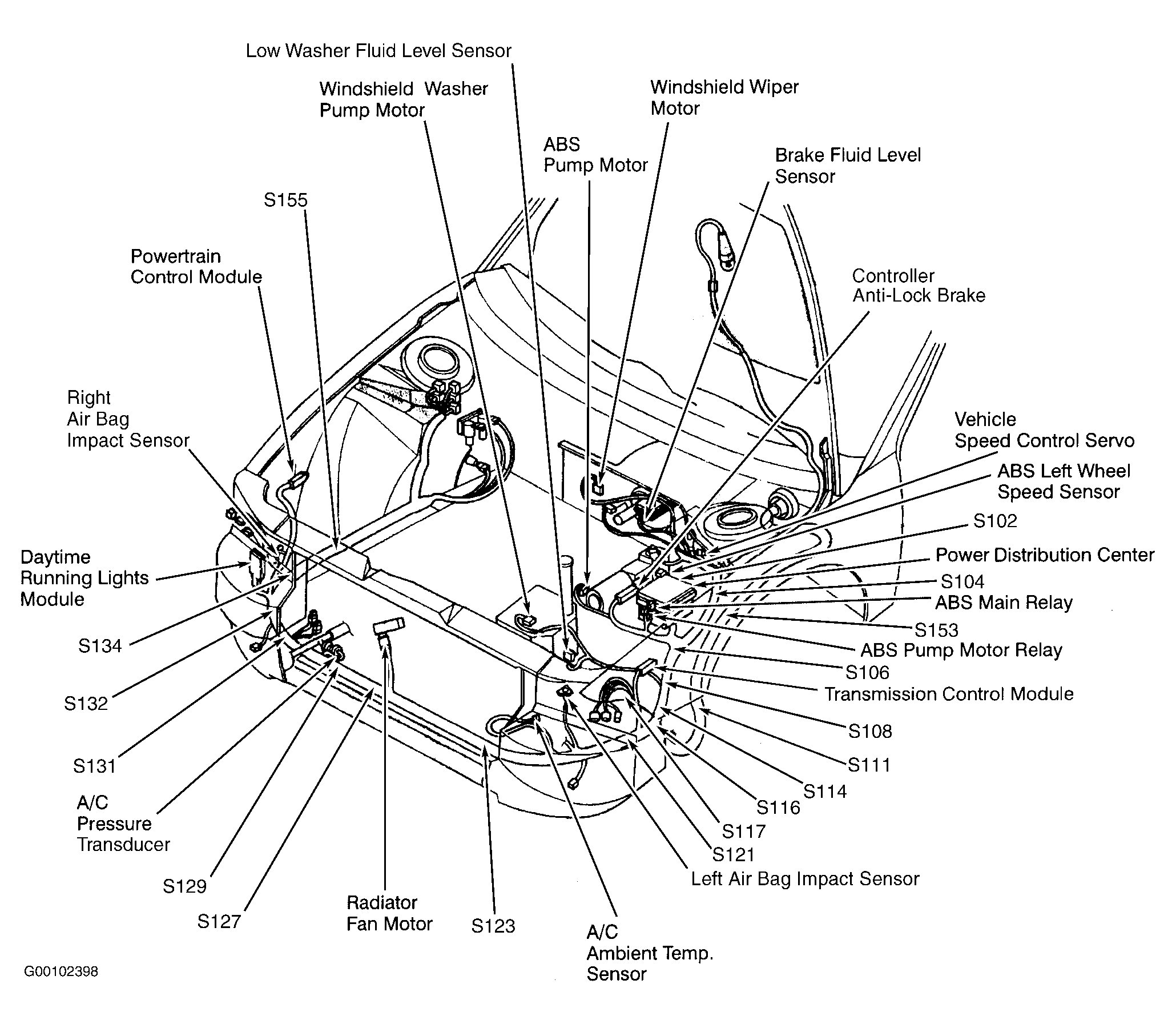

| Controller Anti-Lock Brake | On ABS hydraulic assembly. See Figure . |
| Daytime Running Lights Module | In right front corner of engine compartment. See Figure . |
| Powertrain Control Module (PCM) | In right front corner of engine compartment. See Figure . |
| Remote Keyless Entry Module | Under dash top cover, on passenger side. |
| Speed Proportional Steering Module | Left side of steering rack. |
| Transmission Control Module | In left front corner of engine compartment. See Figure . |
