Connector Identification
NOTE:

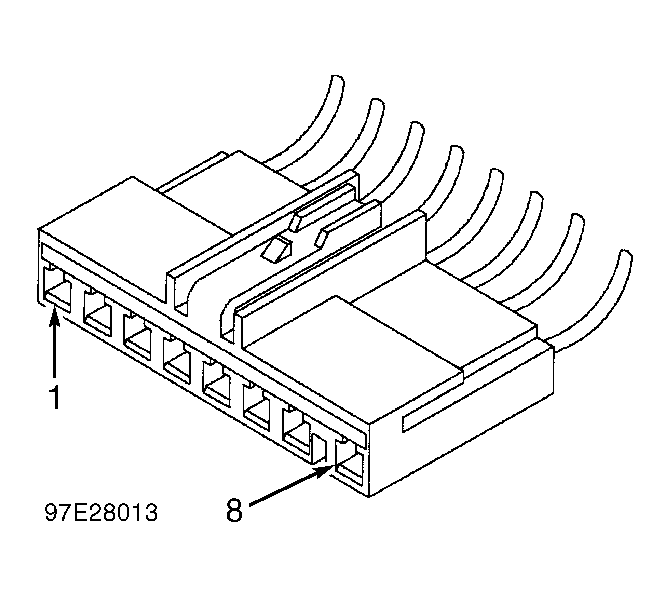

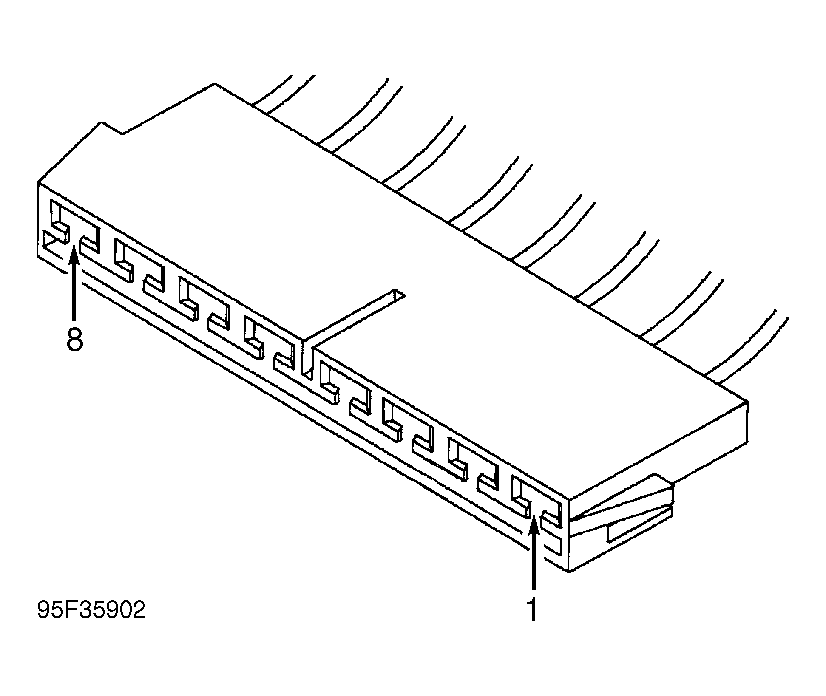

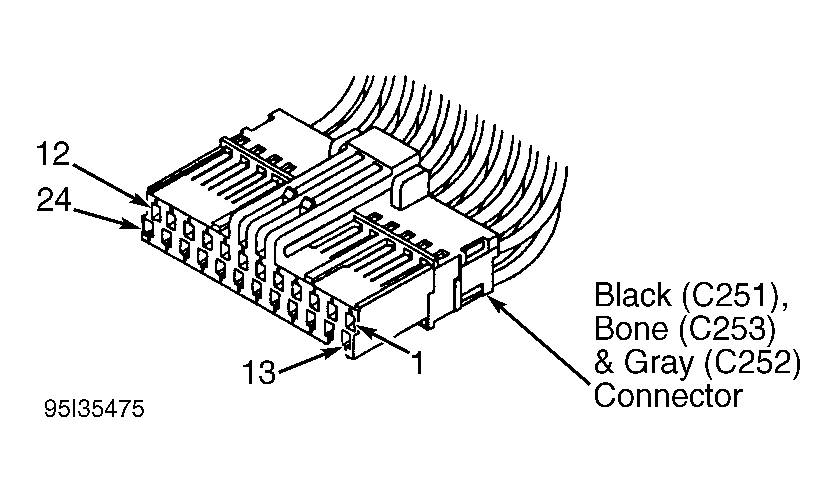

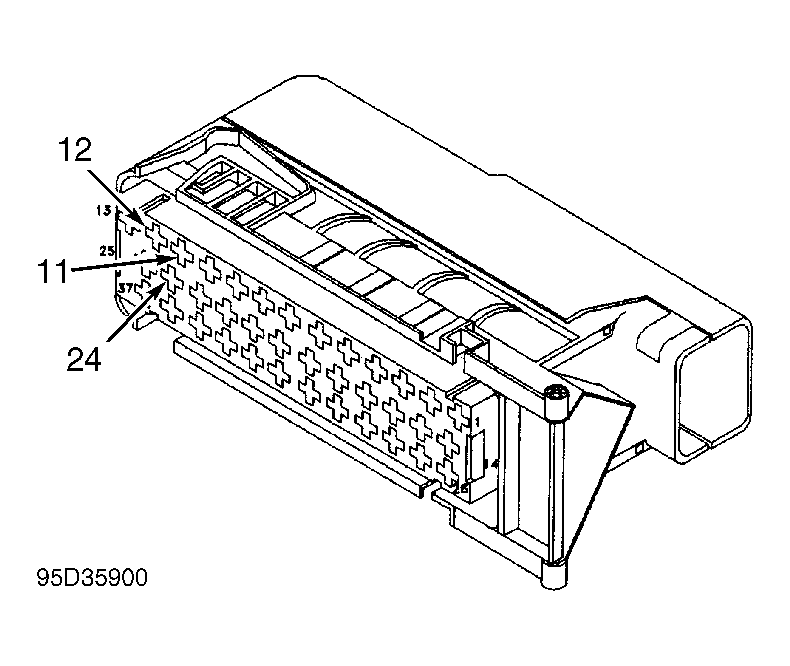

For terminal identification of body control system connectors use illustrations. See Fig 1
-Fig 16
. Connector terminal numbers are molded into connectors. If connector terminal identification differs from that shown in figure, use wire colors to ensure correct circuit is being tested.
CONNECTOR IDENTIFICATION DIRECTORY
| Connector | See |
|---|---|
| Anti-Lock Brake Controller | Fig 1 |
| ATC Sun Sensor | Fig 2 |
| Body Control Module | Fig 3 |
| Data Link (DLC) | Fig 4 |
| Flex Fuel Module | Fig 5 |

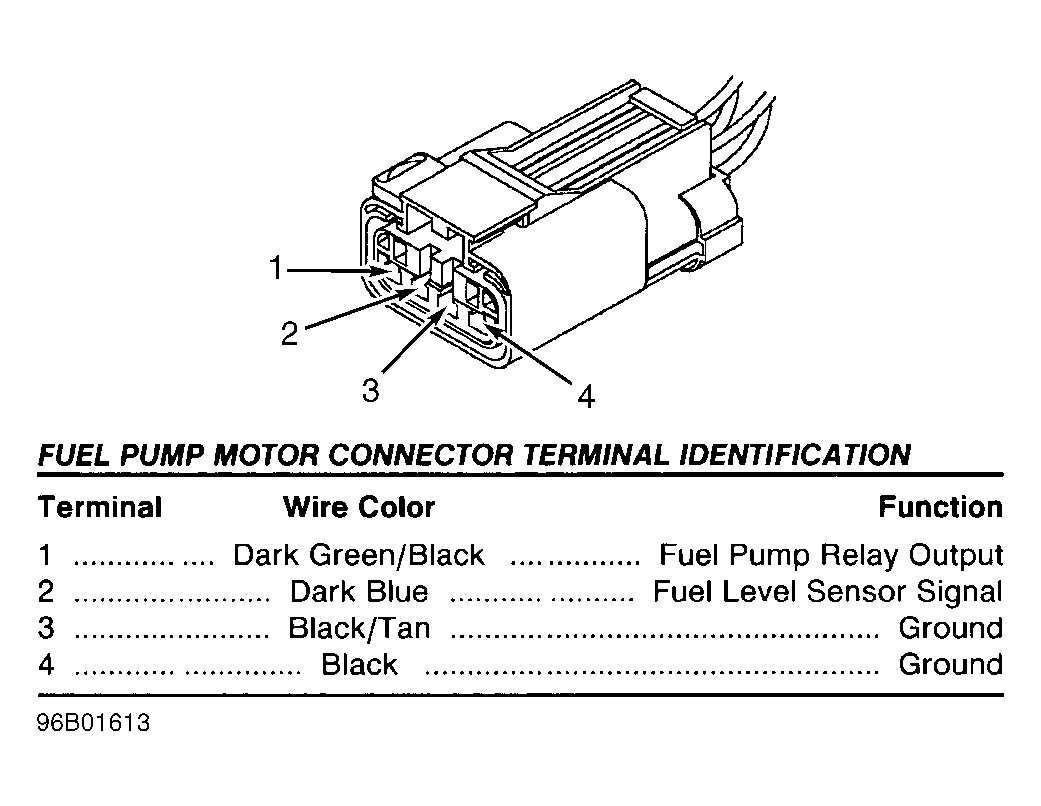

| Fuel Pump | Fig 6 |
| Headlight Switch | Fig 7 |
| Headlight 8-Pin | Fig 8 |
| Instrument Cluster | Fig 9 |
| Junction Block (Typical, NS Body Shown) | Fig 10 |
| Message Center | Fig 11 |
| Multifunction Switch 7-Pin Connector Terminals | Fig 12 |
| Powertrain Control Module Connectors | Fig 13 |
| Relay Connector | Fig 14 |
| Remote Keyless Entry (RKE) Module | Fig 15 |
| Transmission Control Module Connector | Fig 16 |
| VTSS Indicator Light | Fig 2 |
