Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| ABS Diode | Above park brake assembly. |
| Junction Block | Behind left side of dash. |

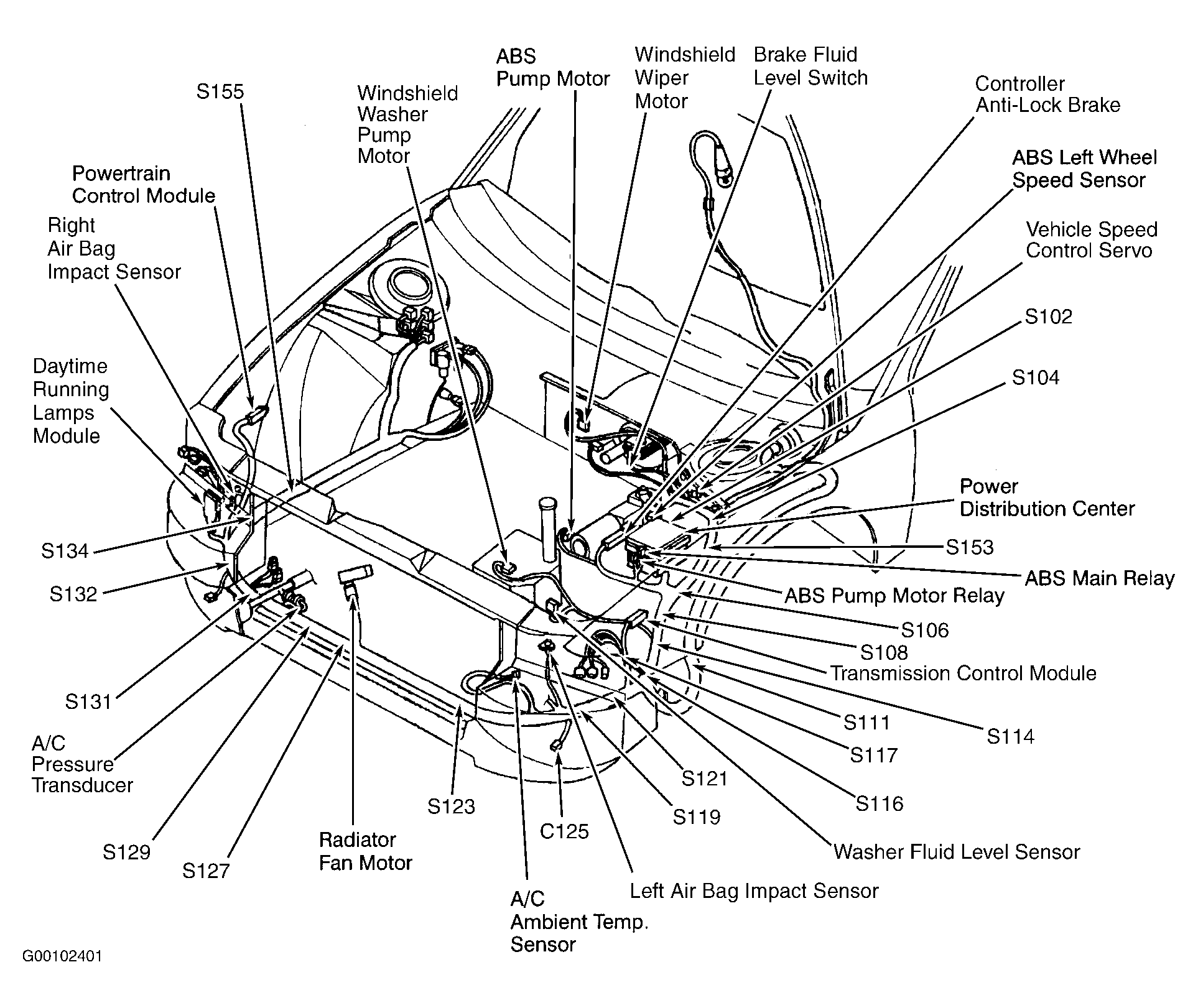

| Power Distribution Center | In engine compartment, forward of left strut tower. See Figure . |
