Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Top Of Engine (3.5L)

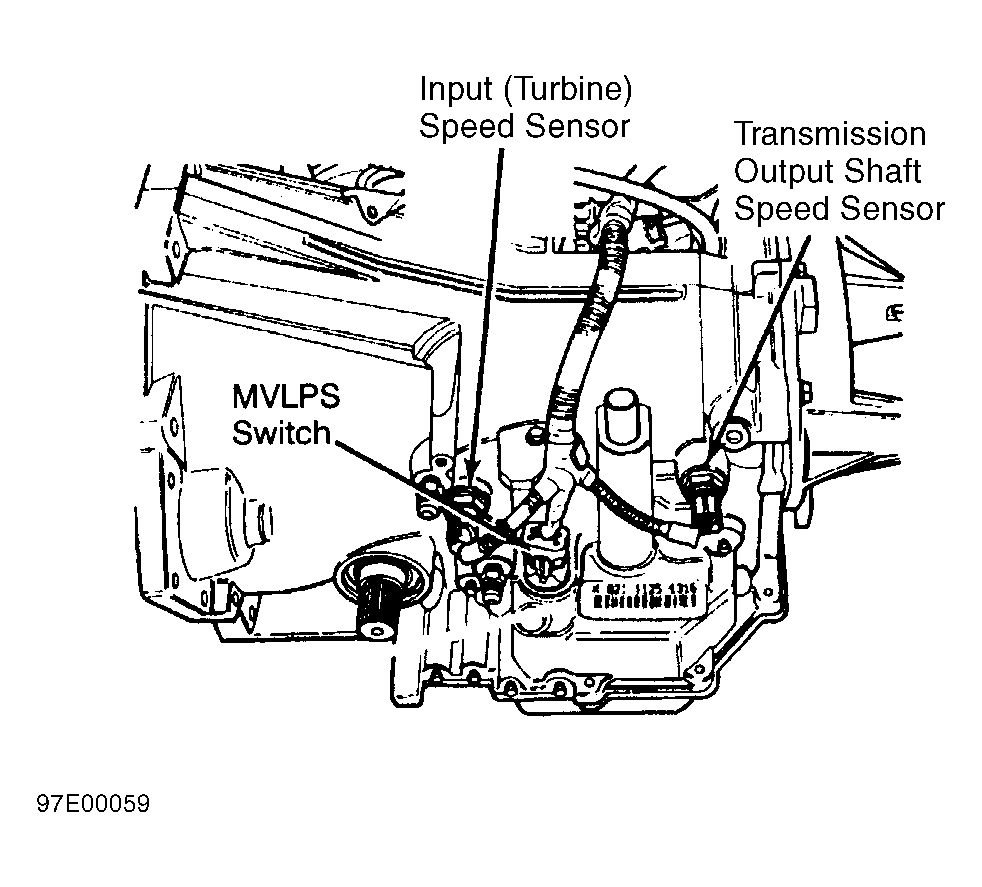

Fig 2: Transaxle

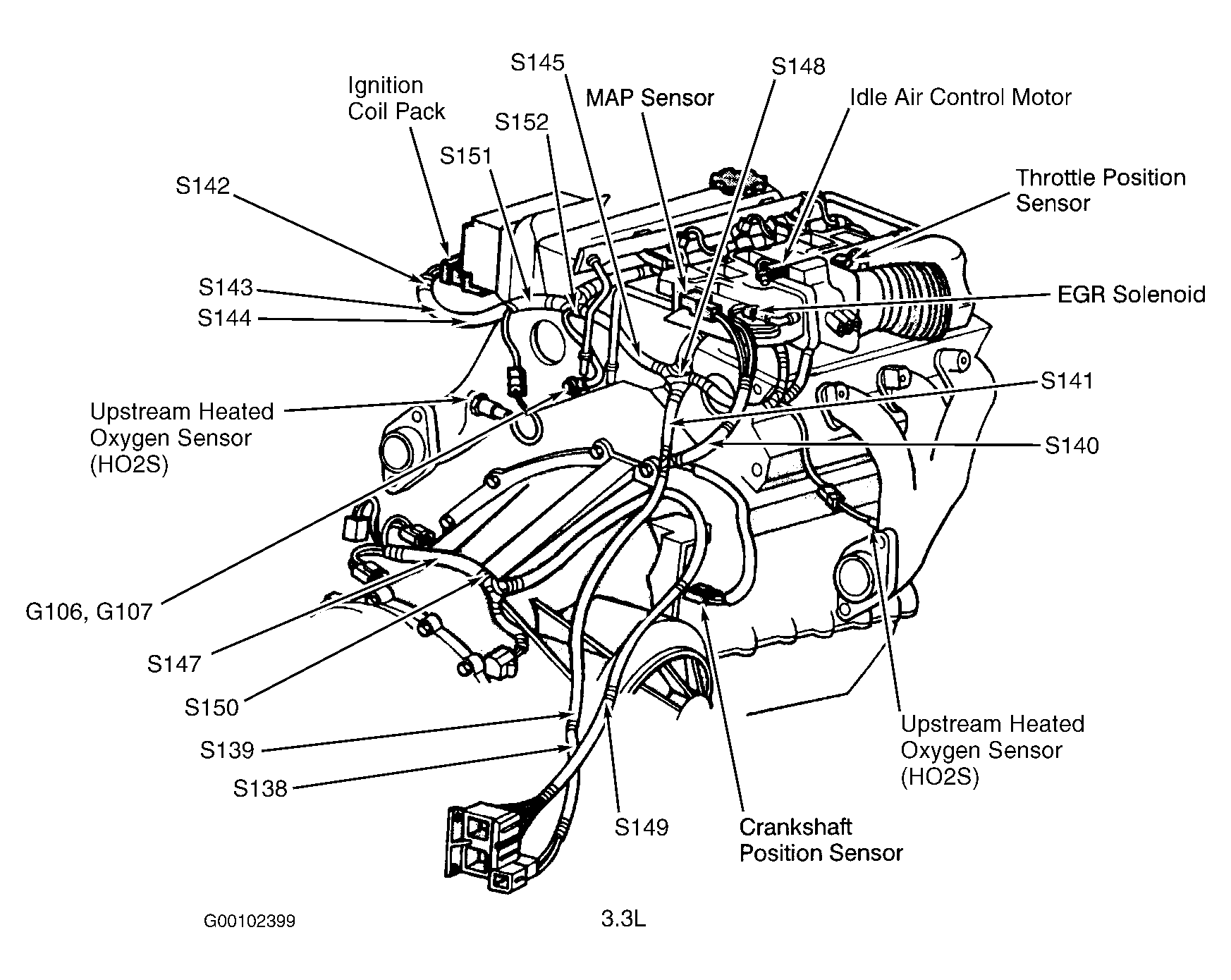

Fig 3: Top Right Side Of Engine (3.3L)

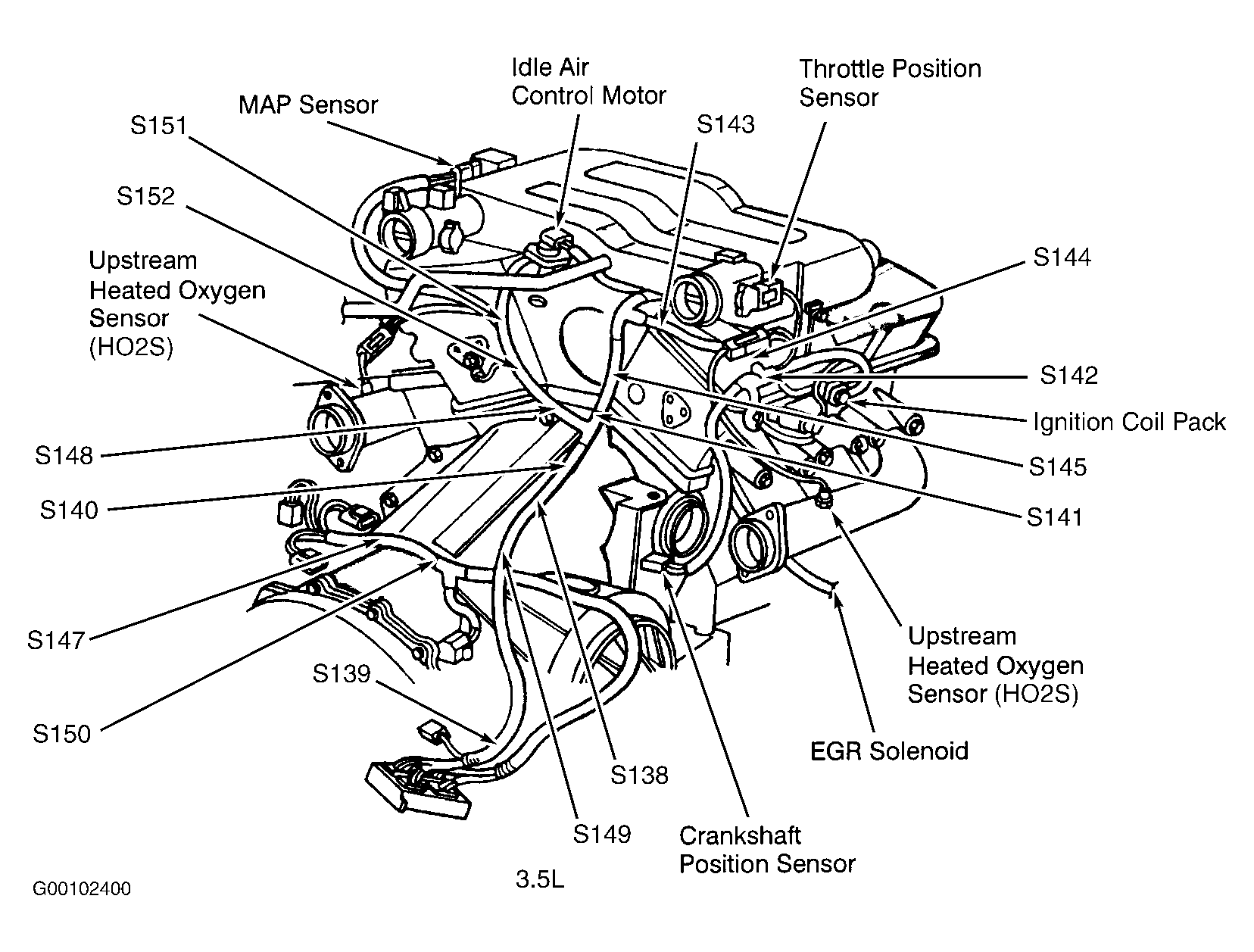

Fig 4: Top Right Side Of Engine (3.5L)

Fig 5: Engine Compartment
