Connector Identification

NOTE: For terminal identification of body control system connectors, use appropriate illustration(s). See CONNECTOR IDENTIFICATION DIRECTORY . Connector terminal numbers may be molded into connectors. If connector terminal identification differs from that shown in figure, use wire colors to ensure correct circuit is being tested. See WIRING DIAGRAMS .

CONNECTOR IDENTIFICATION DIRECTORY

Connector		See Fig.
ABS Controller (JA, JX, LH & NS Bodies)		Fig 1
Air Bag Control Module (JA, JX & NS Bodies)		Fig 2
Air Bag Control Module (AB, AN, BR, DN & LH Bodies)		Fig 3
ATC Module (LH Body)		Fig 4
ATC Sun Sensor/VTSS Indicator (LH Body)		Fig 5
Body Control Module 10-Pin (JA & JX Bodies)		Fig 6
Body Control Module 14-Pin (JA & JX Bodies)		Fig 7
Body Control Module 20-Pin (JA & JX Bodies)		Fig 8
Body Control Module 22-Pin (JA & JX Bodies)		Fig 9
Body Control Module (LH Body)
"C1" 14-Pin (Gray)		Fig 10
"C2" 24-Pin (Black)		Fig 11
"C3" 12-Pin (Bone)		Fig 12
"C4" 16-Pin (Blue)		Fig 13
Body Control Module (NS Body)		Fig 14
Central Timer Module "A" (AN, BR & DN Bodies)		Fig 15
Central Timer Module "B" (AN, BR & DN Bodies)		Fig 16
Central Timer Module (AB Body)
"C1" (Green)		Fig 15
"C2" (White)		Fig 16
Compass Mini-Trip Computer (AN & DN Bodies)		Fig 17
Compass Mini-Trip Computer (JA & JX Bodies)		Fig 18
Compass Mini-Trip Computer (NS Body)		Fig 19
Courtesy Light Relay (JA & JX Bodies)		Fig 20
Data Link (DLC)		Fig 21
Door Lock Motor/Ajar Switch (DN & LH Bodies)		Fig 22
Electrochromic Mirror (NS Body)		Fig 23
Fuel Pump
LH Body		Fig 24
NS Body		Fig 25
Fuel Pump Module (JA & JX Bodies)		Fig 26
Headlight Switch
Caravan & Voyager		Fig 27
8-Pin, NS Body		Fig 28
LH & NS Bodies		Fig 29
AB Body		Fig 30
Headliner (LH Body)		Fig 31
HVAC Control Module (Blue - NS Body)		Fig 32
Ignition Switch (LH Body)		Fig 34
Ignition Switch (NS Body)		Fig 35
Information Center (NS Body)		Fig 29
Ignition Switch (JA & JX Bodies)		Fig 33
Instrument Cluster
JA & JX Bodies		Fig 36
All Except JA, JX & NS Models		Fig 37
NS Body		Fig 38
Junction Block 6-Pin (JA & JX Bodies)		Fig 39
Junction Block (Typical - NS Body Shown)		Fig 40
Junction Block Internal (NS Body)		Fig 41
Key-In Ignition
AN & DN Bodies		Fig 42
BR Body		Fig 43
Memory Heated Seat/Mirror Module (LH Body)
12-Pin Connector		Fig 44
16-Pin Connector		Fig 45
26-Pin Connector		Fig 46
Memory Mirror (LH Body)		Fig 47
Multifunction Switch 10-Pin (JA & JX Bodies)		Fig 48
Multifunction Switch (AN, BR & DN Bodies)		Fig 49
Multifunction Switch 7-Pin (JA, JX & LH Bodies)		Fig 50
Multifunction Switch (NS Body)		Fig 51
OTIS Module (LH Body)		Fig 52
Parking Light (NS Body)		Fig 53
Power Door Lock Module (AB Body)		Fig 54
Power Door Lock Switch
AB Body		Fig 55
AN & BR Body		Fig 57
Power Door Lock/Window Switch (DN Body)		Fig 56
Power Seat Switch (LH Body)		Fig 58
Power Seat Memory Switch (LH Body)		Fig 19
Power Seat Memory Heater Switch (LH Body)		Fig 19
Power Top Switch		Fig 59
Powertrain Control Module
AB, AN & DN Bodies		Fig 60
Except AB, AN & DN Bodies		Fig 61
Remote Keyless Entry (RKE) Module (NS Body)		Fig 19
Relay (Typical)		Fig 62
Relay Center (AN & DN Bodies)		Fig 63
Seat Belt Module (BR & JX Body)		Fig 64
Sentry Key Immobilizer Module (JA, JX & LH Bodies)		Fig 65
Steering Column (AB Body)		Fig 66
Transmission Control Module Connector		Fig 67
Wiper Motor
AN & DN Bodies		Fig 68
BR Body		Fig 69
JA & JX Bodies		Fig 70
LH Body		Fig 71
NS Body		Fig 72

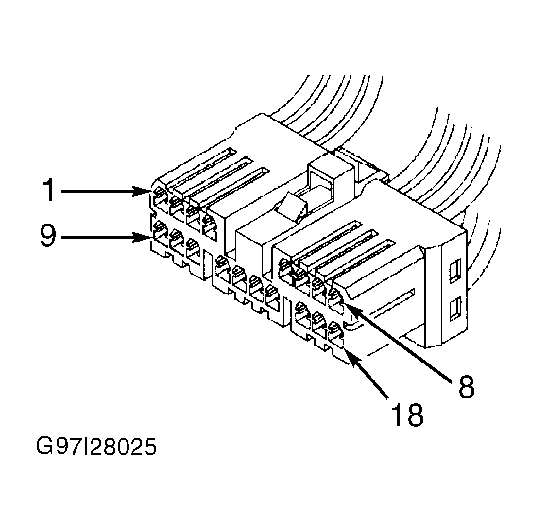

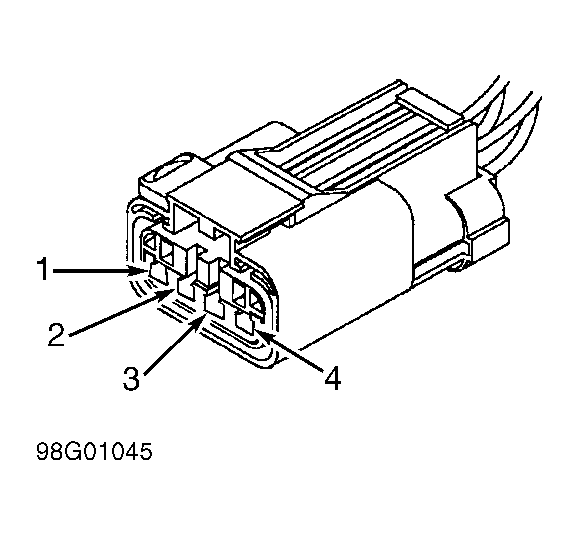

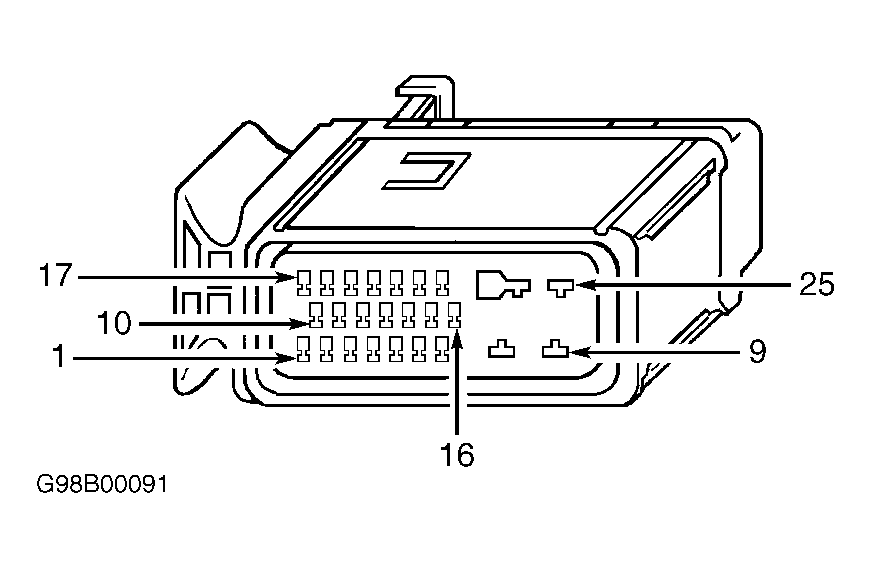

Fig 1: Identifying Anti-Lock Brake Controller Connector Terminals (JA, JX, LH & NS Bodies)

Courtesy of CHRYSLER CORP.

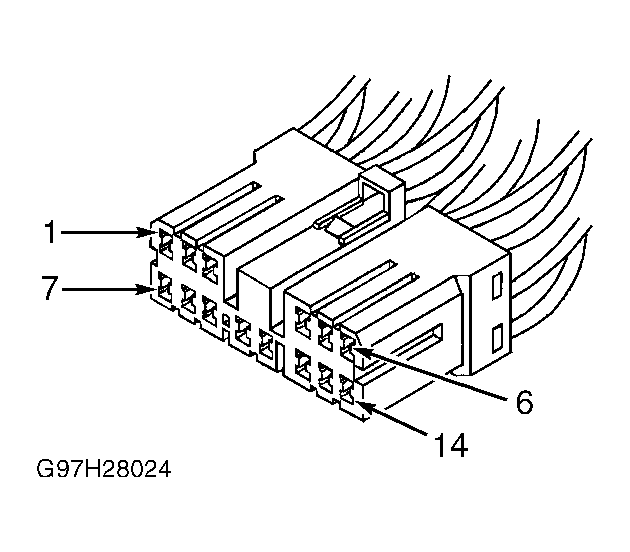

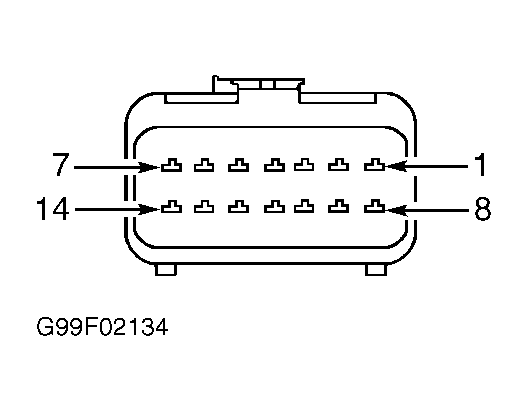

Fig 2: Identifying Air Bag Control Module Connector Terminals (JA, JX & NS Bodies)

Courtesy of CHRYSLER CORP.

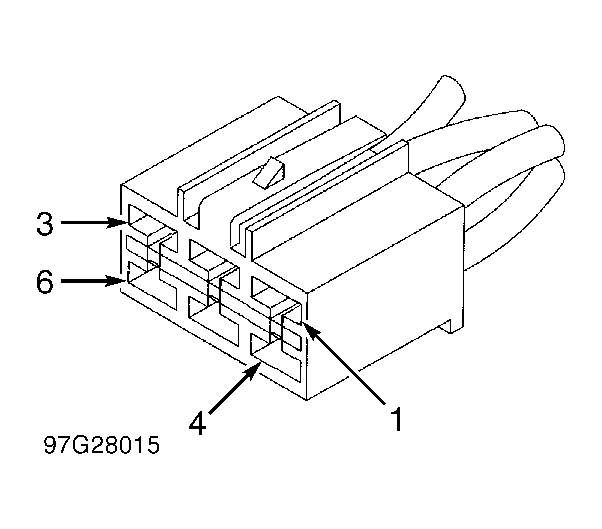

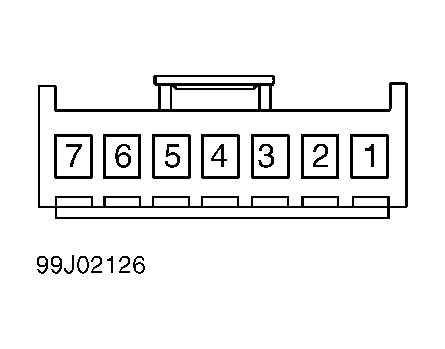

Fig 3: Identifying Air Bag Control Module Connector Terminals (AB, AN, BR, DN & LH Bodies)

Courtesy of CHRYSLER CORP.

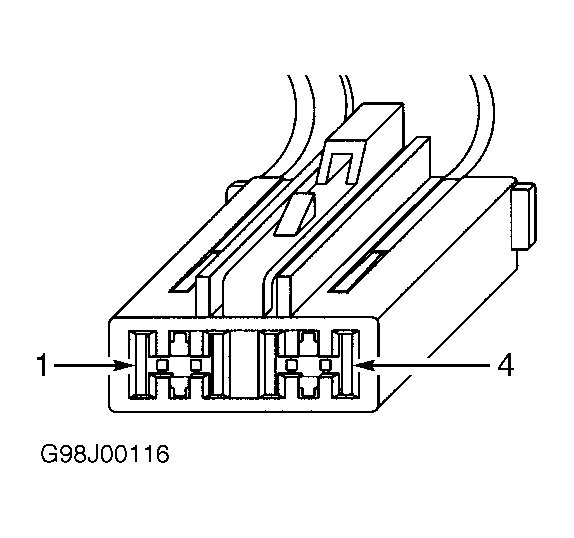

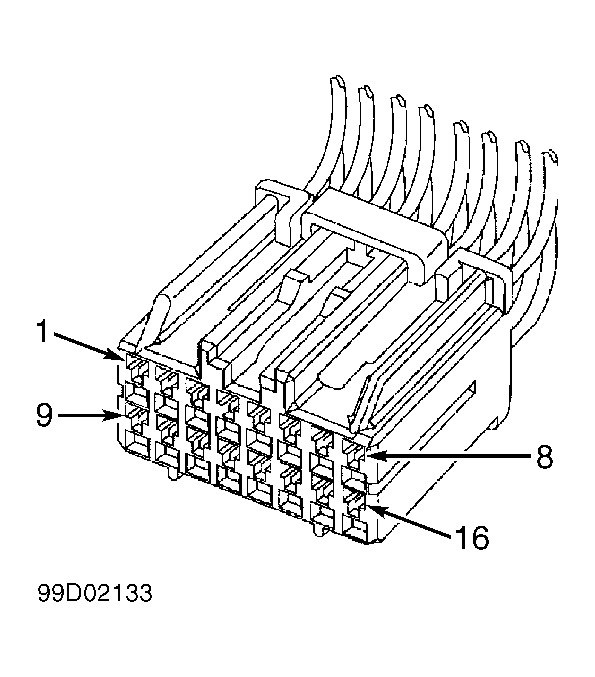

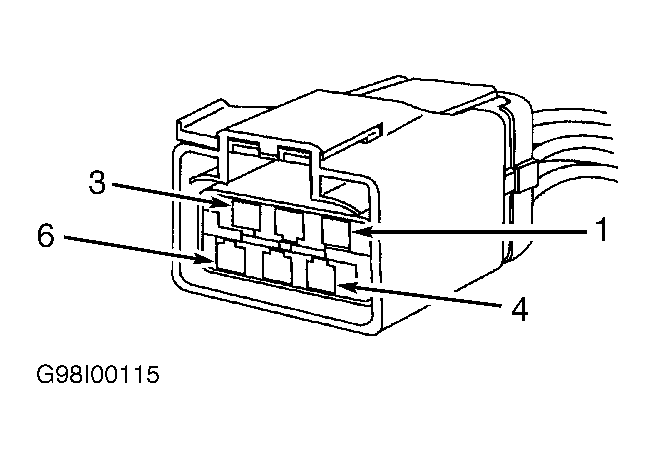

Fig 4: Identifying Automatic Temperature Control Module Connector Terminals (LH Body)

Courtesy of CHRYSLER CORP.

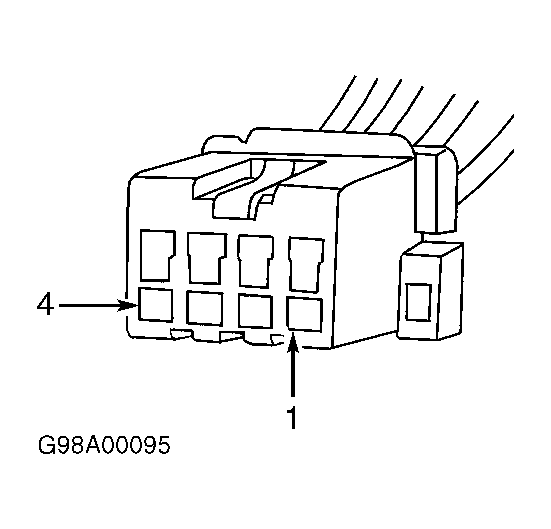

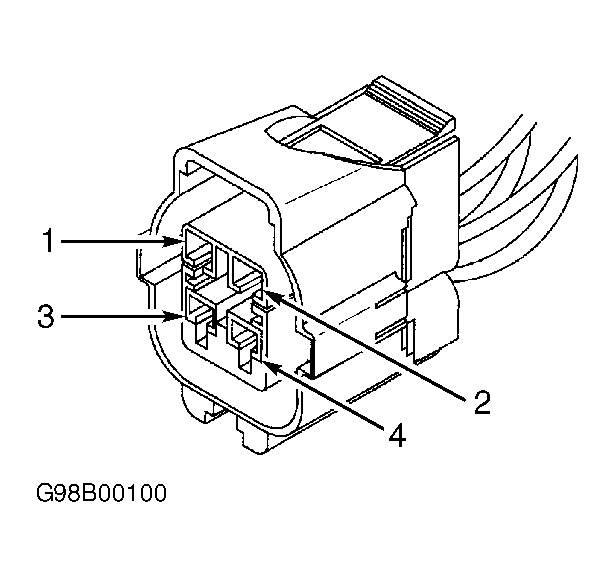

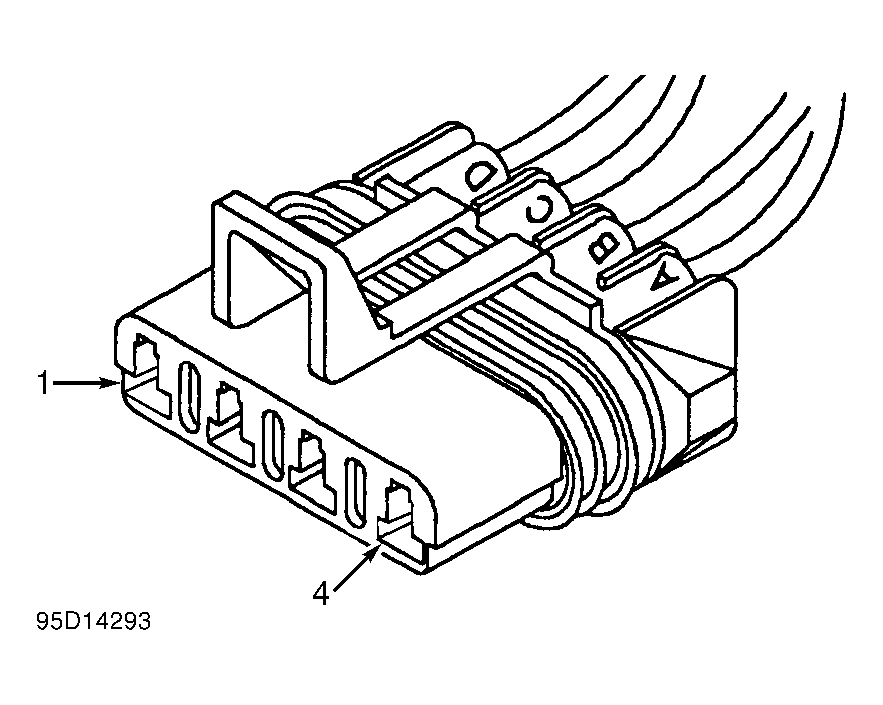

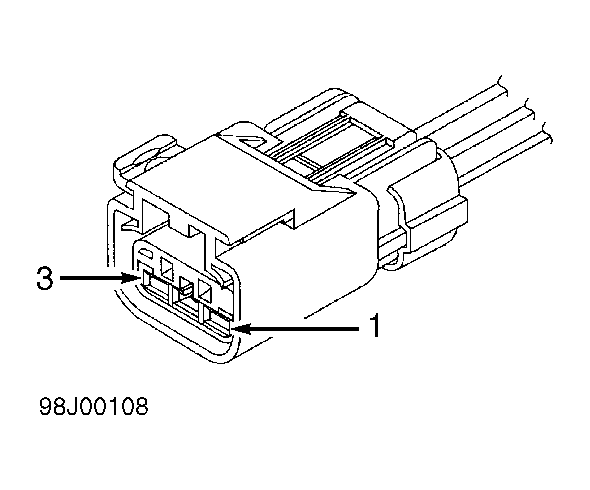

Fig 5: Identifying ATC Sun Sensor/VTSS Indicator Connector Terminals (LH Body)

Courtesy of CHRYSLER CORP.

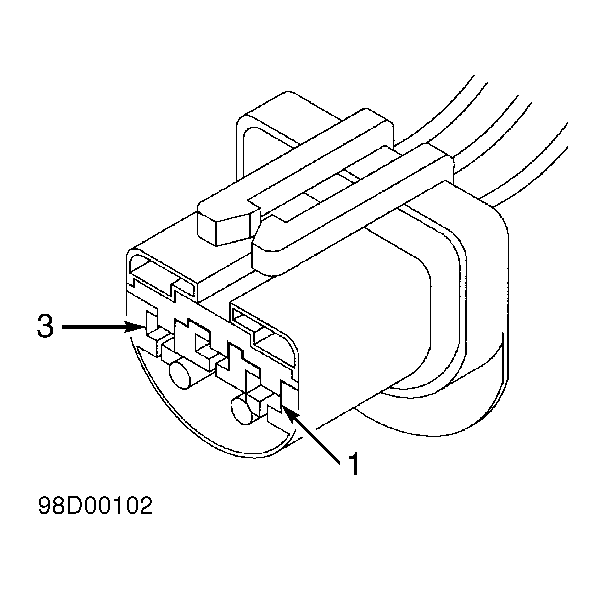

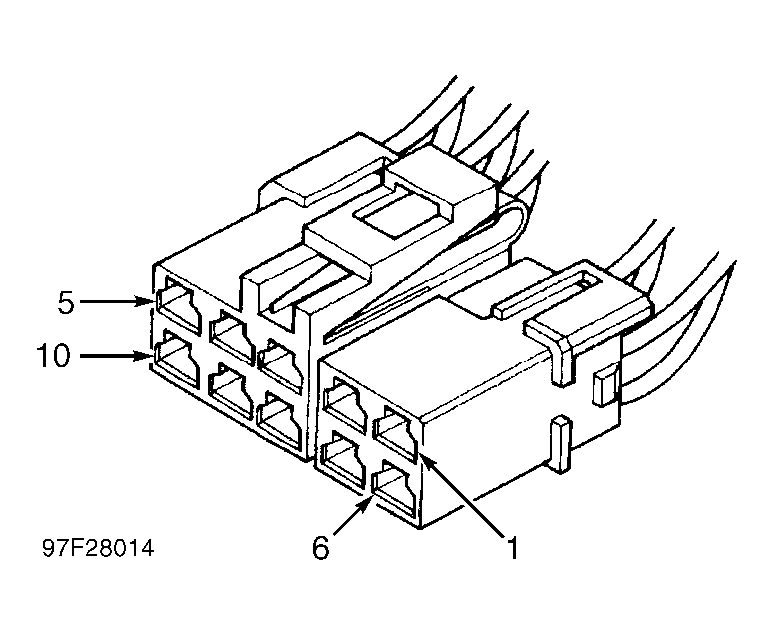

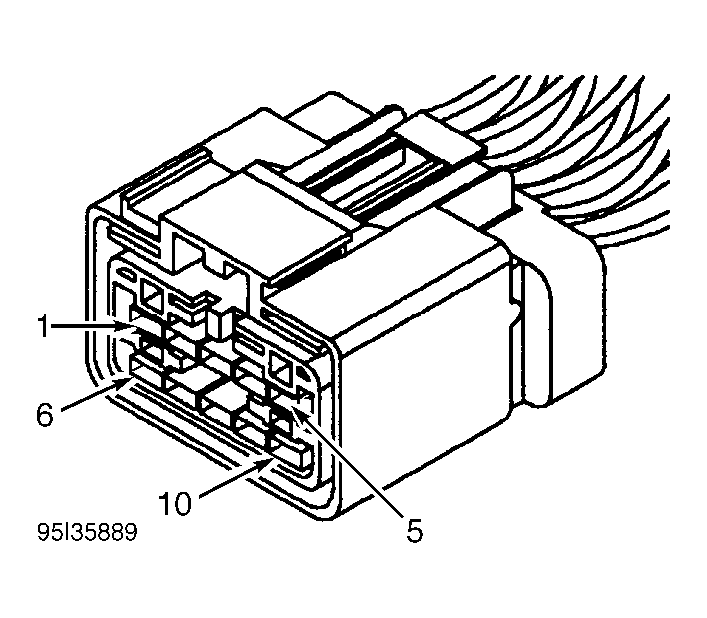

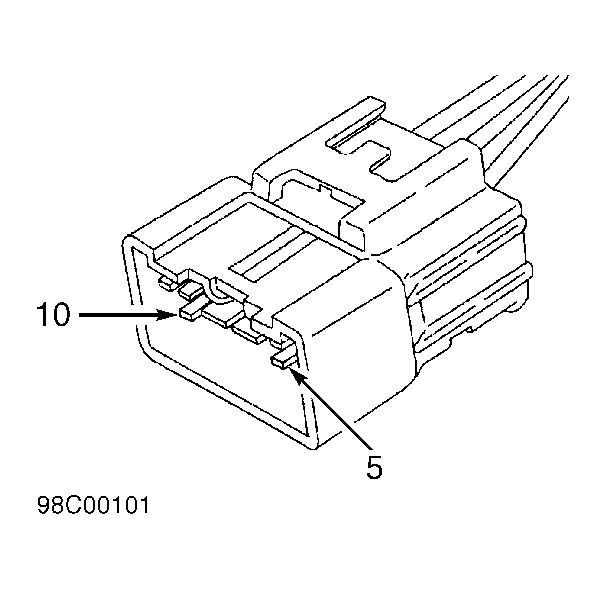

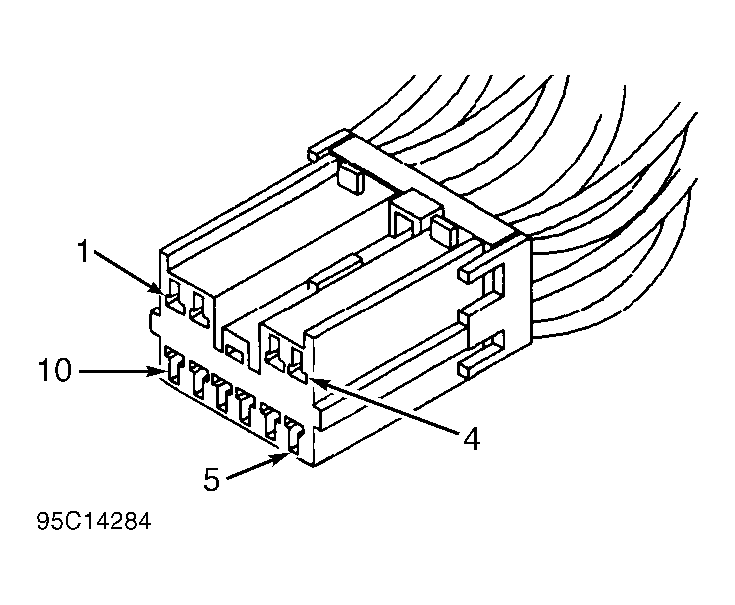

Fig 6: Identifying Body Control Module 10-Pin Connector Terminals (JA & JX Body)

Courtesy of CHRYSLER CORP.

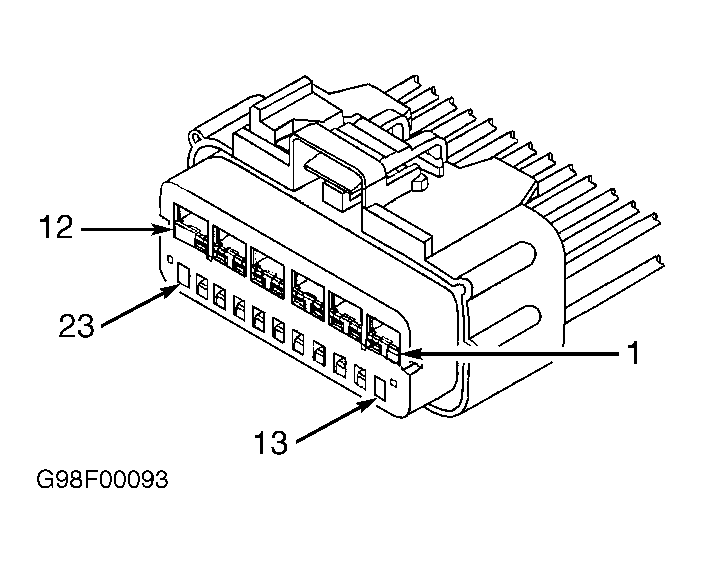

Fig 7: Identifying Body Control Module 14-Pin Connector Terminals (JA & JX Body)

Courtesy of CHRYSLER CORP.

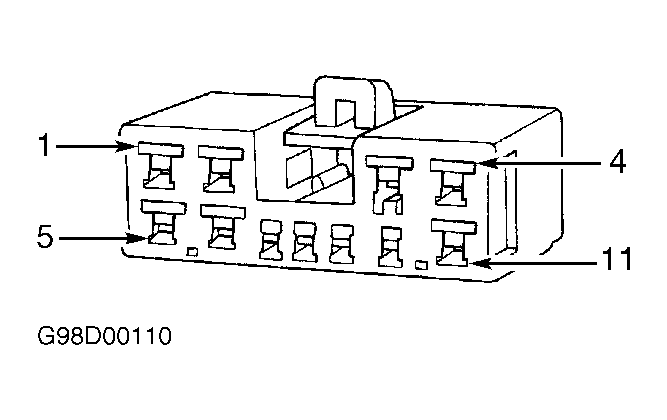

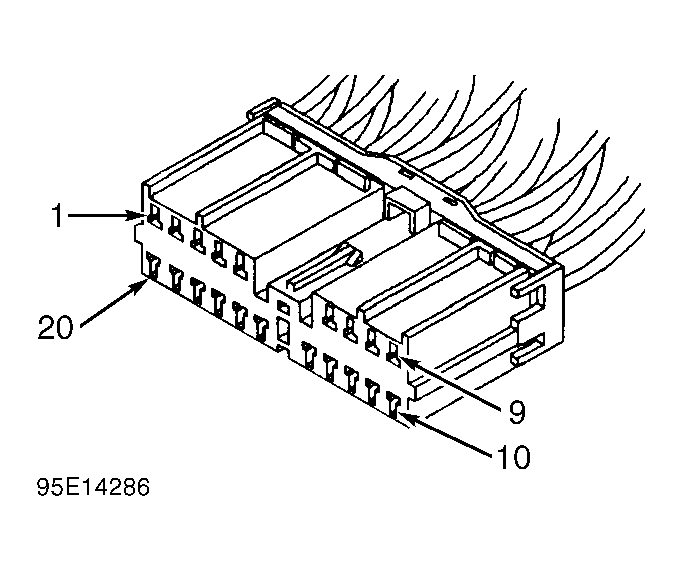

Fig 8: Identifying Body Control Module 20-Pin Connector Terminals (JA & JX Body)

Courtesy of CHRYSLER CORP.

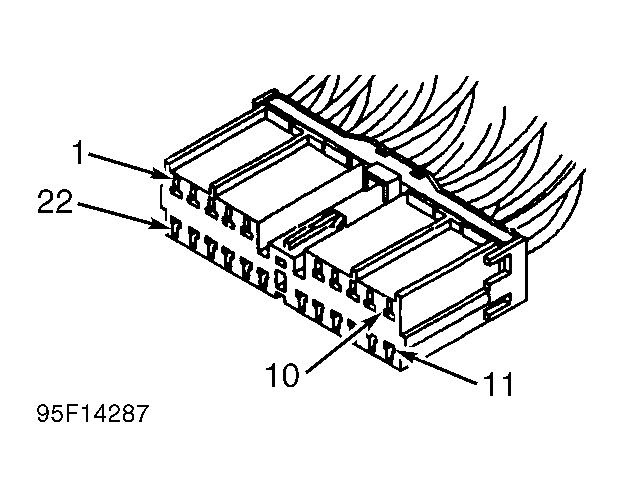

Fig 9: Identifying Body Control Module 22-Pin Connector Terminals (JA & JX Body)

Courtesy of CHRYSLER CORP.

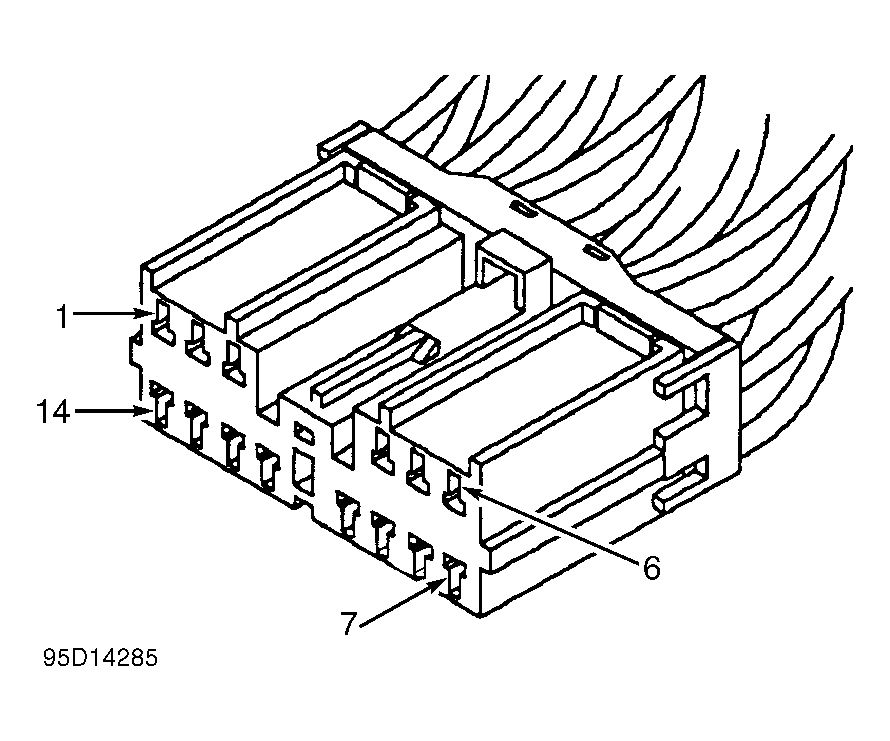

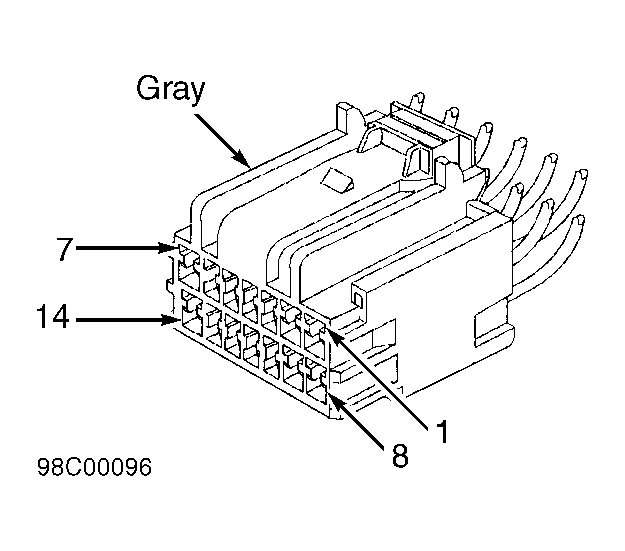

Fig 10: Identifying Body Control Module 14-Pin "C1" Connector Terminals (LH Body)

Courtesy of CHRYSLER CORP.

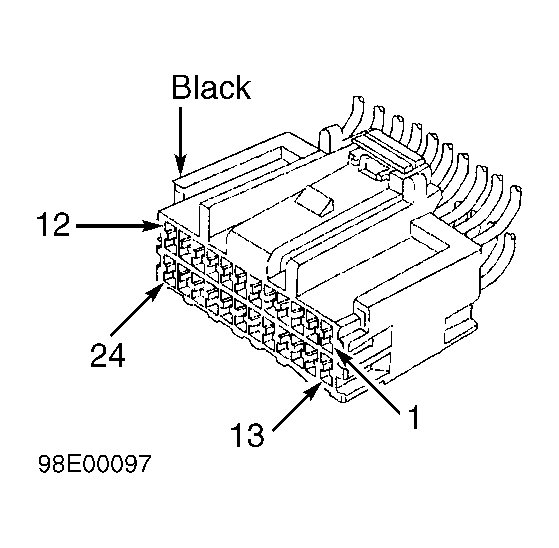

Fig 11: Identifying Body Control Module 24-Pin "C2" Connector Terminals (LH Body)

Courtesy of CHRYSLER CORP.

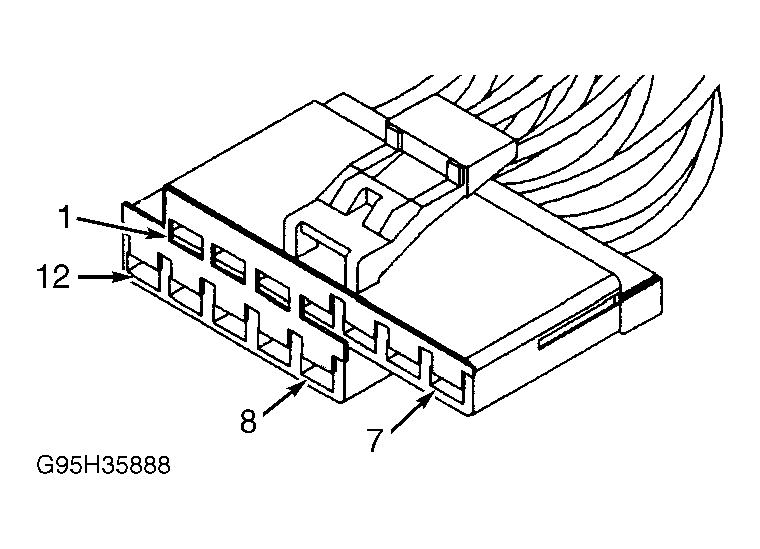

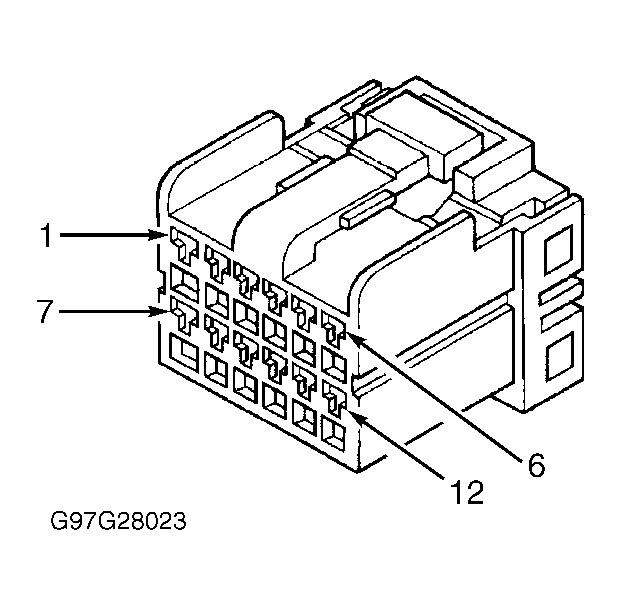

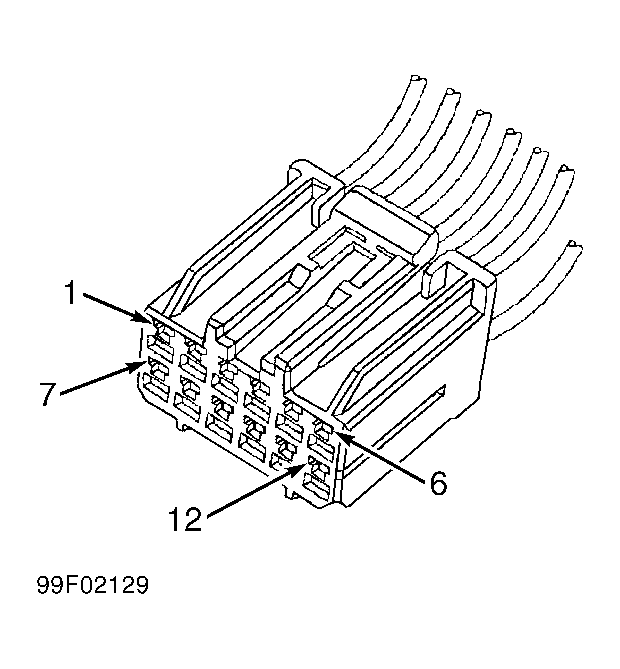

Fig 12: Identifying Body Control Module 12-Pin "C3" Connector Terminals (LH Body)

Courtesy of CHRYSLER CORP.

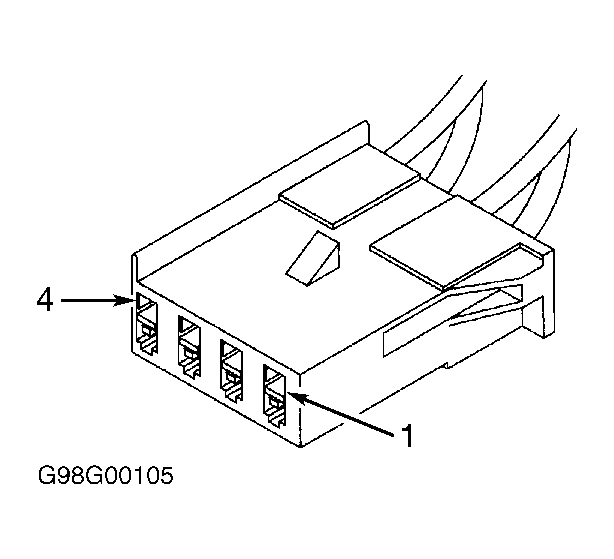

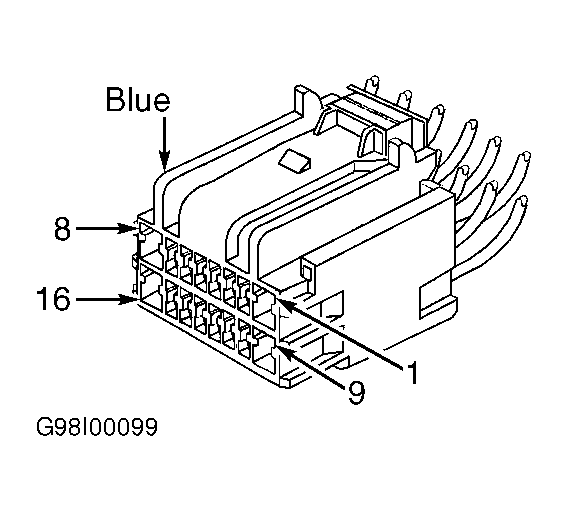

Fig 13: Identifying Body Control Module 16-Pin "C4" Connector Terminals (LH Body)

Courtesy of CHRYSLER CORP.

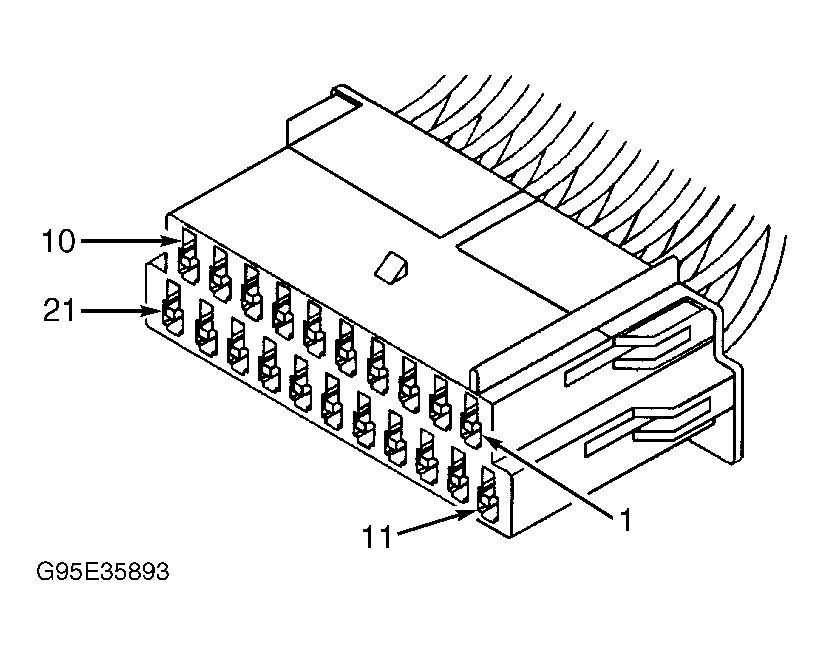

Fig 14: Identifying Body Control Module Connector Terminals (NS Body)

Courtesy of CHRYSLER CORP.

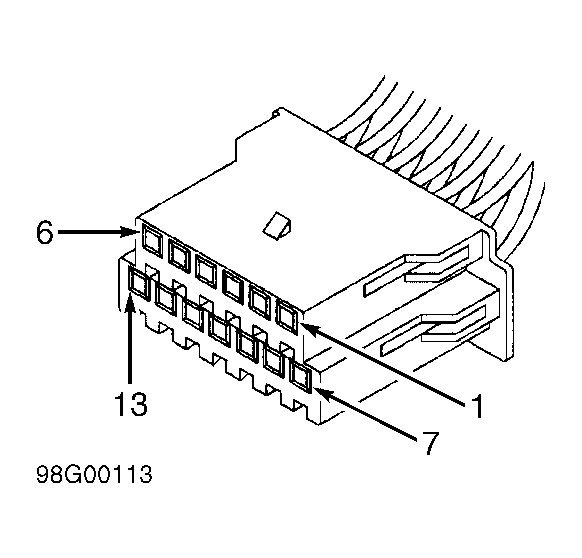

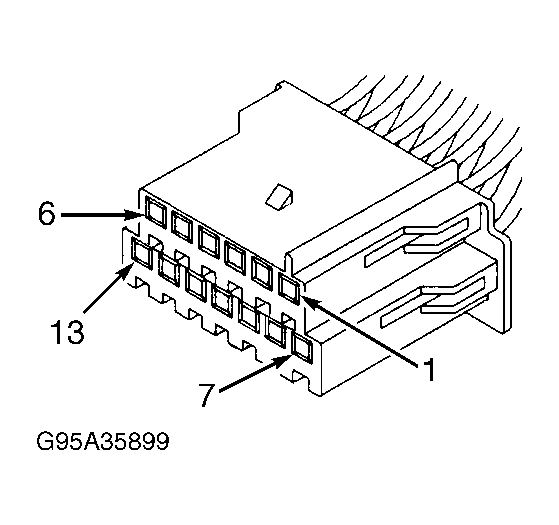

Fig 15: Identifying Central Timer Module "A" (AN, BR & DN Bodies) or "C1" (AB Body) Connector Terminals

Courtesy of CHRYSLER CORP.

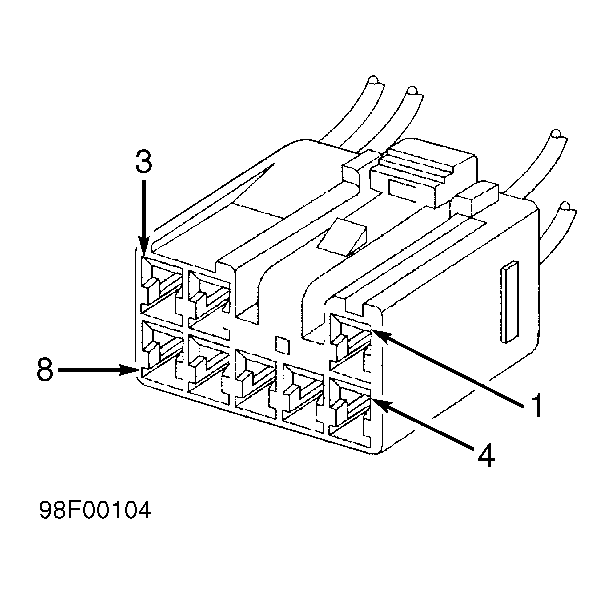

Fig 16: Identifying Central Timer Module "B" (AN, BR & DN Bodies) or "C2" (AB Body) Connector Terminals

Courtesy of CHRYSLER CORP.

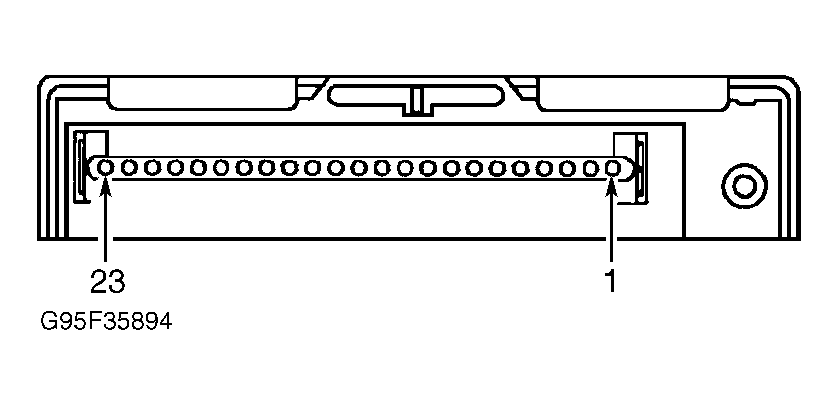

Fig 17: Identifying Compass Mini-Trip Computer Connector Terminals (AN, BR & DN Bodies)

Courtesy of CHRYSLER CORP.

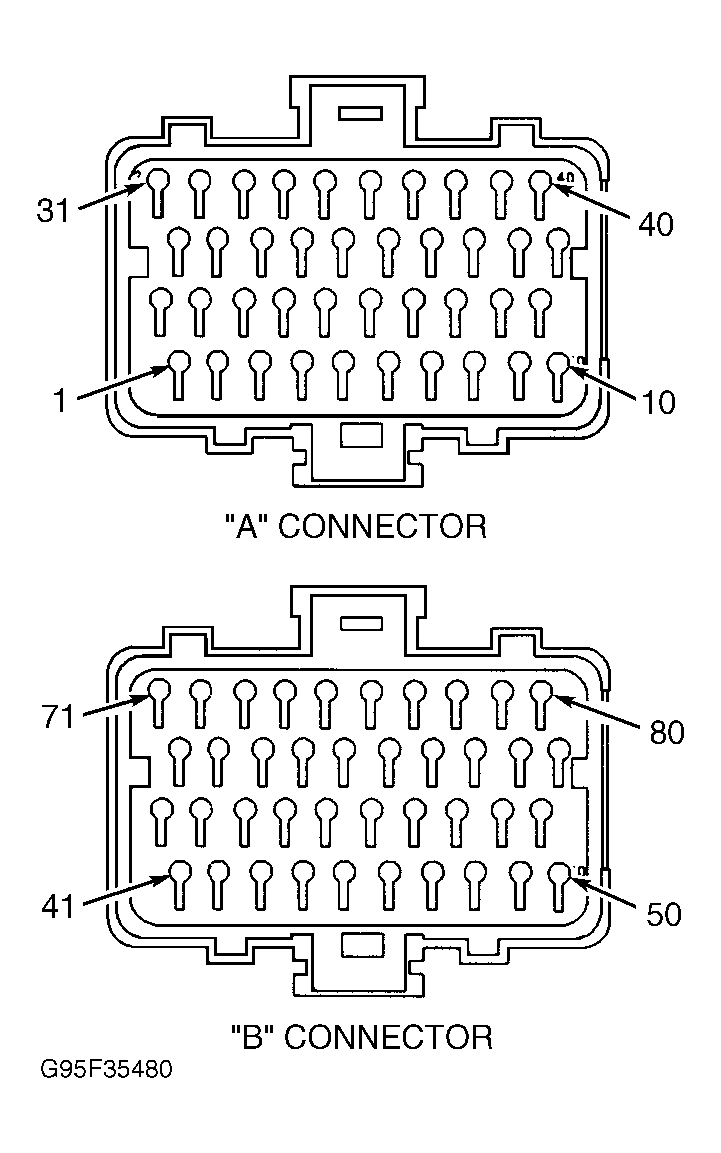

Fig 18: Identifying CMTC Module Connector Terminals (JA & JX Bodies)

Courtesy of CHRYSLER CORP.

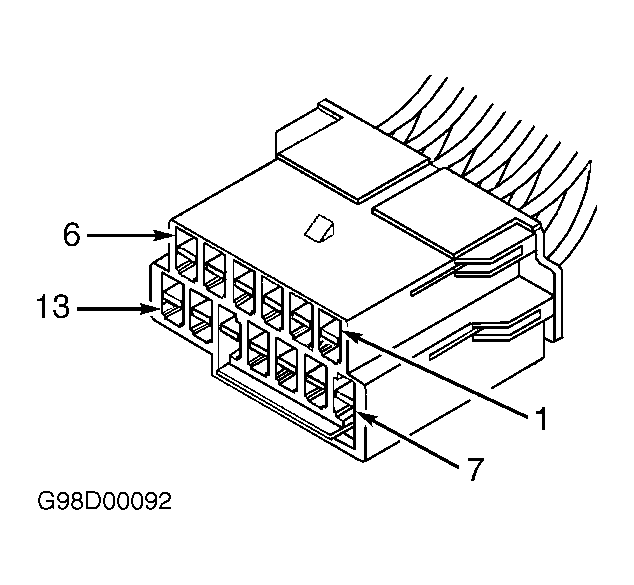

Fig 19: Identifying Compass Mini-Trip Computer (NS Body), Remote Keyless Entry (RKE) Module (NS Body), Power Seat Memory/Heater Switch (LH Body) Connector Terminals

Courtesy of CHRYSLER CORP.

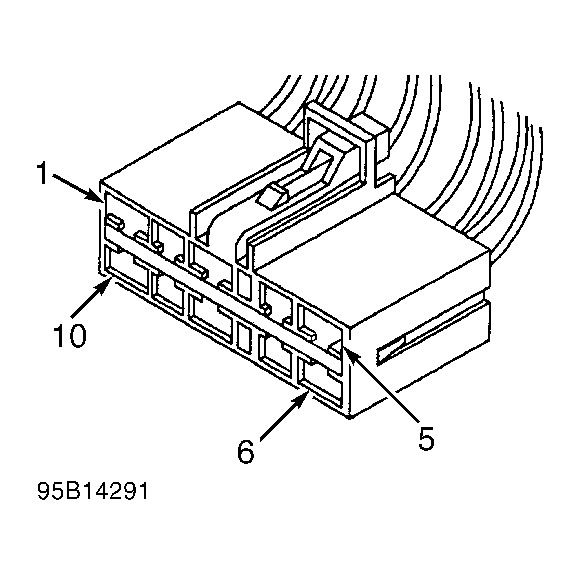

Fig 20: Identifying Courtesy Light Relay Connector Terminals (JA & JX Bodies)

Courtesy of CHRYSLER CORP.

Fig 21: Identifying Data Link Connector (DLC) Terminals

Courtesy of CHRYSLER CORP.

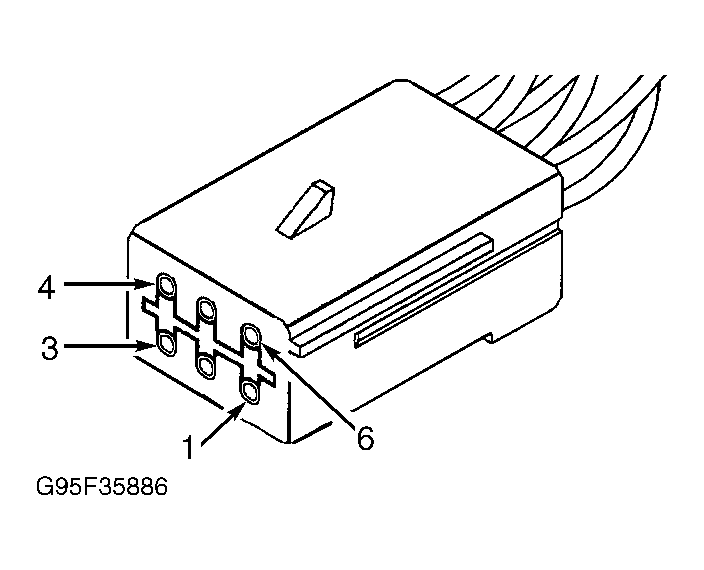

Fig 22: Identifying Door Lock Motor/Ajar Switch Connector Terminals (DN & LH Bodies)

Courtesy of CHRYSLER CORP.

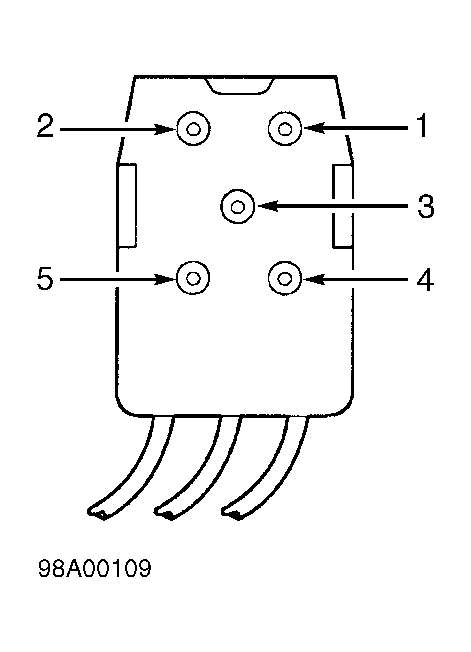

Fig 23: Identifying Electrochromic Mirror Connector Terminals (NS Body)

Courtesy of CHRYSLER CORP.

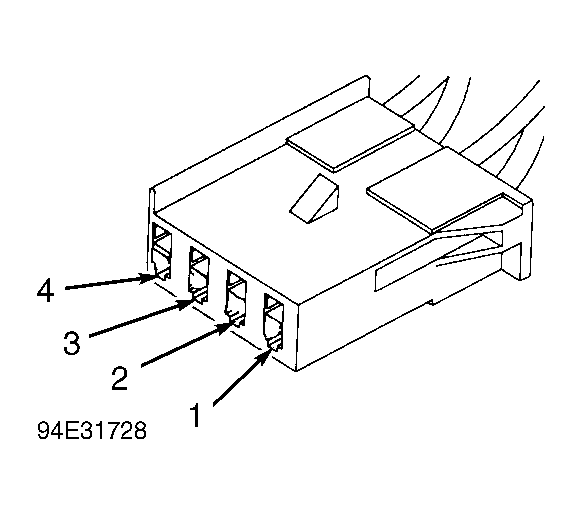

Fig 24: Identifying Fuel Pump Connector Terminals (LH Body)

Courtesy of CHRYSLER CORP.

Fig 25: Identifying Fuel Pump Motor Connector Terminals (NS Body)

Courtesy of CHRYSLER CORP.

Fig 26: Identifying Fuel Pump Module Connector Terminals (JA & JX Bodies)

Courtesy of CHRYSLER CORP.

Fig 27: Identifying Headlight Connector Terminals (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

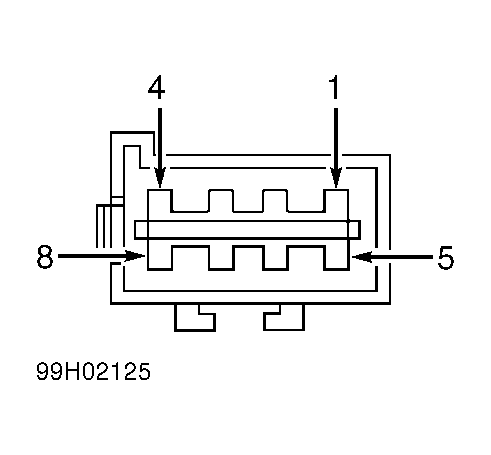

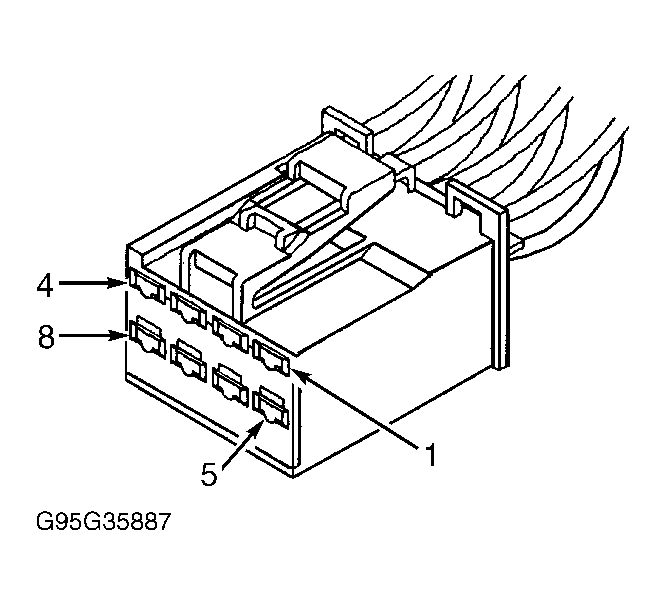

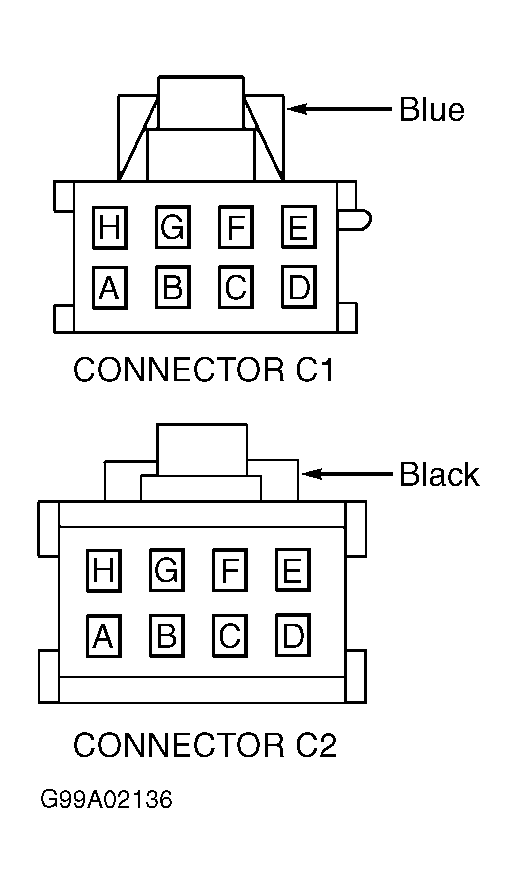

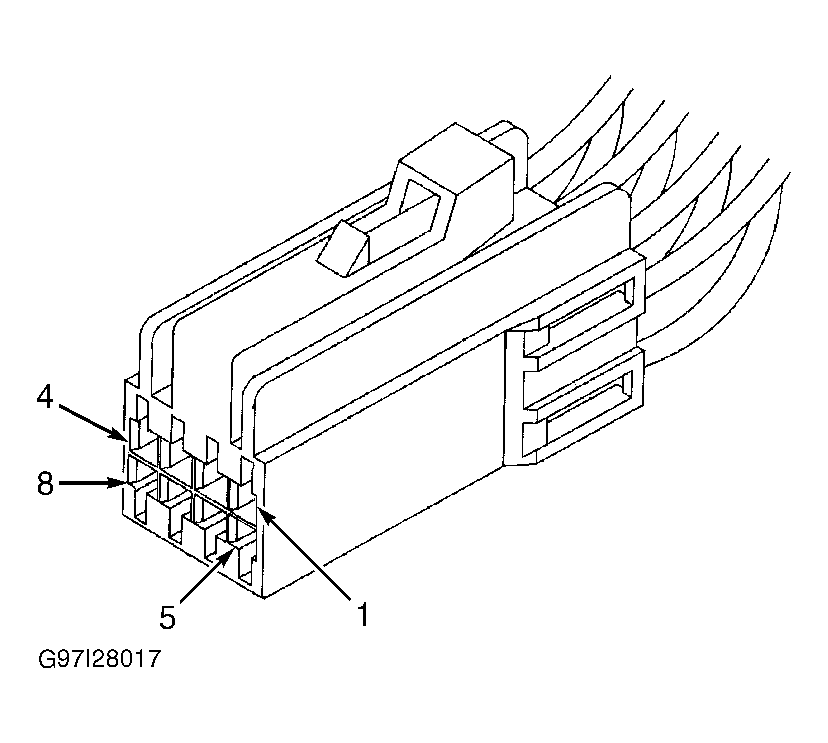

Fig 28: Identifying Headlight 8-Pin Connector Terminals (NS Body)

Courtesy of CHRYSLER CORP.

Fig 29: Identifying Headlight Switch Connector Terminals (NS Body) & Information Center Connector Terminals (NS Body)

Courtesy of CHRYSLER CORP.

Fig 30: Identifying Headlight Switch Connector Terminals (AB Body)

Courtesy of CHRYSLER CORP.

Fig 31: Identifying Headliner Connector Terminals (LH Body)

Courtesy of CHRYSLER CORP.

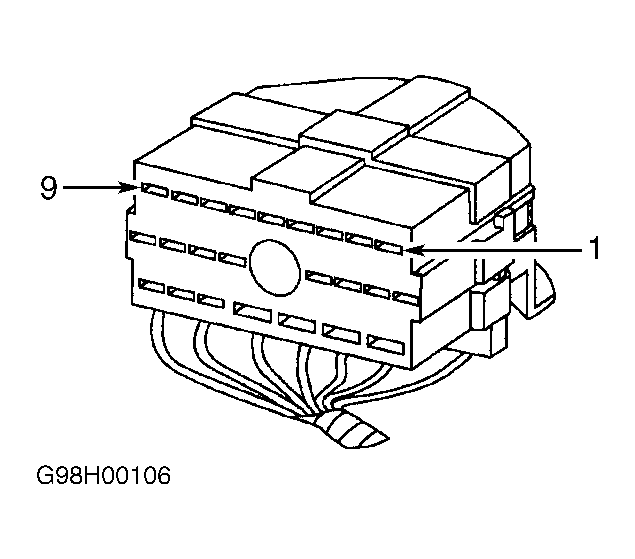

Fig 32: Identifying HVAC Control Module Connector (Blue) Terminals (NS Body)

Courtesy of CHRYSLER CORP.

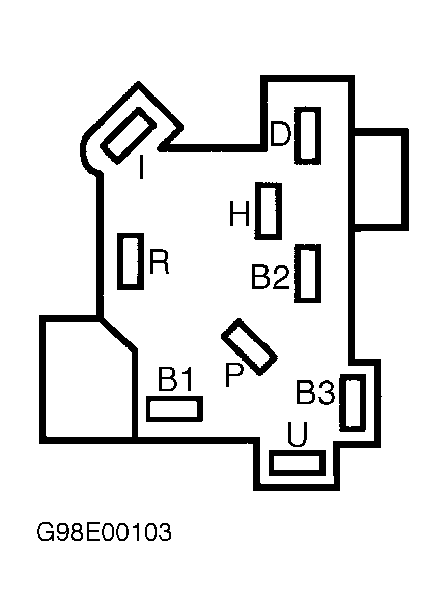

Fig 33: Identifying Ignition Switch Connector Terminals (JA & JX Bodies)

Courtesy of CHRYSLER CORP.

Fig 34: Identifying Ignition Switch Connector Terminals (LH Body)

Courtesy of CHRYSLER CORP.

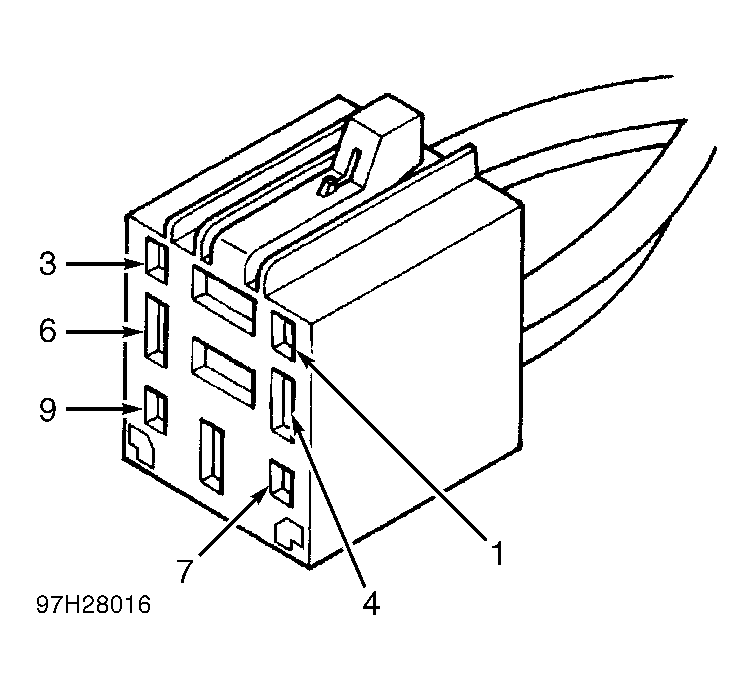

Fig 35: Identifying Ignition Switch Connector Terminals (NS Body)

Courtesy of CHRYSLER CORP.

Fig 36: Identifying Instrument Cluster Connector Terminals (JA & JX Bodies)

Courtesy of CHRYSLER CORP.

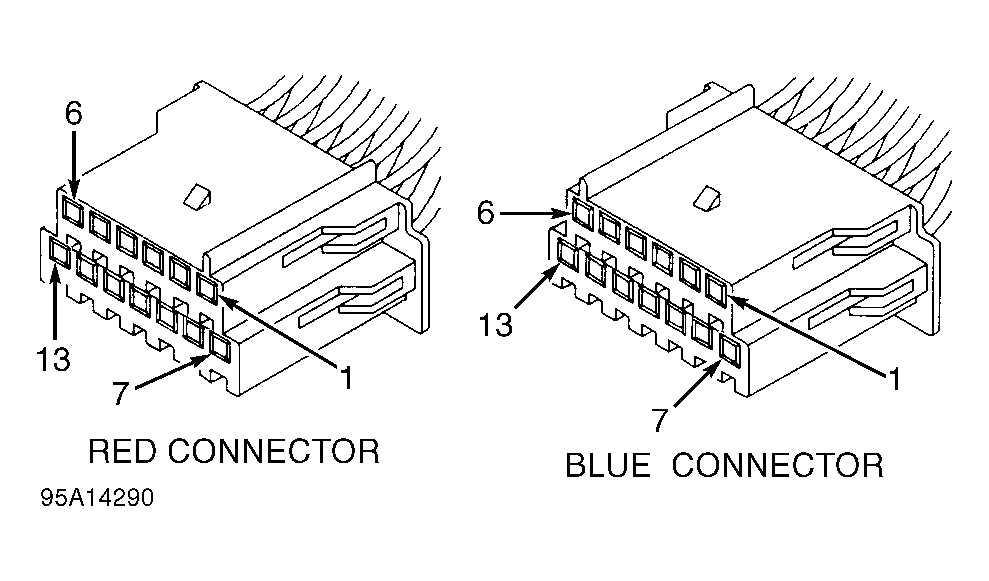

Fig 37: Identifying Instrument Cluster Connector Terminals (All Except JA, JX & NS Bodies)

Courtesy of CHRYSLER CORP.

Fig 38: Identifying Instrument Cluster Connector Terminals (NS Body)

Courtesy of CHRYSLER CORP.

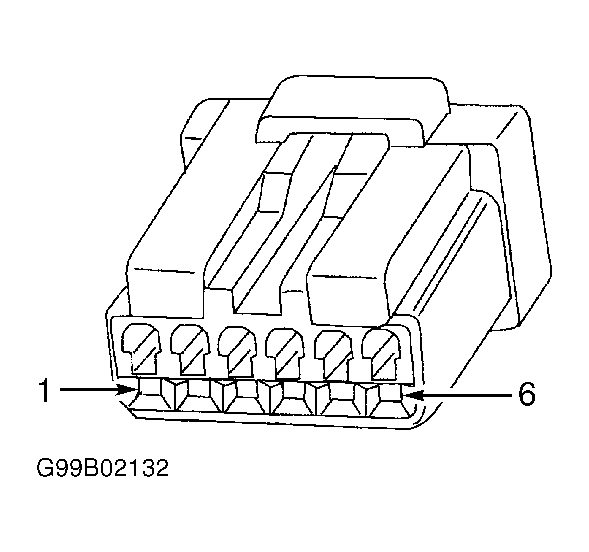

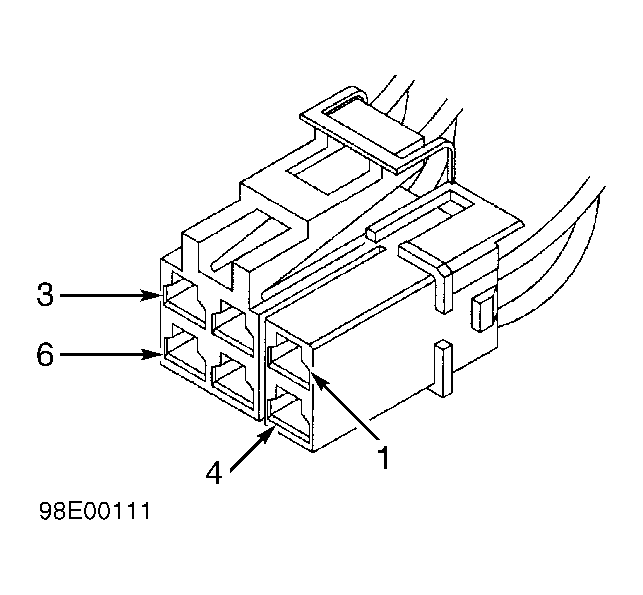

Fig 39: Identifying Junction Block 6-Pin Connector Terminals (JA & JX Bodies)

Courtesy of CHRYSLER CORP.

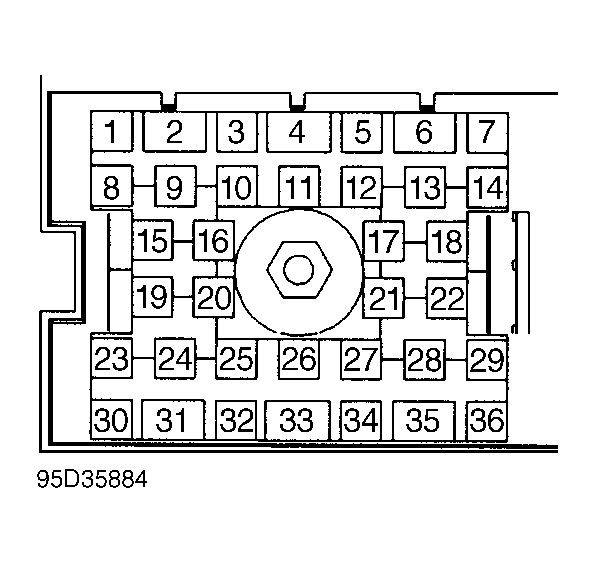

Fig 40: Identifying Junction Block Connector Terminals (Typical) (NS Body)

Courtesy of CHRYSLER CORP.

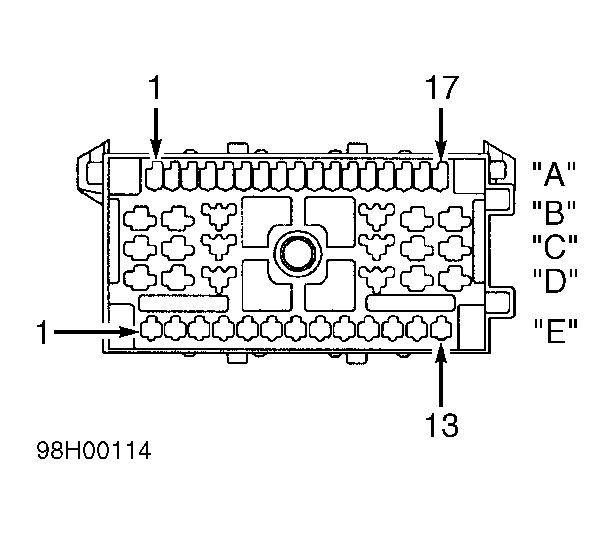

Fig 41: Identifying Junction Block Internal Connector Terminals (NS Body)

Courtesy of CHRYSLER CORP.

Fig 42: Identifying Key-In Ignition Connector Terminals (AN & DN Bodies)

Courtesy of CHRYSLER CORP.

Fig 43: Identifying Key-In Ignition Connector Terminals (BR Body)

Courtesy of CHRYSLER CORP.

Fig 44: Identifying Memory Heated Seat/Mirror Module (MHSMM) 12-pin Connector Terminals (LH Body)

Courtesy of CHRYSLER CORP.

Fig 45: Identifying Memory Heated Seat/Mirror Module (MHSMM) 16-pin Connector Terminals (LH Body)

Courtesy of CHRYSLER CORP.

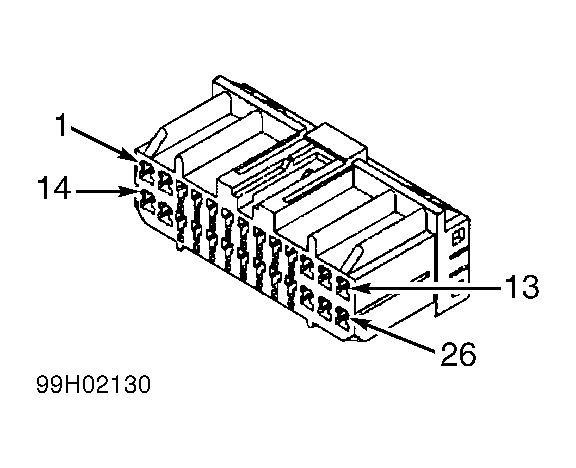

Fig 46: Identifying Memory Heated Seat/Mirror Module (MHSMM) 26-pin Connector Terminals (LH Body)

Courtesy of CHRYSLER CORP.

Fig 47: Identifying Memory Mirror Connector Terminals (LH Body)

Courtesy of CHRYSLER CORP.

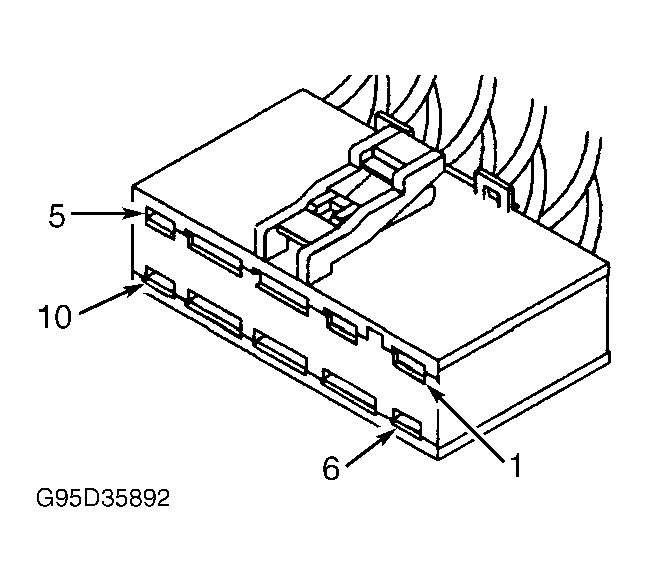

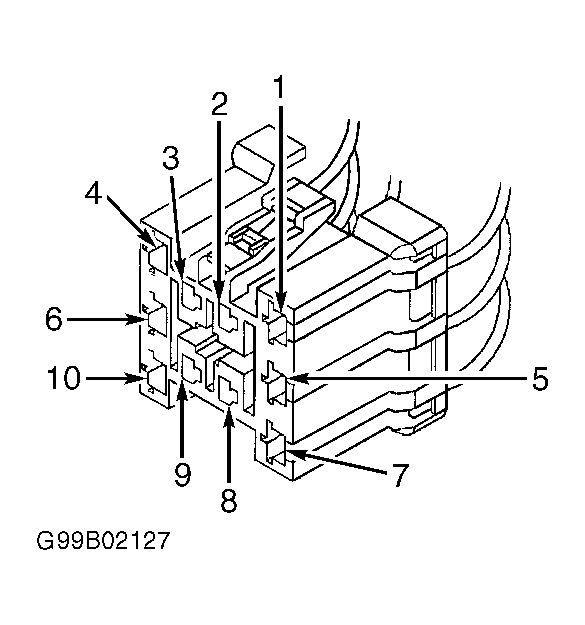

Fig 48: Identifying Multifunction Switch 10-Pin Connector Terminals (JA & JX Bodies)

Courtesy of CHRYSLER CORP.

Fig 49: Identifying Multifunction Switch Connector Terminals (AN, BR & DN Bodies)

Courtesy of CHRYSLER CORP.

Fig 50: Identifying Multifunction Switch 7-Pin Connector Terminals (JA, JX & LH Bodies)

Courtesy of CHRYSLER CORP.

Fig 51: Identifying Multifunction Switch Connector Terminals (NS Body)

Courtesy of CHRYSLER CORP.

Fig 52: Identifying Overhead Trip Information System Connector Terminals (LH Body)

Courtesy of CHRYSLER CORP.

Fig 53: Identifying Parking Light Connector Terminals (NS Body)

Courtesy of CHRYSLER CORP.

Fig 54: Identifying Power Door Lock Module Connector Terminals (AB Body)

Courtesy of CHRYSLER CORP.

Fig 55: Identifying Power Door Lock Switch Connector Terminals (AB Body)

Courtesy of CHRYSLER CORP.

Fig 56: Identifying Power Door Lock/Window Switch Connector Terminals (DN Body)

Courtesy of CHRYSLER CORP.

Fig 57: Identifying Power Door Lock/Window Switch Connector Terminals (AN & BR Body)

Courtesy of CHRYSLER CORP.

Fig 58: Identifying Power Seat Switch Connector Terminals (LH Body)

Courtesy of CHRYSLER CORP.

Fig 59: Identifying Power Top Switch Connector Terminals (JX Body)

Courtesy of CHRYSLER CORP.

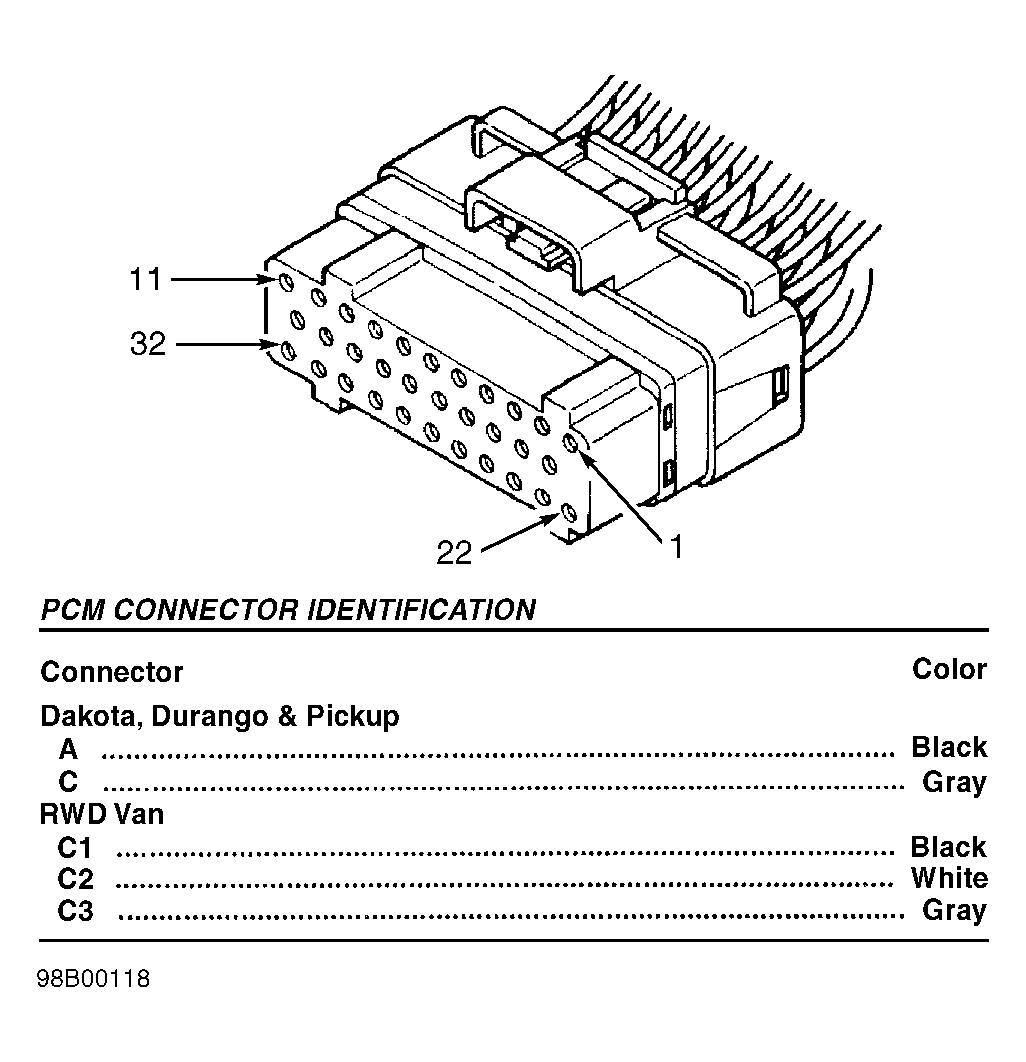

Fig 60: Identifying Powertrain Control Module Connector Terminals (JA, JX, LH & NS Bodies)

Courtesy of CHRYSLER CORP.

Fig 61: Identifying Powertrain Control Module Connector Terminals (AB, AN, BR & DN Bodies)

Courtesy of CHRYSLER CORP.

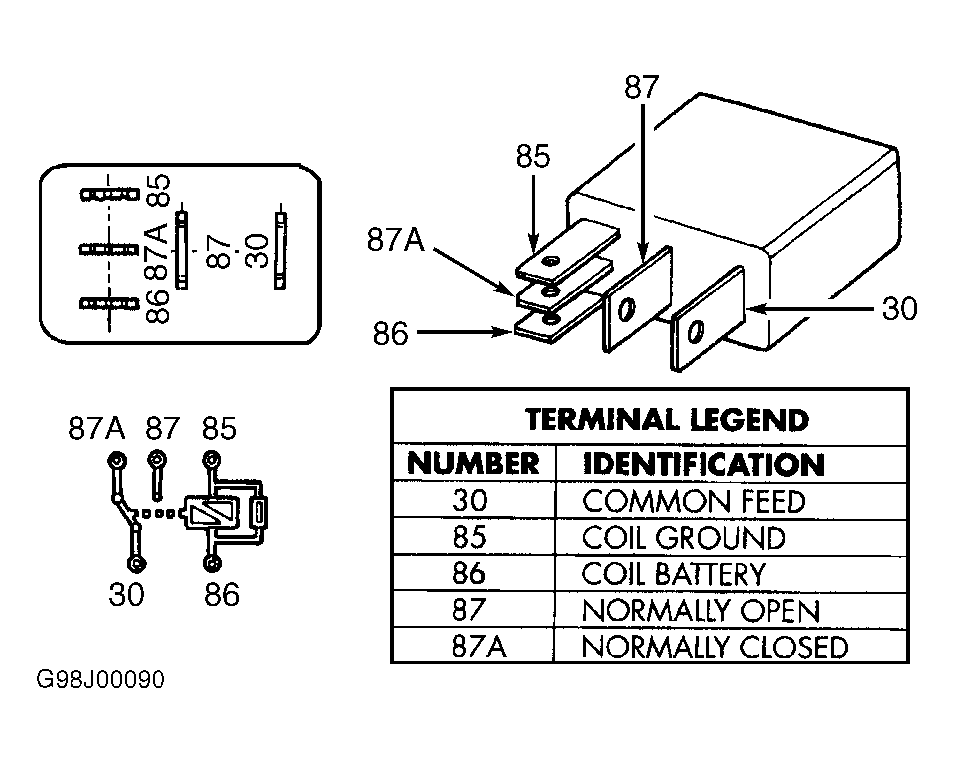

Fig 62: Identifying Typical Relay

Courtesy of CHRYSLER CORP.

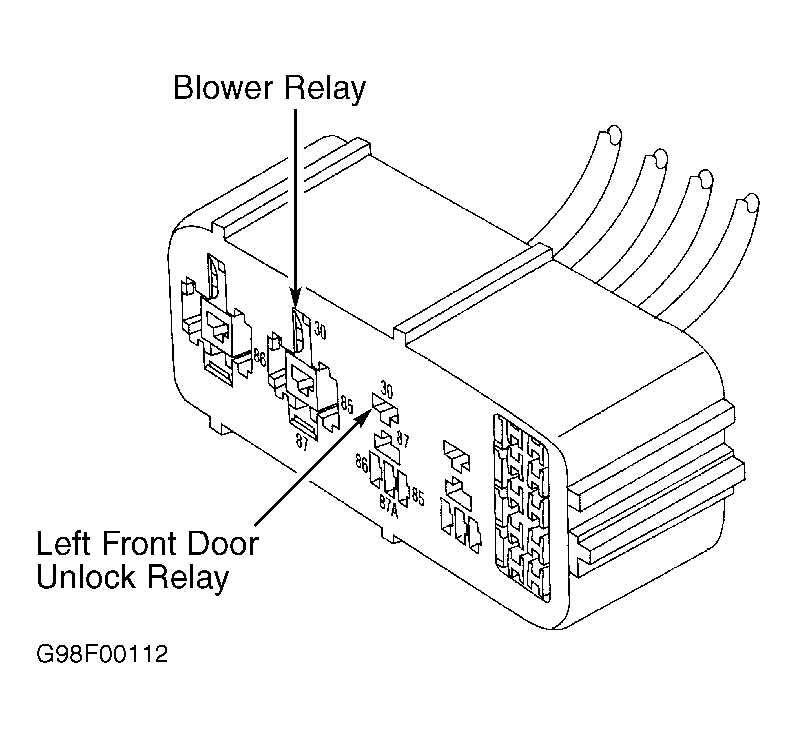

Fig 63: Identifying Relay Center Connector (AN & DN Bodies)

Courtesy of CHRYSLER CORP.

Fig 64: Identifying Seat Belt Module (BR & JX Body)

Courtesy of CHRYSLER CORP.

Fig 65: Identifying Sentry Key Imobilizer Module (SKIM) Connector Terminals (JA, JX & LH Bodies)

Courtesy of CHRYSLER CORP.

Fig 66: Identifying Steering Column Connector Terminals (AB Body)

Courtesy of CHRYSLER CORP.

Fig 67: Identifying Transmission Control Module Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 68: Identifying Wiper Motor Connector Terminals (AN & DN Bodies)

Courtesy of CHRYSLER CORP.

Fig 69: Identifying Wiper Motor Connector Terminals (BR Body)

Courtesy of CHRYSLER CORP.

Fig 70: Identifying Wiper Motor Connector Terminals (JA & JX Bodies)

Courtesy of CHRYSLER CORP.

Fig 71: Identifying Wiper Motor Connector Terminals (LH Body)

Courtesy of CHRYSLER CORP.

Fig 72: Identifying Wiper Motor Connector Terminals (NS Body)

Courtesy of CHRYSLER CORP.
