Oil Pressure Switch Sense Open Circuit
NOTE:
Perform INSTRUMENT CLUSTER TEST 15A before proceeding with this test. For connector terminal identification and wiring diagrams, see
BODY CONTROL COMPUTER - INTRODUCTION. Perform VERIFICATION TEST: VER-2A after each repair.
CAUTION:
Always turn ignition switch to OFF position prior to disconnecting or connecting any module connector.

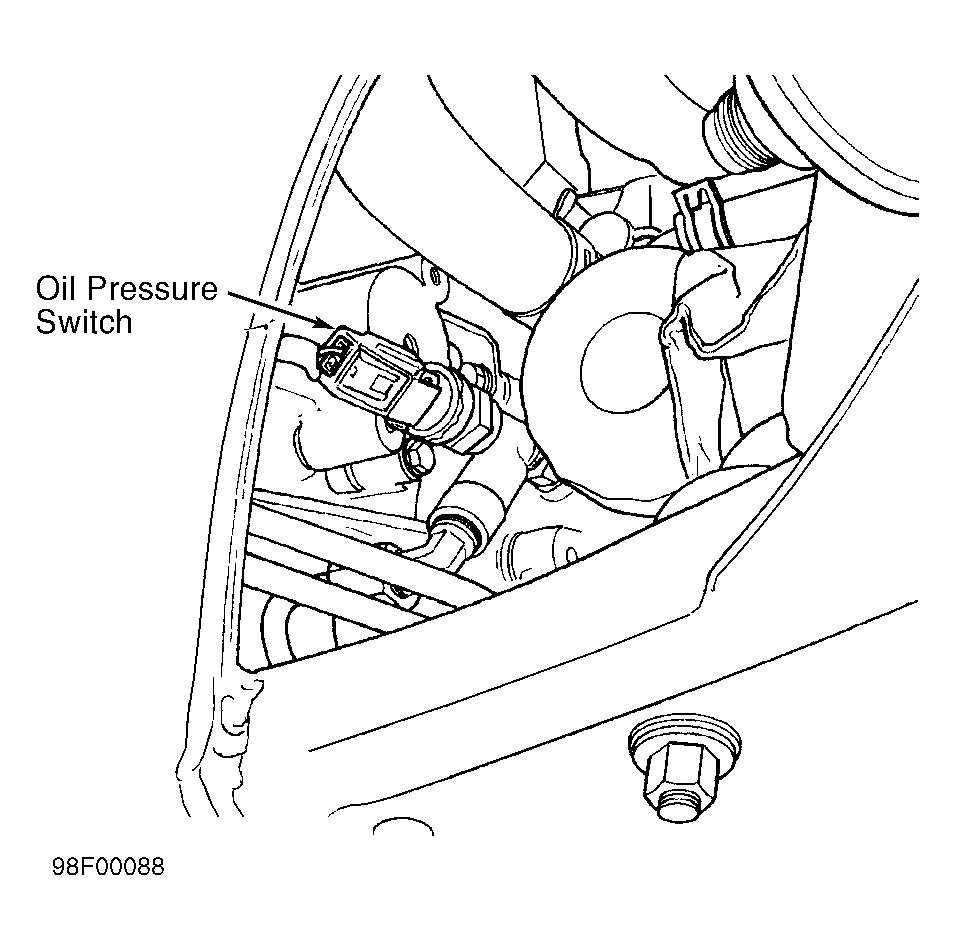

- Disconnect oil pressure switch. See Figure. Connect jumper wire between ground and terminal No. 1 (Gray wire) on oil pressure switch harness connector. If oil pressure warning light illuminated, replace oil pressure switch. If oil pressure warning light is not illuminated, go to next step.
- Disconnect instrument cluster. Using scan tool in ohmmeter mode, measure resistance at terminal No. 10 (Gray wire) on instrument cluster Blue 10-pin connector C2. If resistance is less than 5 ohms, replace instrument cluster. If resistance is 5 ohms or greater, repair open Gray wire.
