Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

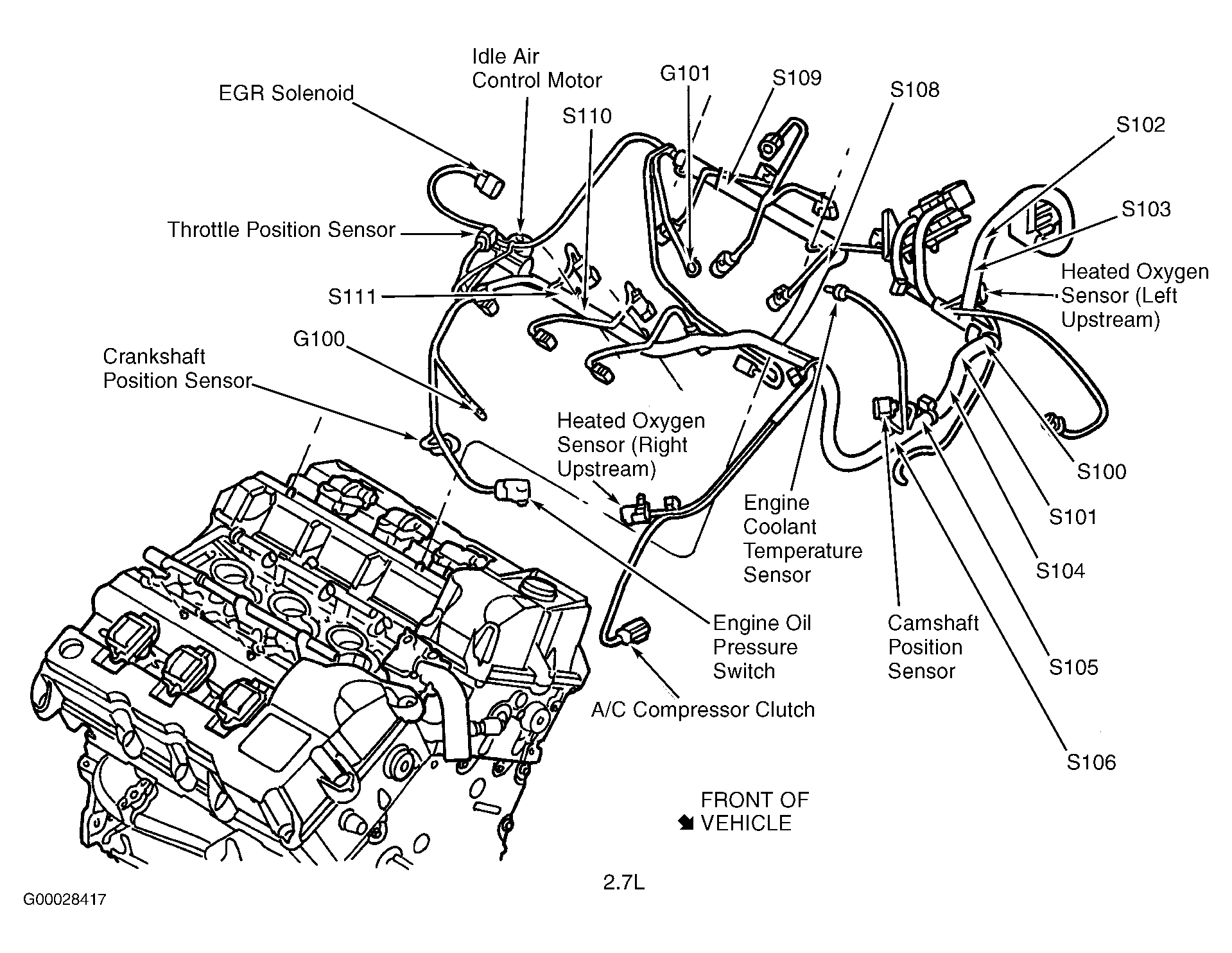

Fig 1: Top Of Engine (2.7L)

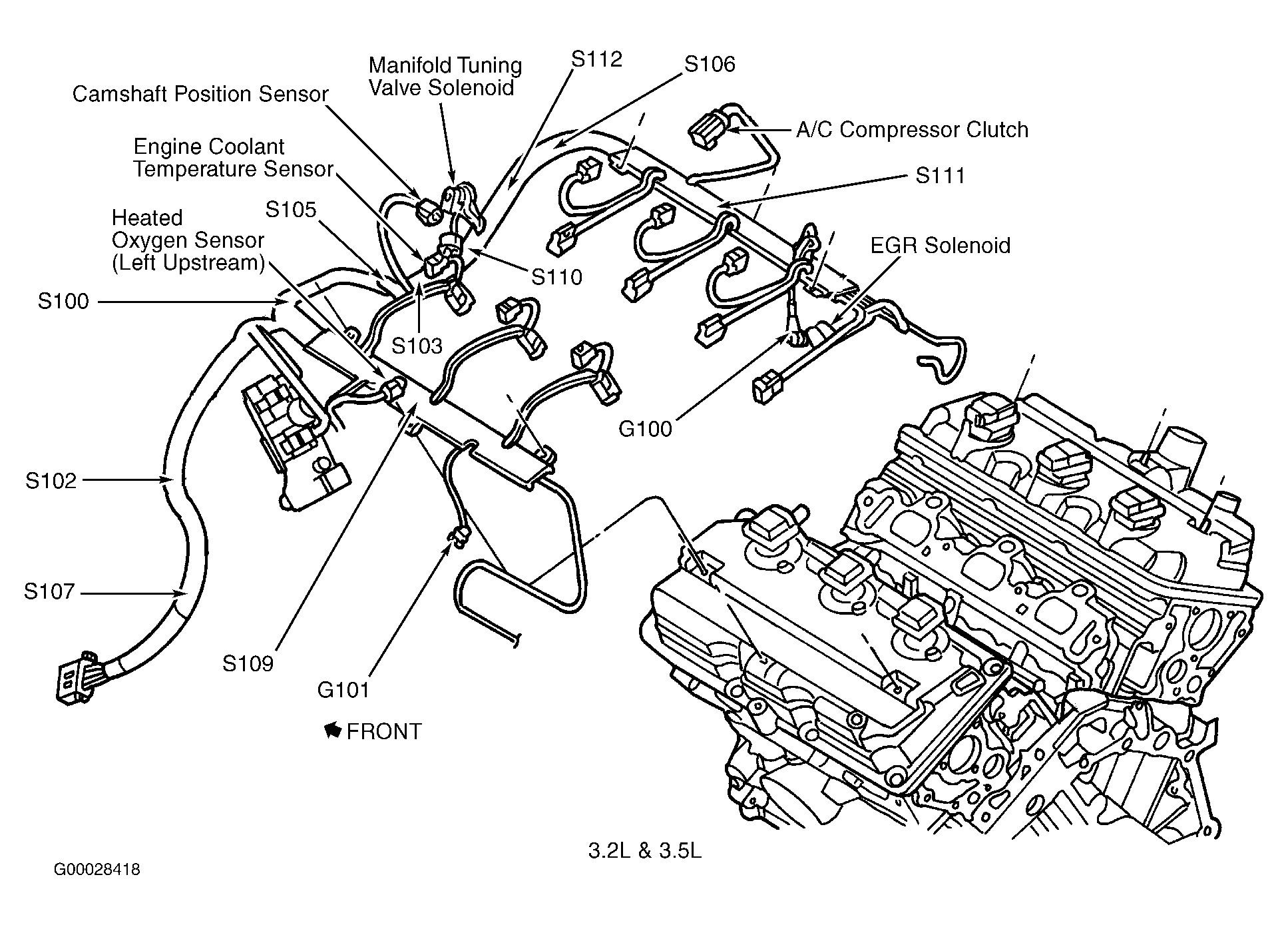

Fig 2: Top Of Engine (3.2L & 3.5L)

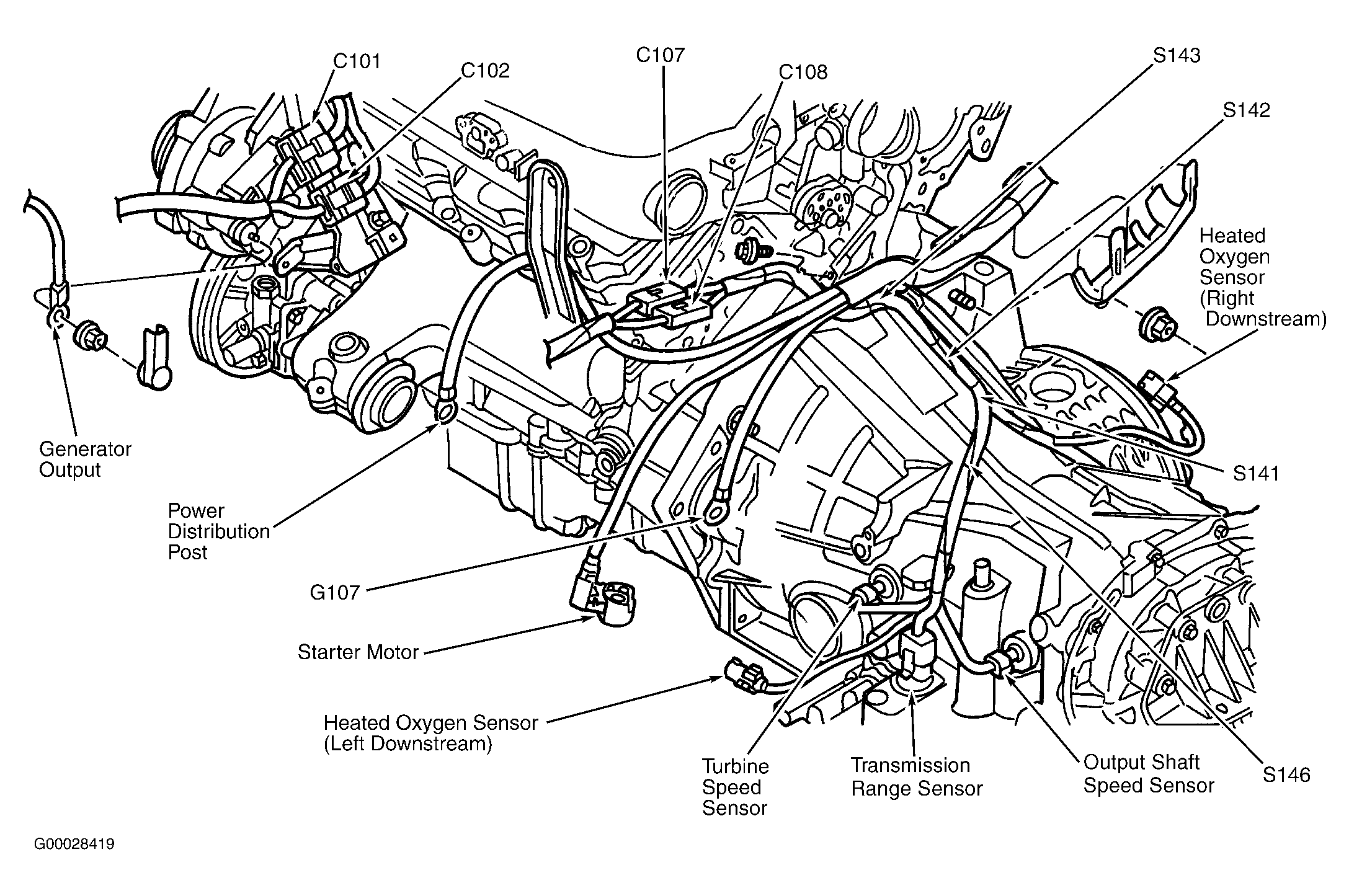

Fig 3: Left Side Of Engine/Transaxle

Fig 4: Left Side Of Engine Compartment

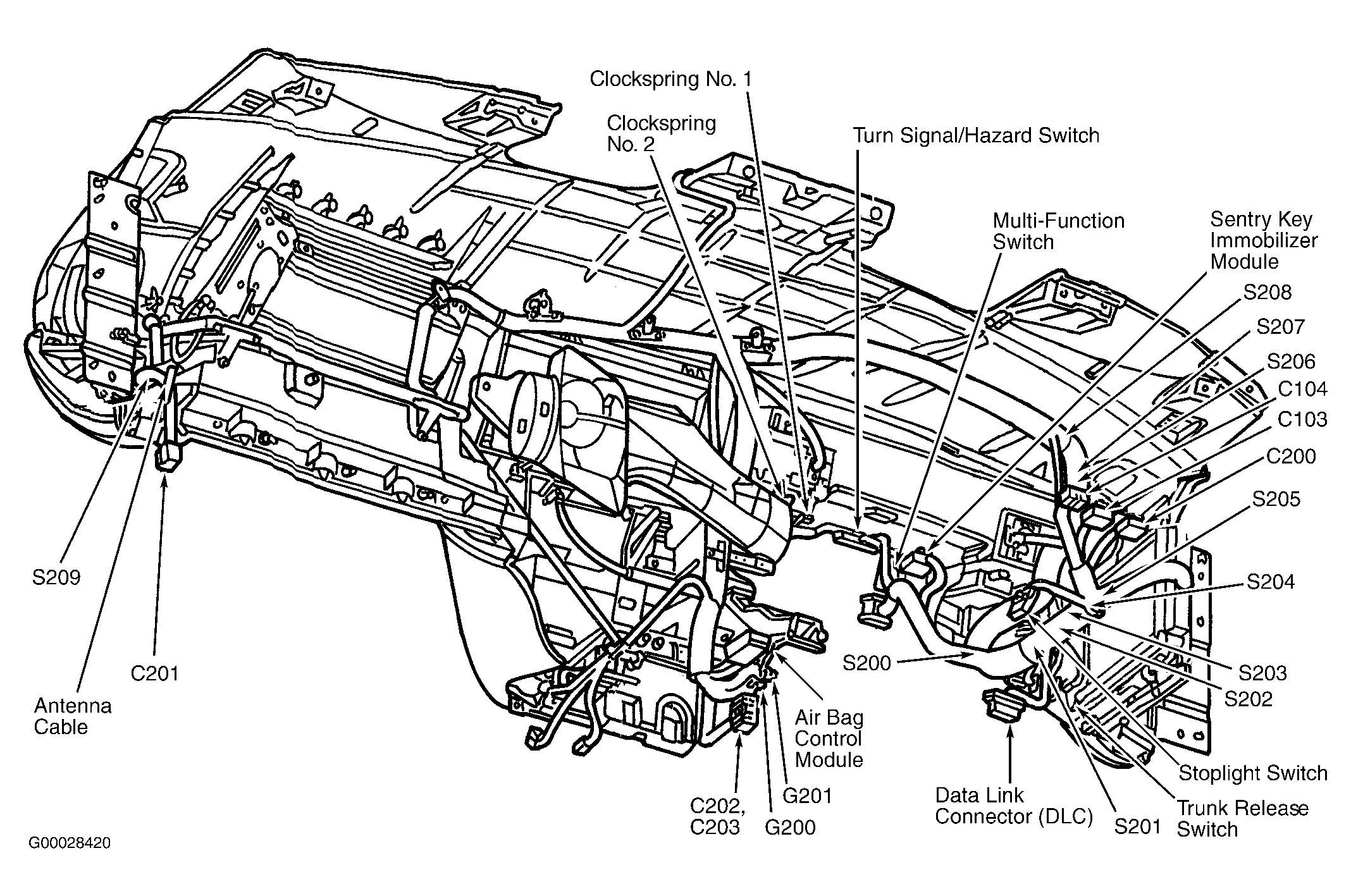

Fig 5: Behind Dash
