Connector Identification

Connector		Illustration

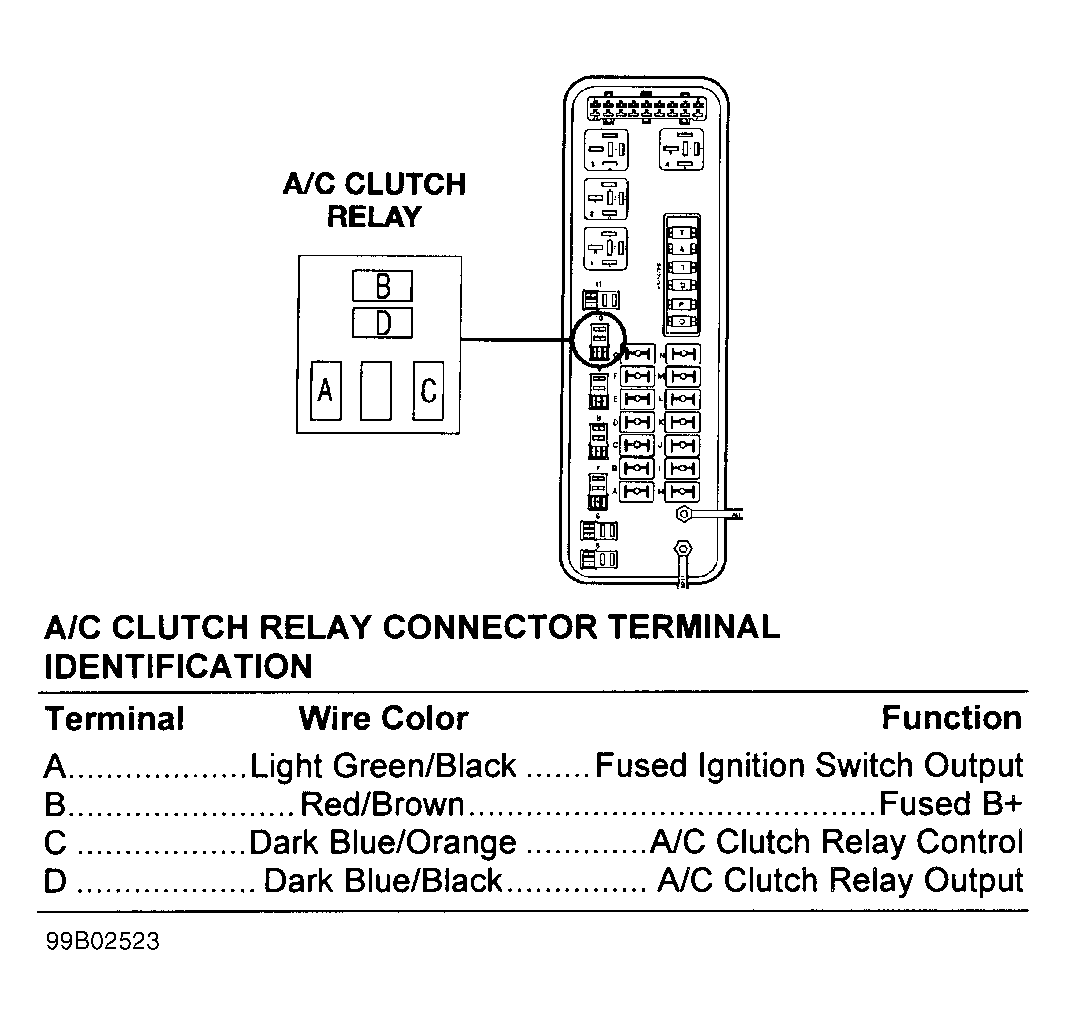

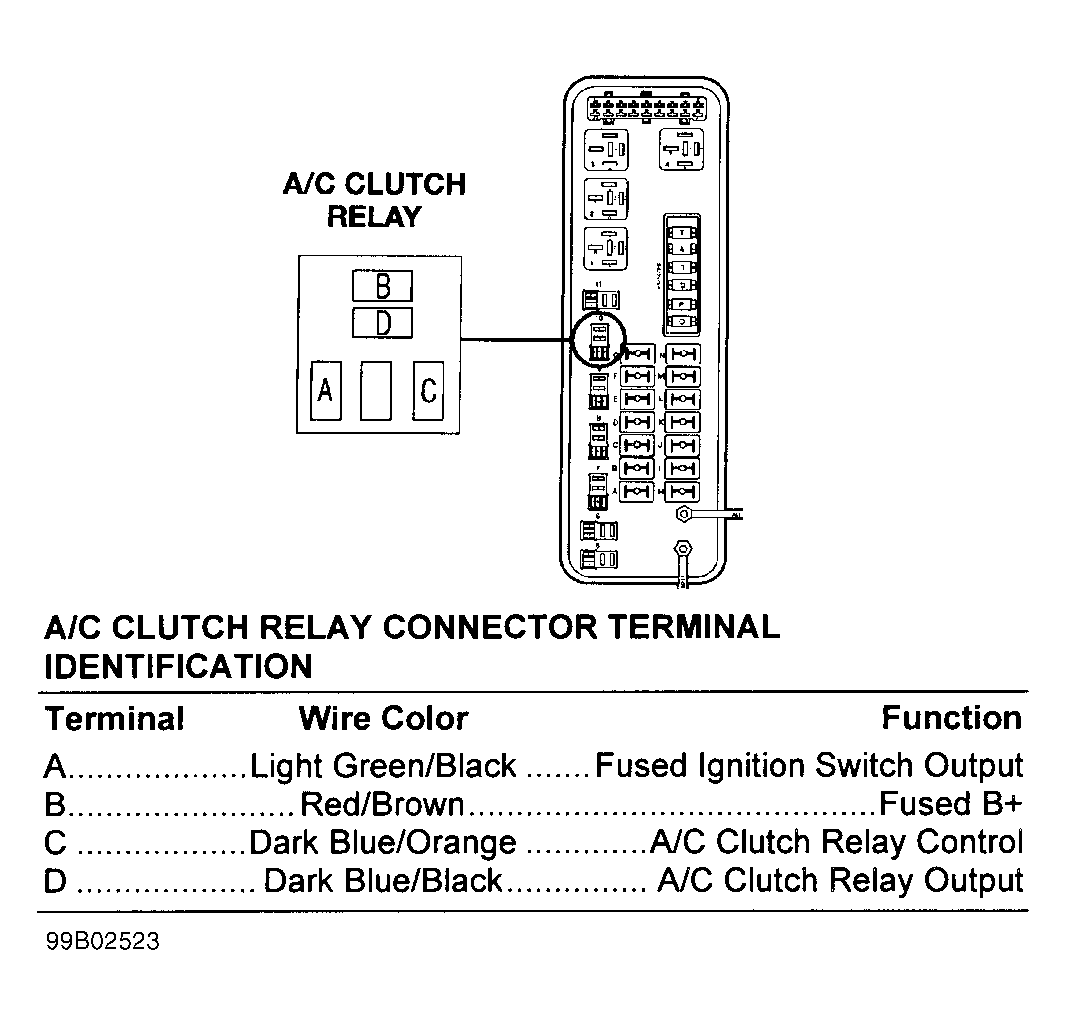

A/C Clutch Relay Connector		Fig 1

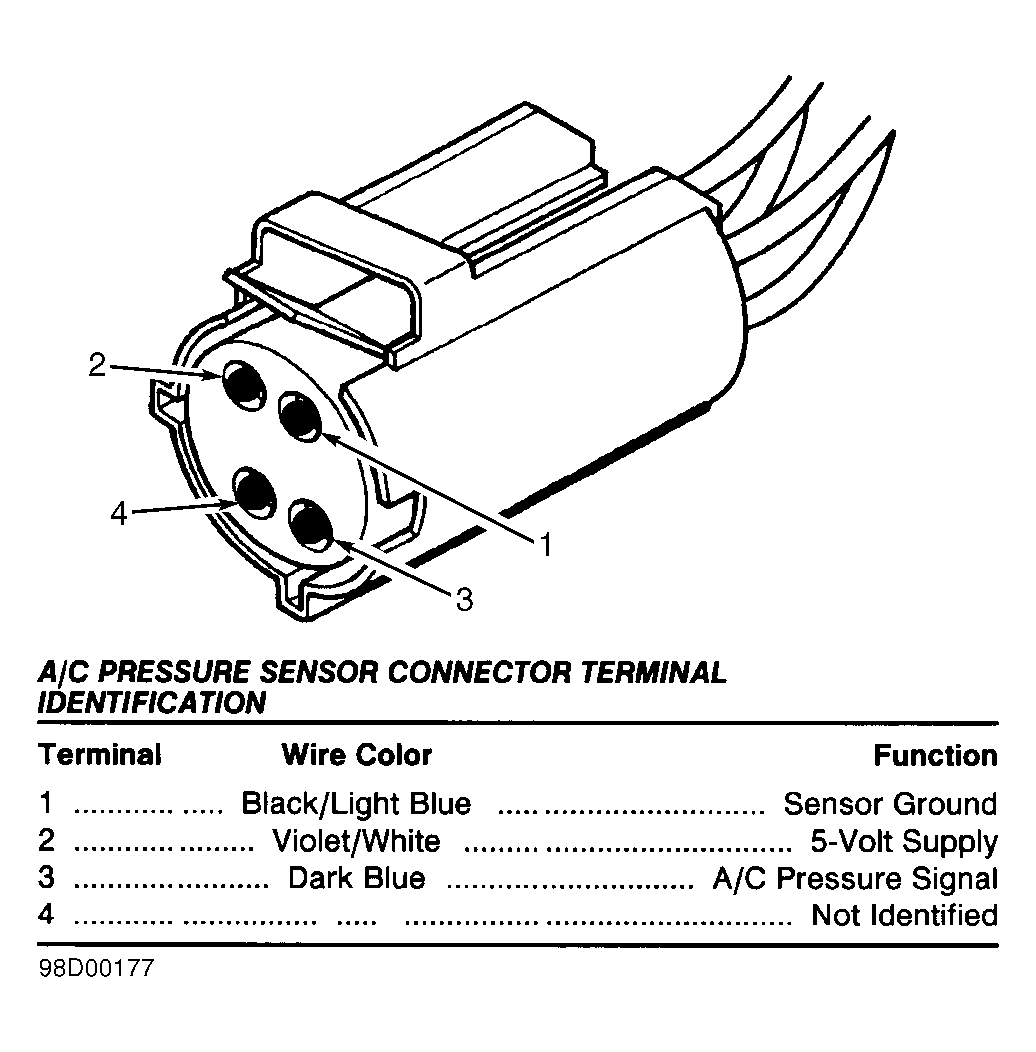

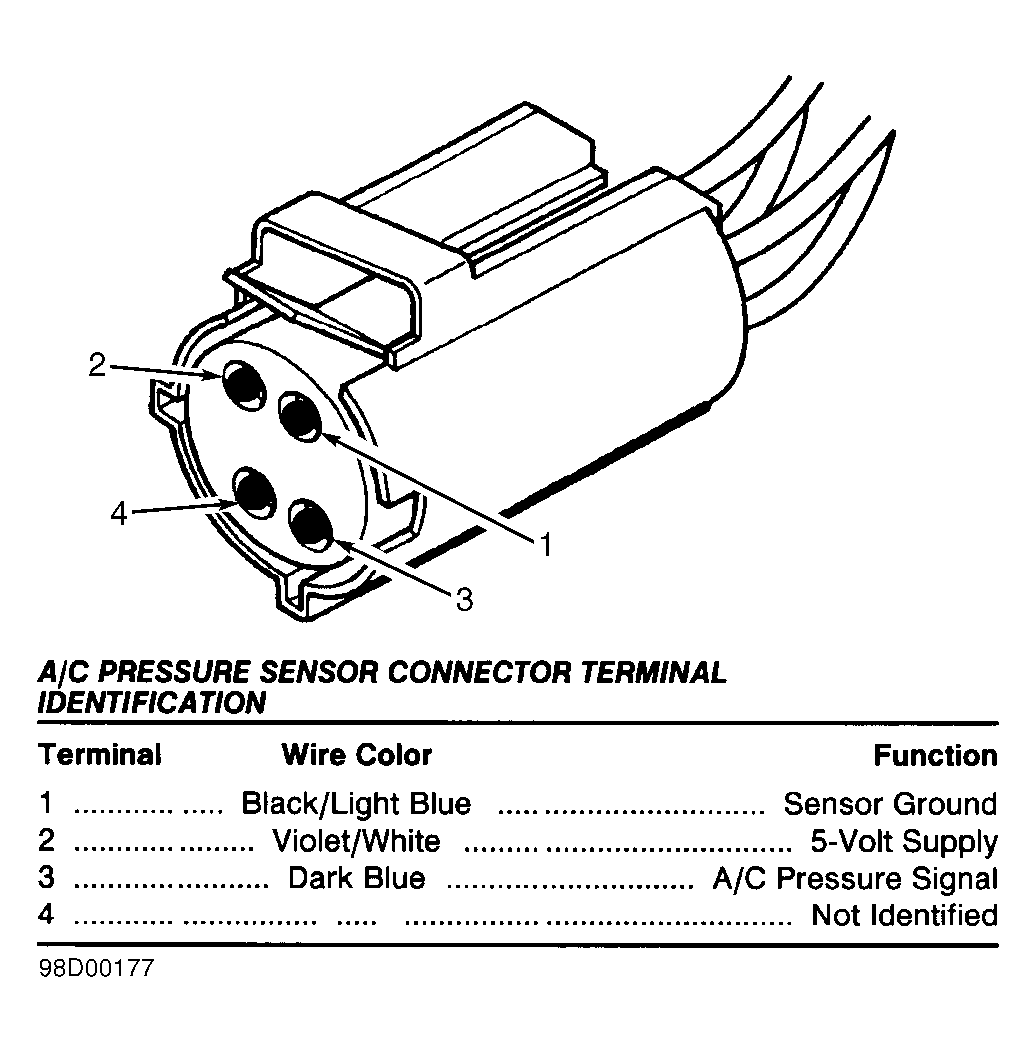

A/C Pressure Sensor Connector		Fig 2

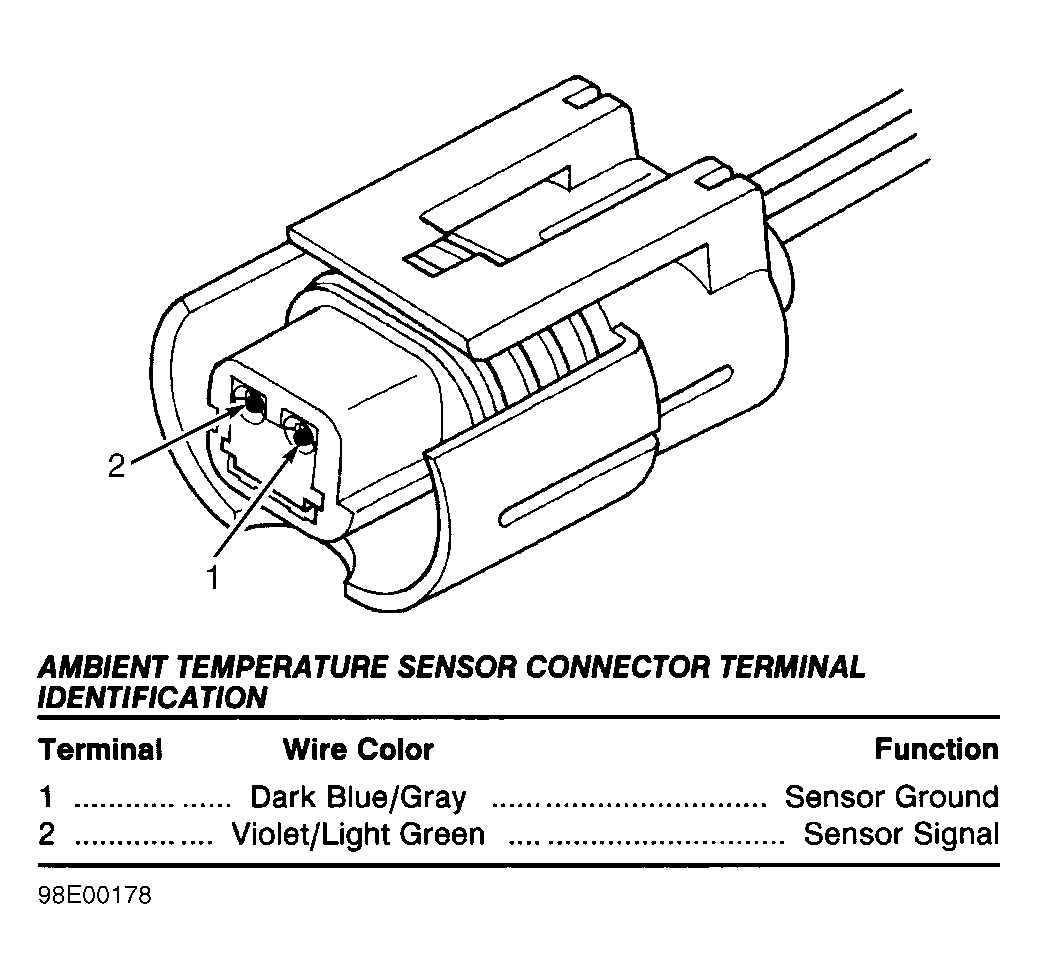

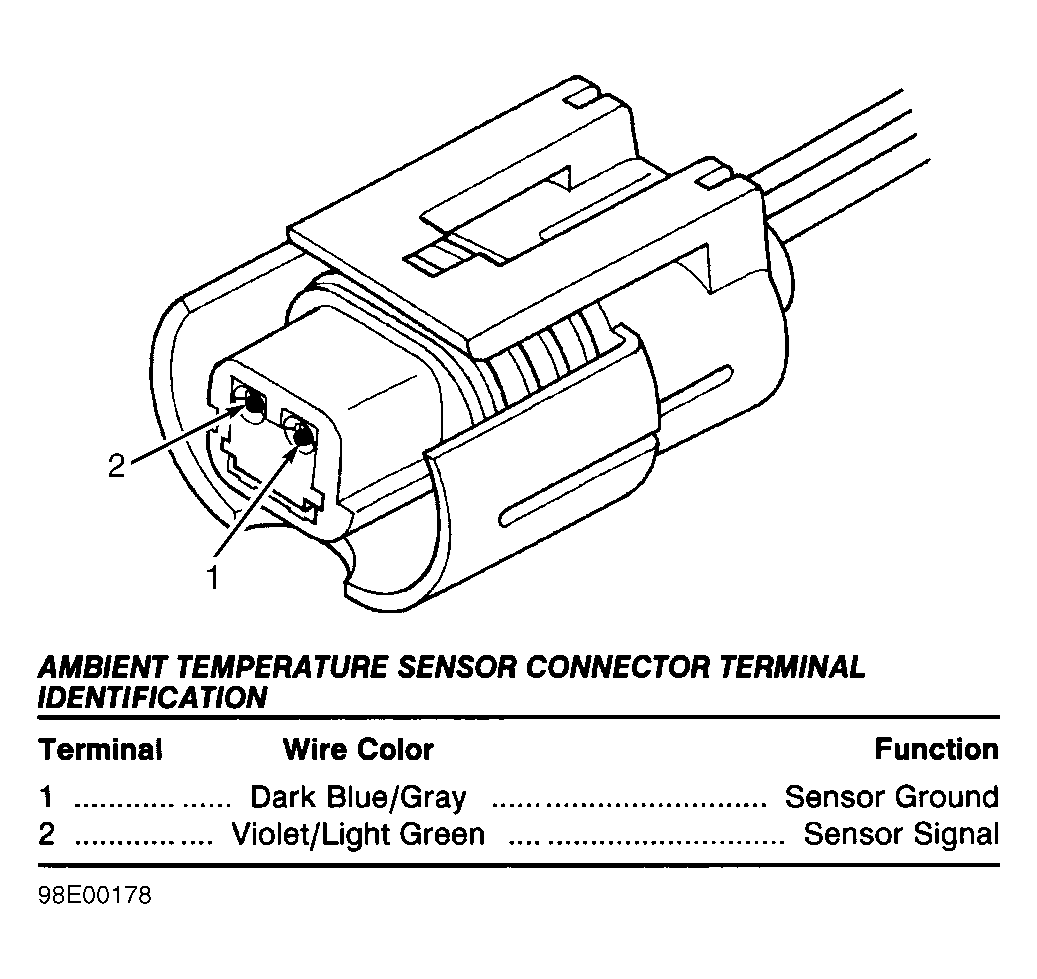

Ambient Temperature Sensor Connector		Fig 3

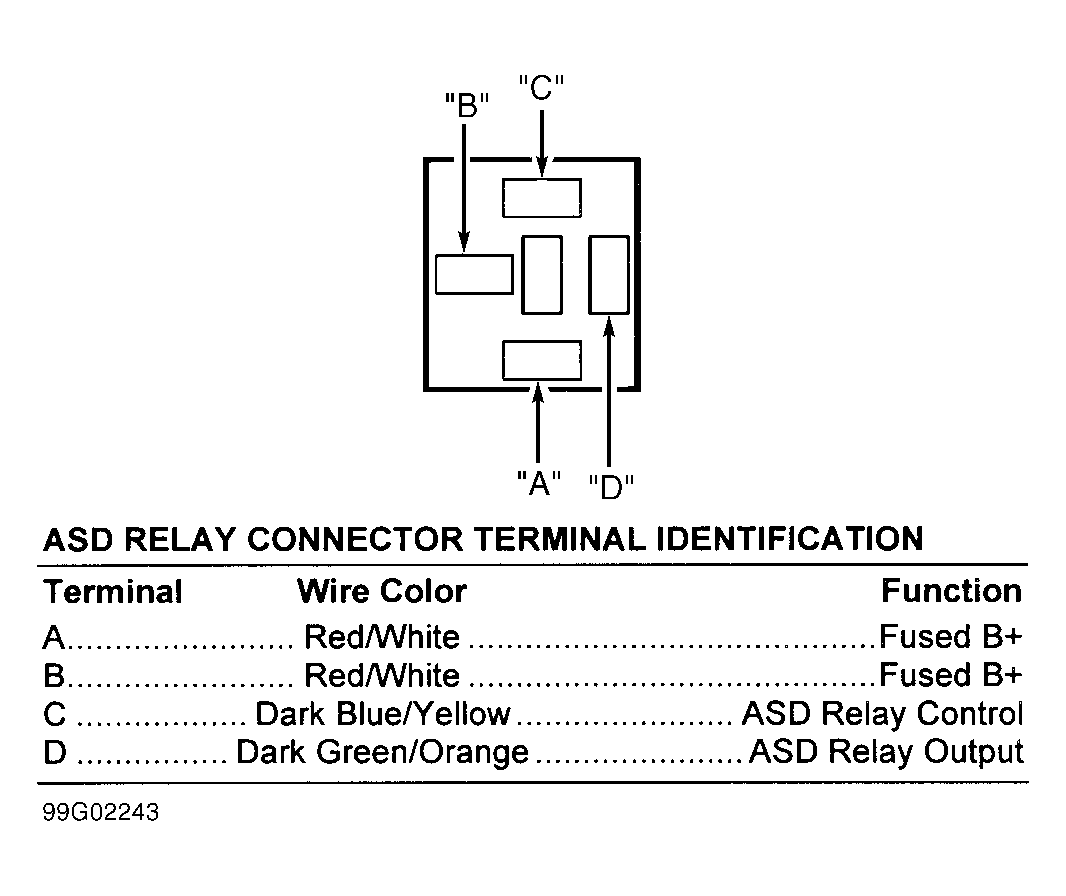

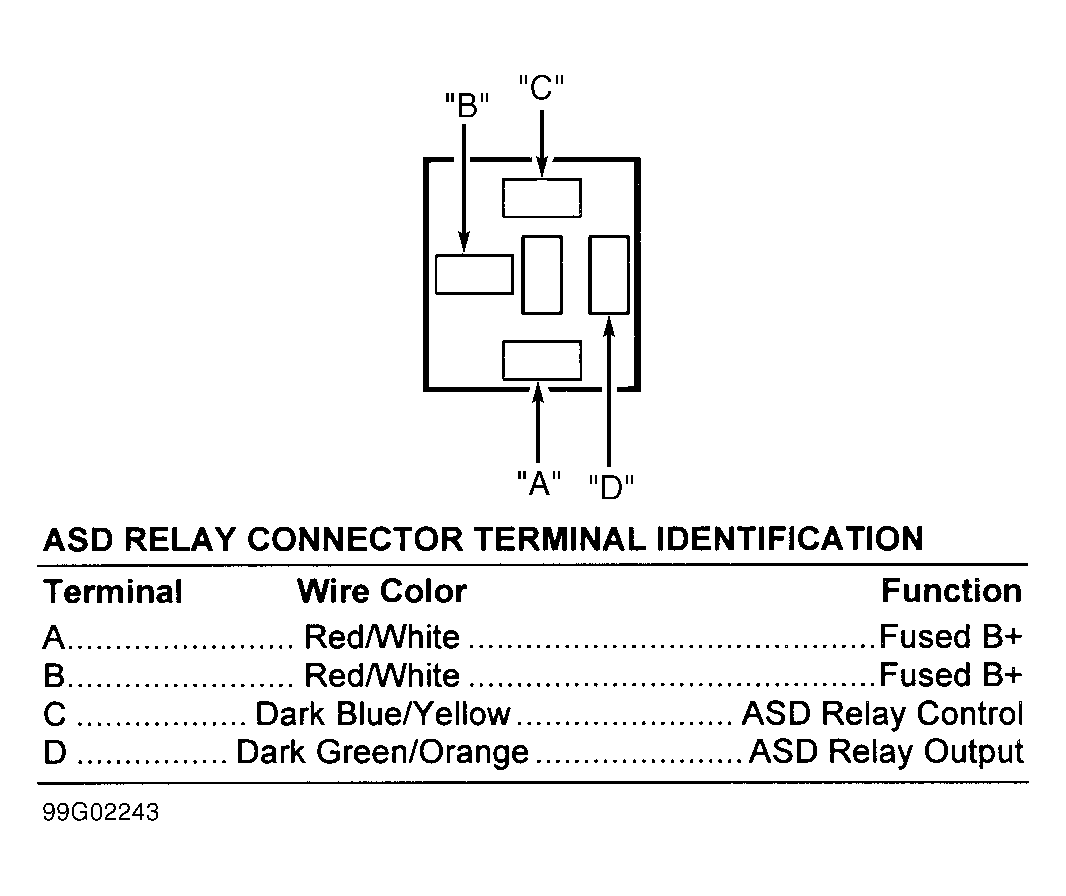

Automatic Shutdown (ASD) Relay Connector		Fig 4

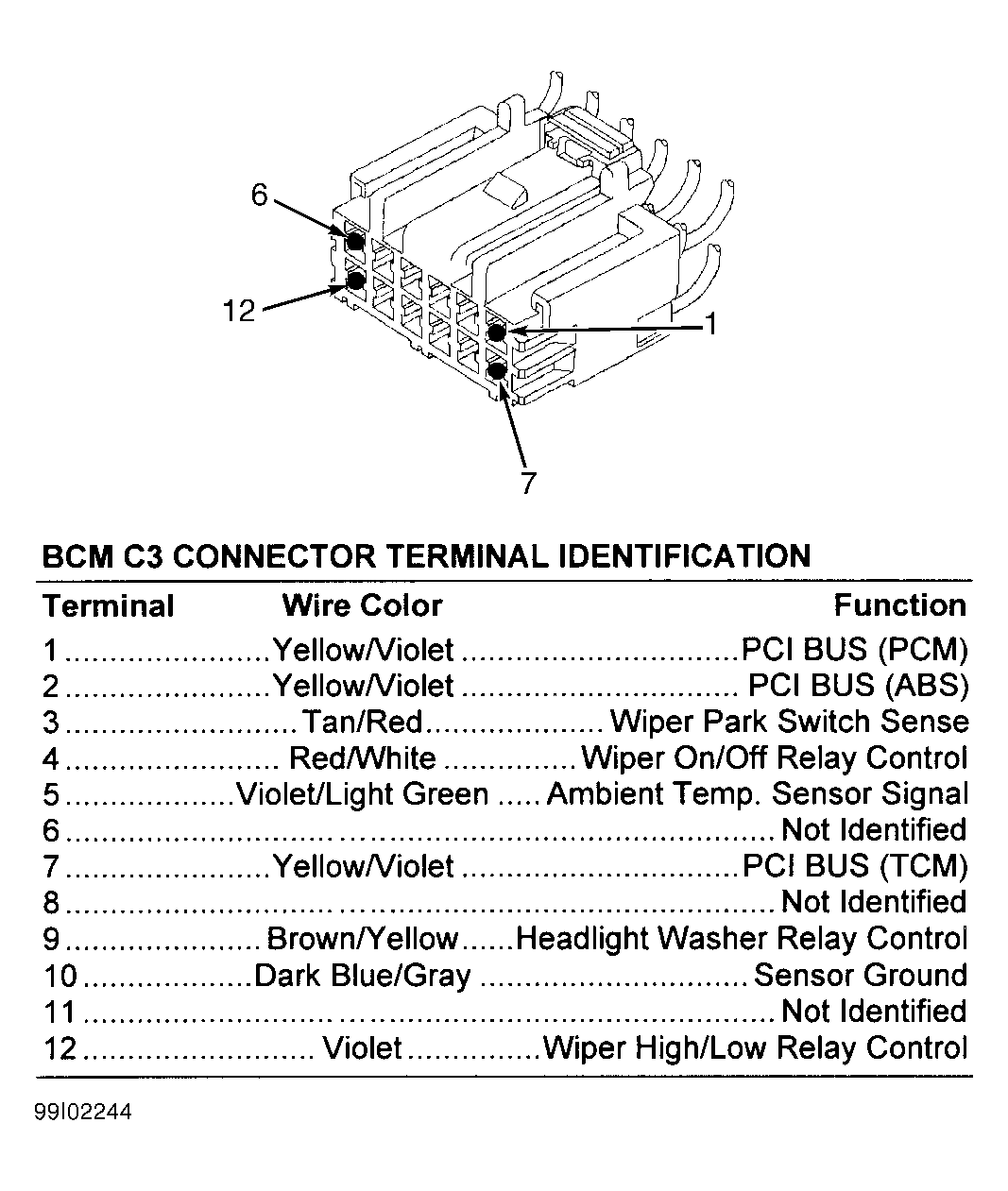

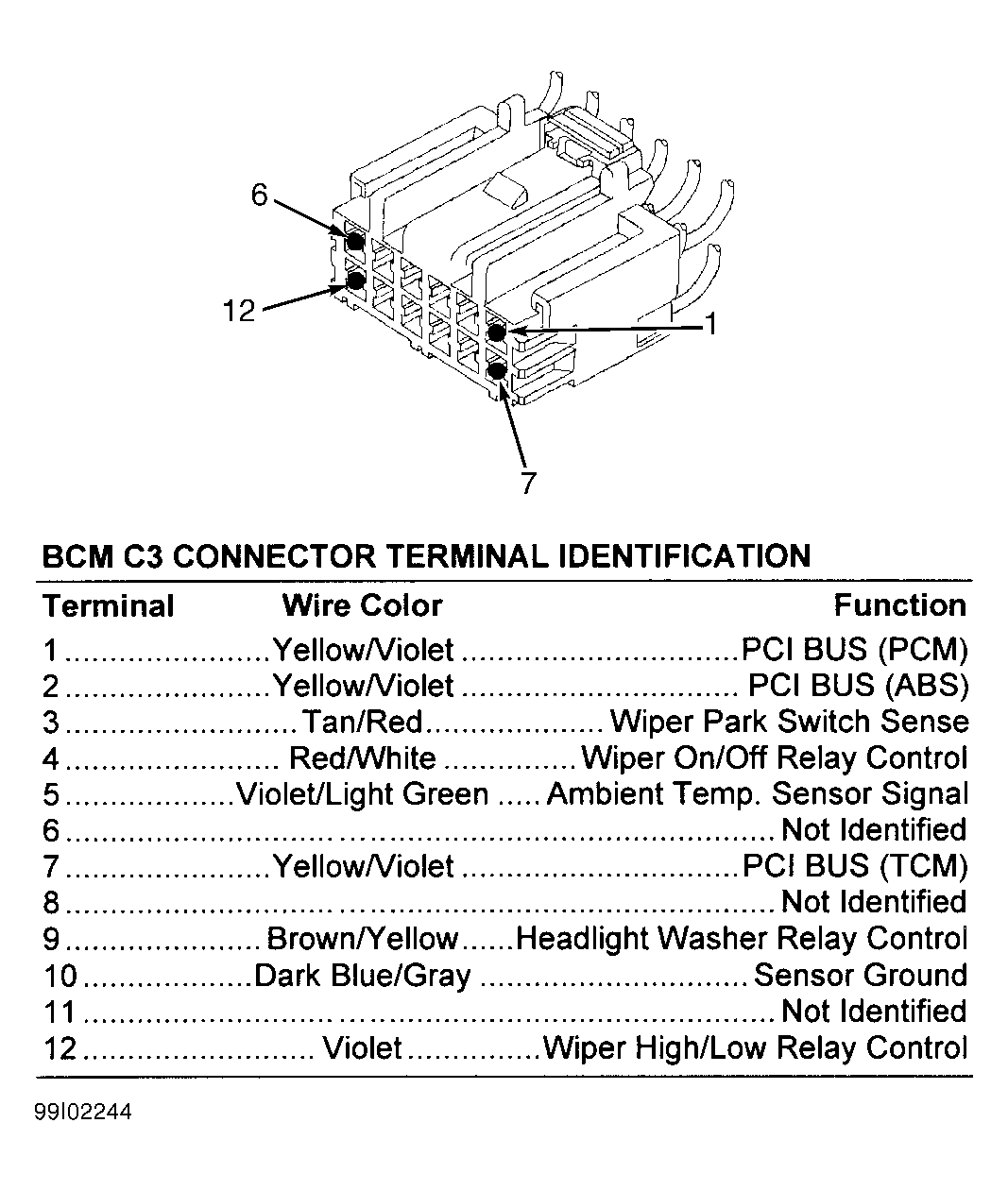

Body Control Module (BCM) (C3-Bone) Connector		Fig 5

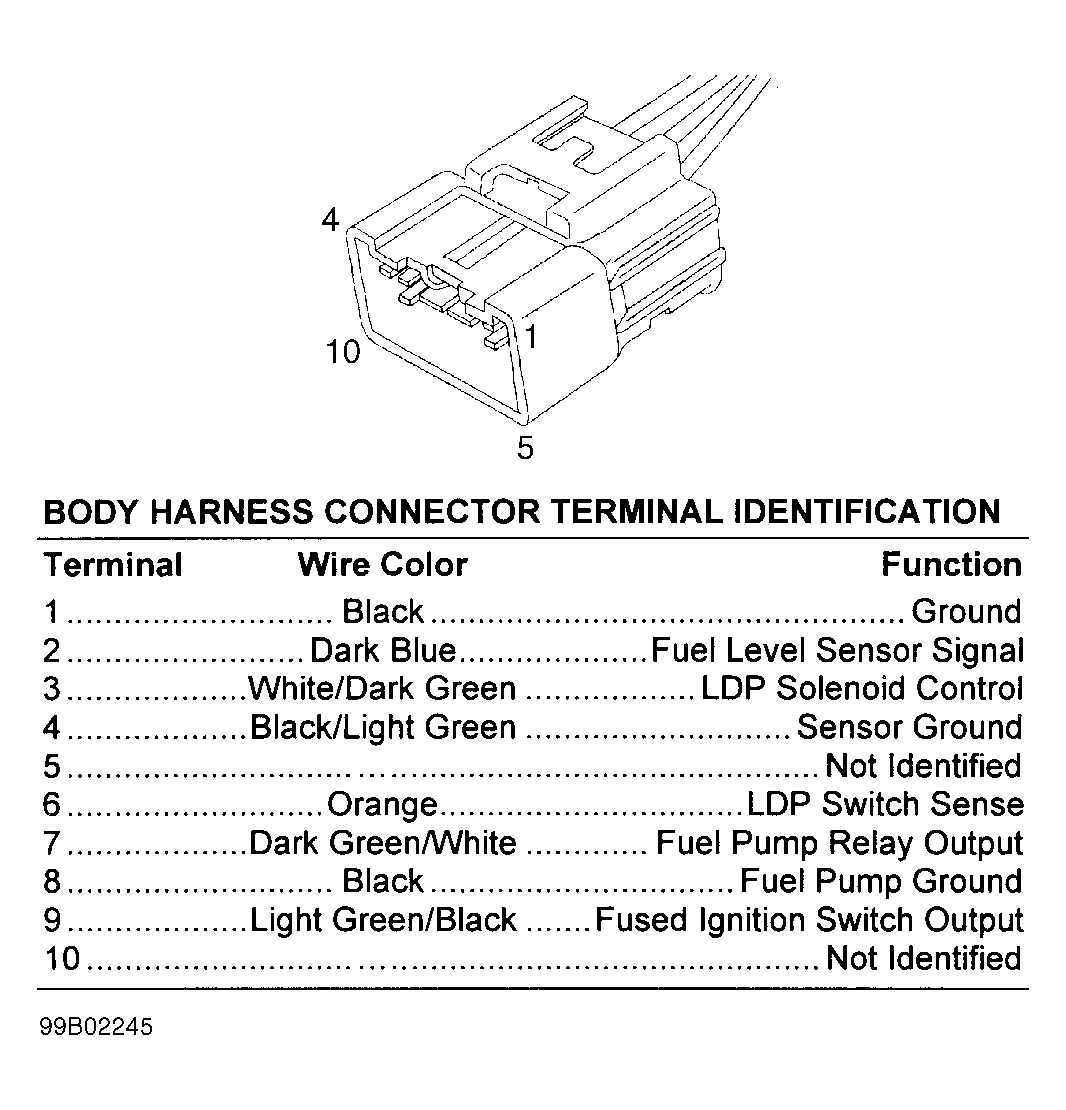

Body Harness 10-Pin Connector		Fig 6

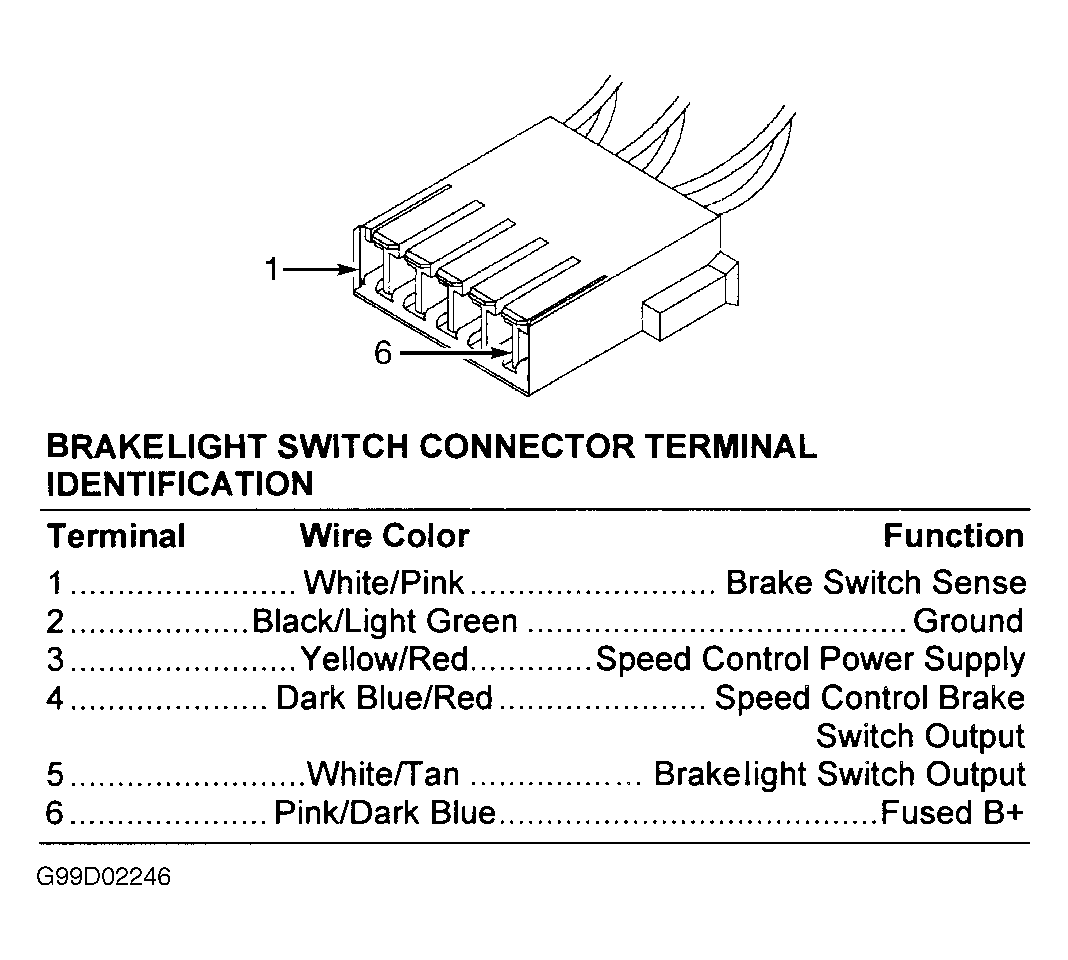

Brakelight Switch Connector		Fig 7

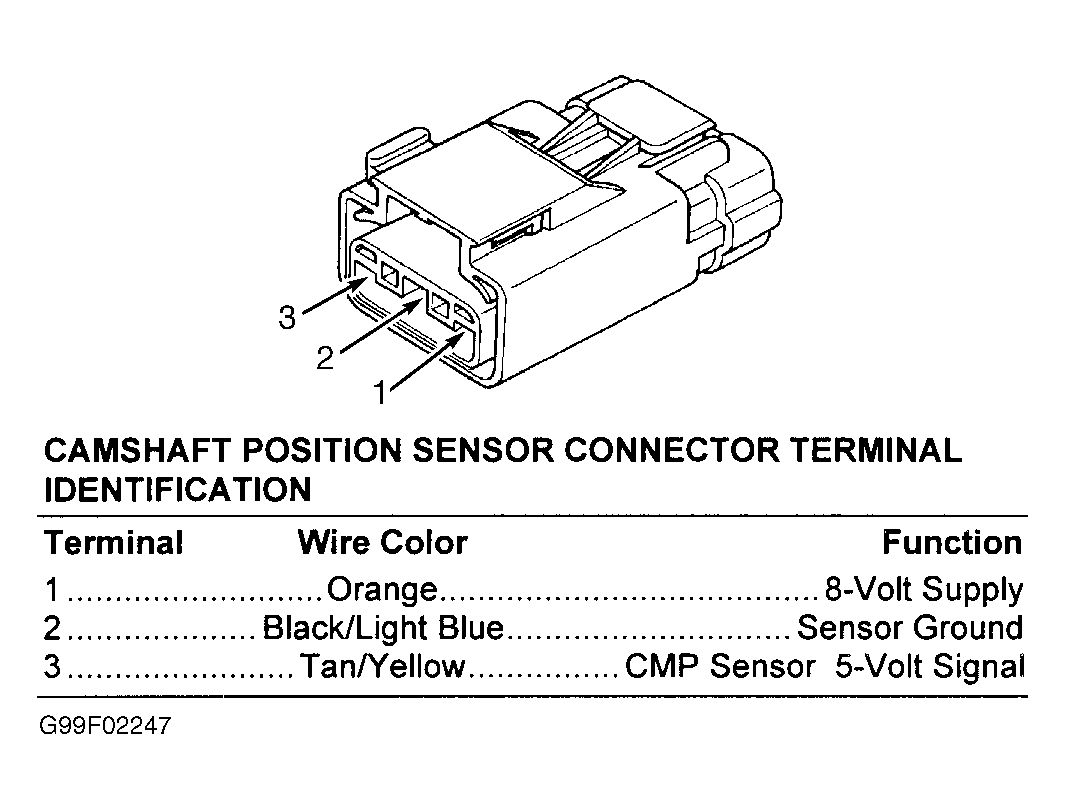

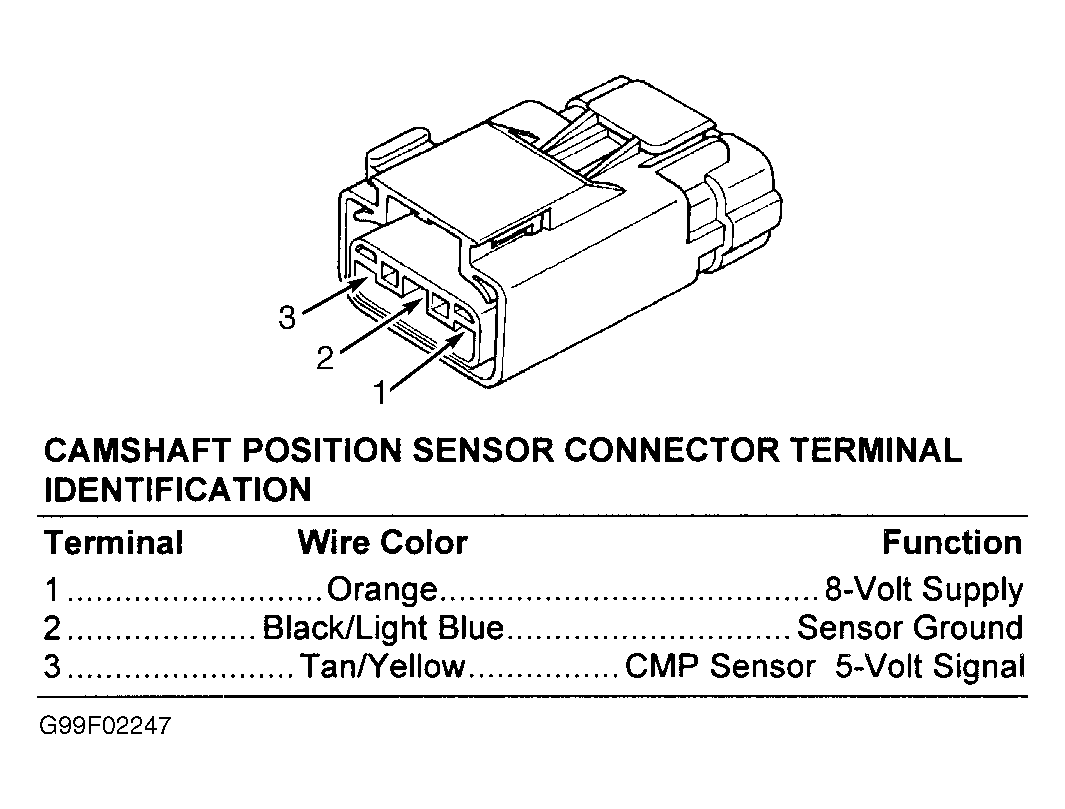

Camshaft Position (CMP) Sensor Connector		Fig 8

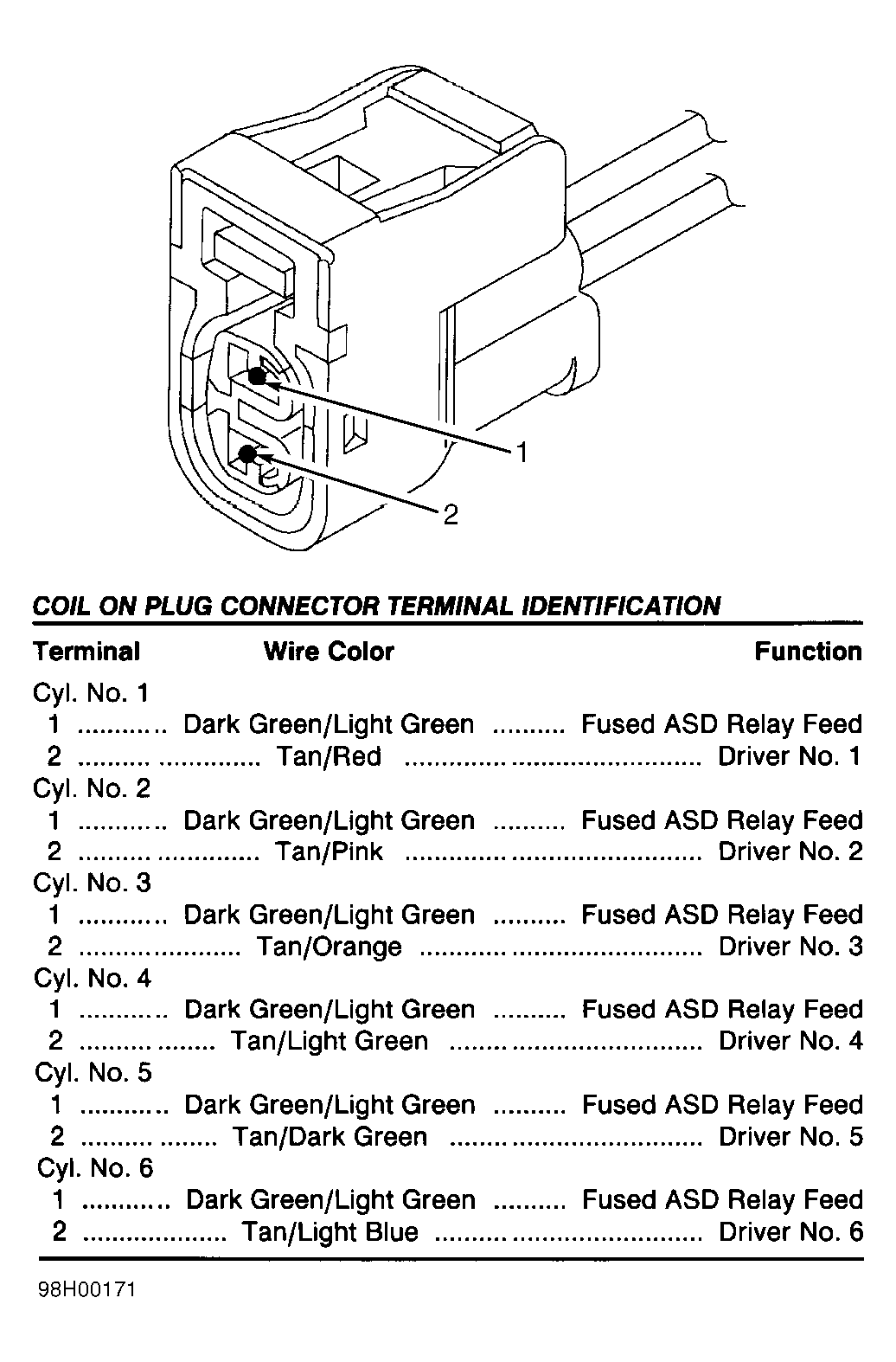

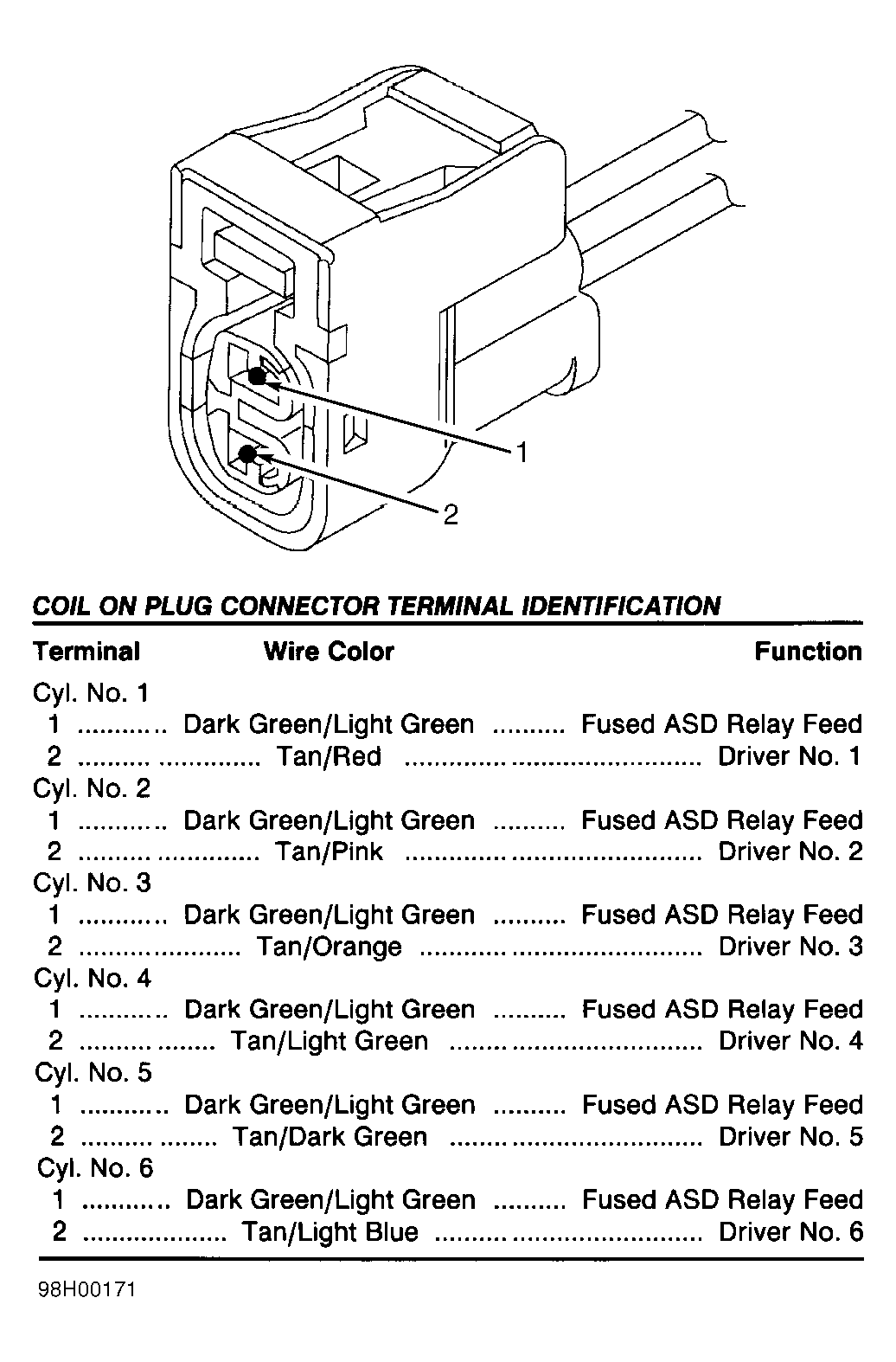

Coil On Plug Connector		Fig 9

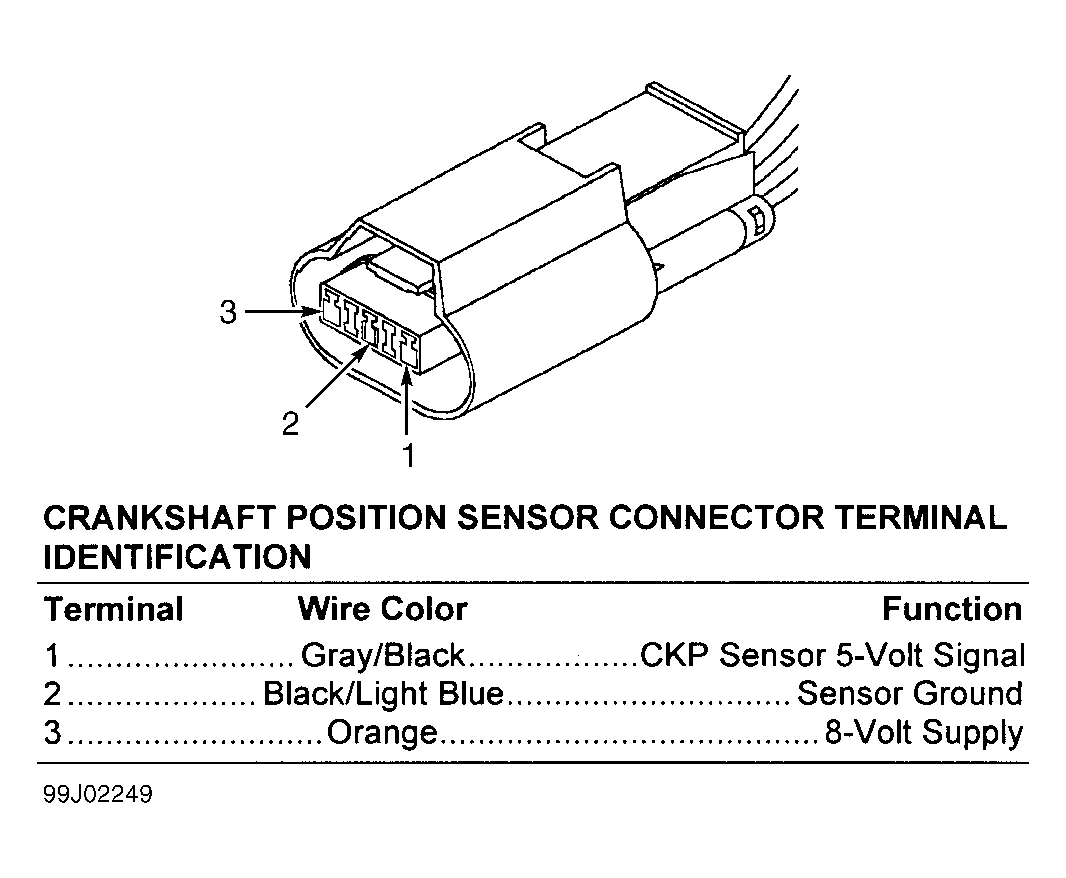

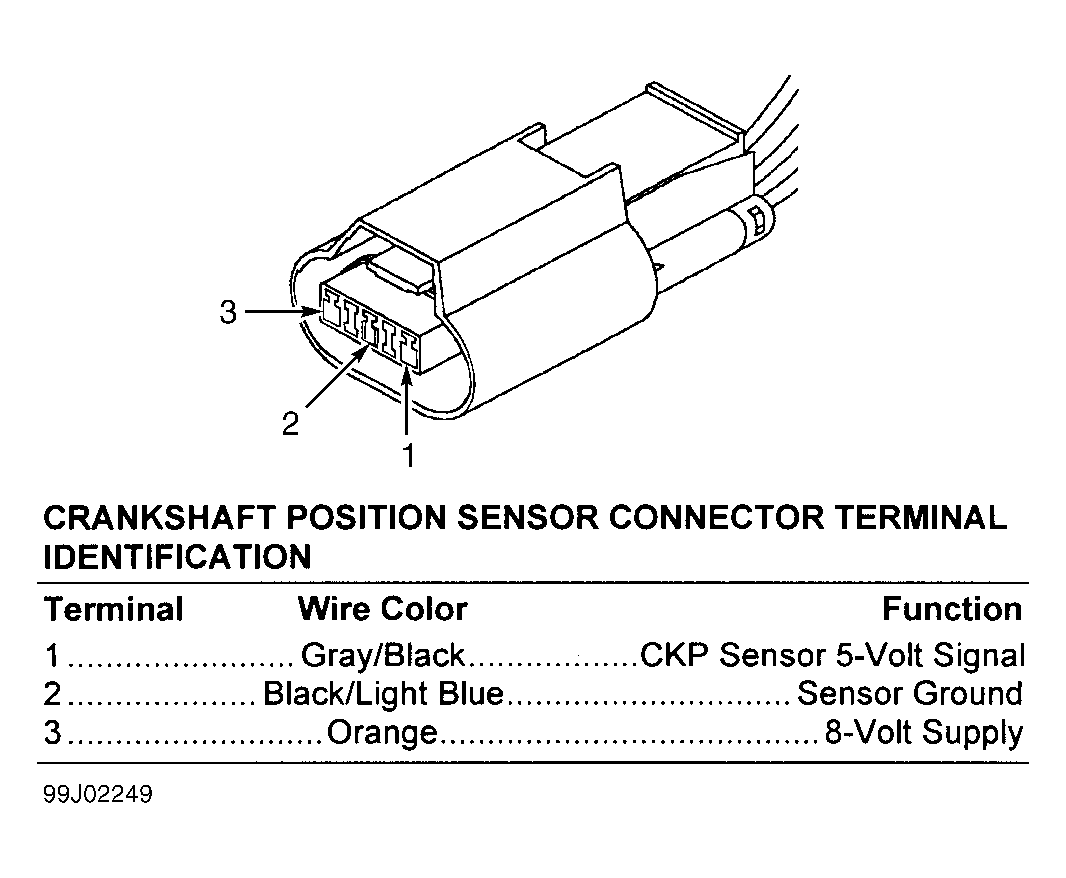

Crankshaft Position (CKP) Sensor Connector		Fig 10

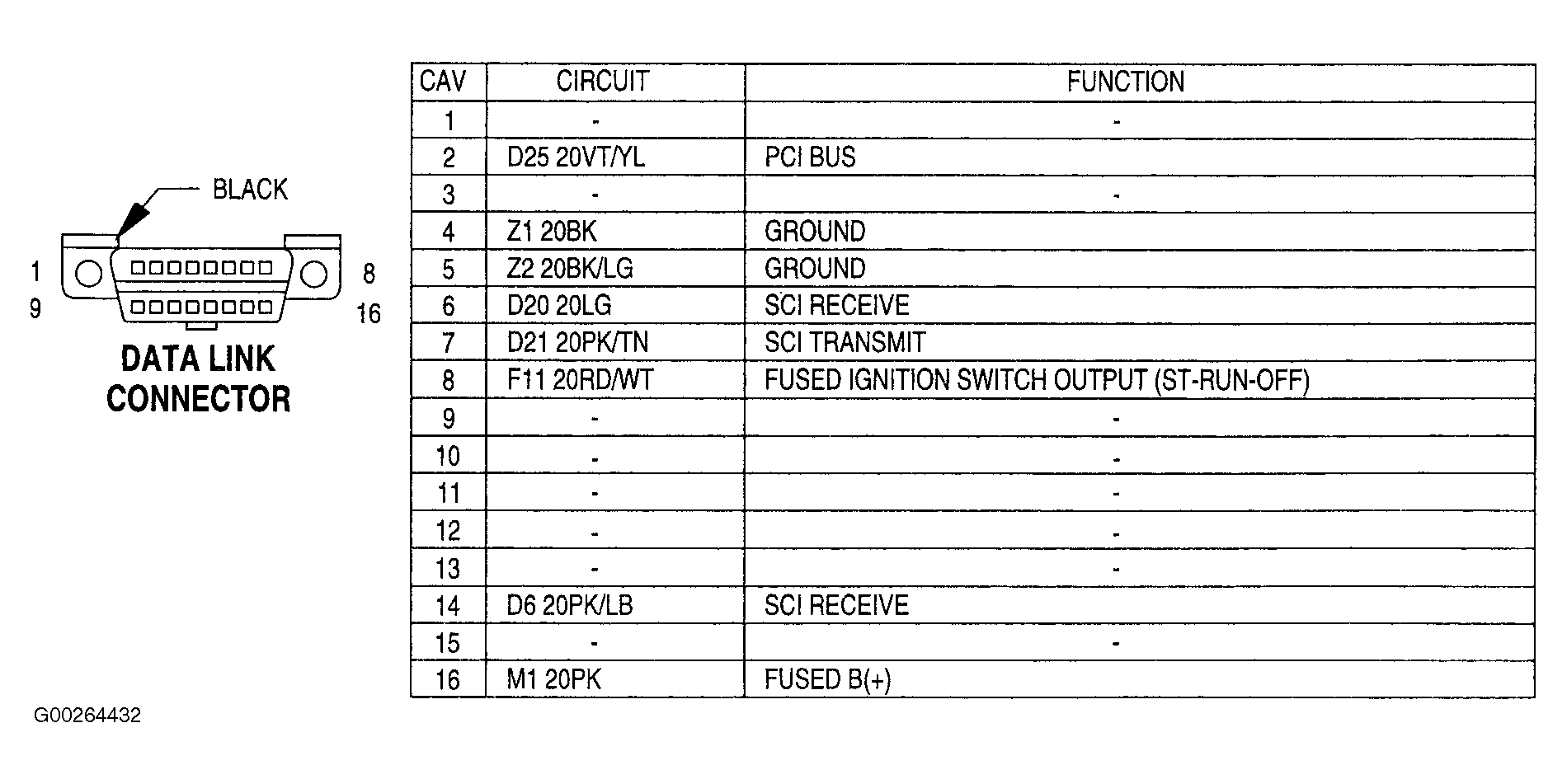

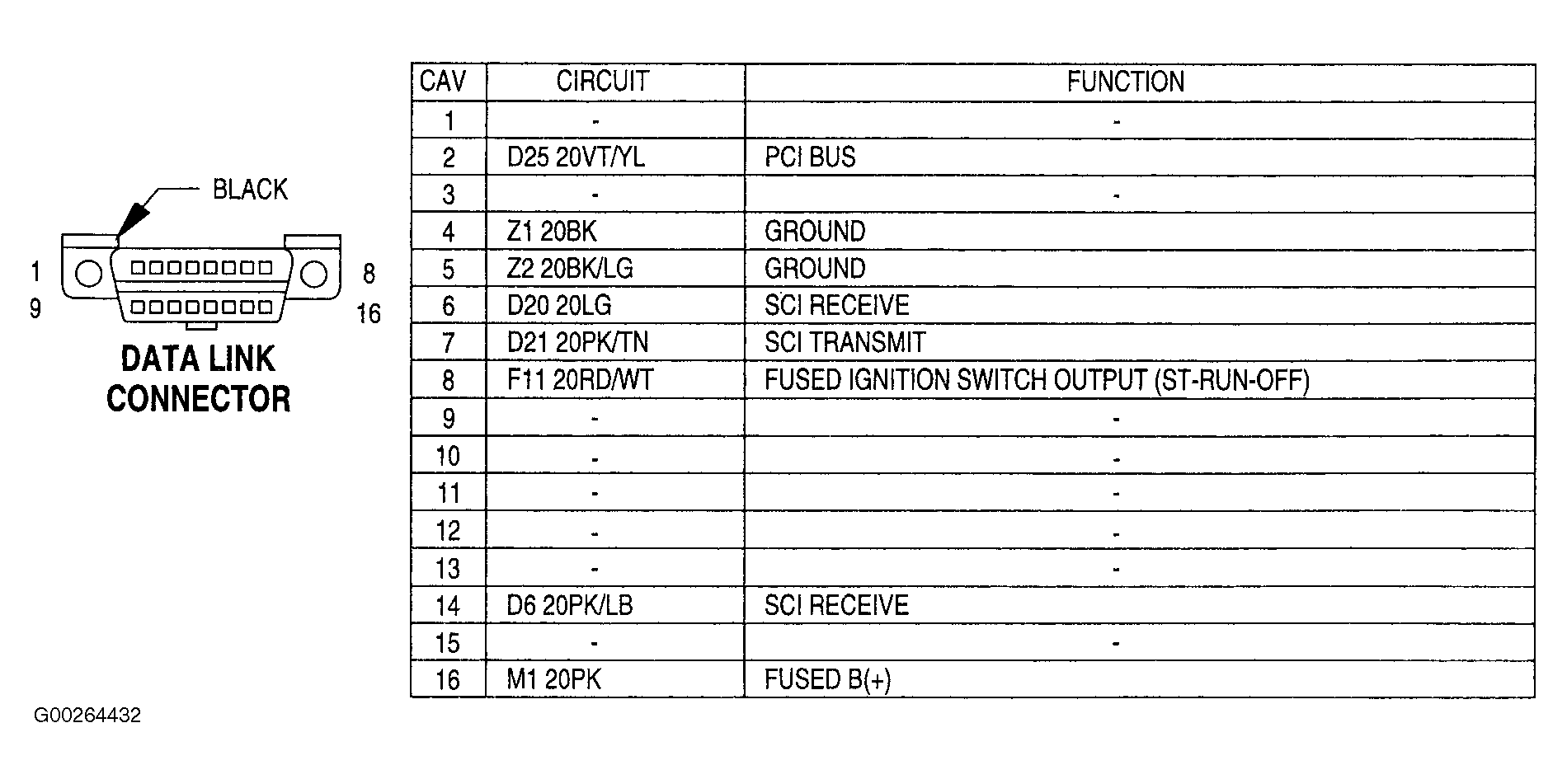

Data Link Connector (16-Pin)		Fig 11

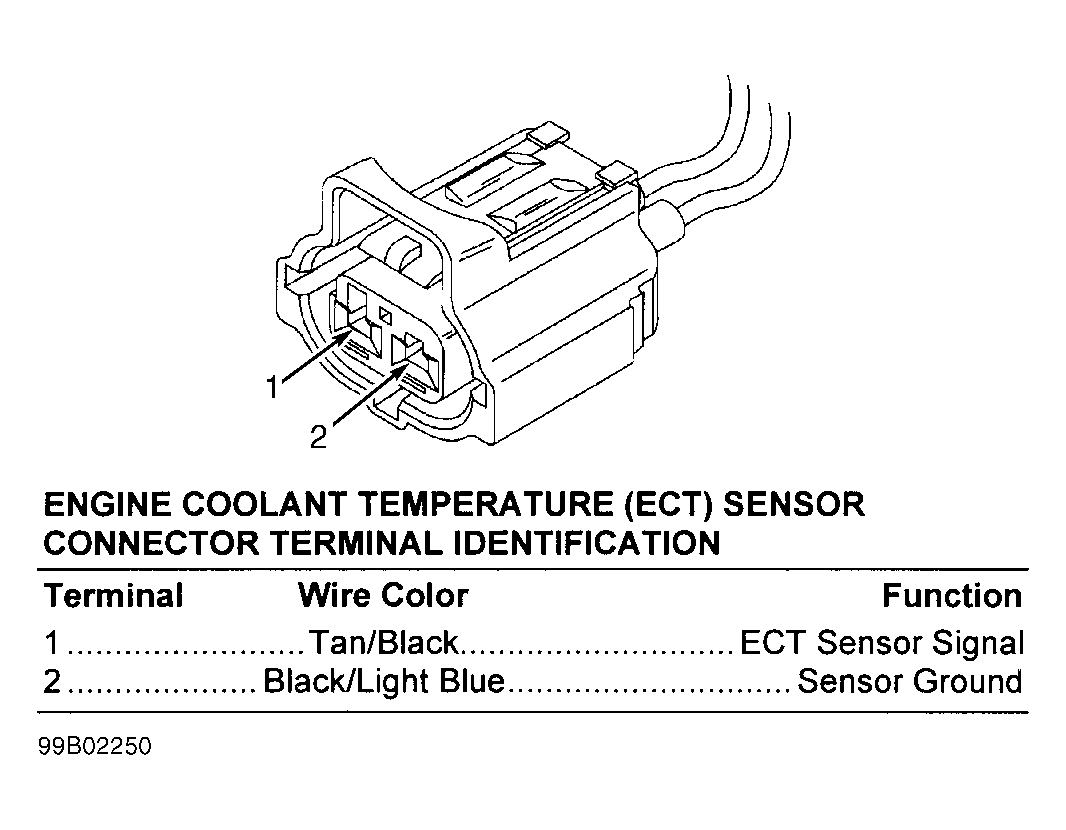

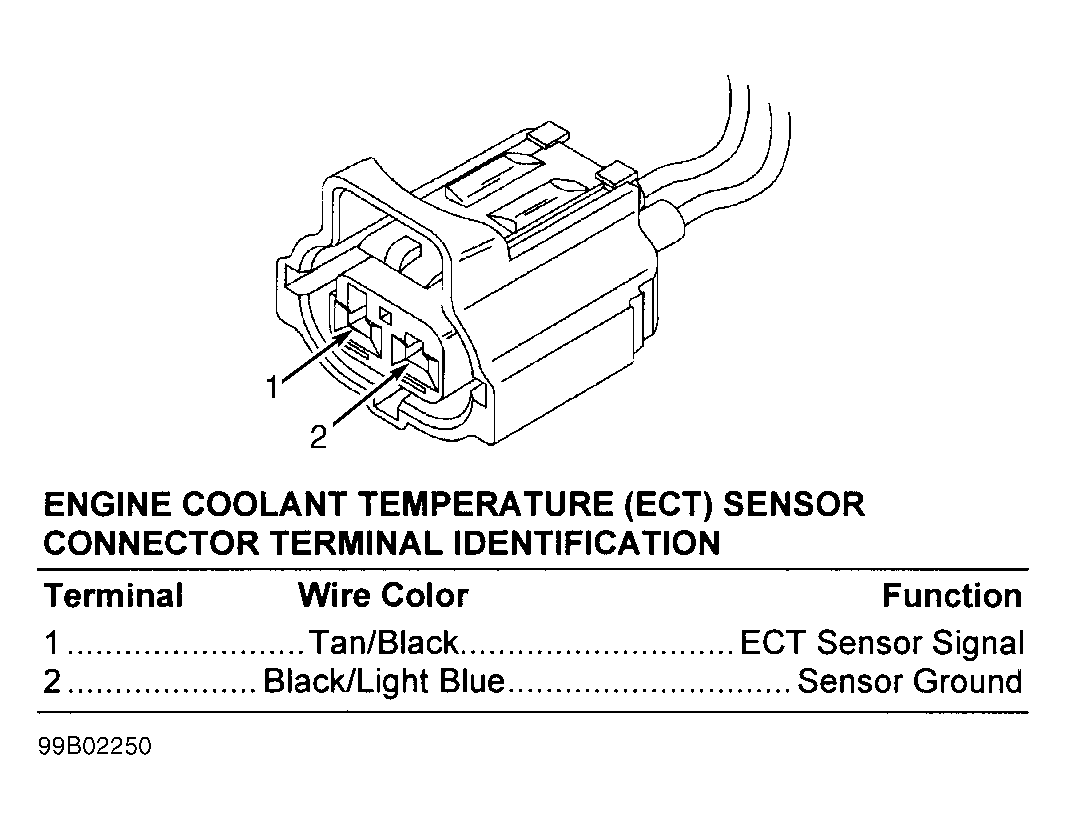

Engine Coolant Temperature (ECT) Sensor Connector		Fig 12

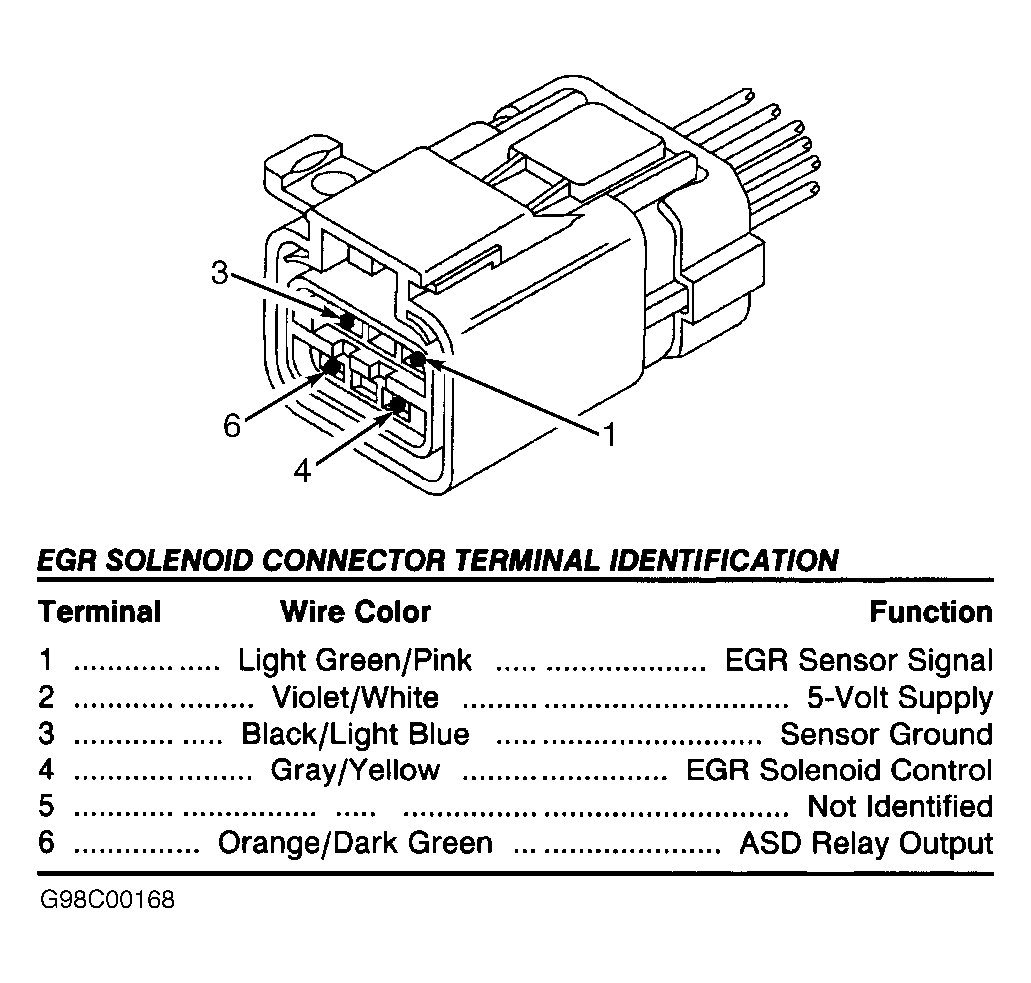

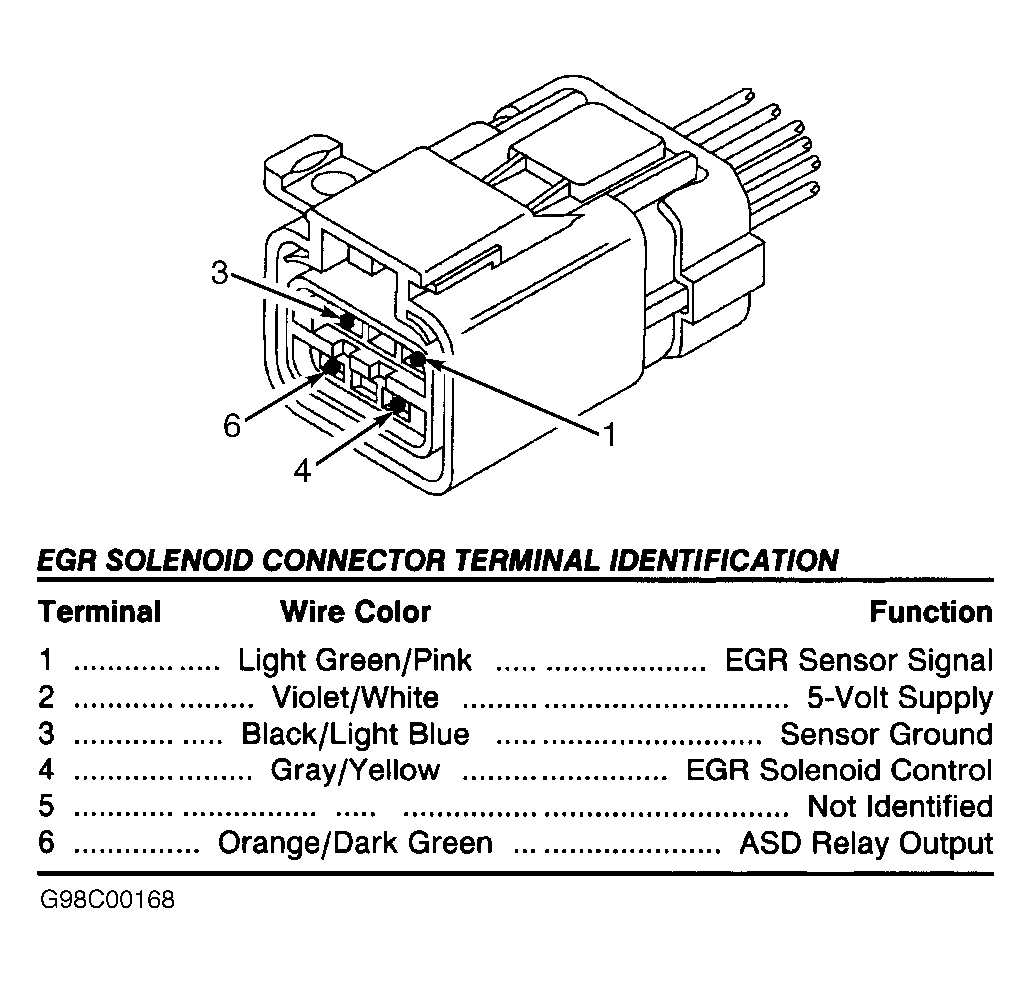

Exhaust Gas Recirculation (EGR) Solenoid Connector		Fig 13

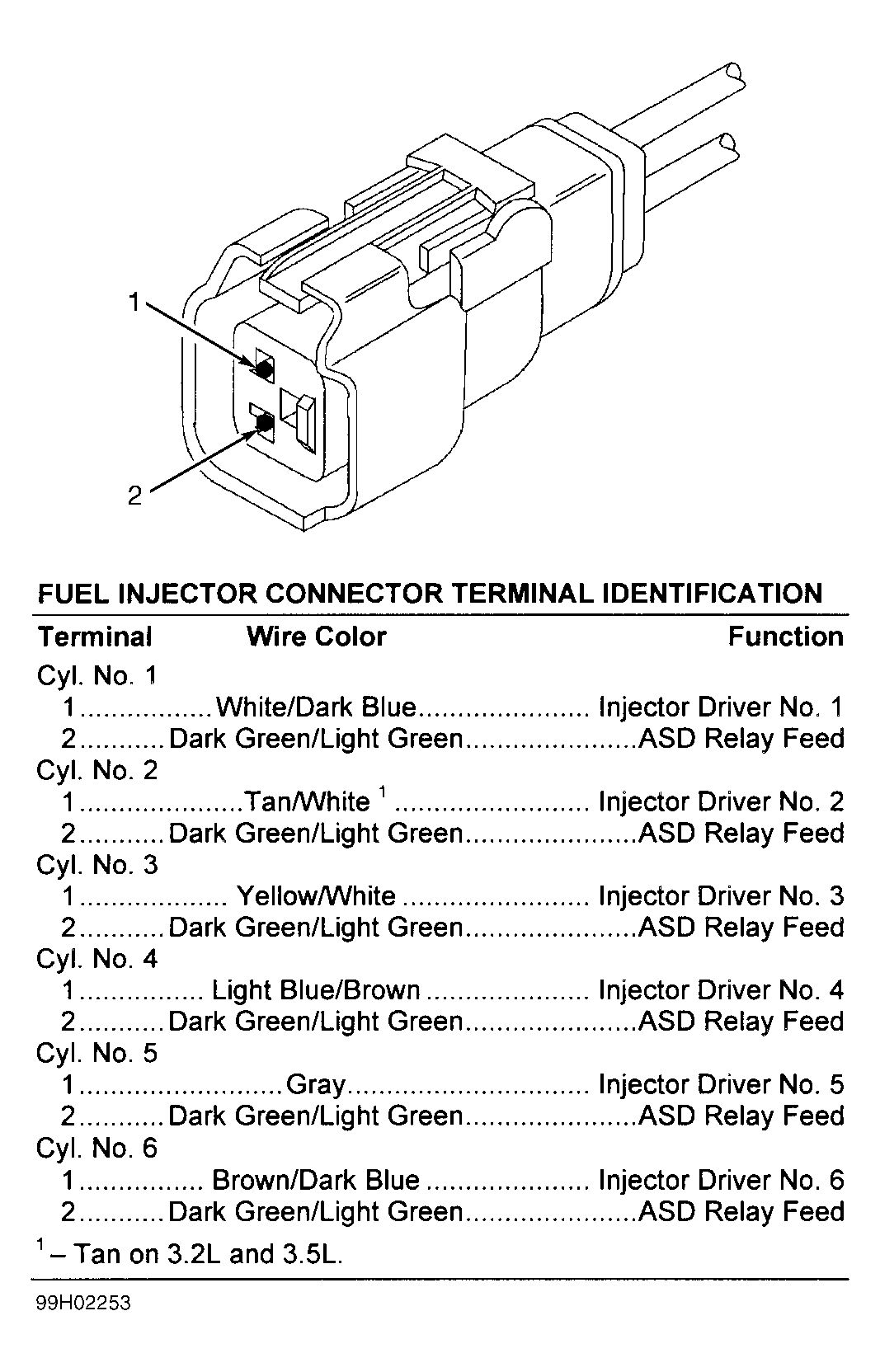

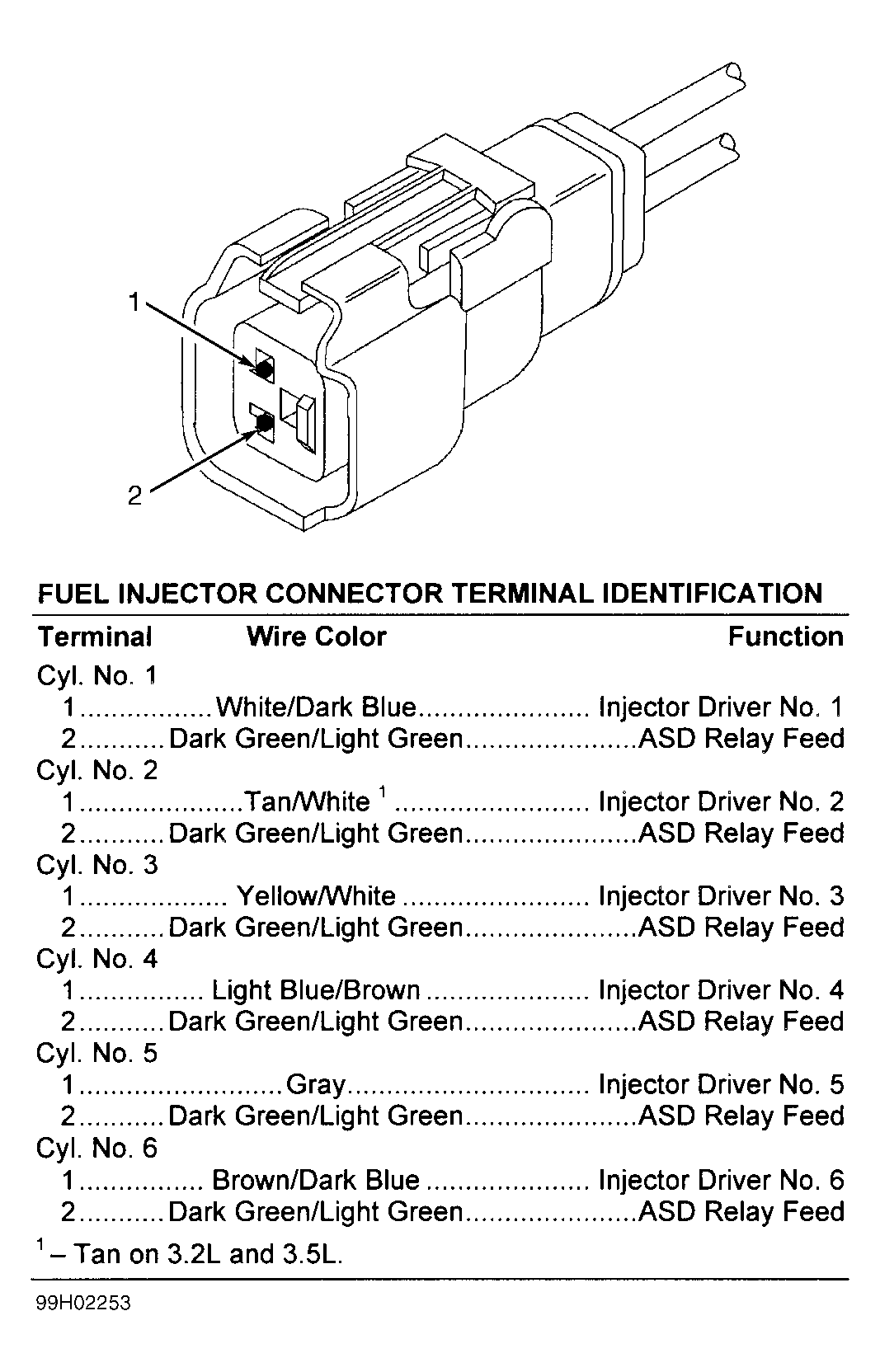

Fuel Injector Connector		Fig 14

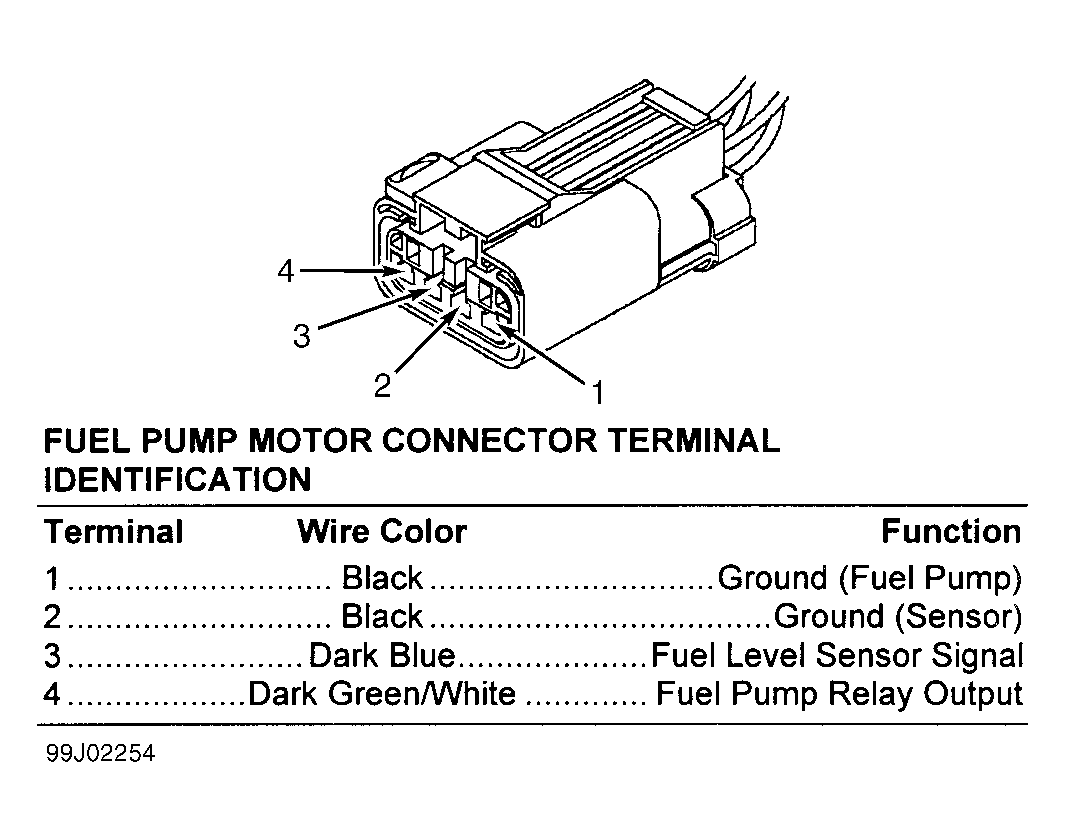

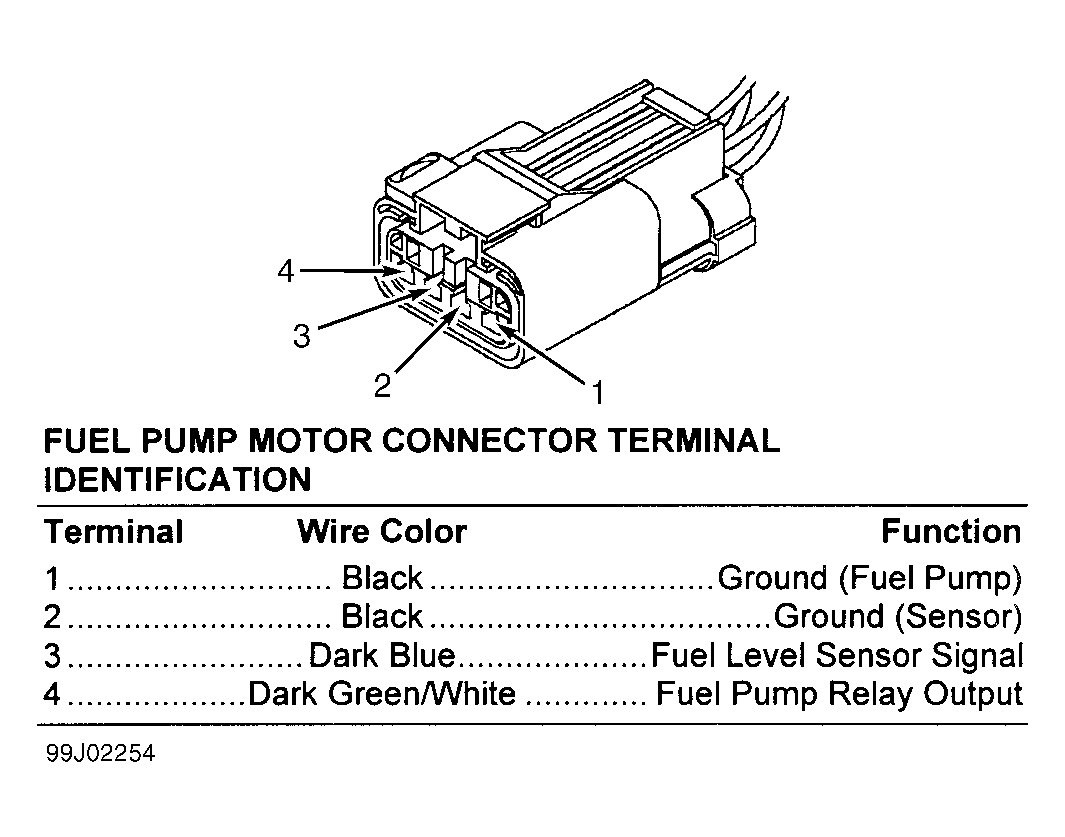

Fuel Pump Motor Connector		Fig 15

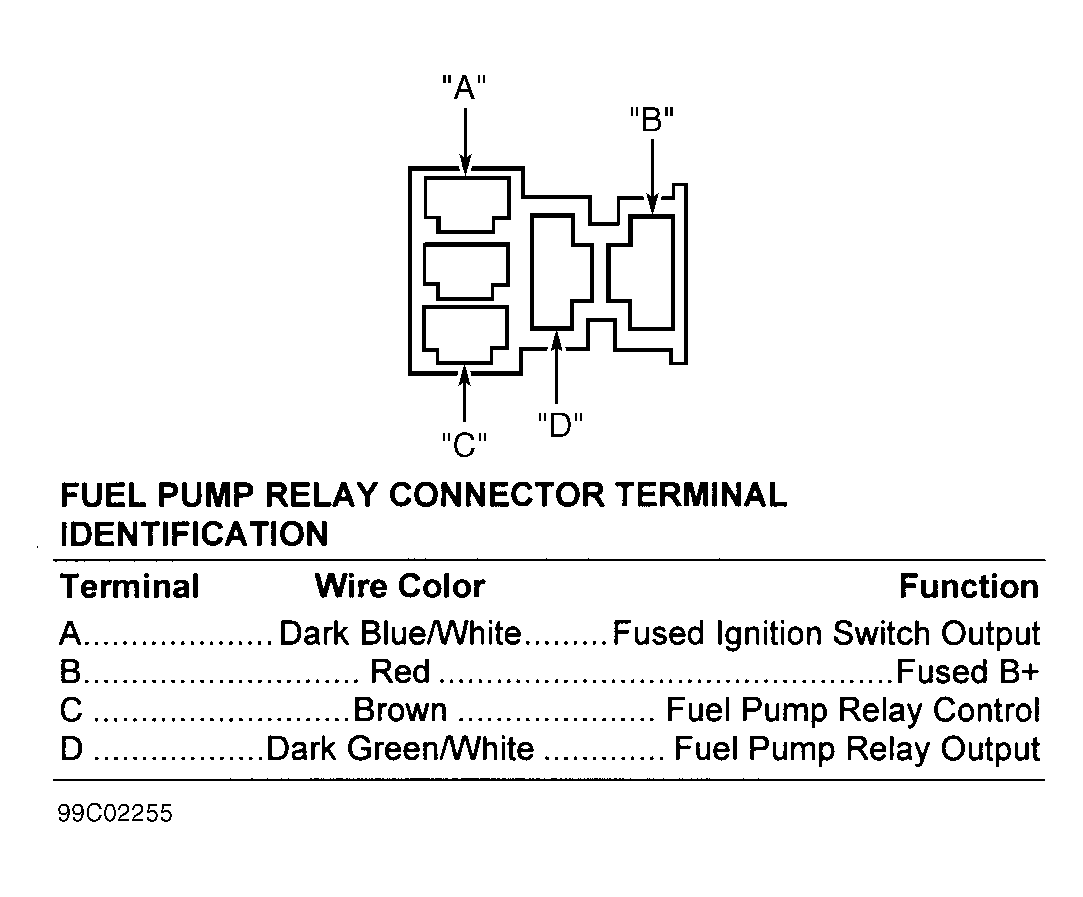

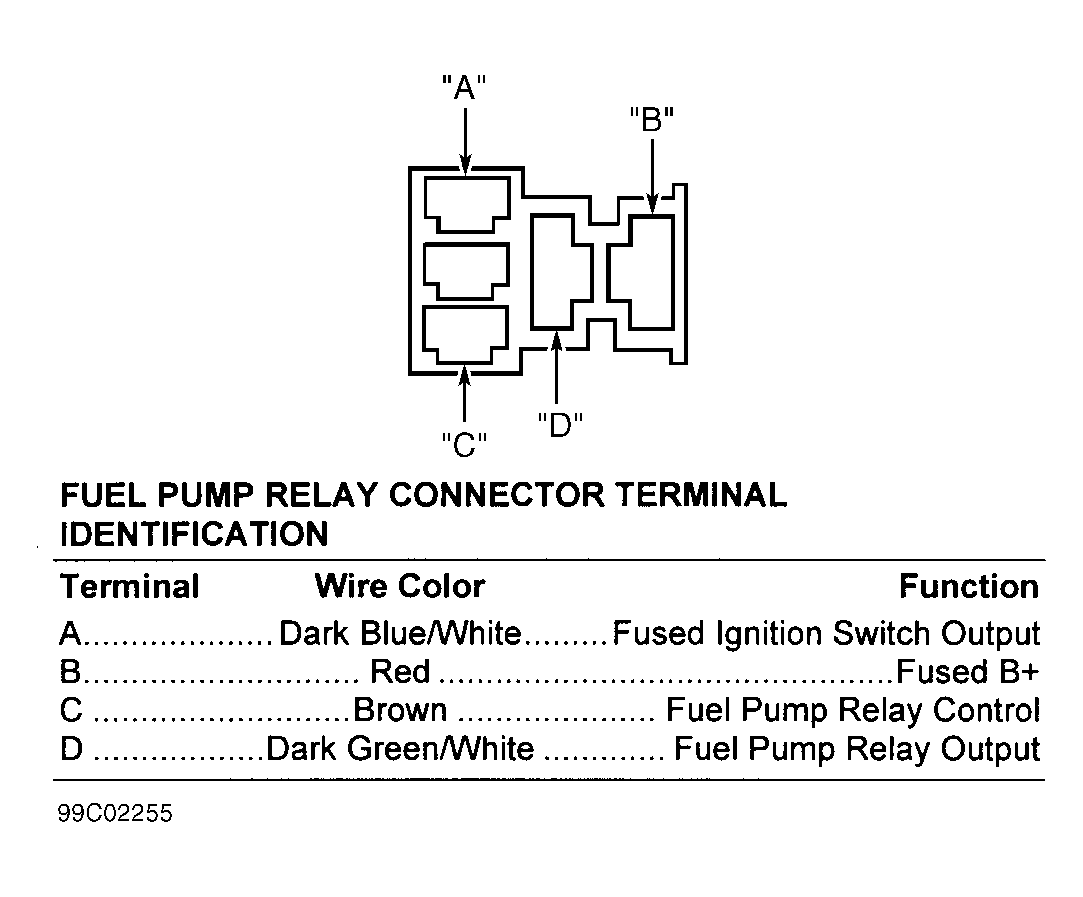

Fuel Pump Relay Connector		Fig 16

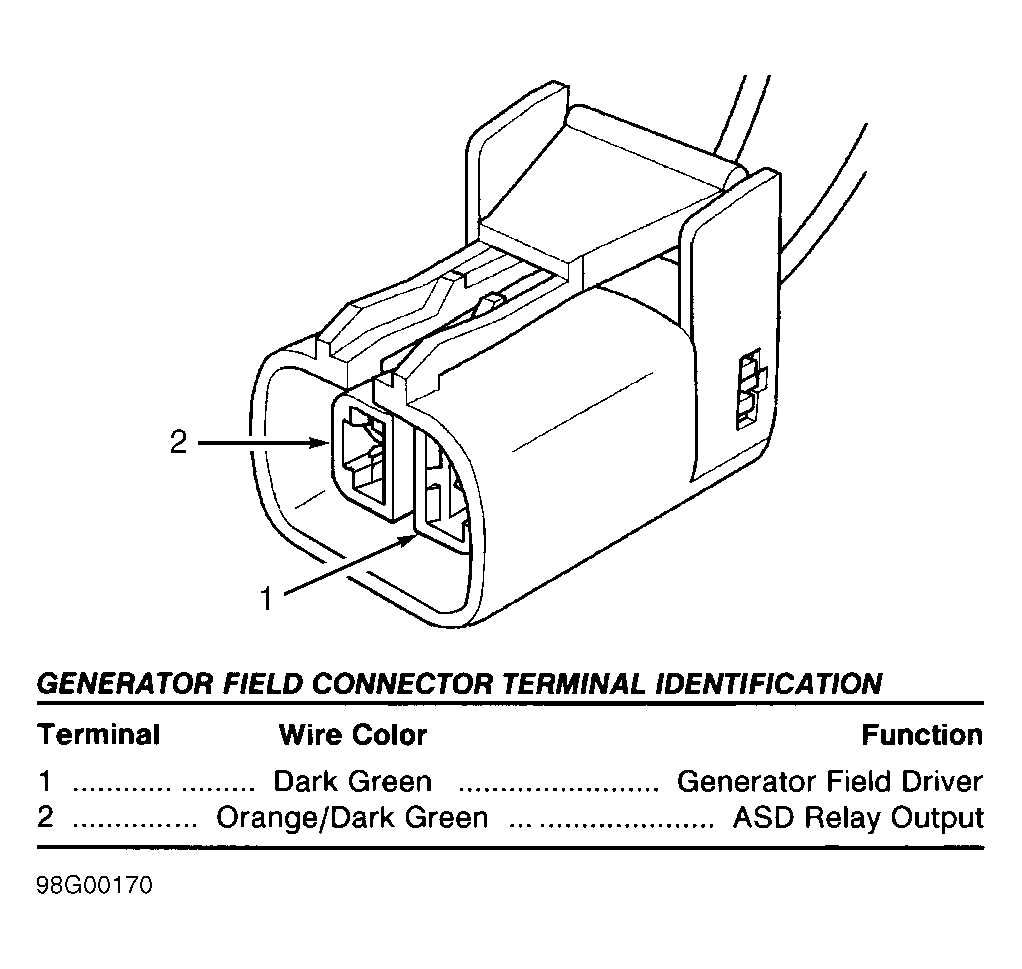

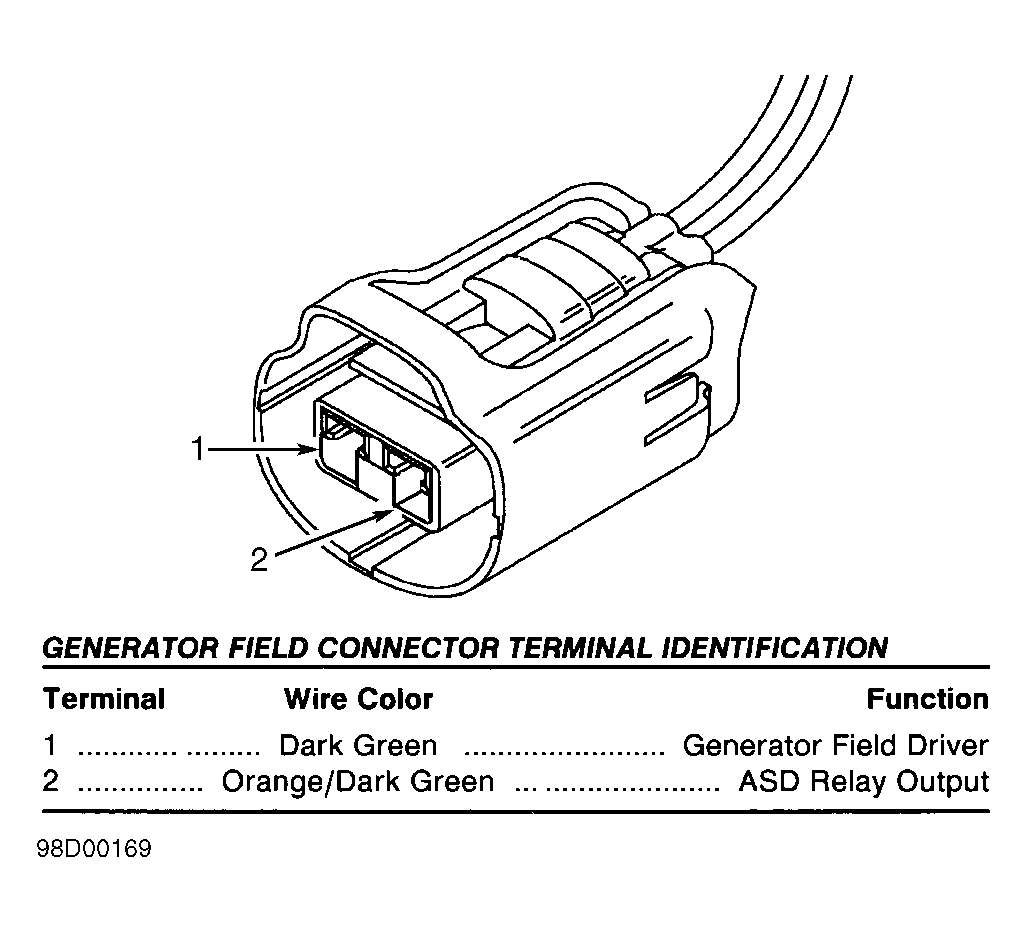

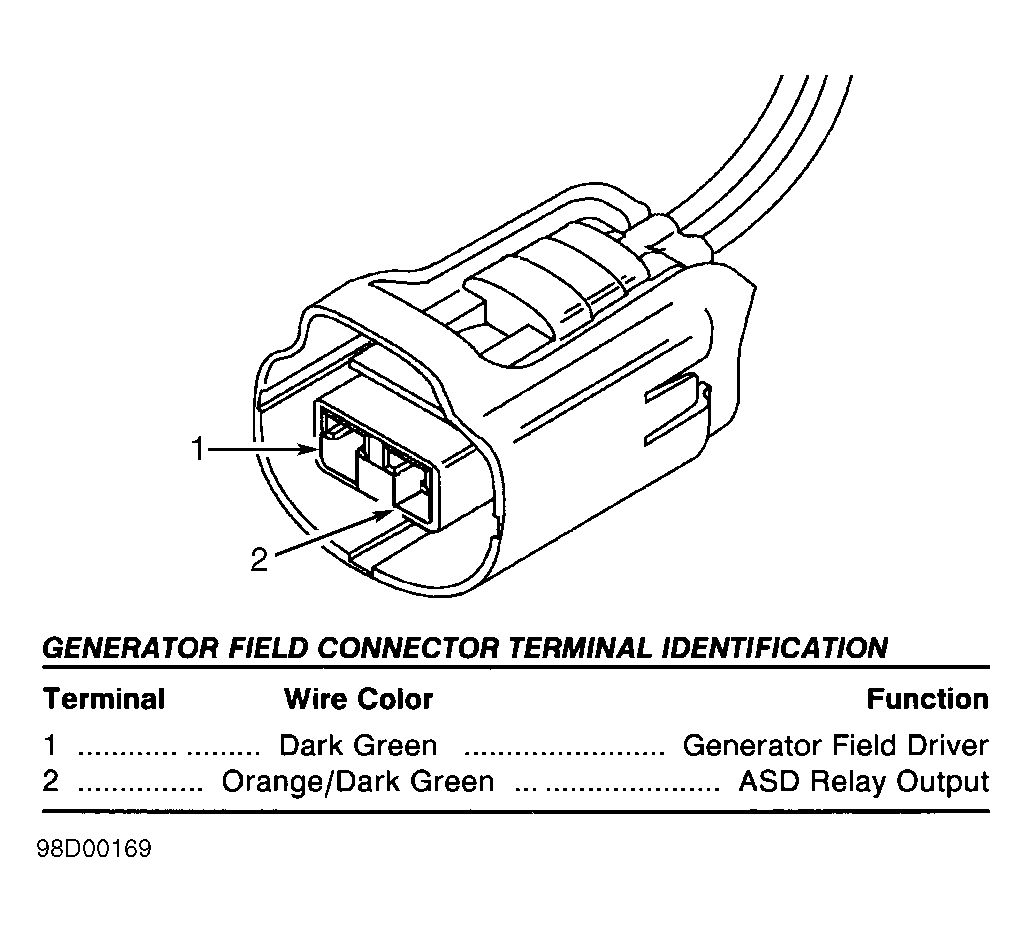

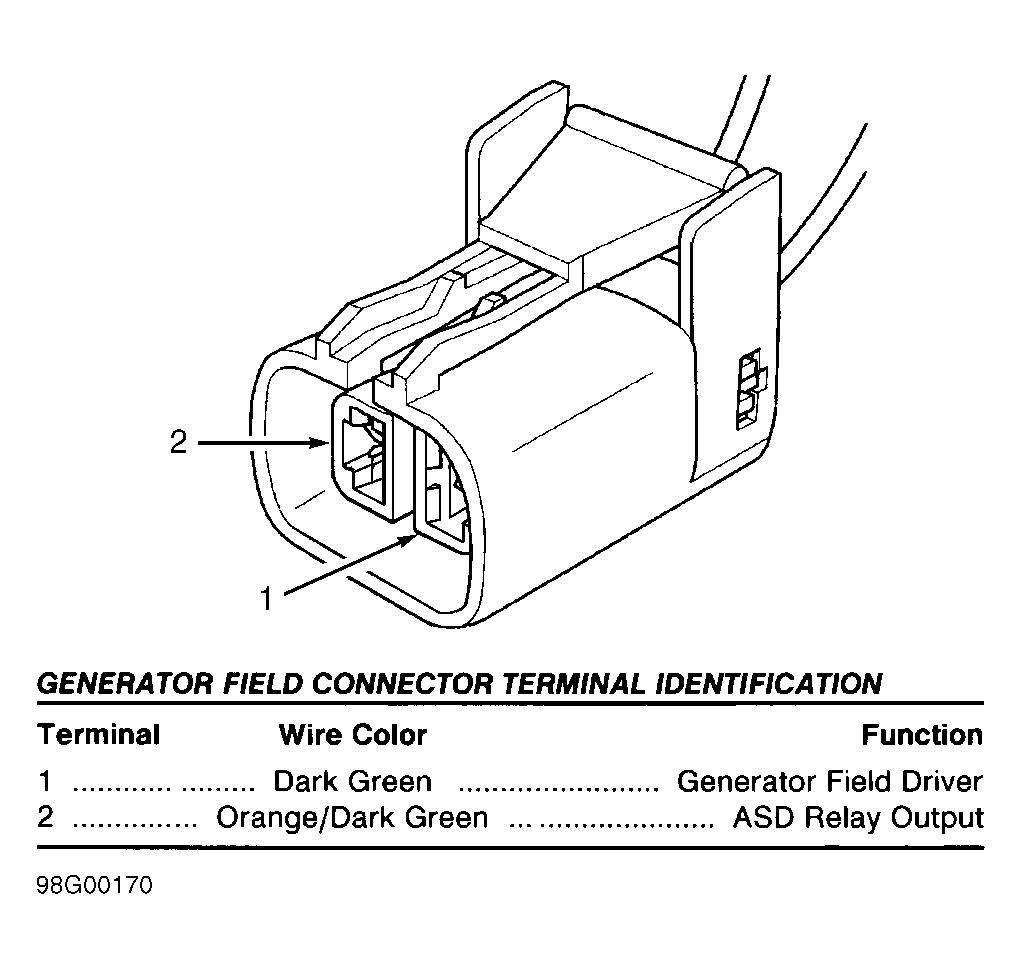

Generator Field Connector
2.7L		Fig 17
3.2L & 3.5L		Fig 18

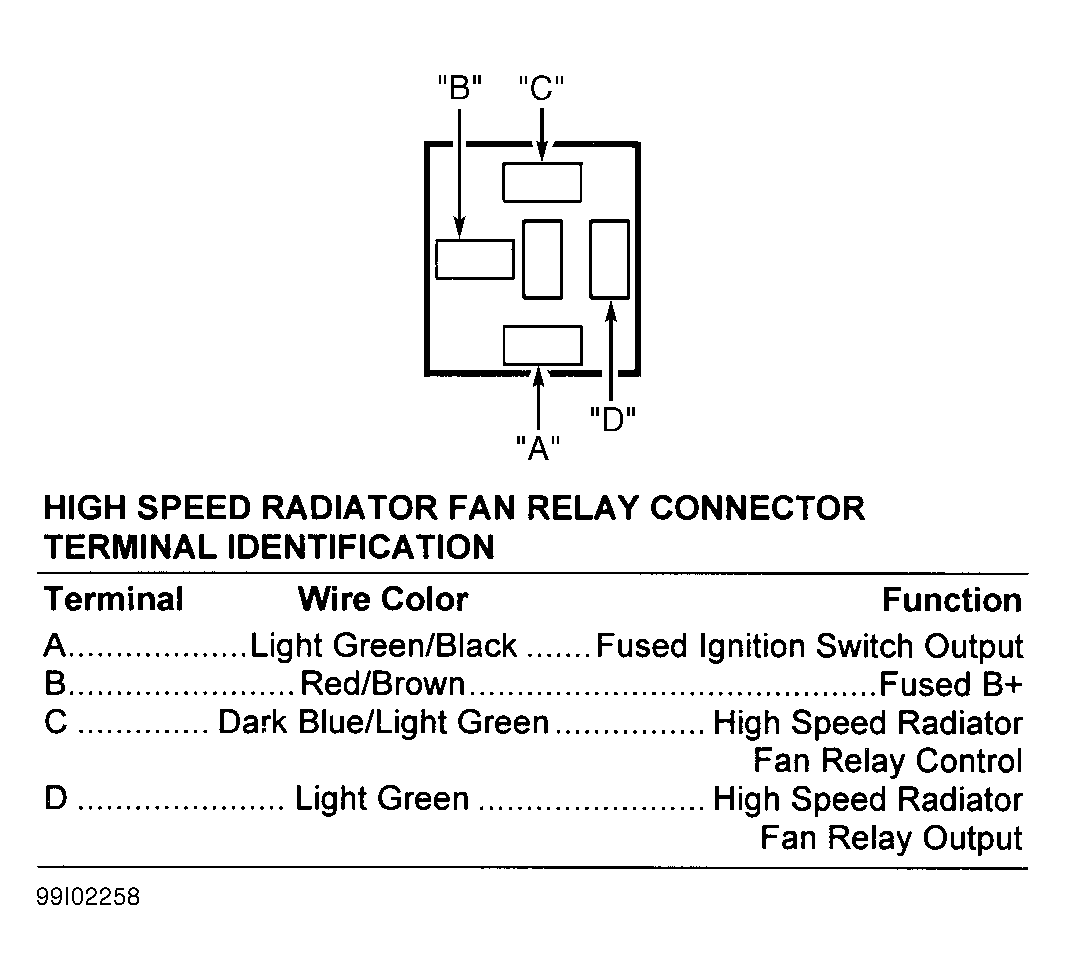

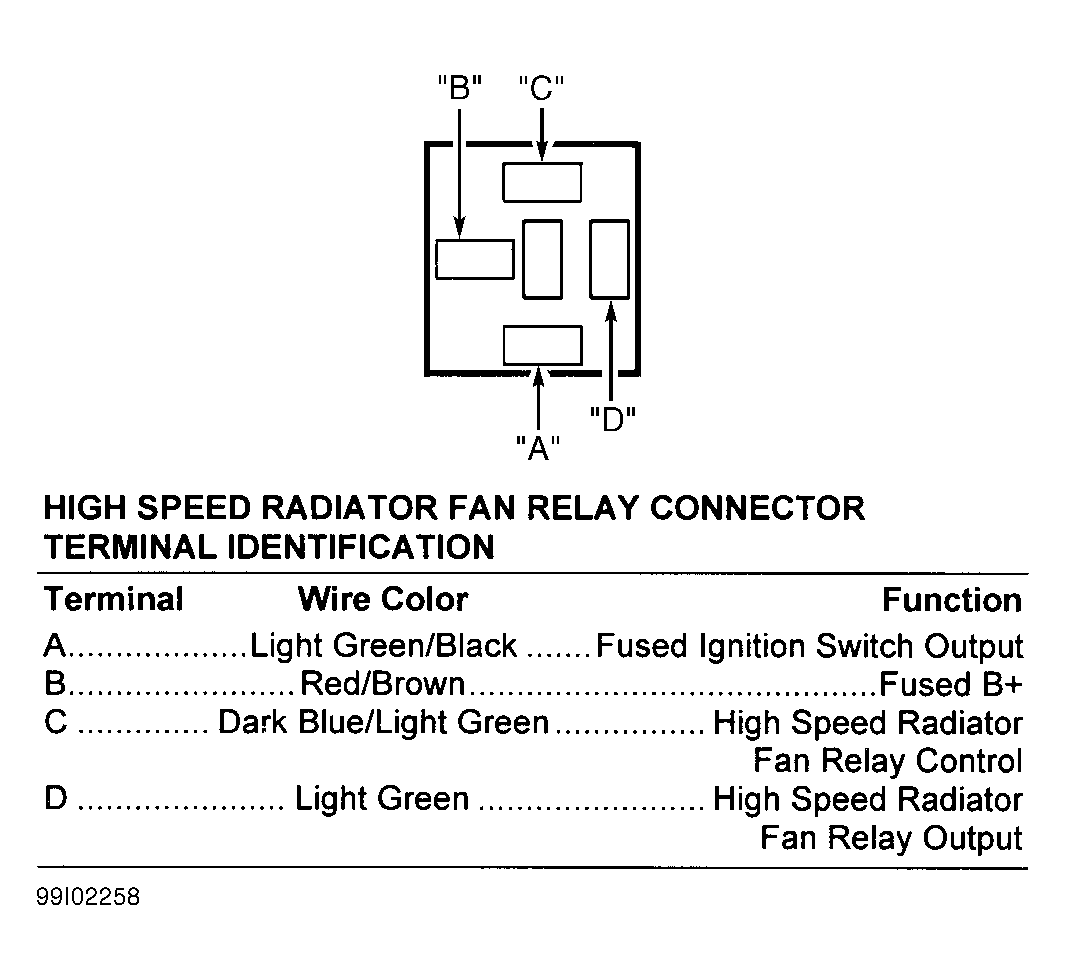

High Speed Radiator Fan Relay Connector		Fig 19

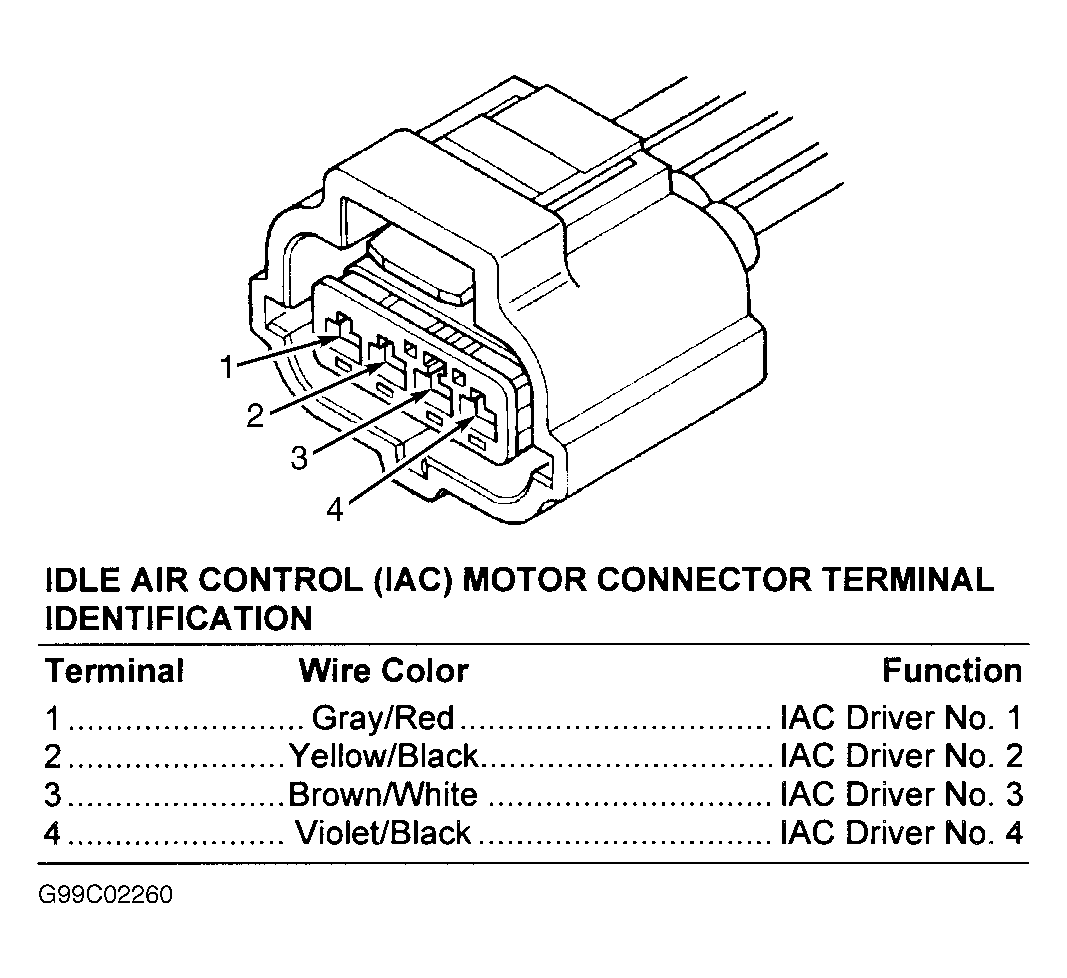

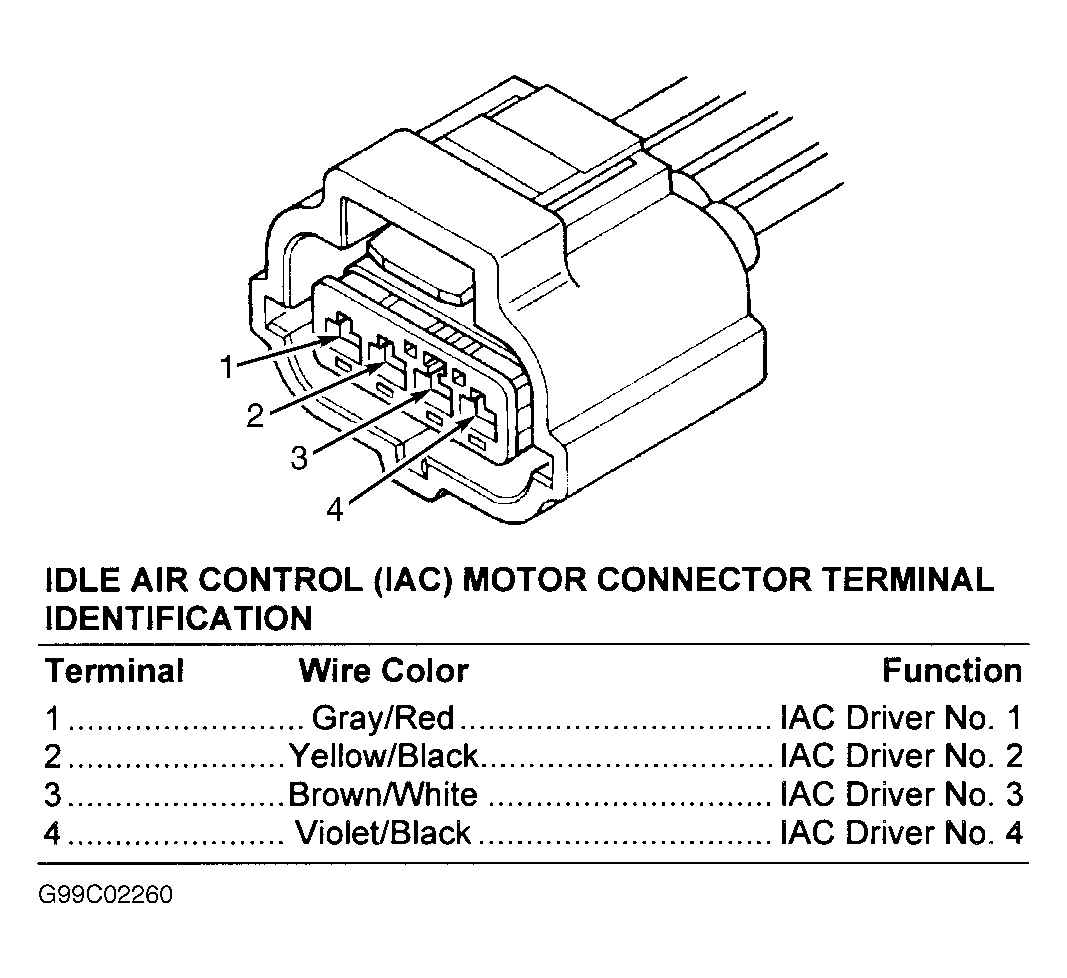

Idle Air Control (IAC) Motor Connector		Fig 20

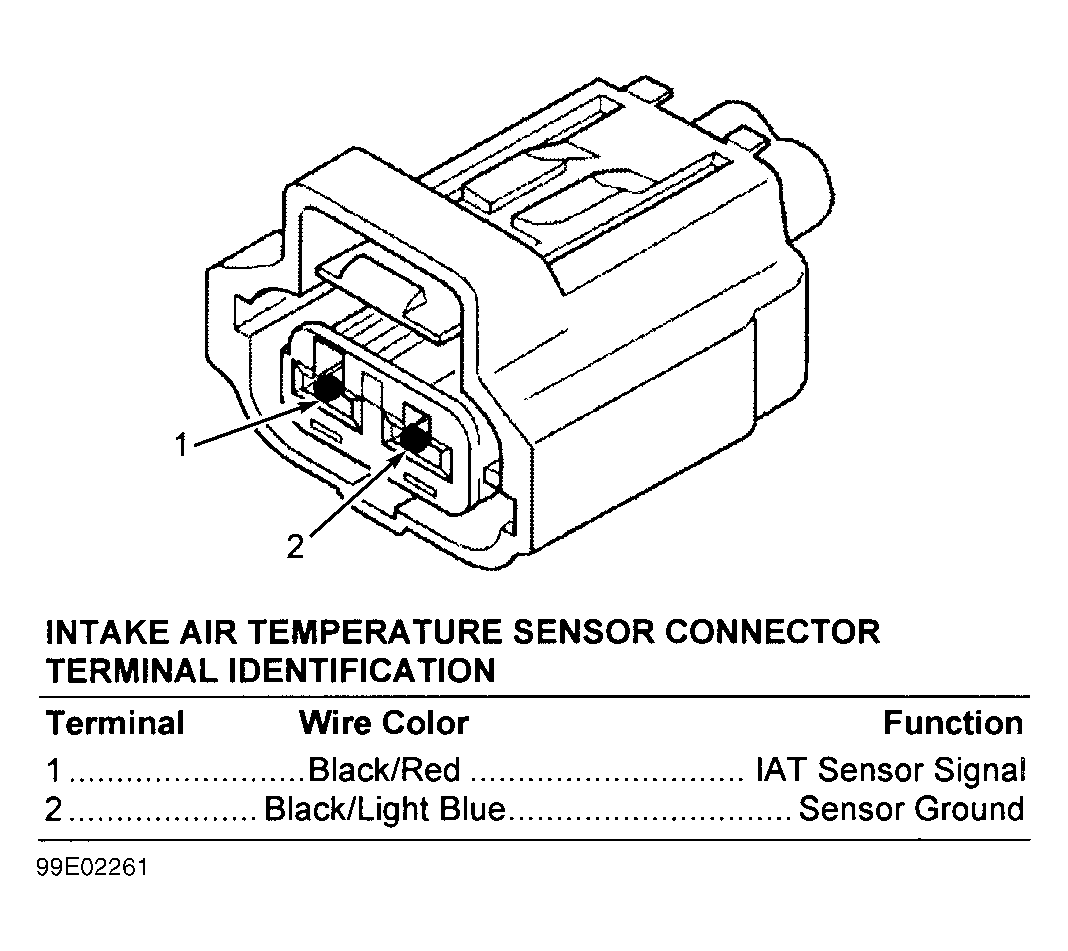

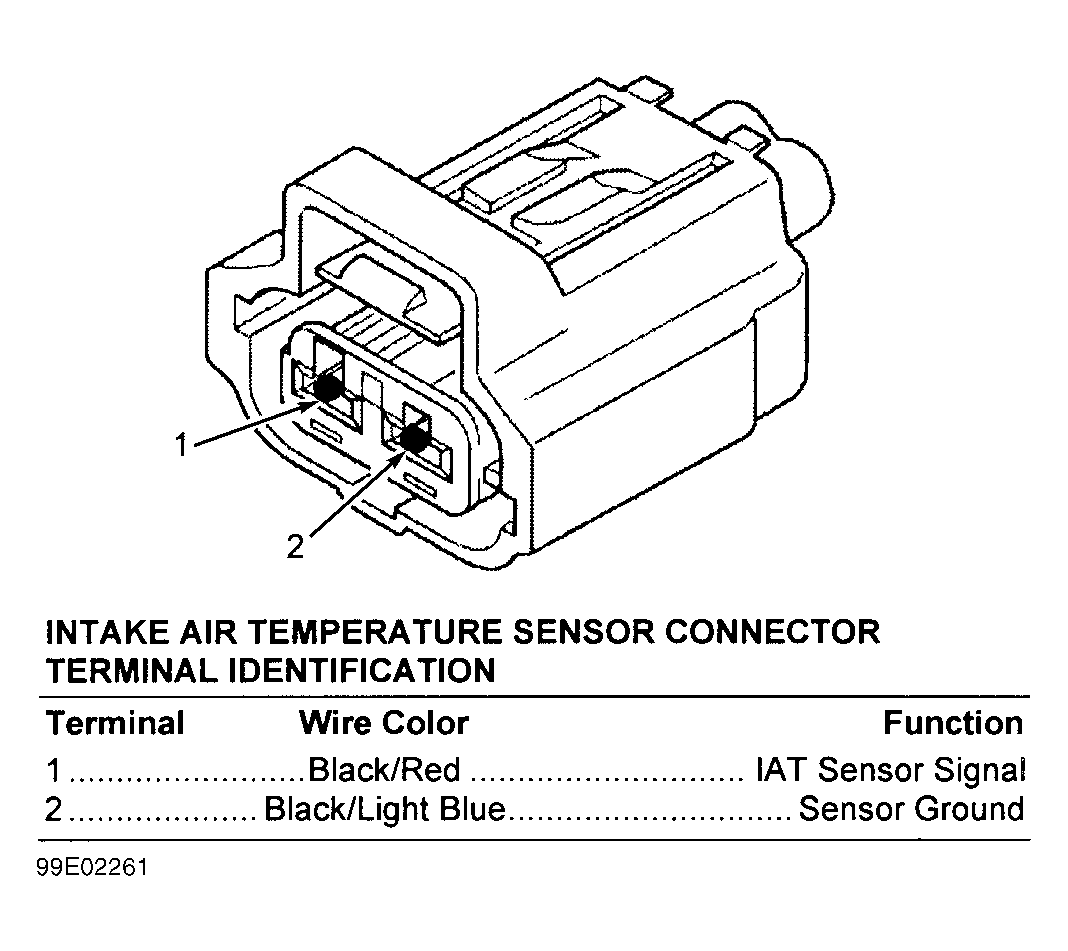

Intake Air Temperature (IAT) Sensor Connector (2.7L)		Fig 21

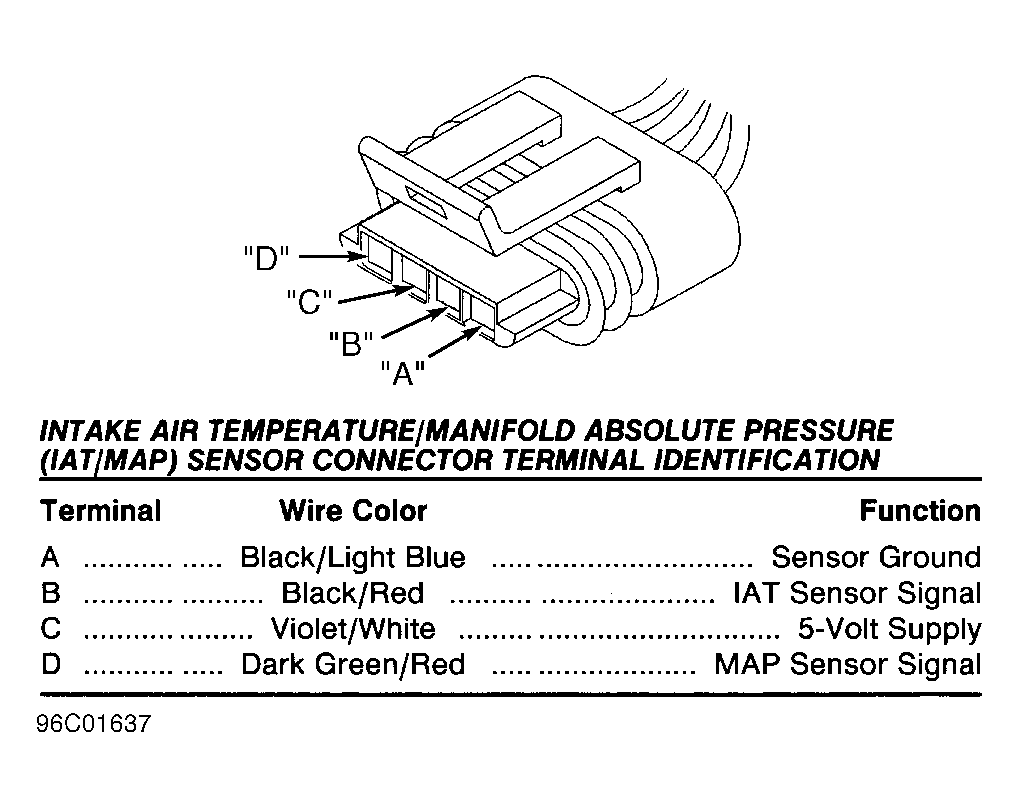

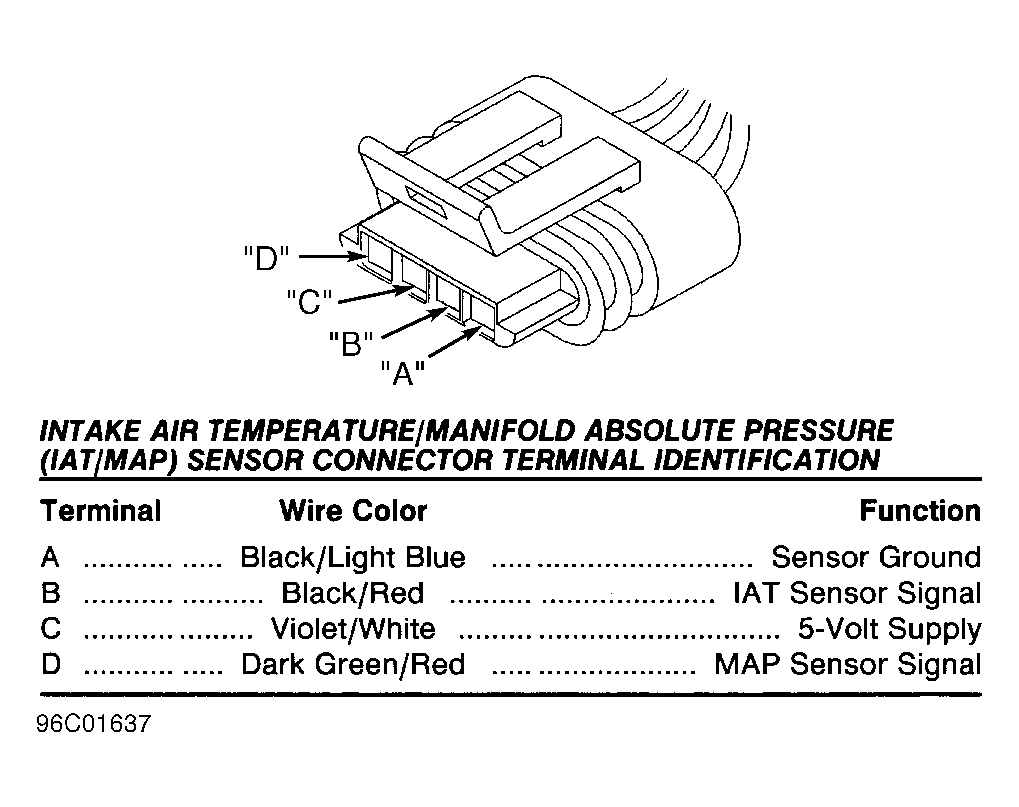

Intake Air Temperature/Manifold Absolute Pressure (IAT/MAP) Sensor Connector (3.2L & 3.5L)		Fig 22

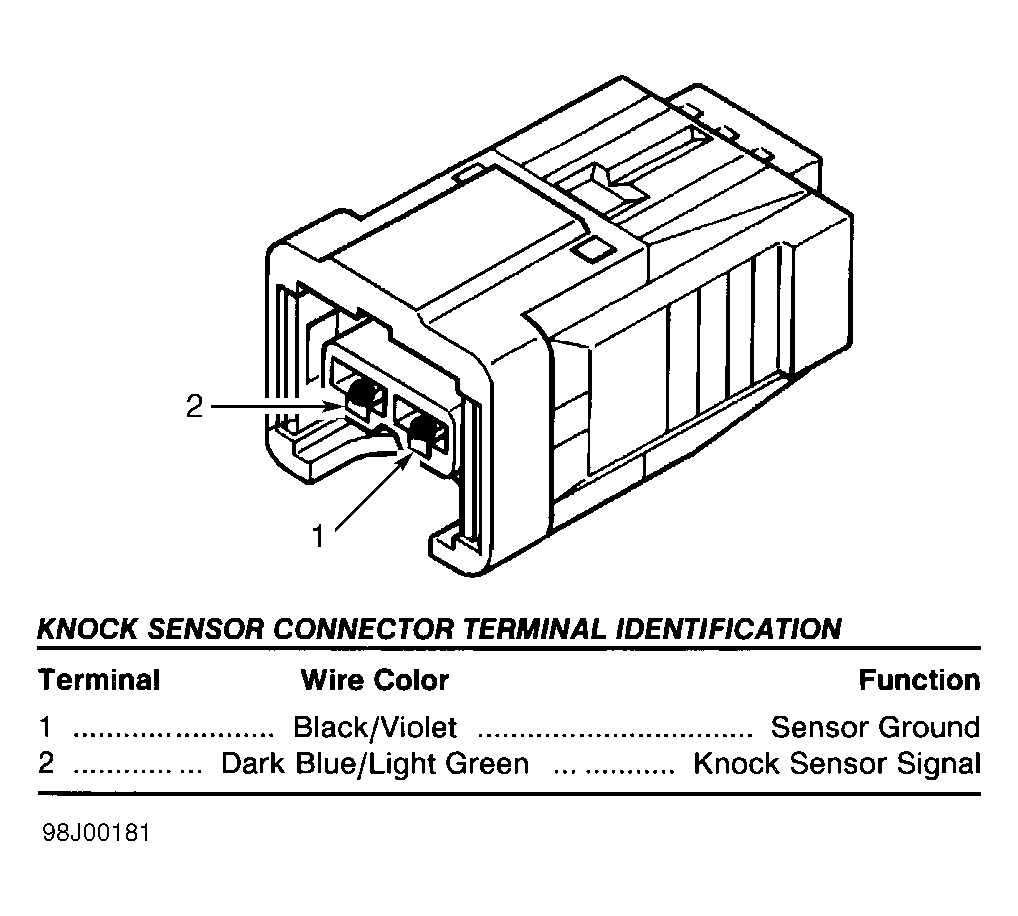

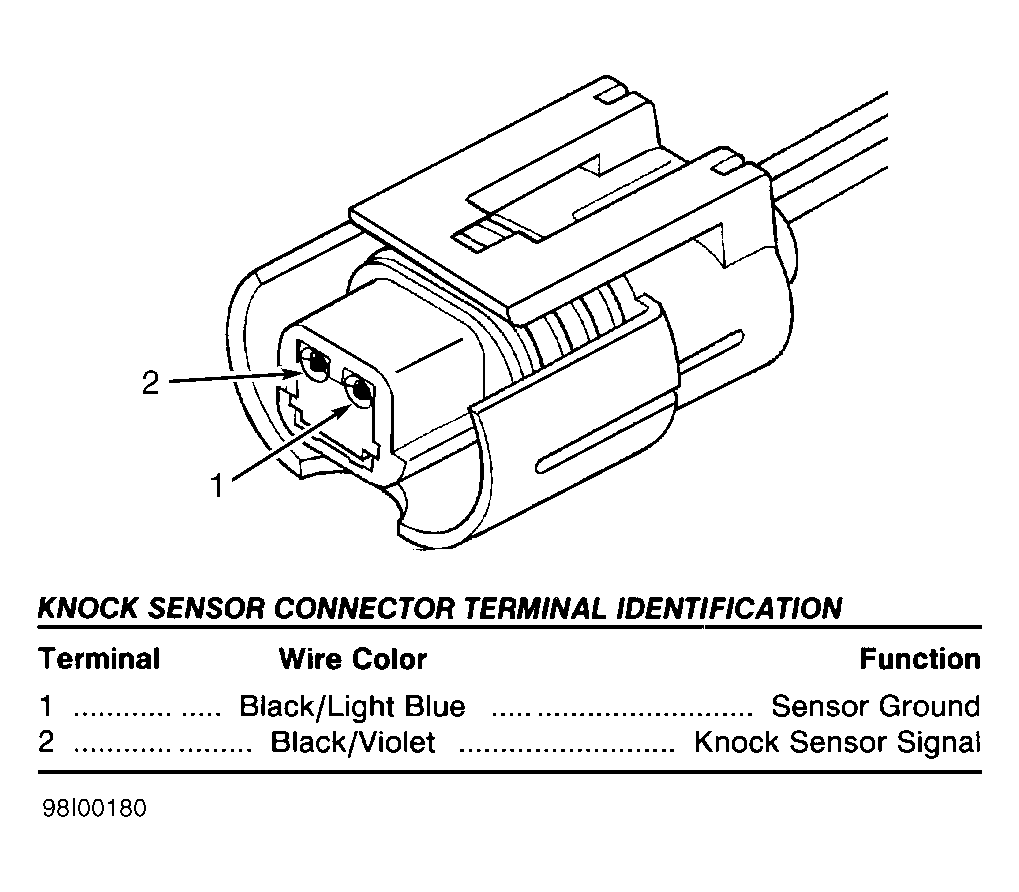

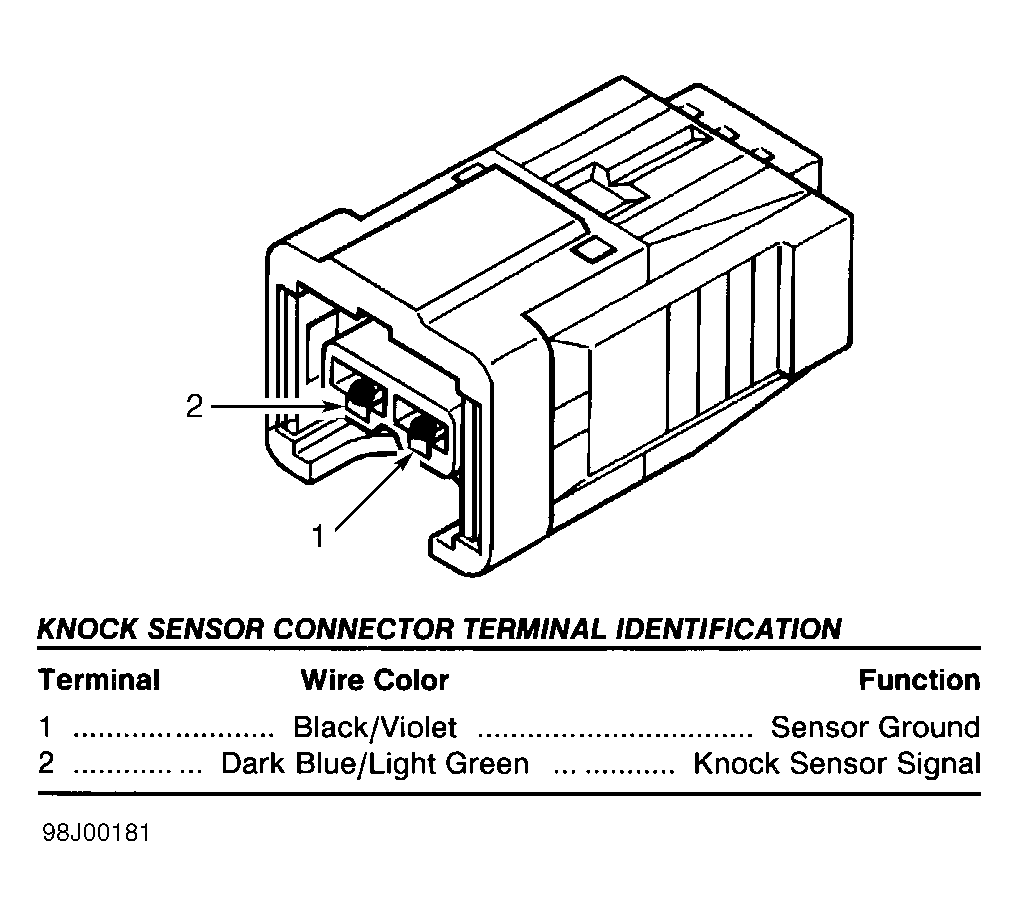

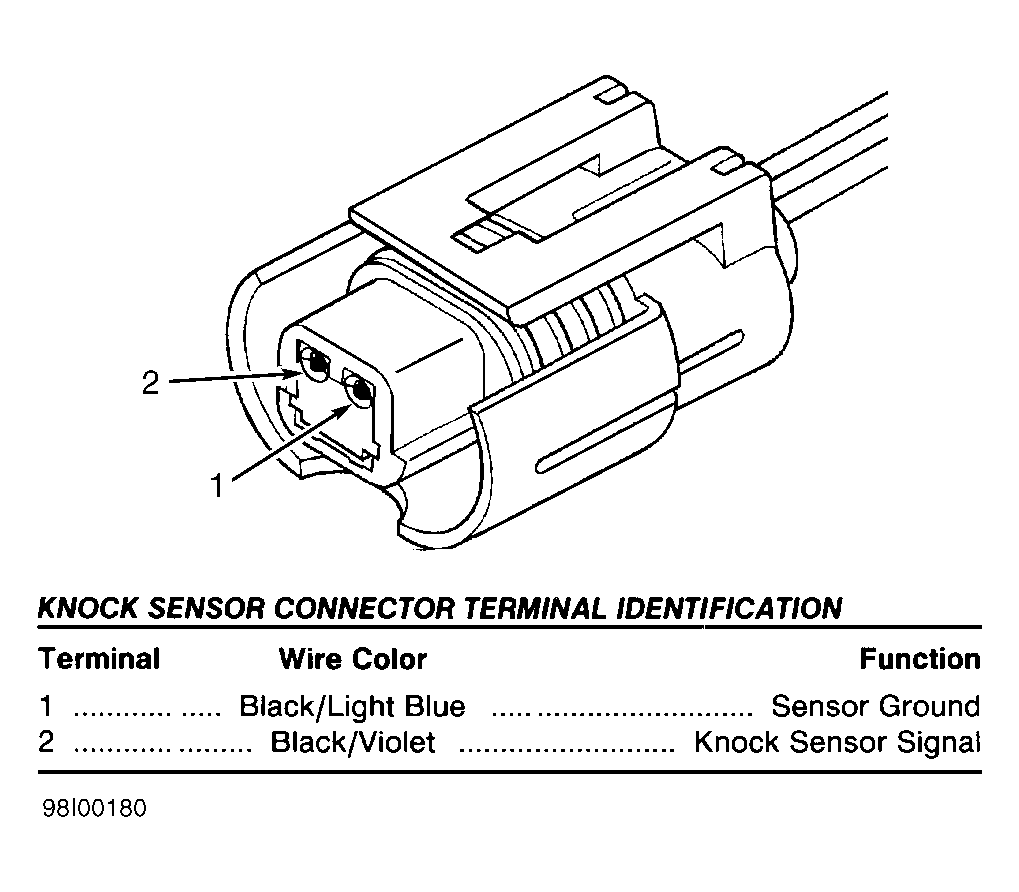

Knock Sensor Connector
2.7L		Fig 23
3.2L & 3.5L		Fig 24

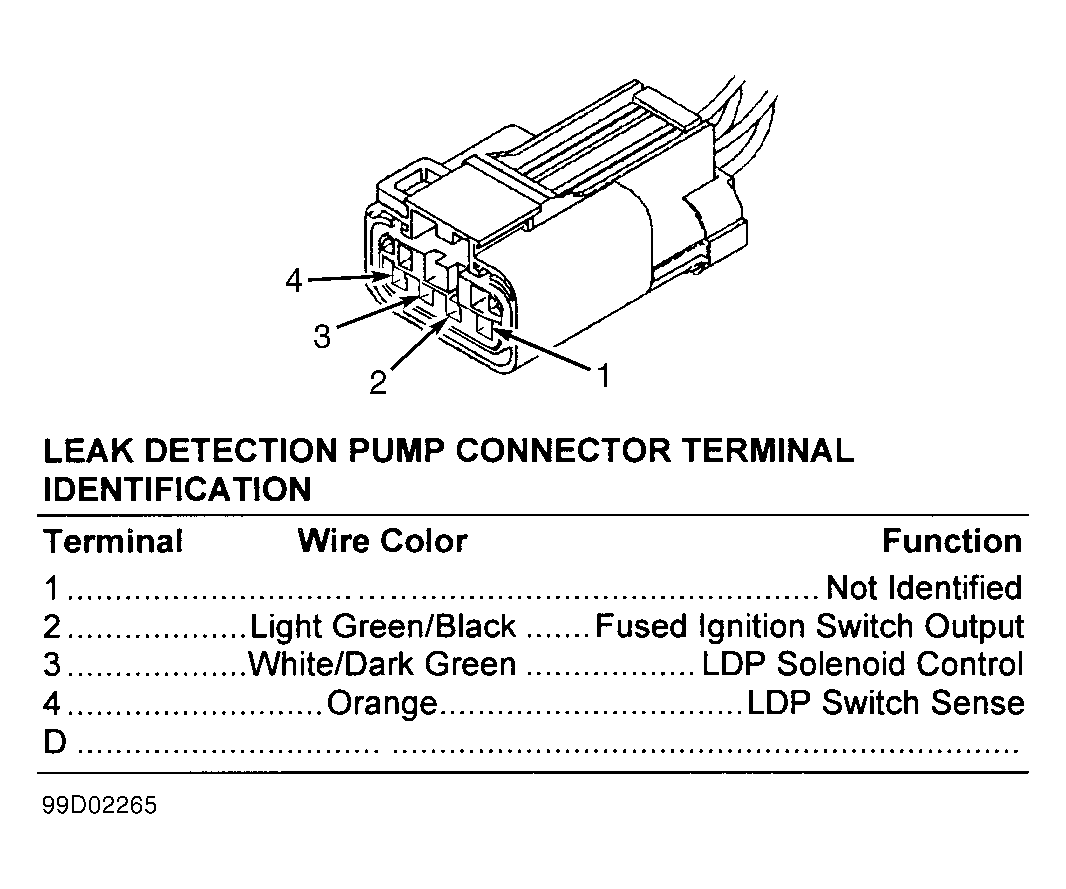

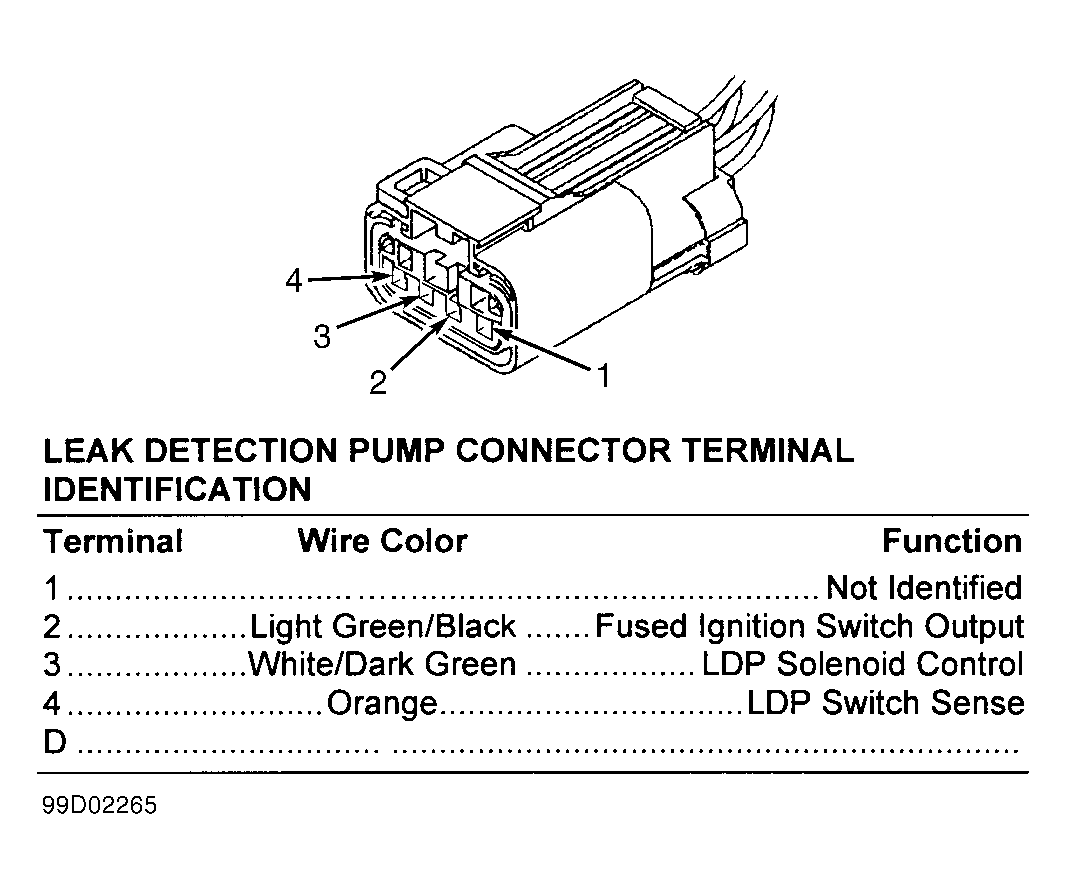

Leak Detection Pump Connector		Fig 25

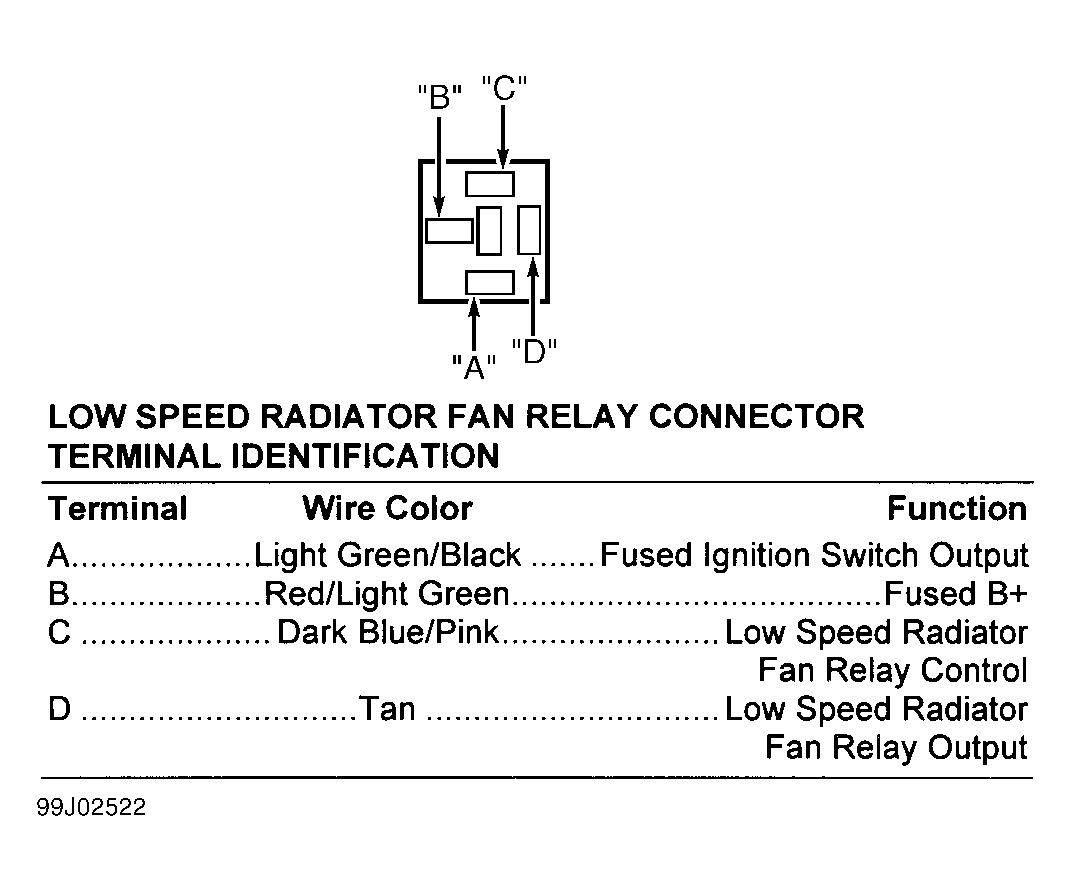

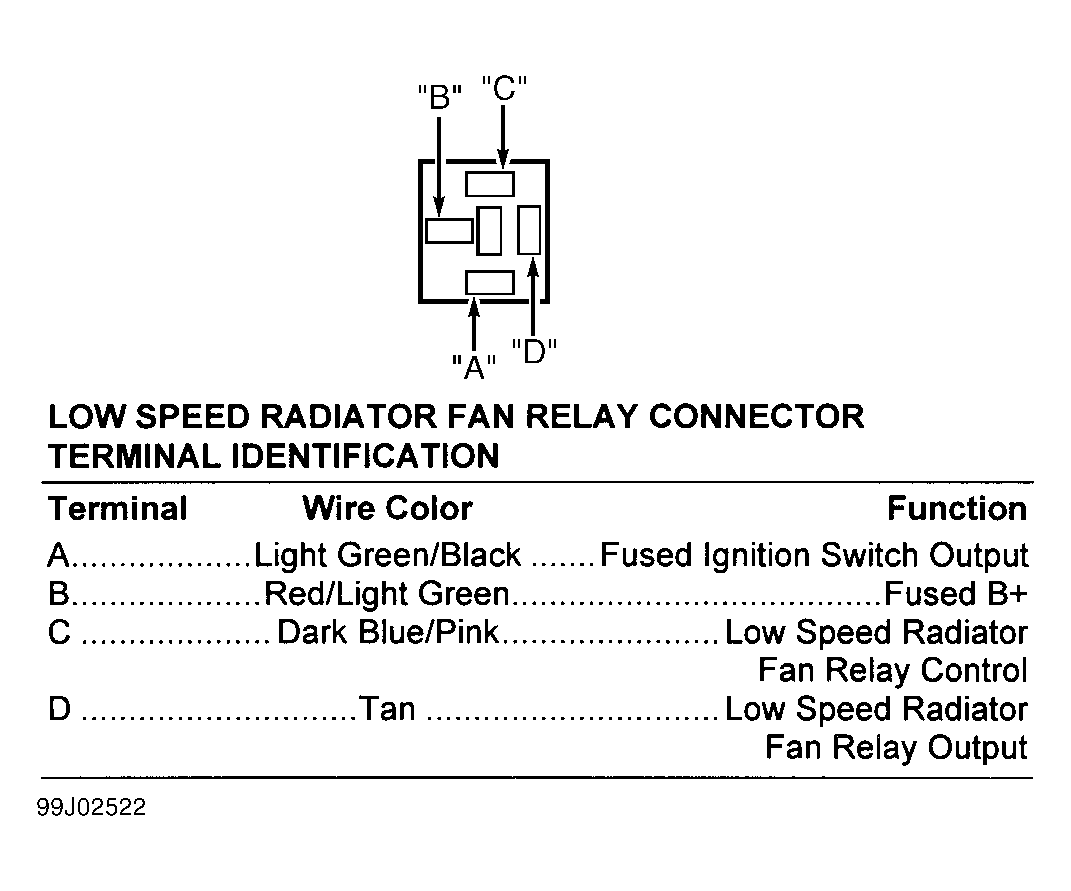

Low Speed Radiator Fan Relay Connector		Fig 26

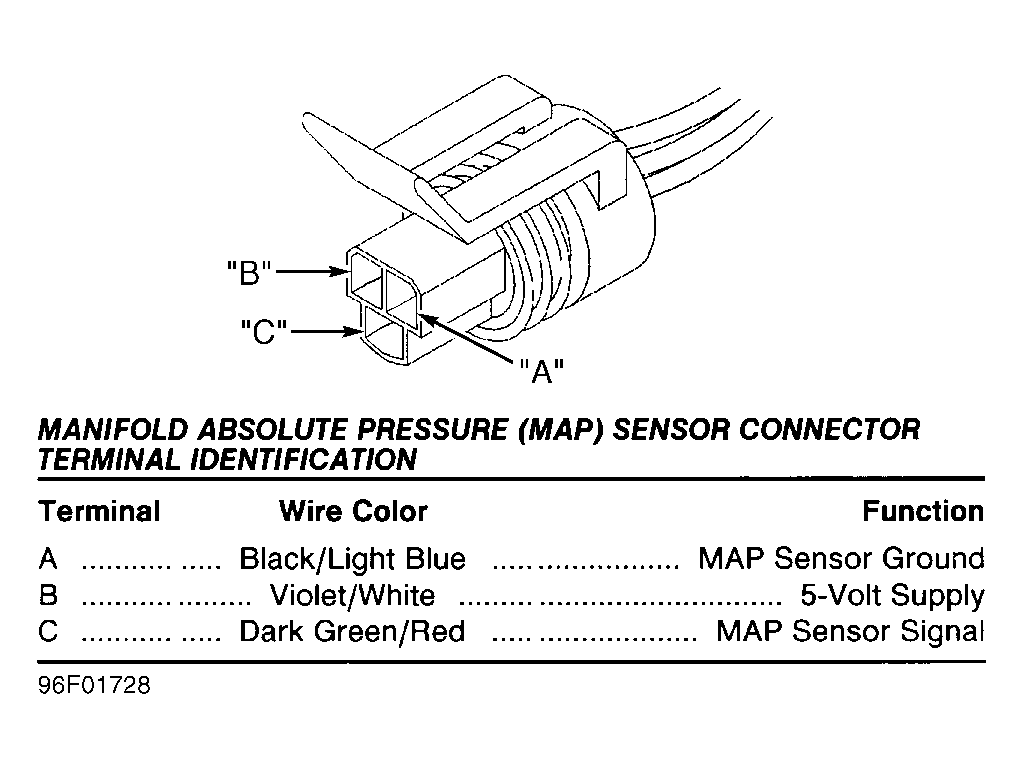

Manifold Absolute Pressure (MAP) Sensor Connector (2.7L)		Fig 27

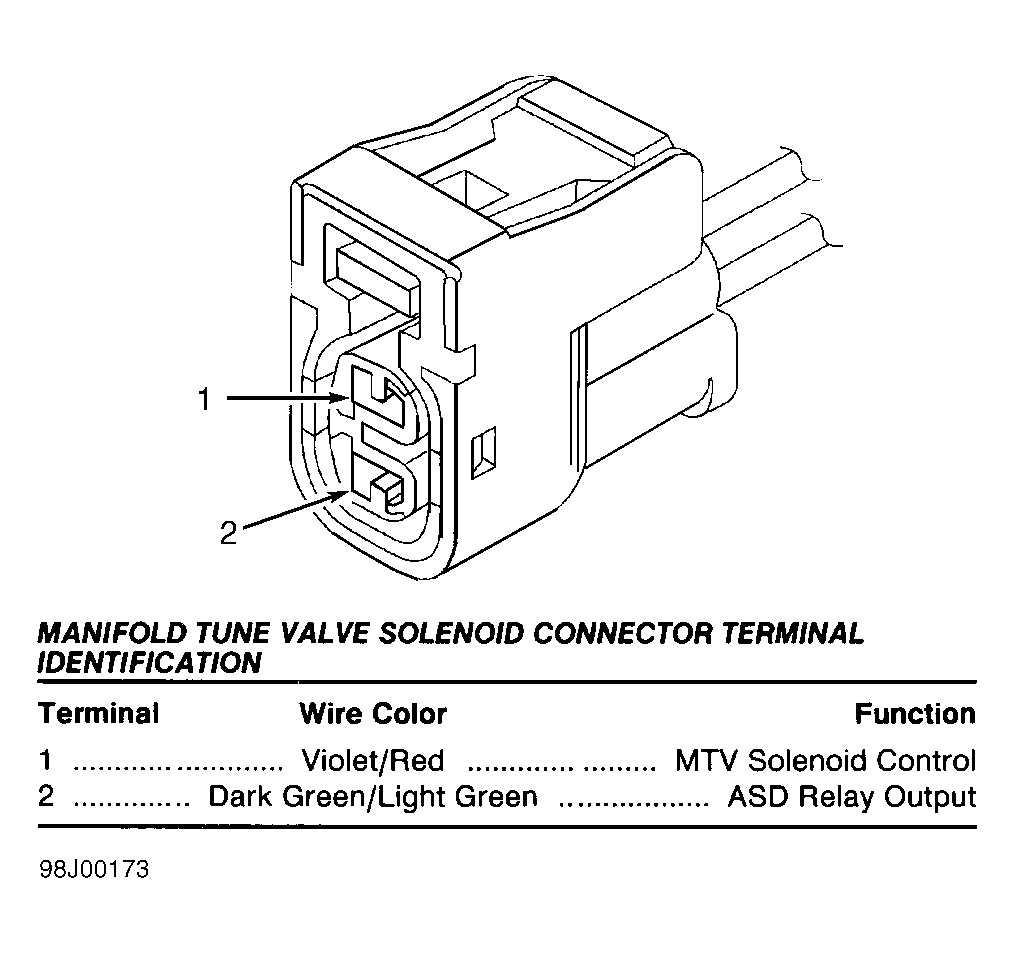

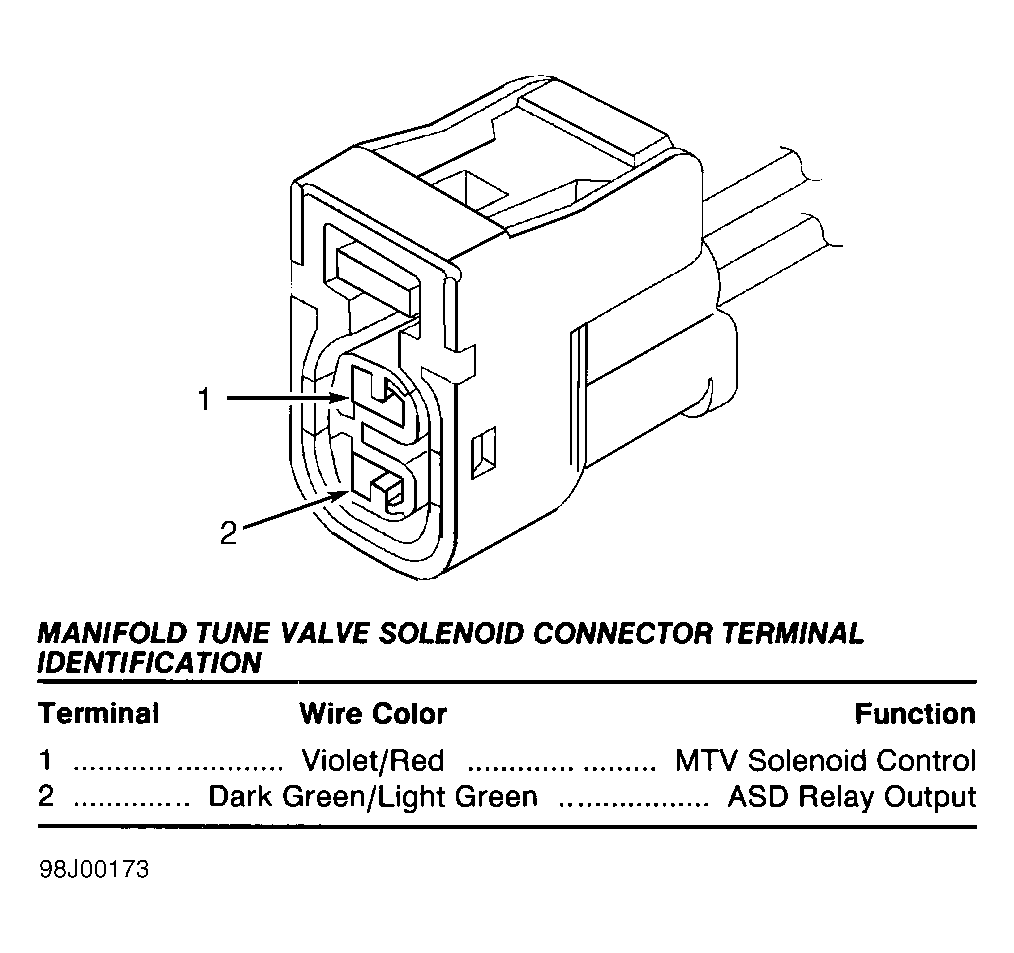

Manifold Tune Valve Solenoid Connector (3.2L & 3.5L)		Fig 28

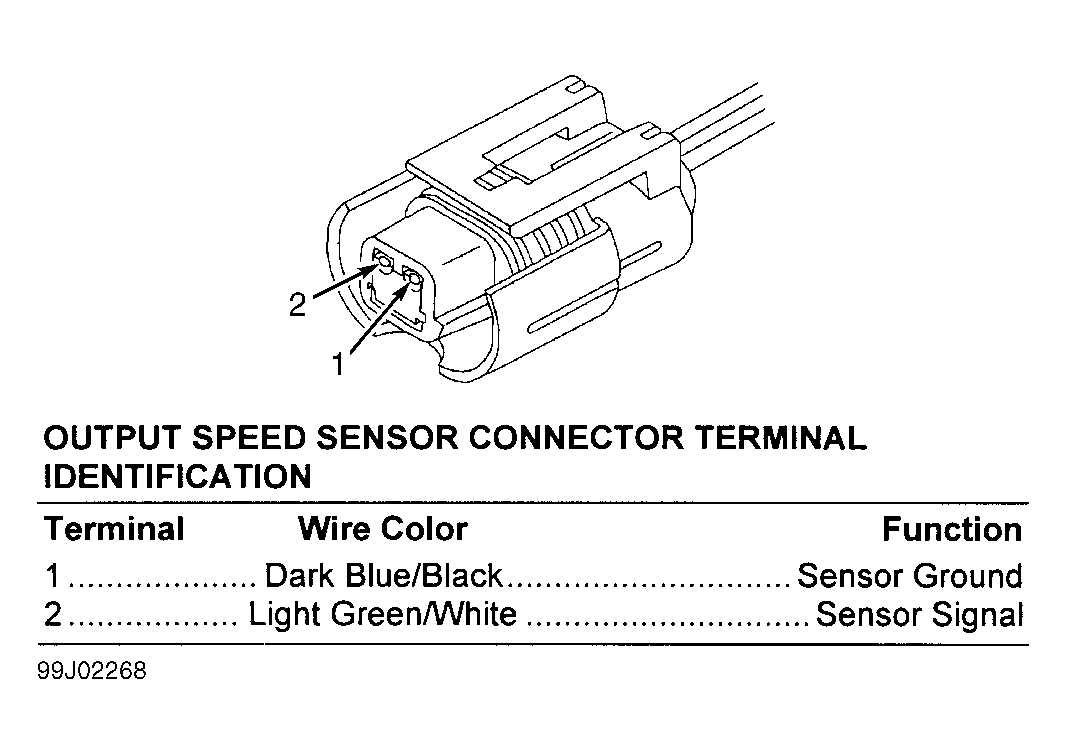

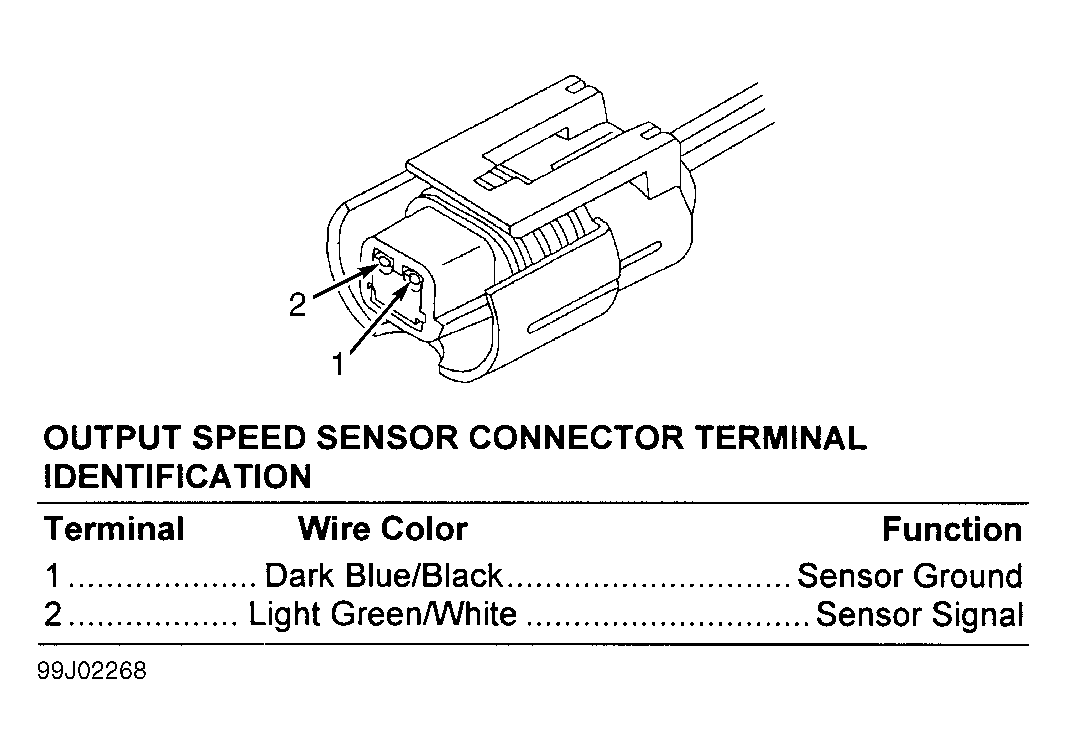

Output Speed Sensor Connector		Fig 29

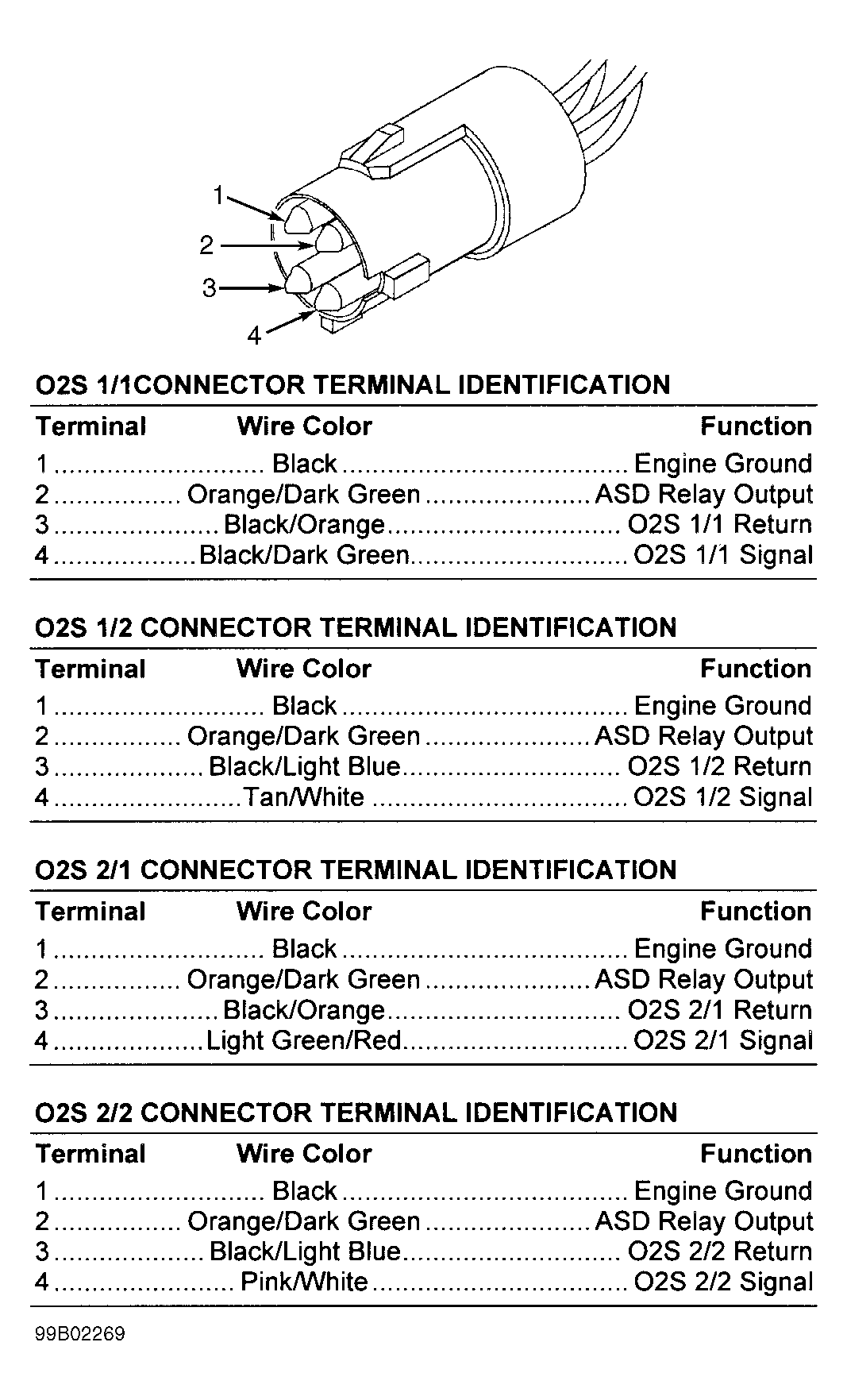

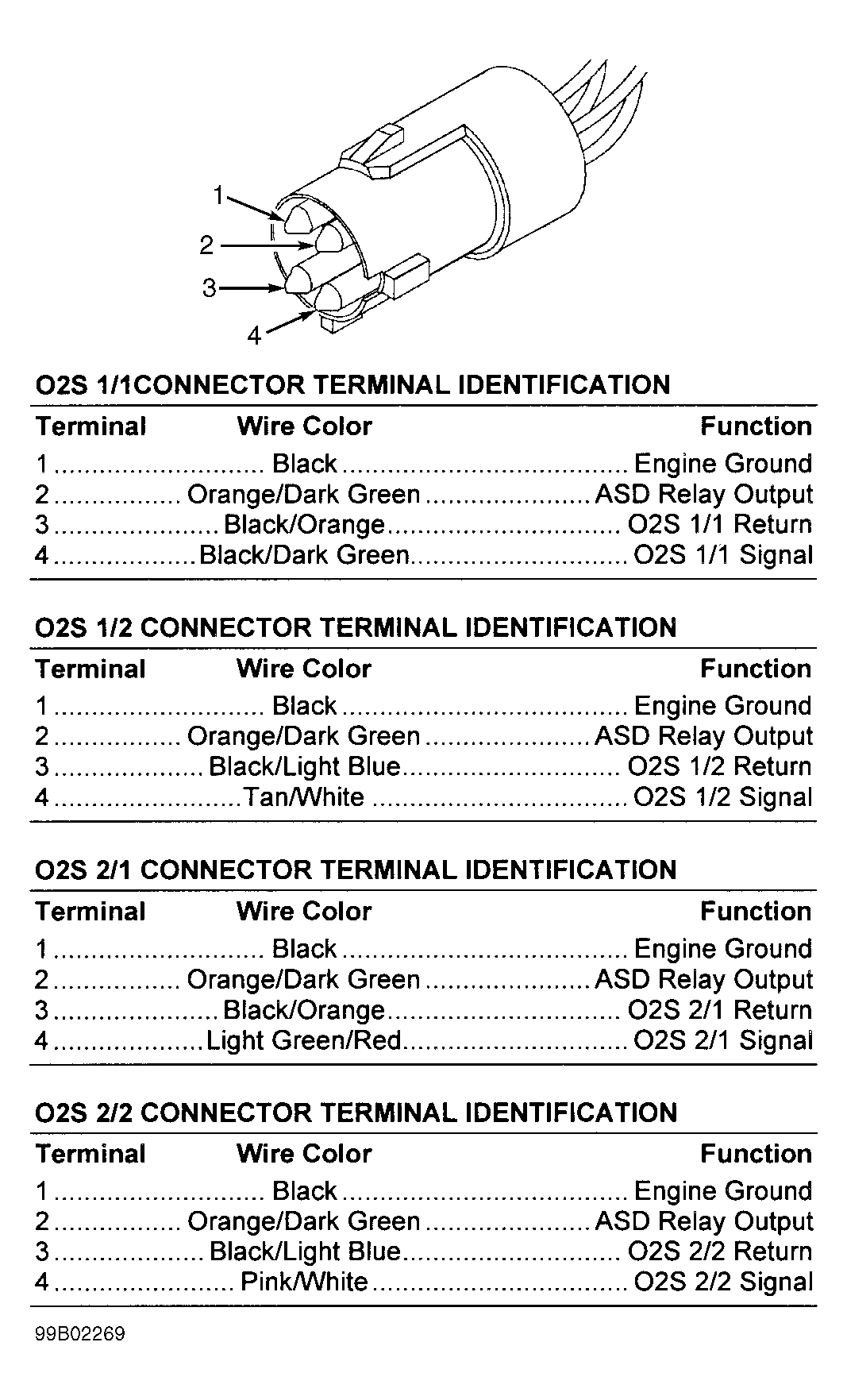

O2S Connector (Harness Side)		Fig 30

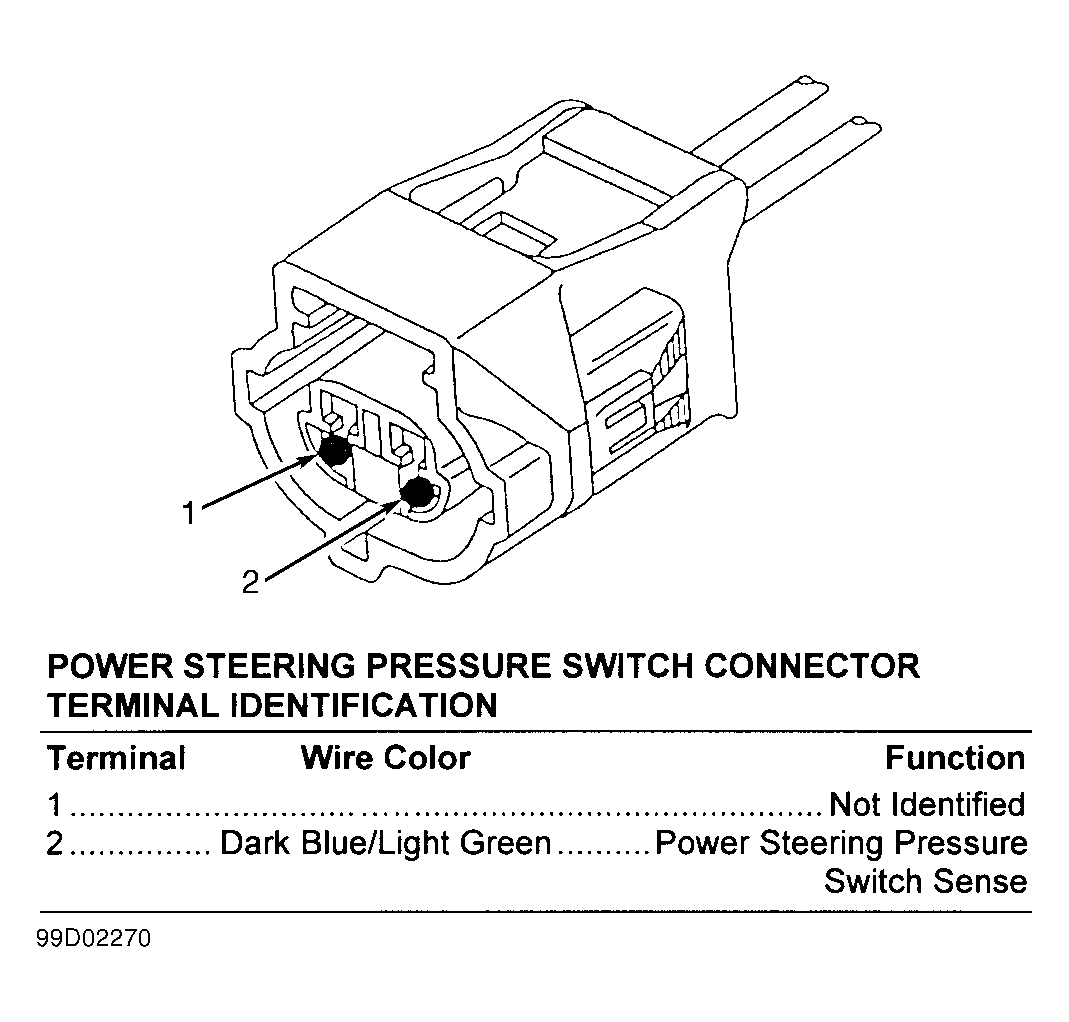

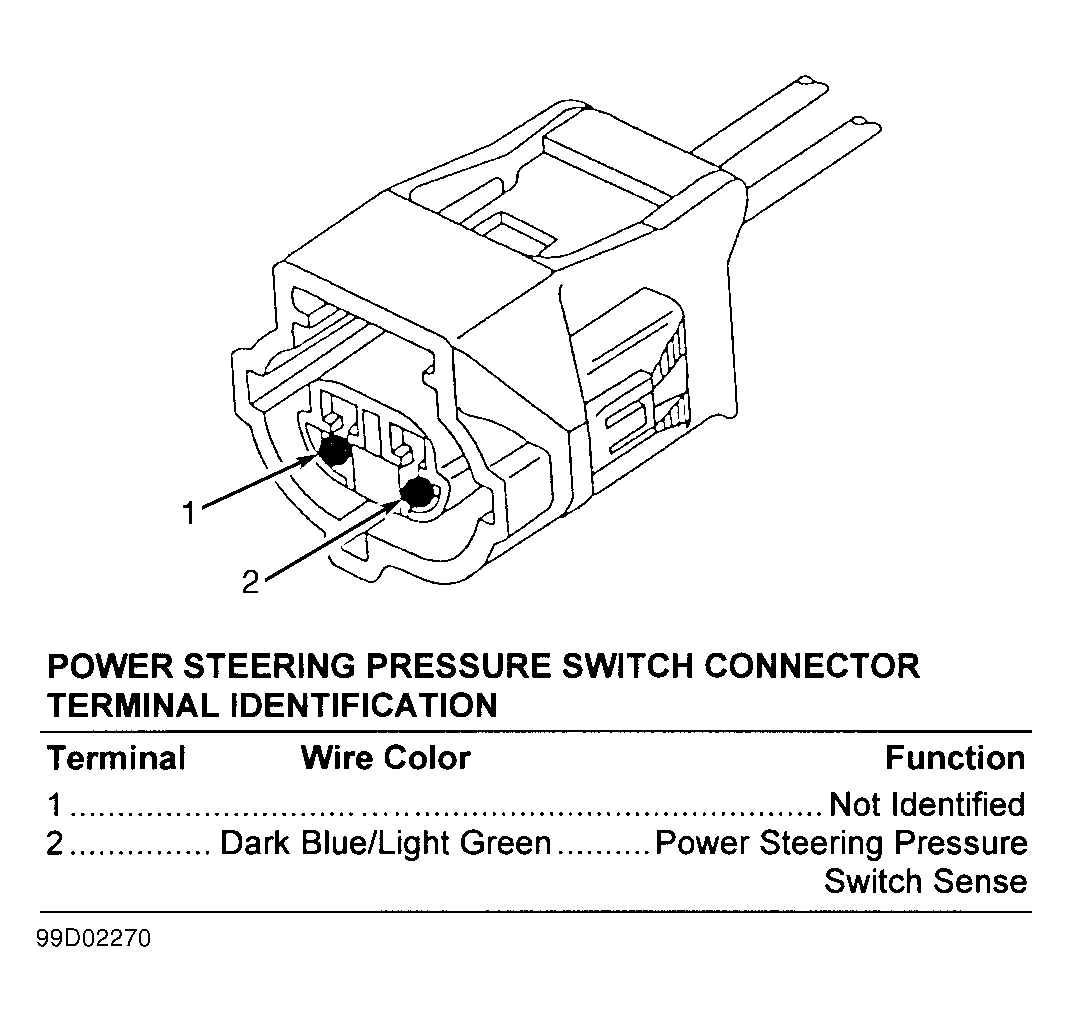

Power Steering Pressure Switch Connector		Fig 31

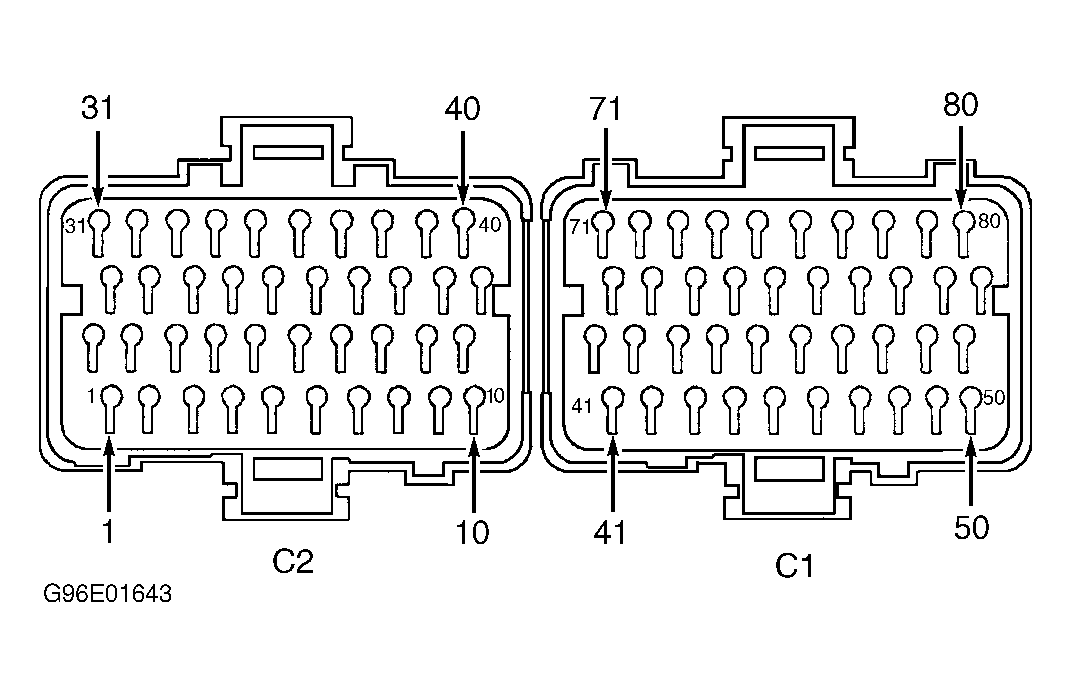

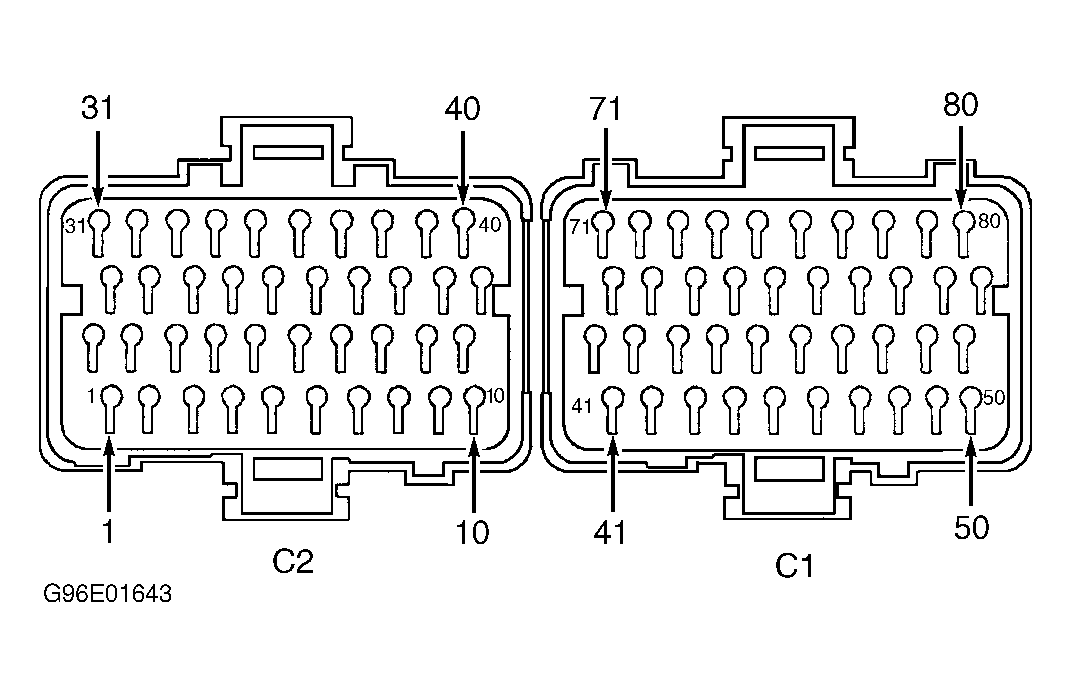

Powertrain Control Module (PCM) Connector		Fig 32

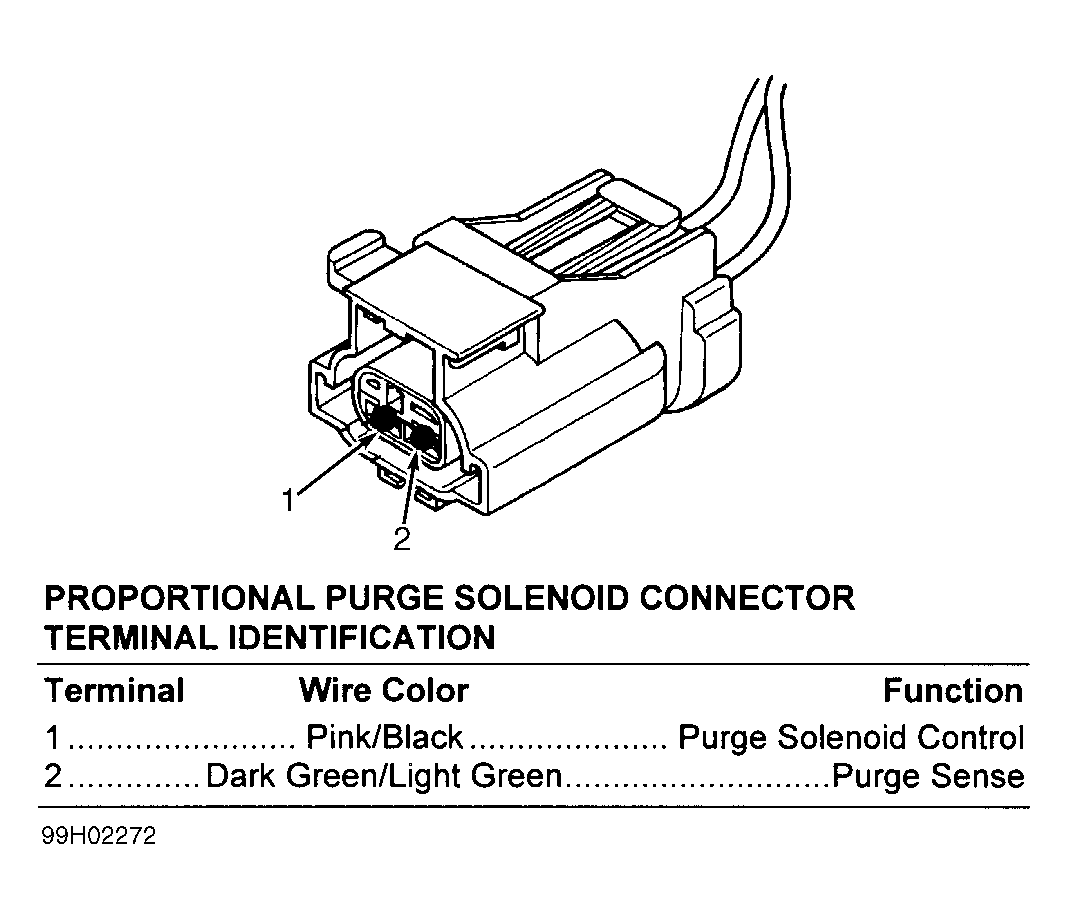

Proportional Purge Solenoid Connector		Fig 32

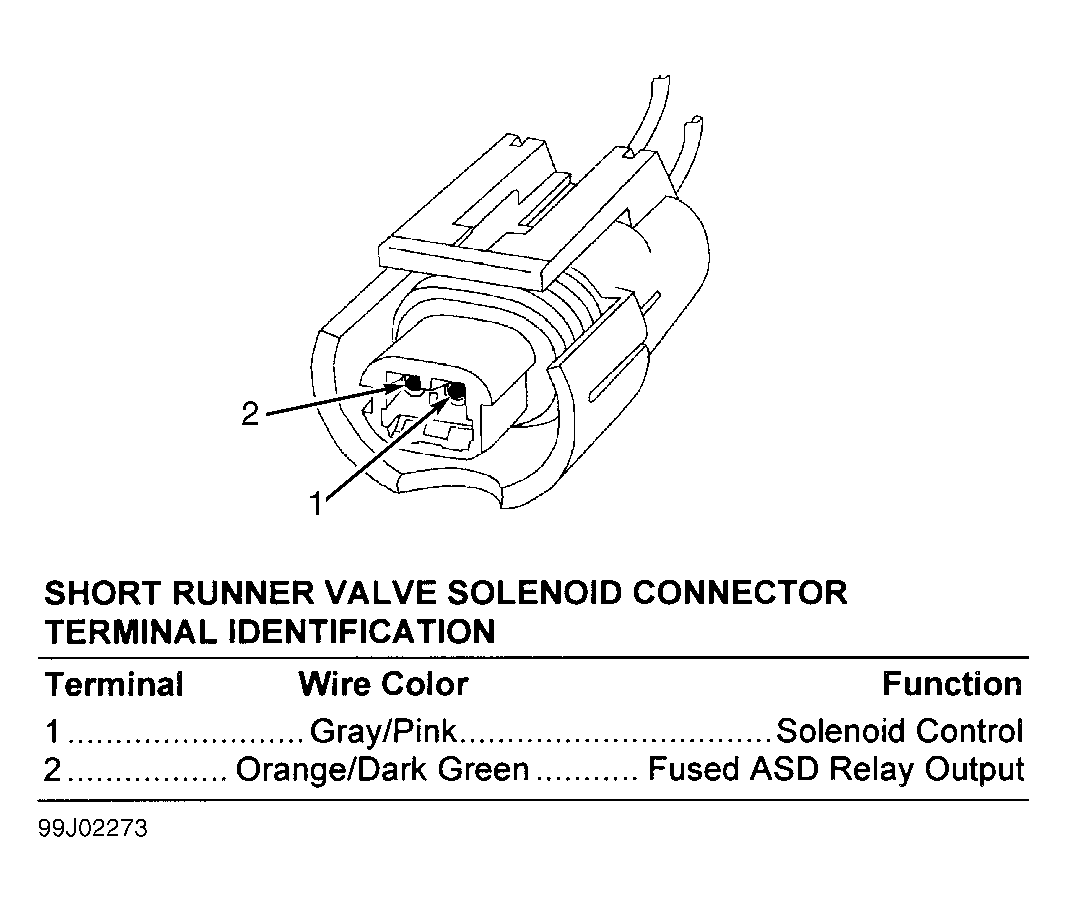

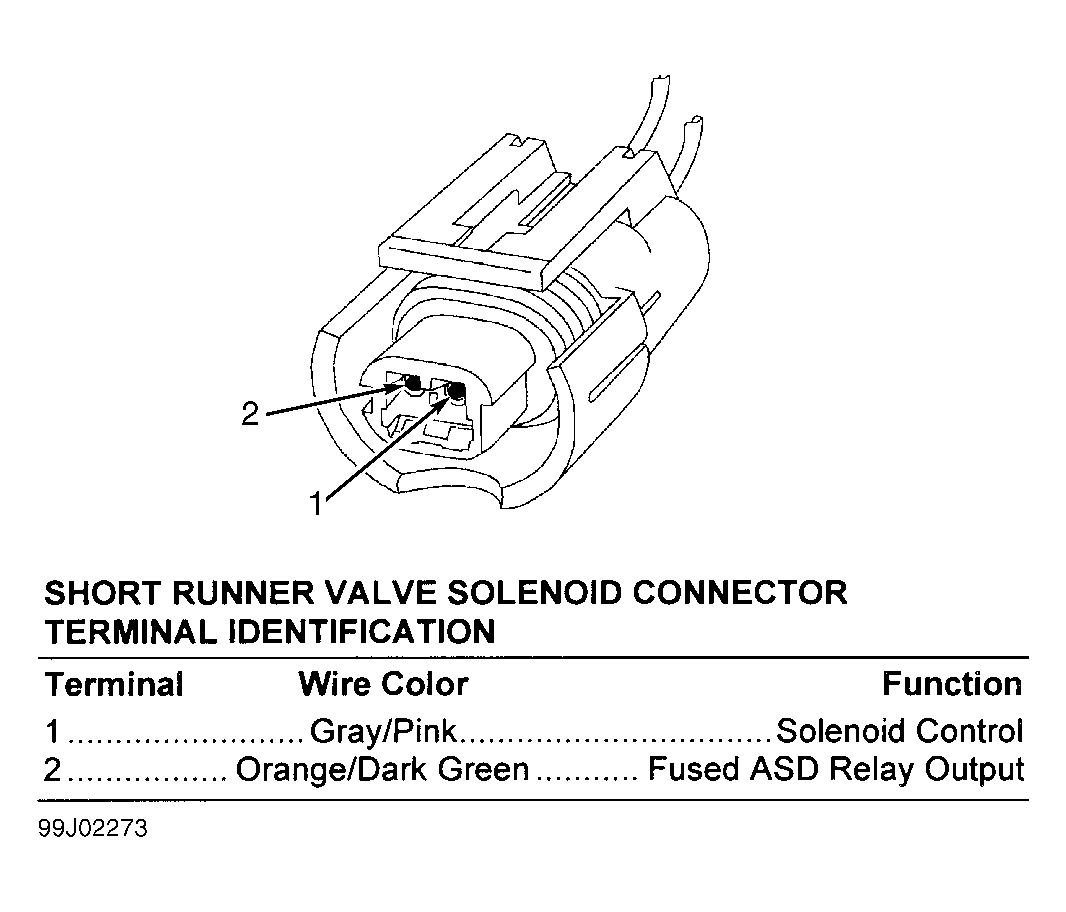

Short Runner Valve Solenoid Connector (3.2L & 3.5L)		Fig 34

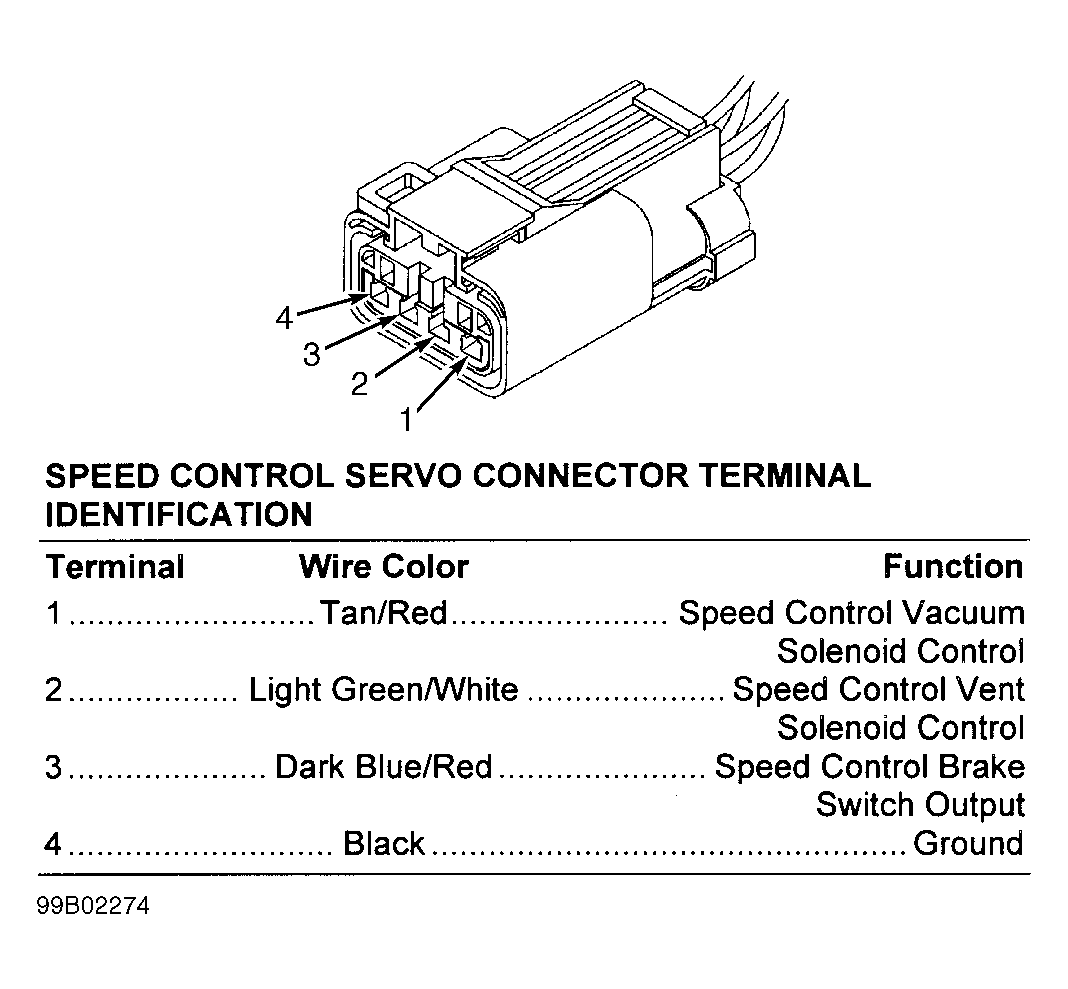

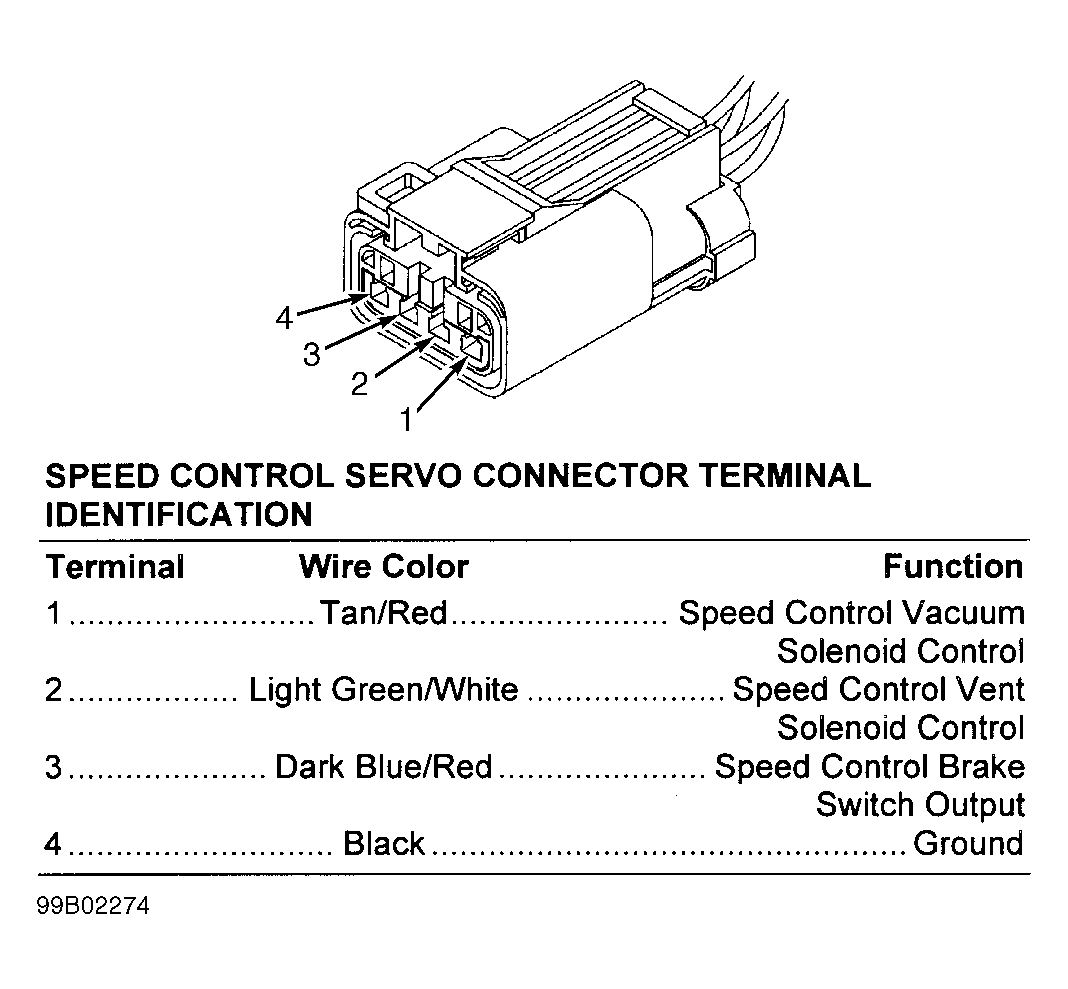

Speed Control Servo Connector		Fig 35

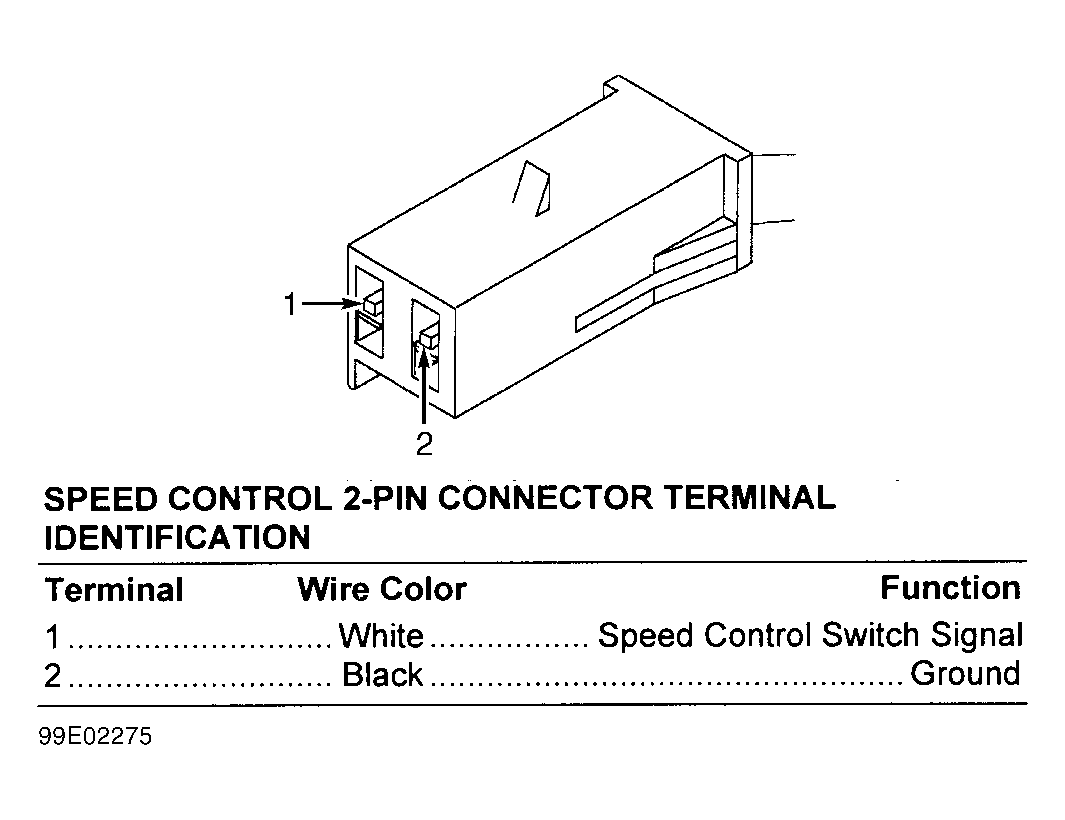

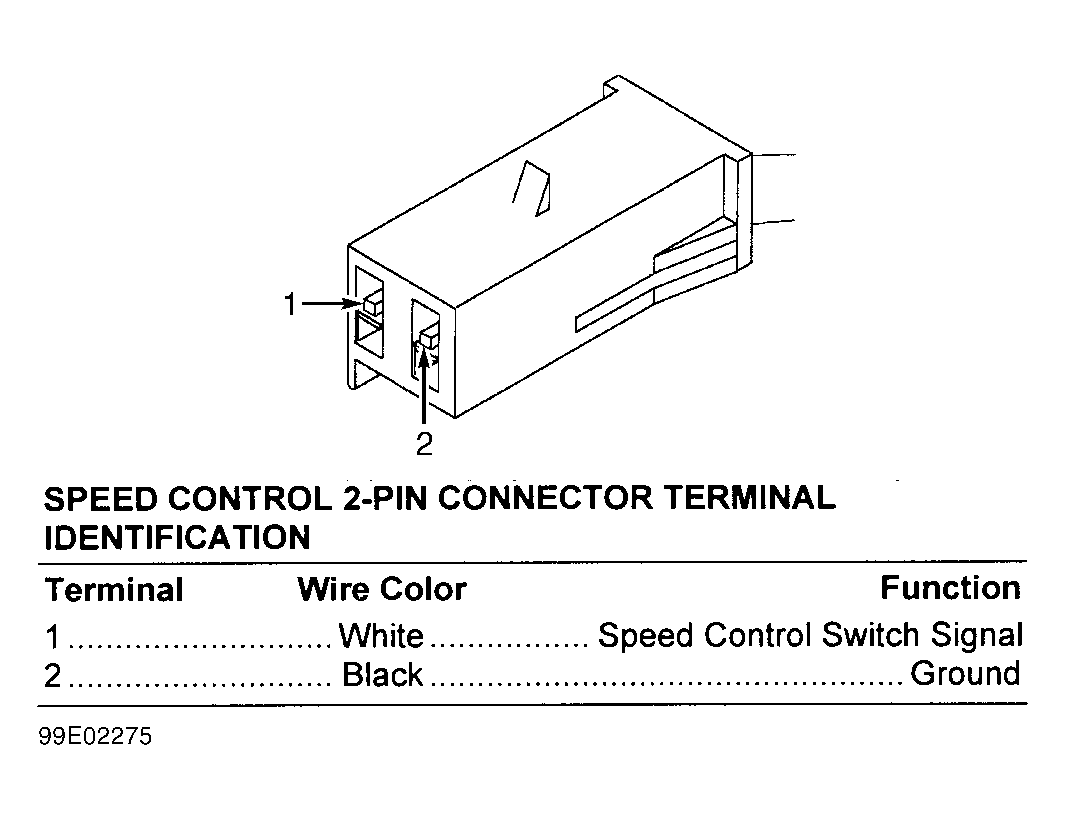

Speed Control Switch 2-Pin Connector		Fig 36

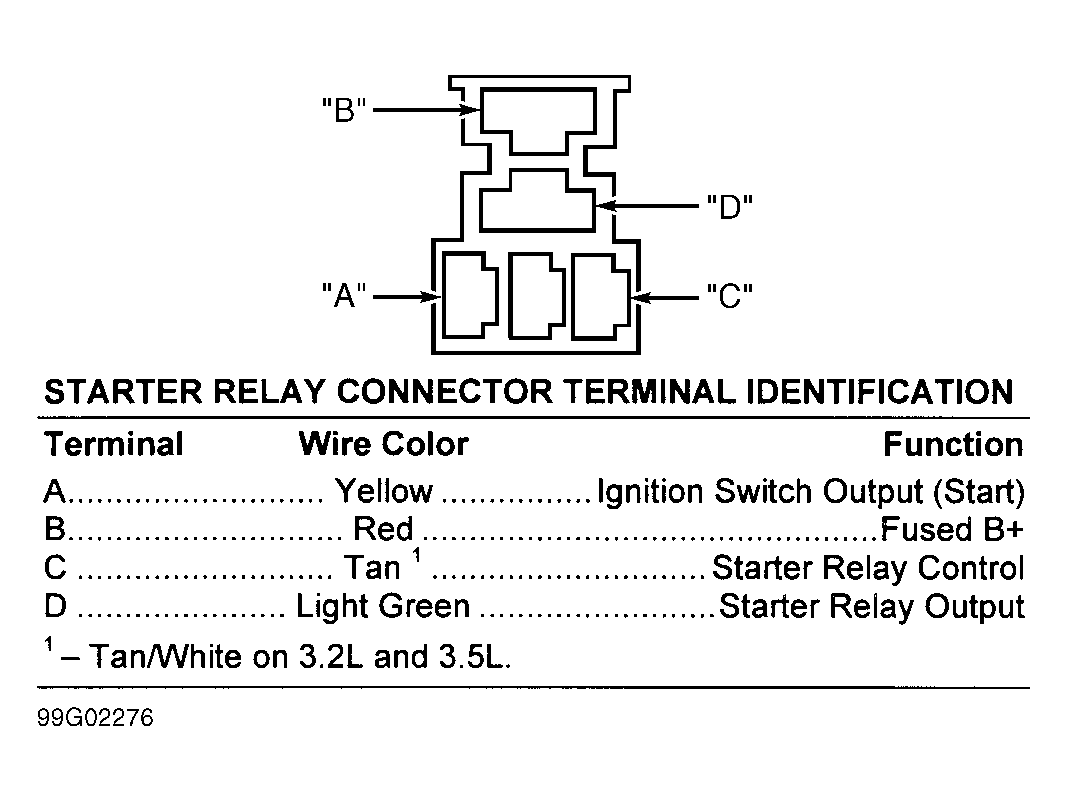

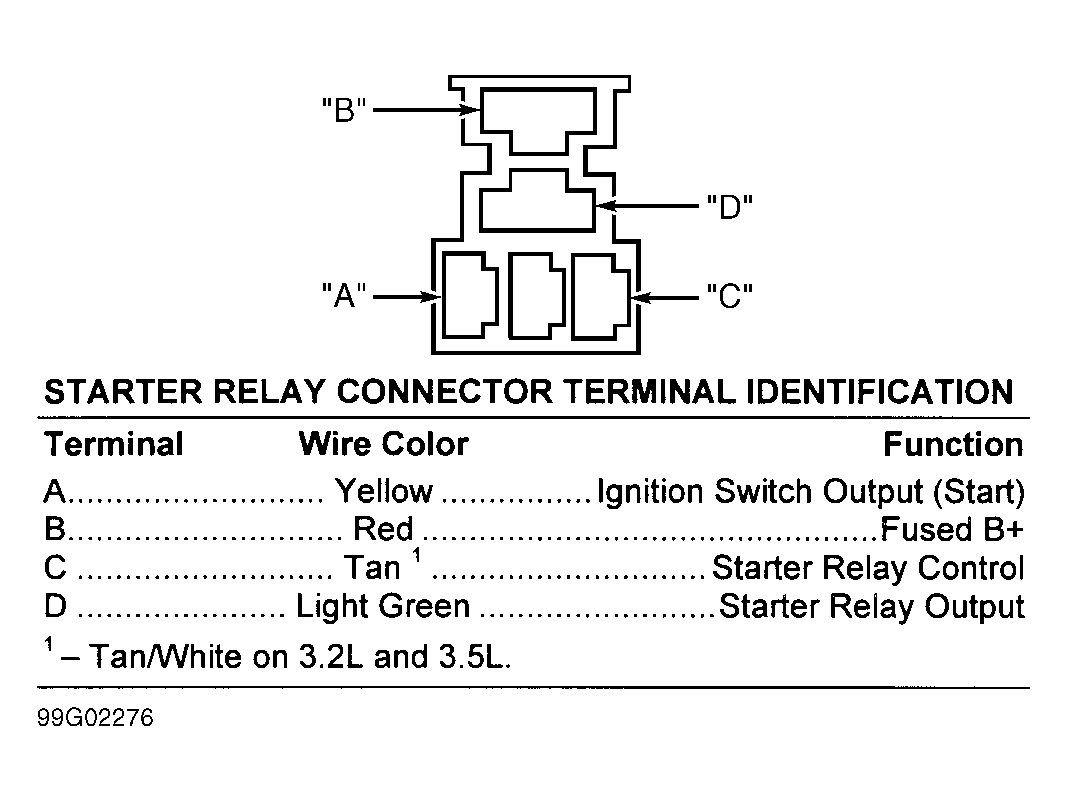

Starter Relay Connector		Fig 37

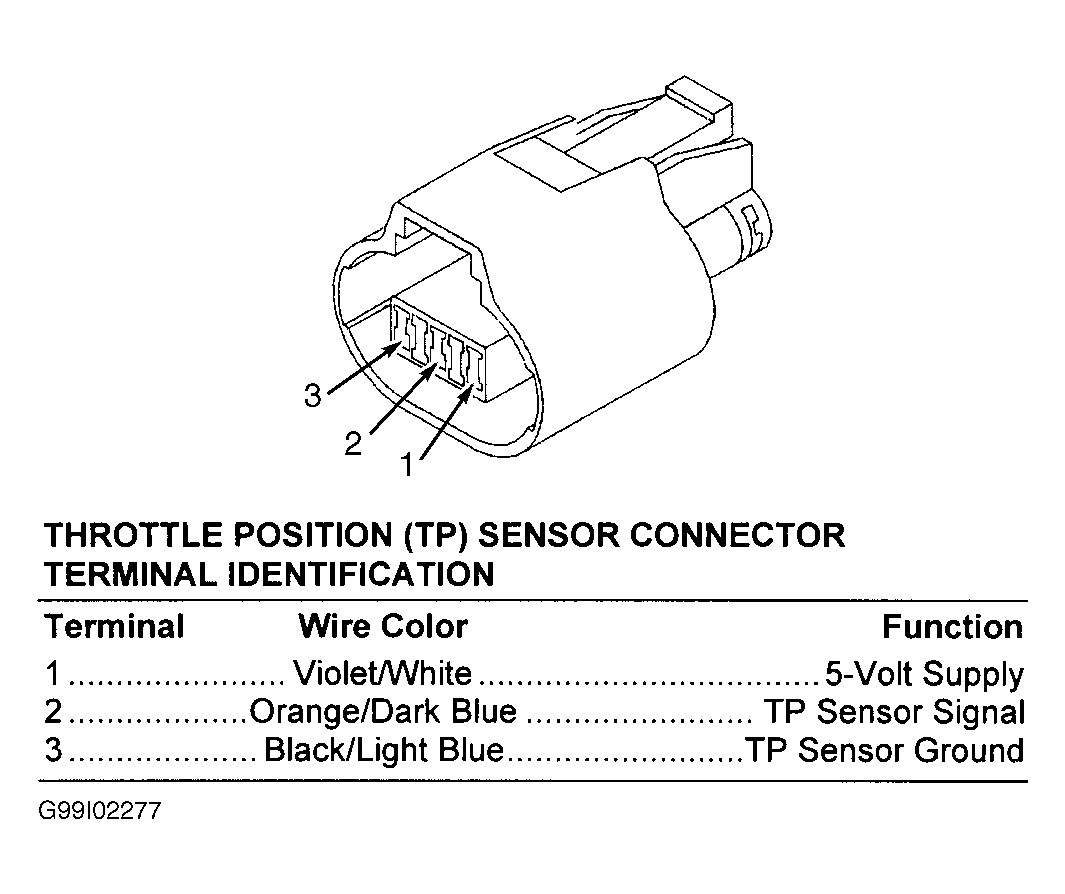

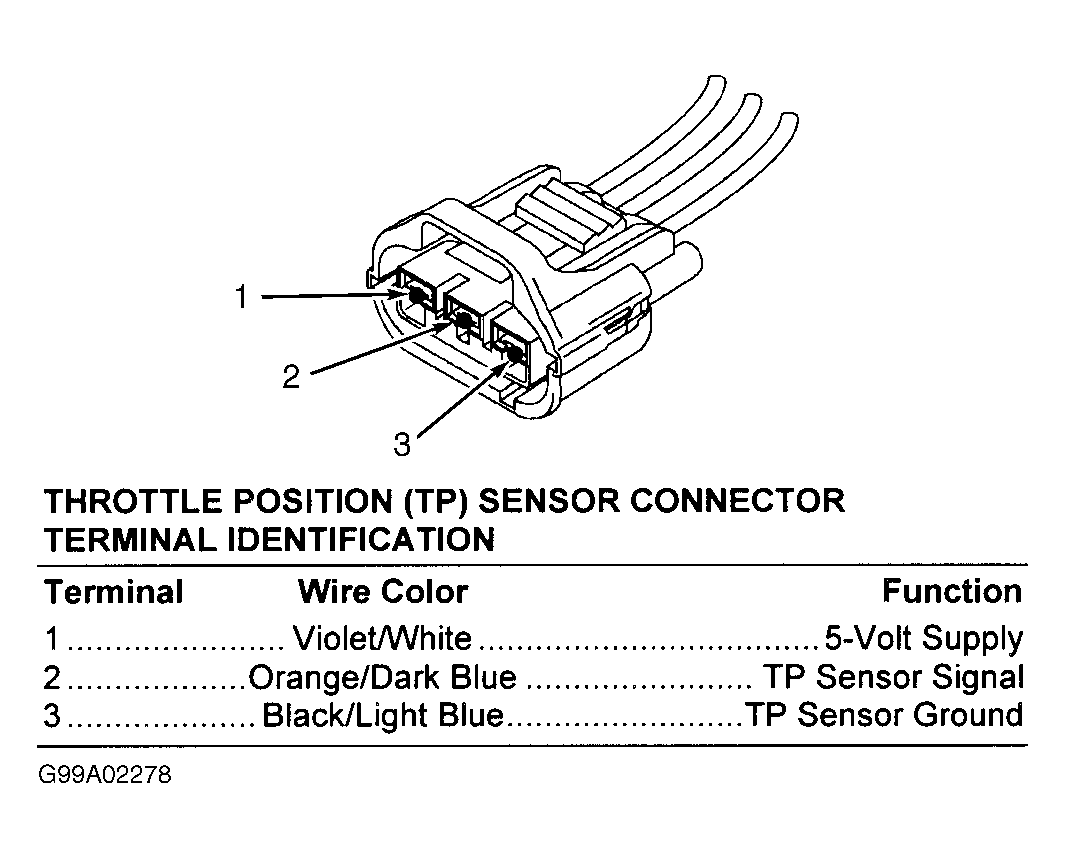

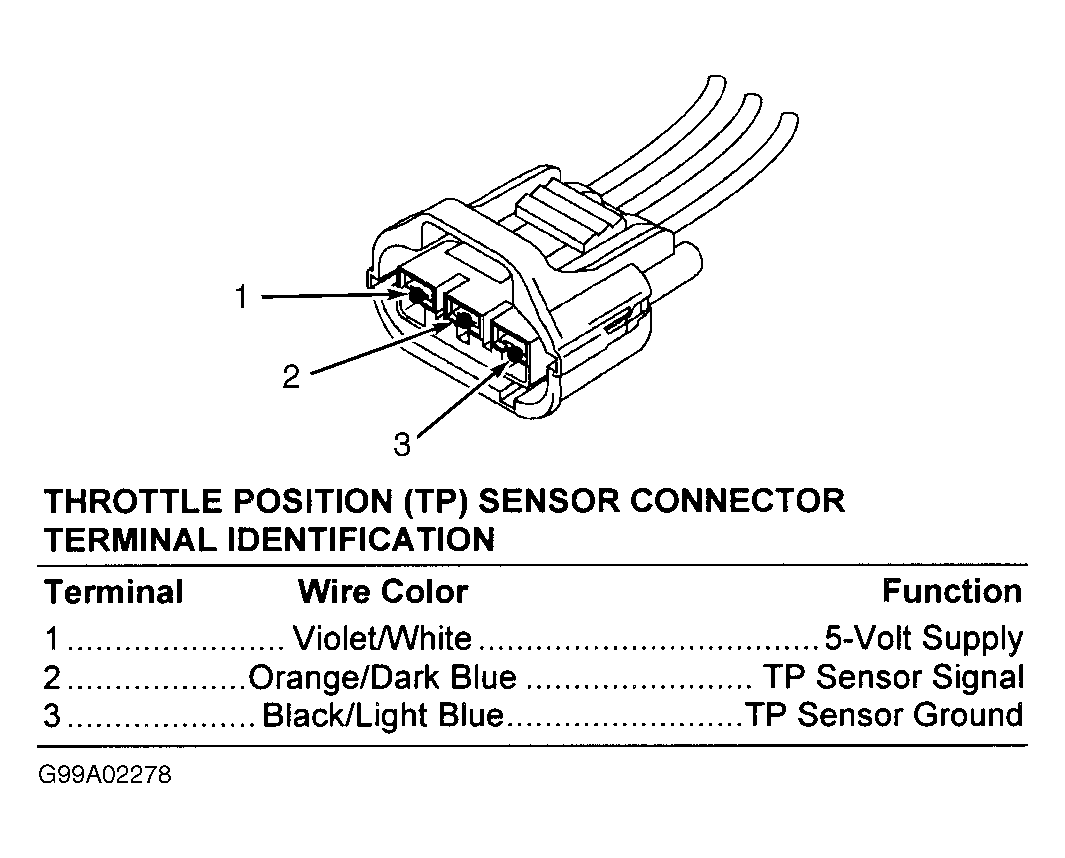

Throttle Position (TP) Sensor Connector
(2.7L)		Fig 38
3.2L & 3.5L		Fig 39
Transmission Control Module (TCM) Connector		Fig 40

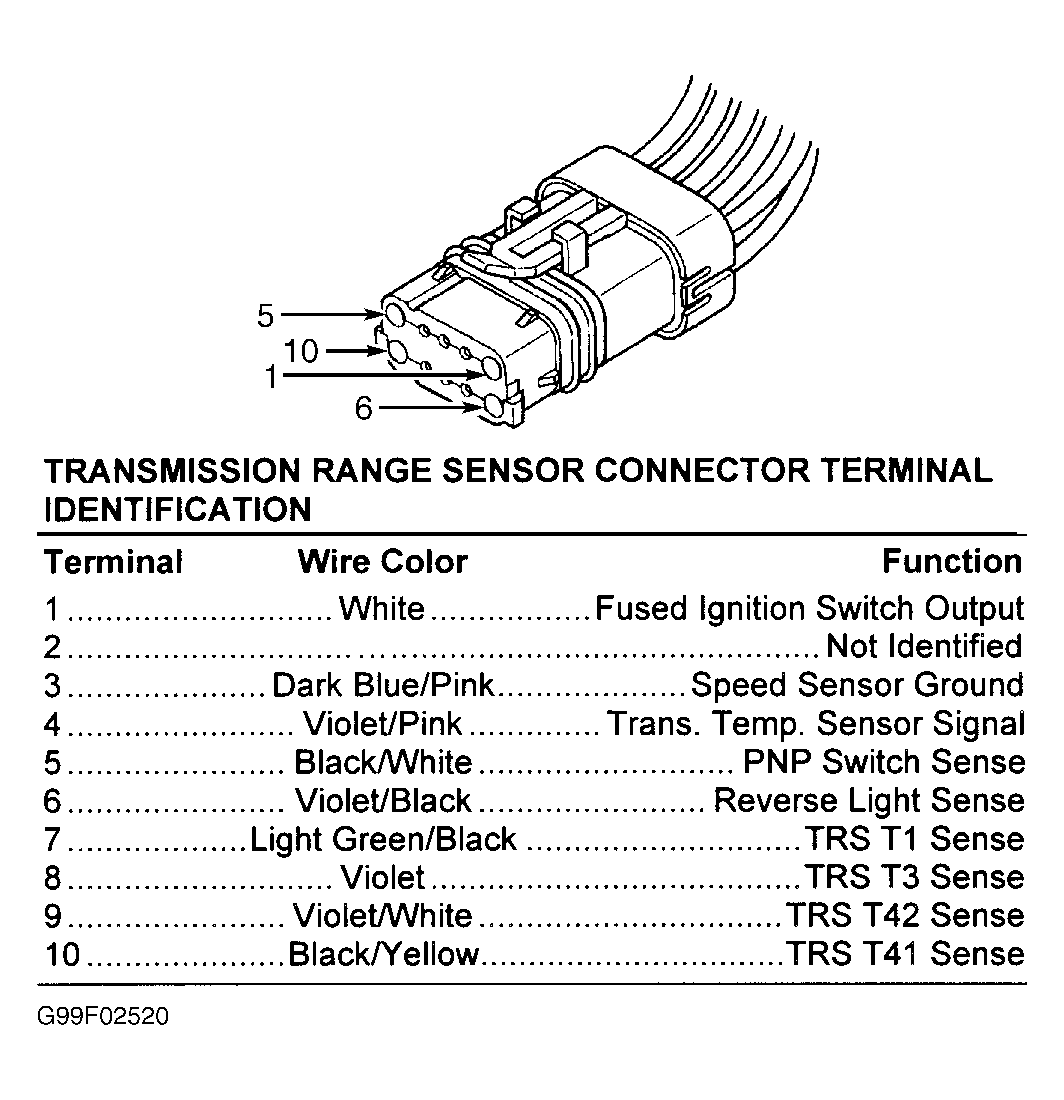

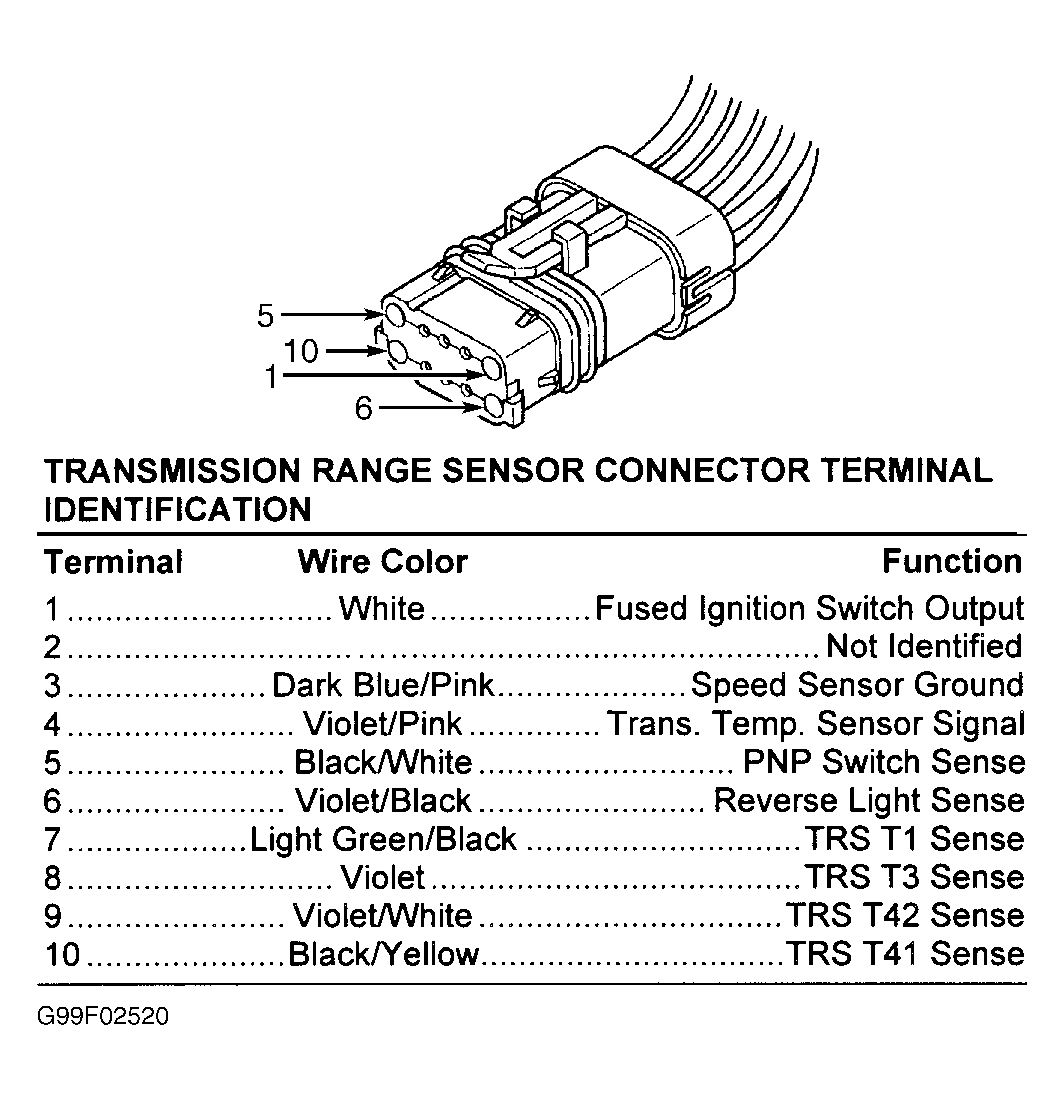

Transmission Range Sensor Connector		Fig 41
