Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Connector			Illustration
A/C Pressure Sensor			Fig 1
Battery Temperature Sensor			Fig 2
Body Control Module Connector C1			Fig 3
Body Control Module Connector C2			Fig 4
Body Control Module Connector C3			Fig 5.
Body Control Module Connector C4			Fig 6
Body Control Module Connector C5			Fig 7
Brake Switch			Fig 8
Camshaft Position Sensor
2.4L			Fig 9
Clockspring 4-Pin Connector			Fig 10
Crankshaft Position Sensor
2.4L			Fig 11
2.5L			Fig 12
Data Link Connector (DLC)			Fig 13
Distributor Connector
2.5L
2-Pin Connector			Fig 14
6-Pin Connector			Fig 15
Downstream (1/2) Oxygen Sensor			Fig 16
EGR Solenoid			Fig 17
Engine Coolant Temperature Sensor			Fig 18
EVAP Purge Solenoid			Fig 19
Fuel Pump Module			Fig 20
Idle Air Control Motor
2.4L			Fig 21
2.5L			Fig 22
Ignition Coil
2.4L			Fig 23
Injector
2.4L			Fig 24
2.5L			Fig 25
Intake Air Temperature Sensor			Fig 26
Knock Sensor
2.4L			Fig 27
MAP Sensor			Fig 28
Output Speed Sensor			Fig 29
Power Steering Pressure Switch			Fig 30
Powertrain Control Module (PCM)			Fig 31
Speed Control Servo			Fig 32
Throttle Position Sensor
2.4L			Fig 33
2.5L			Fig 34
Transmission Control Module			Fig 35
Transmission Range Sensor			Fig 36
Upstream (1/1) Oxygen Sensor			Fig 37

Fig 1: Identifying A/C Pressure Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 2: Identifying Battery Temperature Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 3: Identifying Body Control Module Connector C1 Terminals

Courtesy of CHRYSLER CORP.

Fig 4: Identifying Body Control Module Connector C2 Terminals

Courtesy of CHRYSLER CORP.

Fig 5: Identifying Body Control Module Connector C3 Terminals

Courtesy of CHRYSLER CORP.

Fig 6: Identifying Body Control Module Connector C4 Terminals

Courtesy of CHRYSLER CORP.

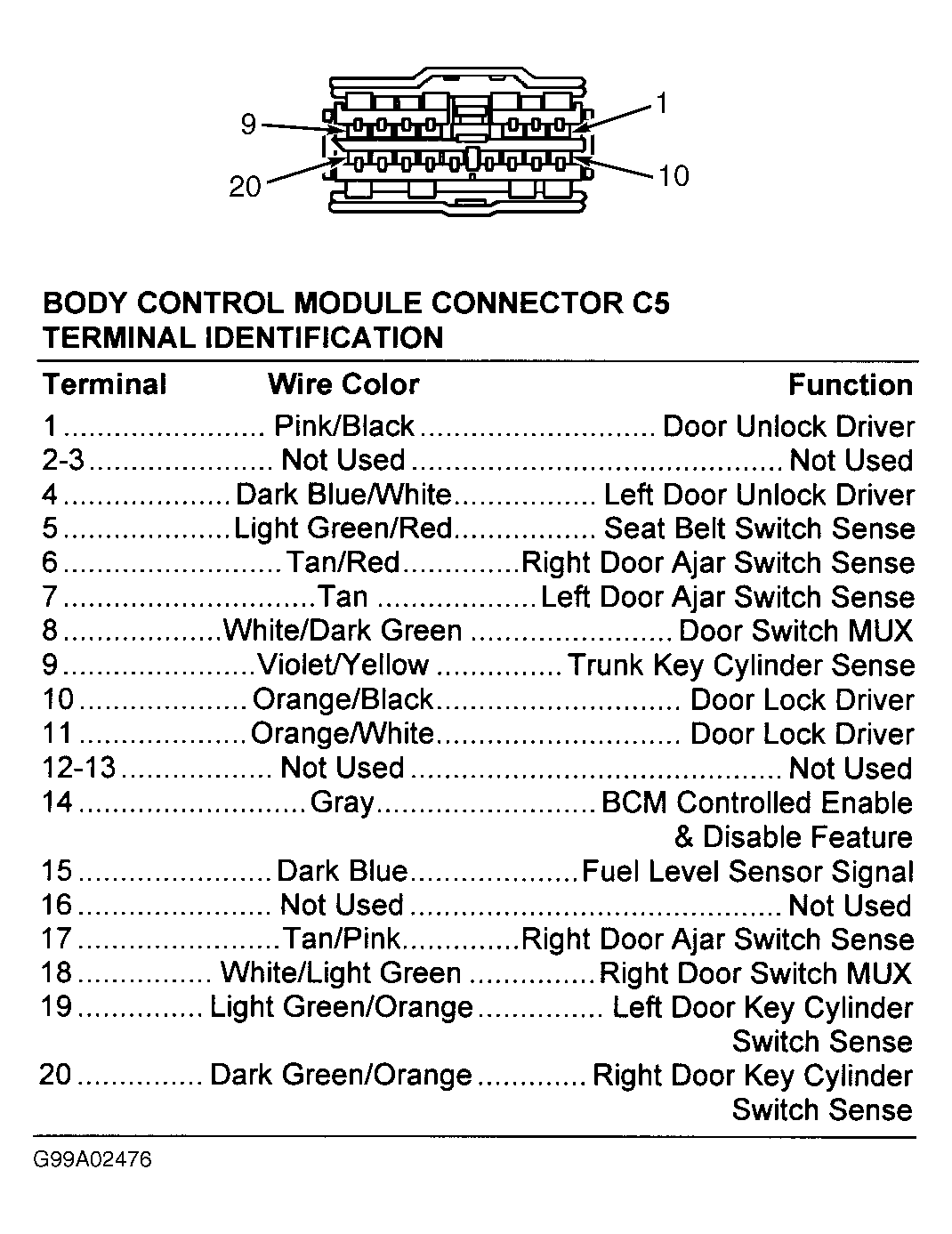

Fig 7: Identifying Body Control Module Connector C5 Terminals

Courtesy of CHRYSLER CORP.

Fig 8: Identifying Brake Switch Connector Terminals

Courtesy of CHRYSLER CORP.

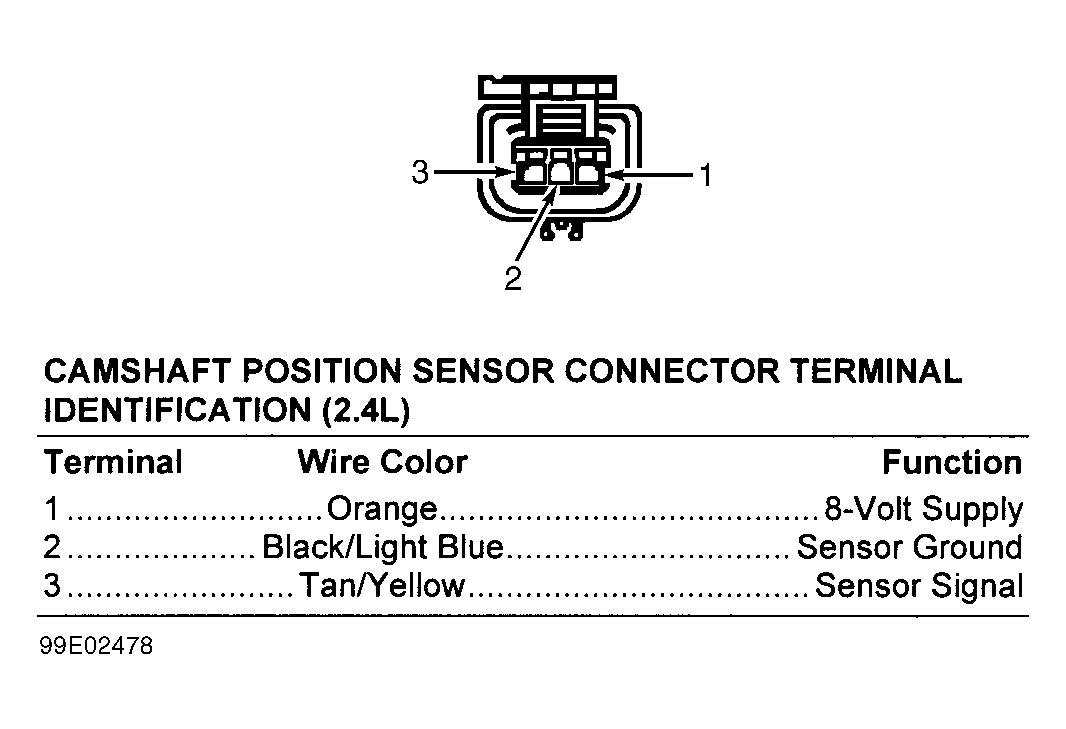

Fig 9: Identifying Camshaft Position Sensor Connector Terminals (2.4L)

Courtesy of CHRYSLER CORP.

Fig 10: Identifying Clockspring 4-Pin Connector Terminals

Courtesy of CHRYSLER CORP.

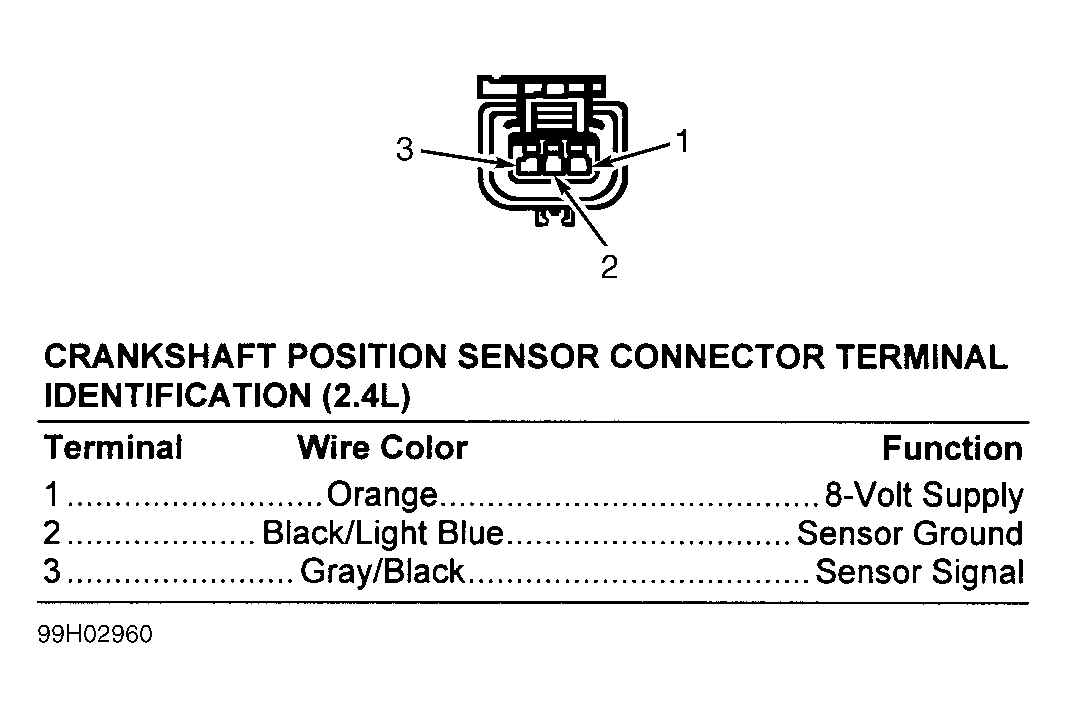

Fig 11: Identifying Crankshaft Position Sensor Connector Terminals (2.4L)

Courtesy of CHRYSLER CORP.

Fig 12: Identifying Crankshaft Position Sensor Connector Terminals (2.5L)

Courtesy of CHRYSLER CORP.

Fig 13: Identifying Data Link Connector (DLC) Terminals

Courtesy of CHRYSLER CORP.

Fig 14: Identifying Distributor 2-Pin Connector Terminals (2.5L)

Courtesy of CHRYSLER CORP.

Fig 15: Identifying Distributor 6-Pin Connector Terminals (2.5L)

Courtesy of CHRYSLER CORP.

Fig 16: Identifying Downstream (1/2) Oxygen Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 17: Identifying EGR Solenoid Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 18: Identifying Engine Coolant Temp. Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 19: Identifying EVAP Purge Solenoid Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 20: Identifying Fuel Pump Module Connector Terminals

Courtesy of CHRYSLER CORP.

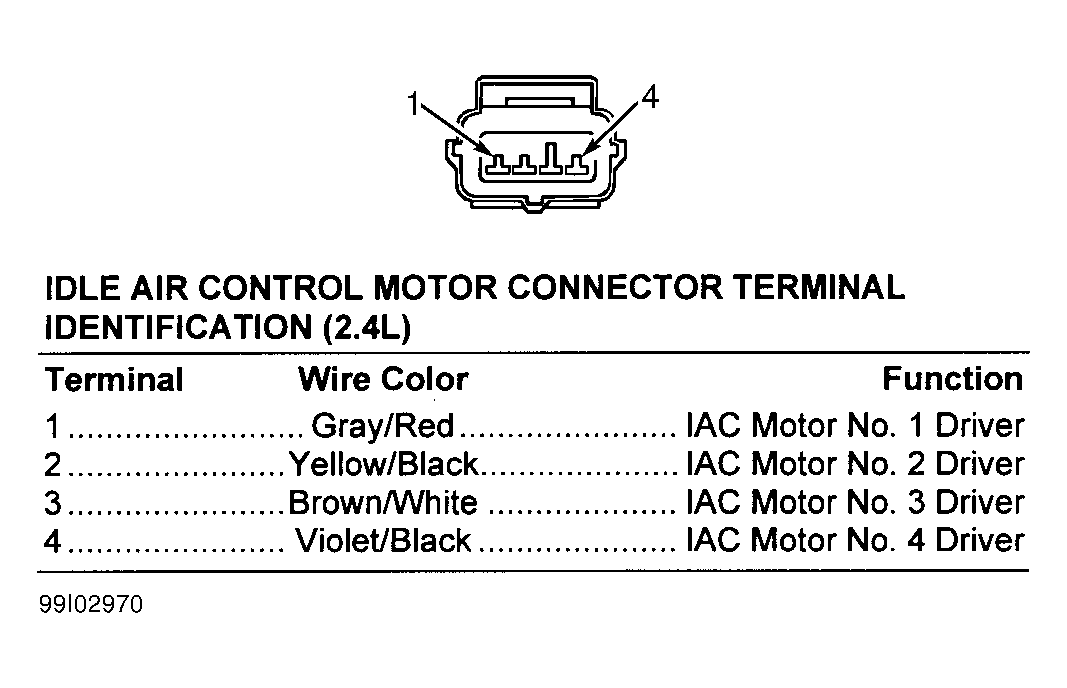

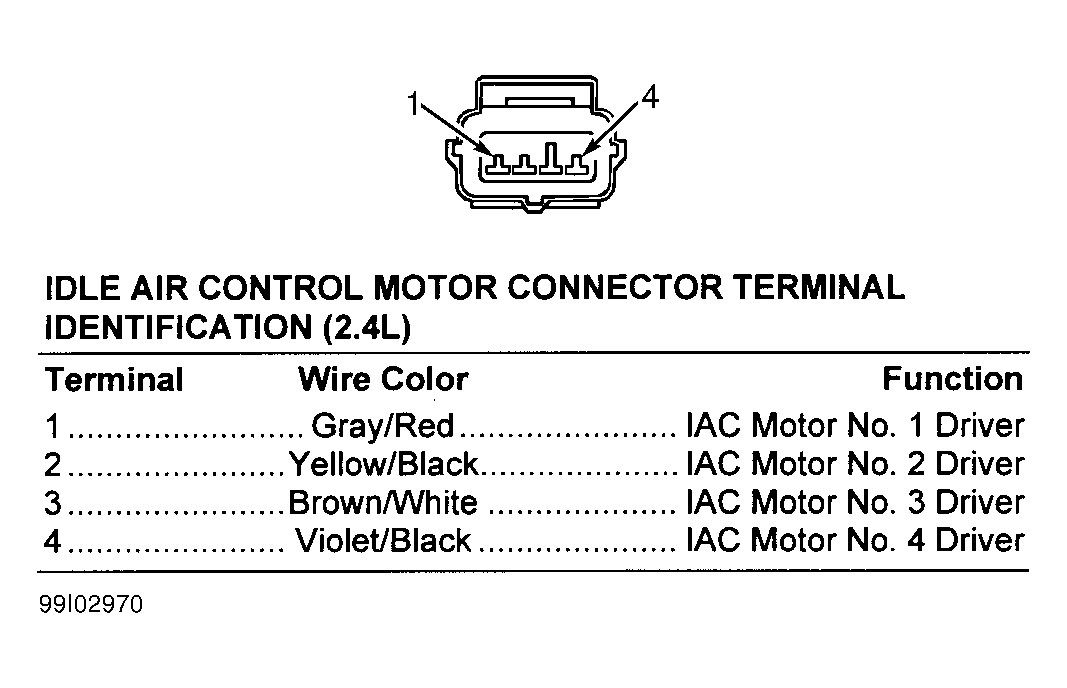

Fig 21: Identifying Idle Air Control Motor Connector Terminals (2.4L)

Courtesy of CHRYSLER CORP.

Fig 22: Identifying Idle Air Control Motor Connector Terminals (2.5L)

Courtesy of CHRYSLER CORP.

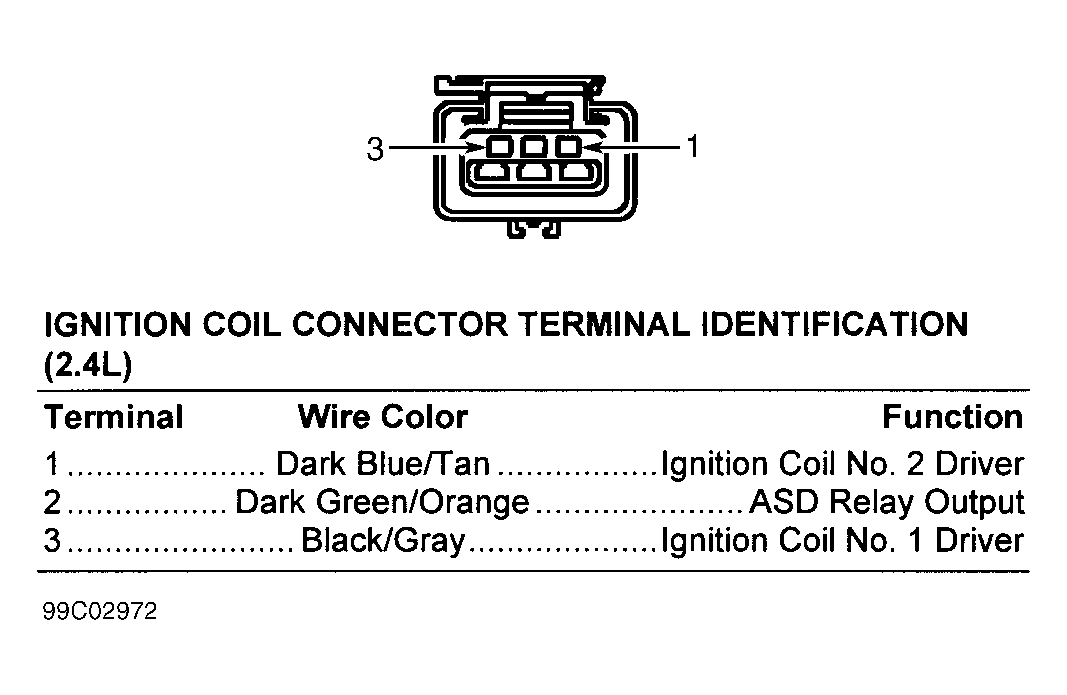

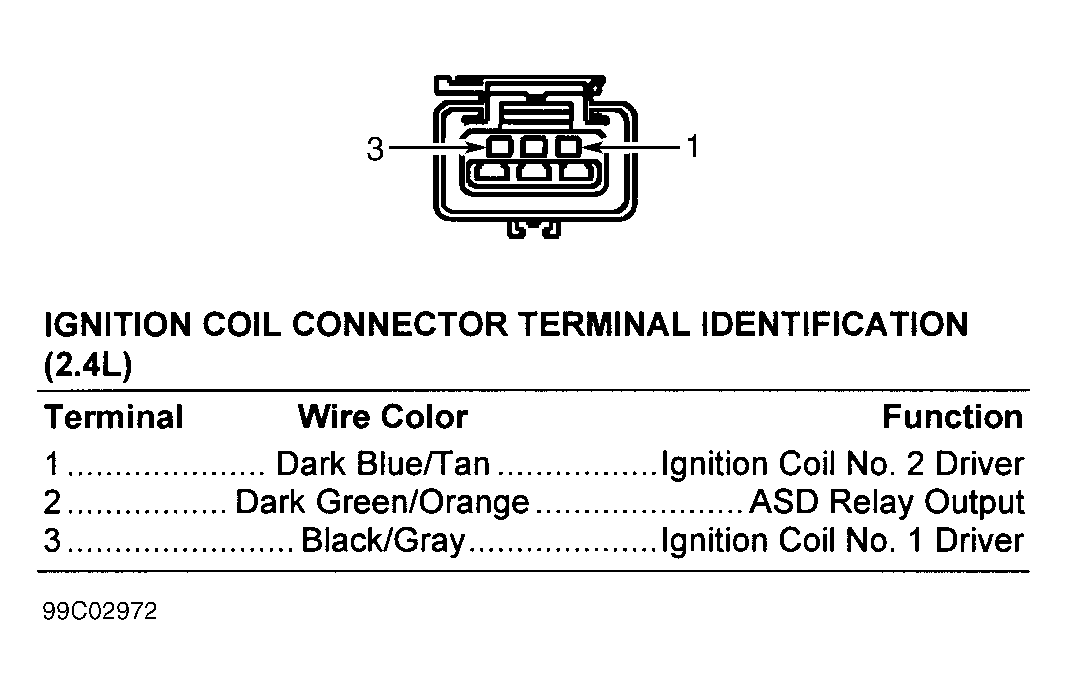

Fig 23: Identifying Ignition Coil Connector Terminals (2.4L)

Courtesy of CHRYSLER CORP.

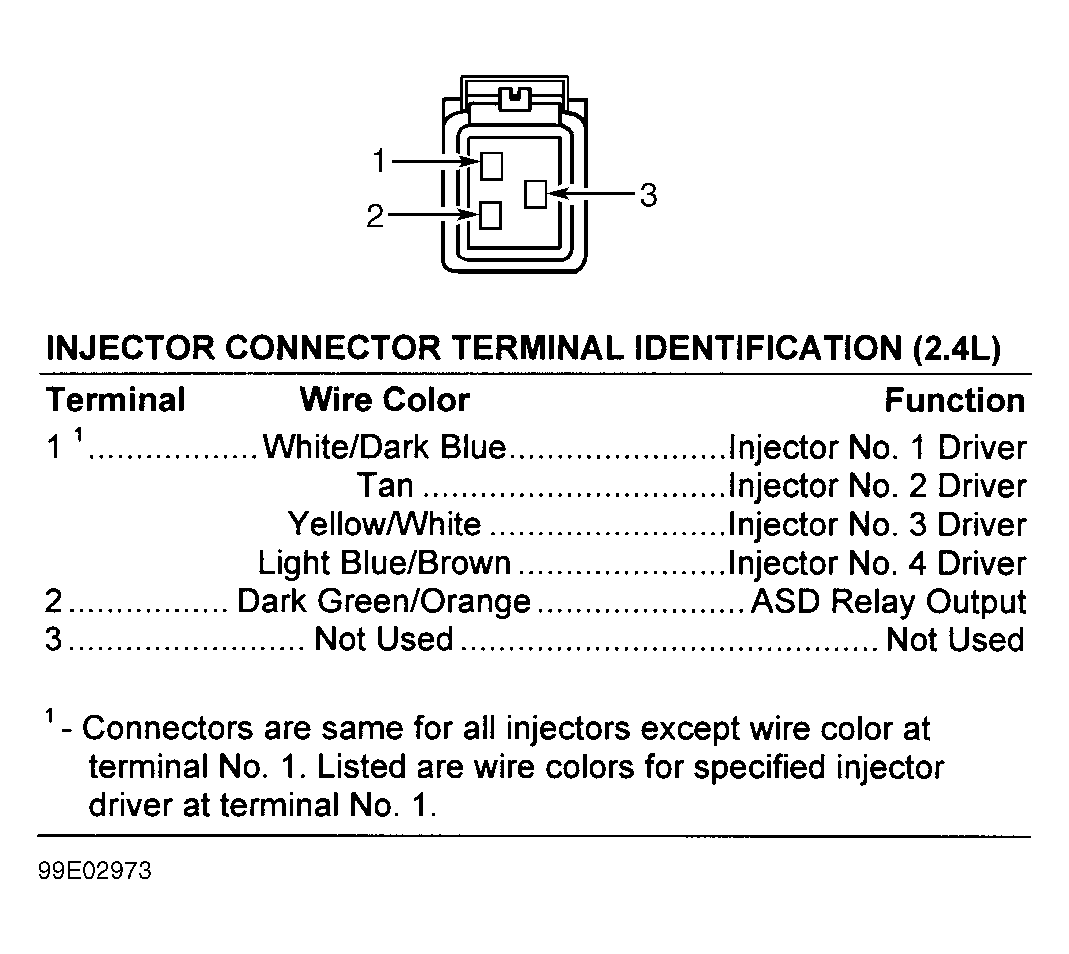

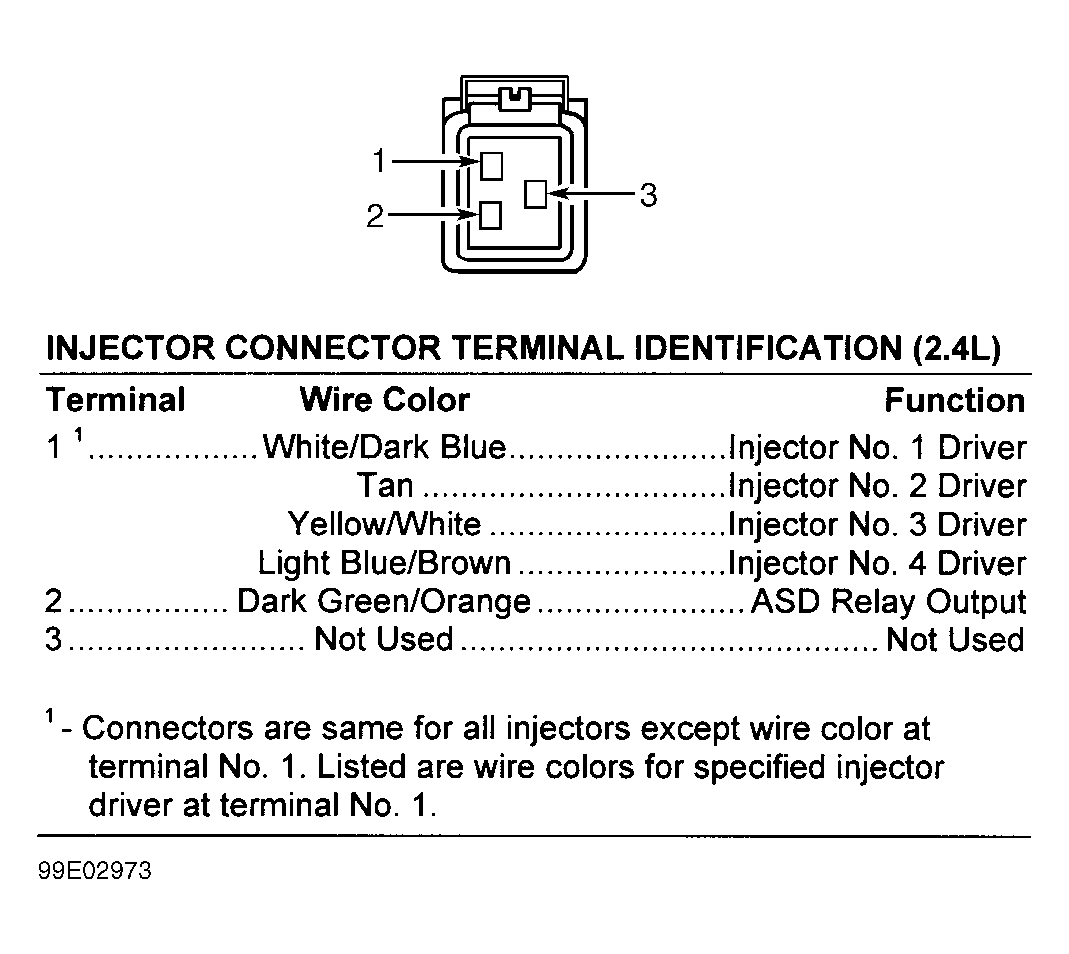

Fig 24: Identifying Injector Connector Terminals (2.4L)

Courtesy of CHRYSLER CORP.

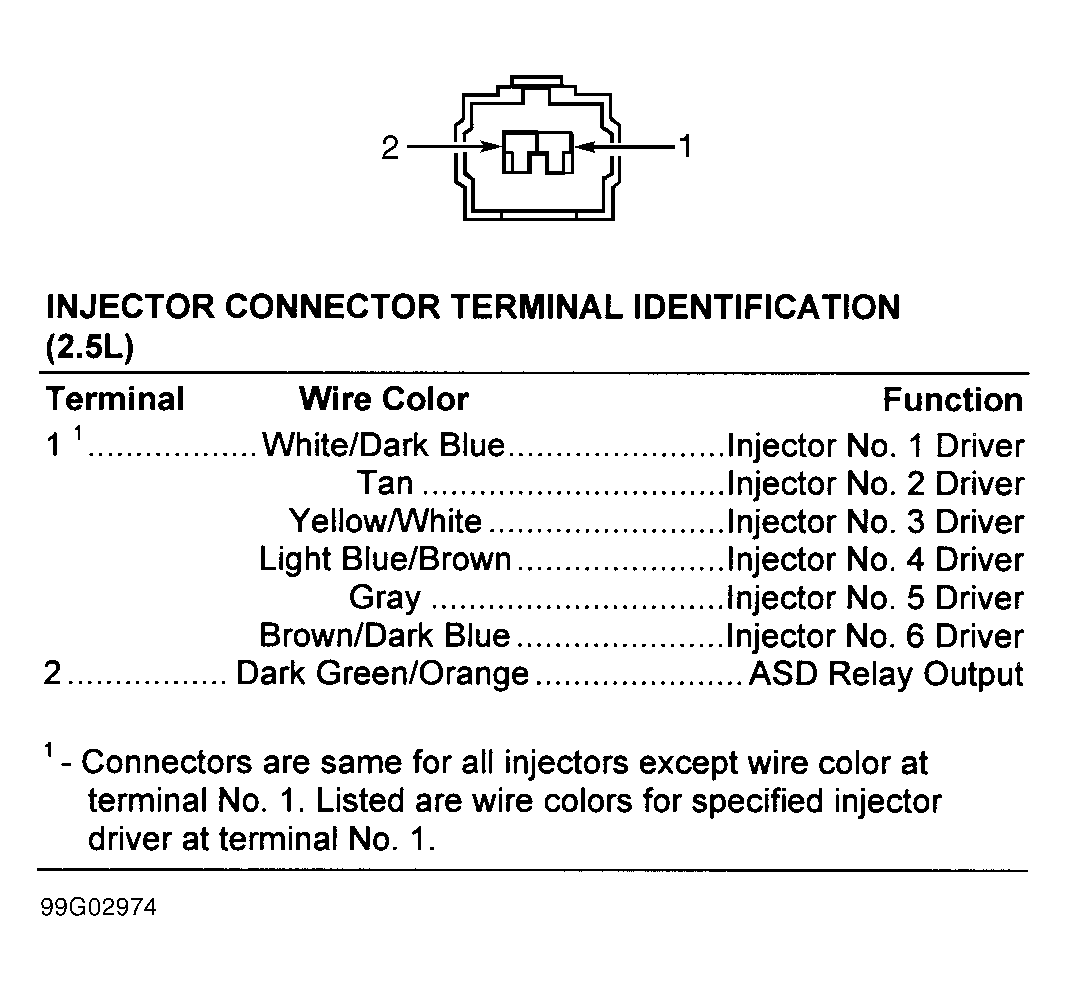

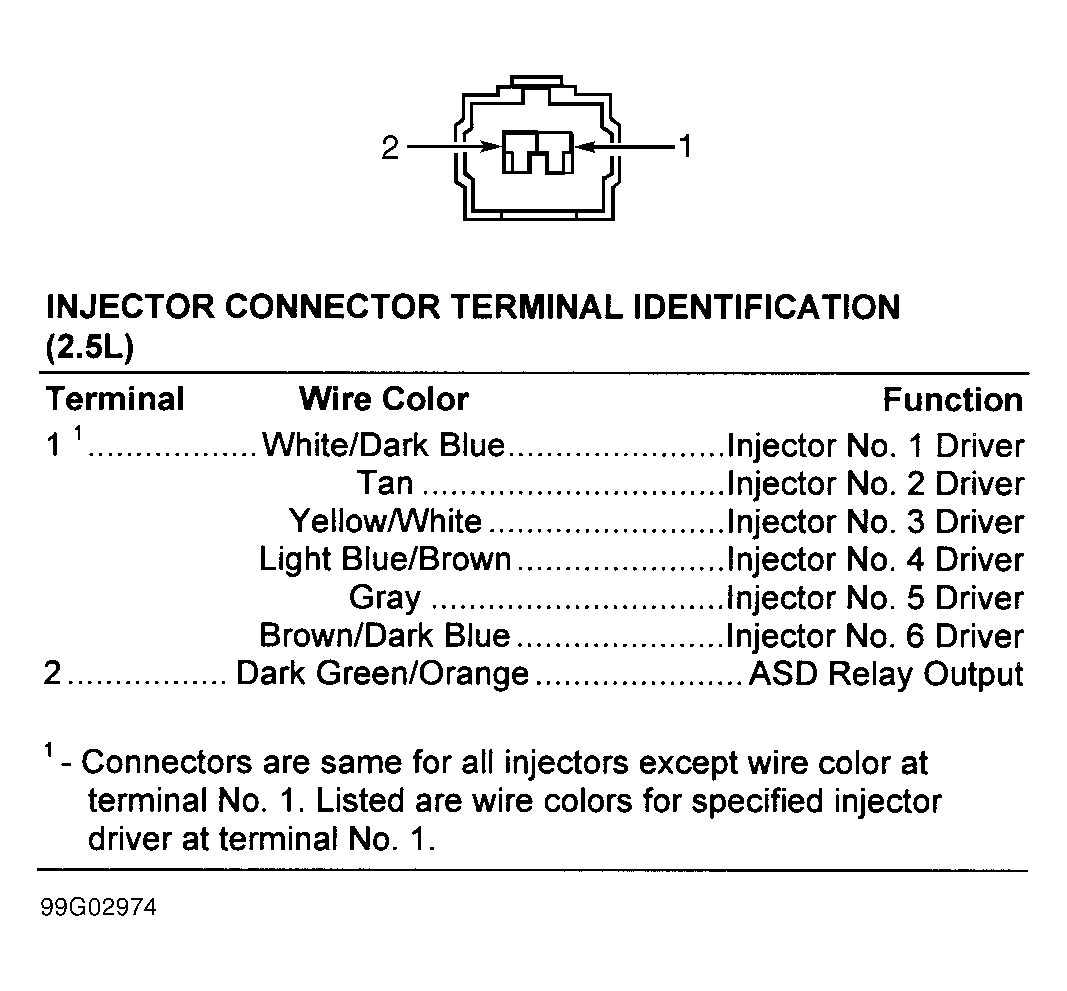

Fig 25: Identifying Injector Connector Terminals (2.5L)

Courtesy of CHRYSLER CORP.

Fig 26: Identifying Intake Air Temp. Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

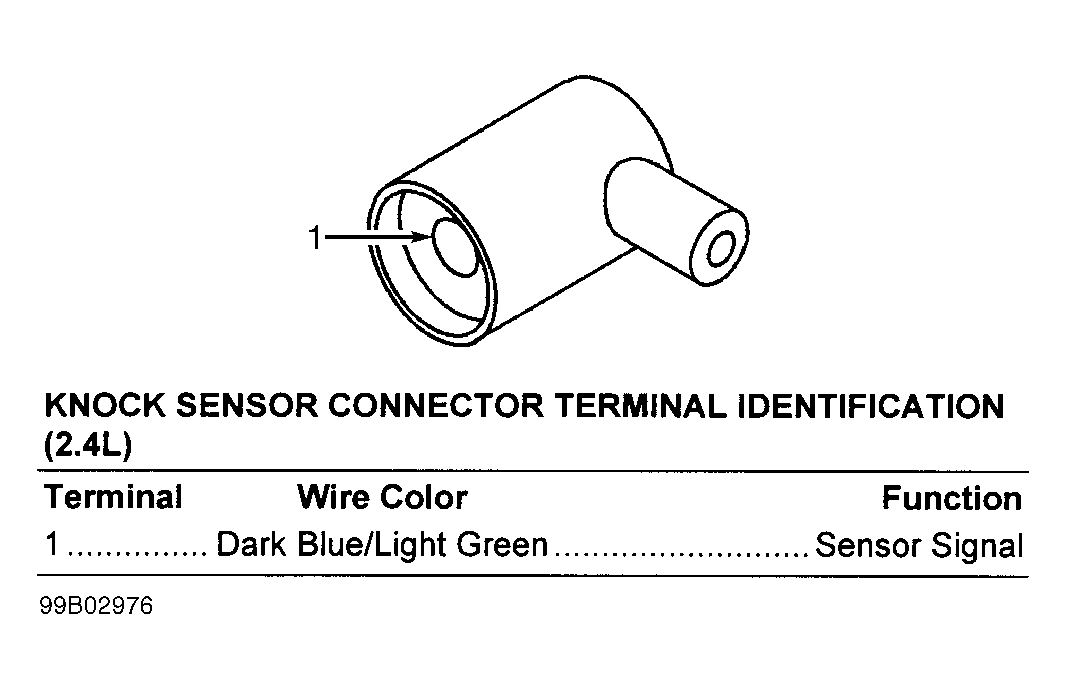

Fig 27: Identifying Knock Sensor Connector Terminals (2.4L)

Courtesy of CHRYSLER CORP.

Fig 28: Identifying MAP Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 29: Identifying Output Speed Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 30: Identifying Power Steering Pressure Switch Connector Terminals

Courtesy of CHRYSLER CORP.

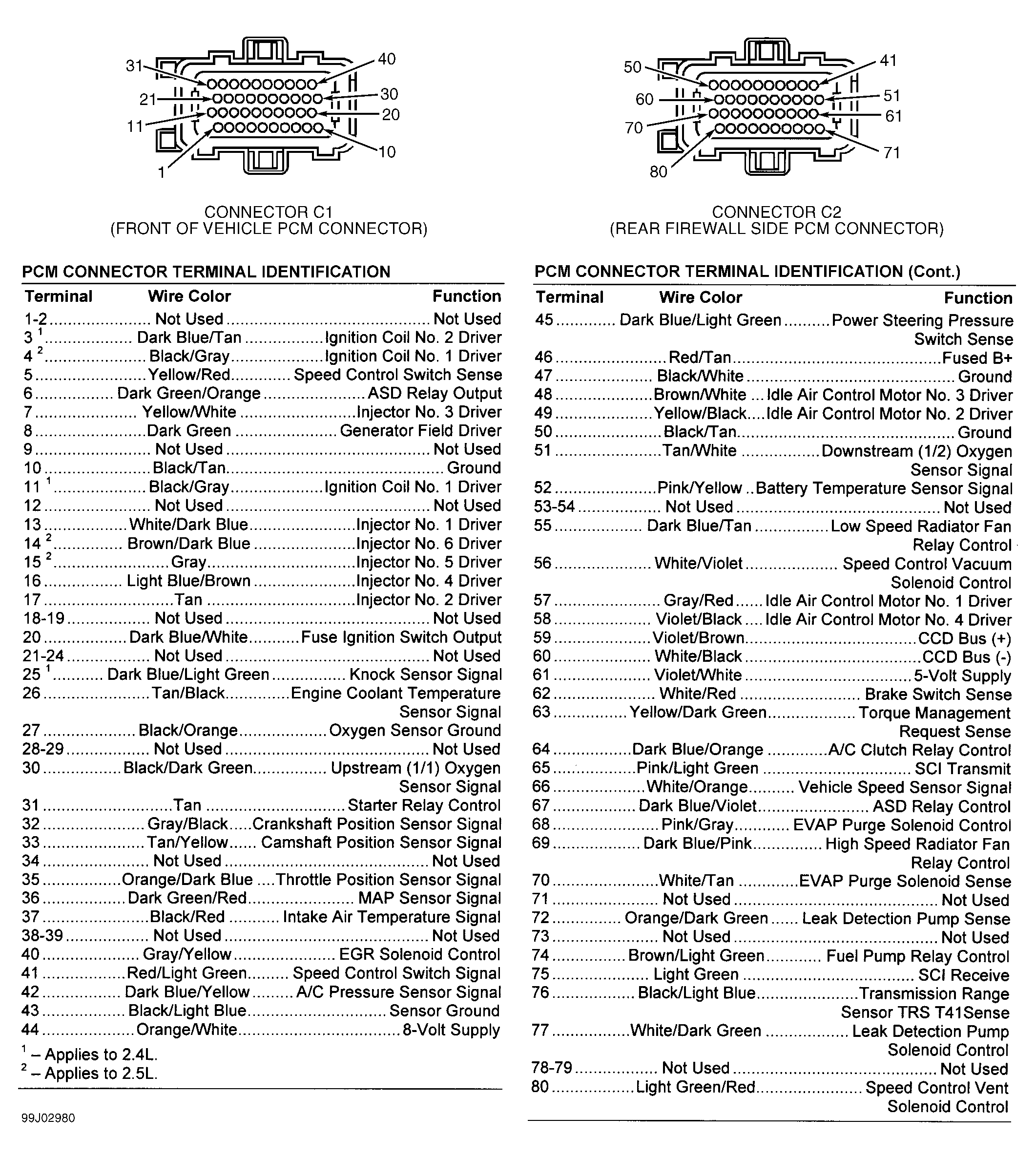

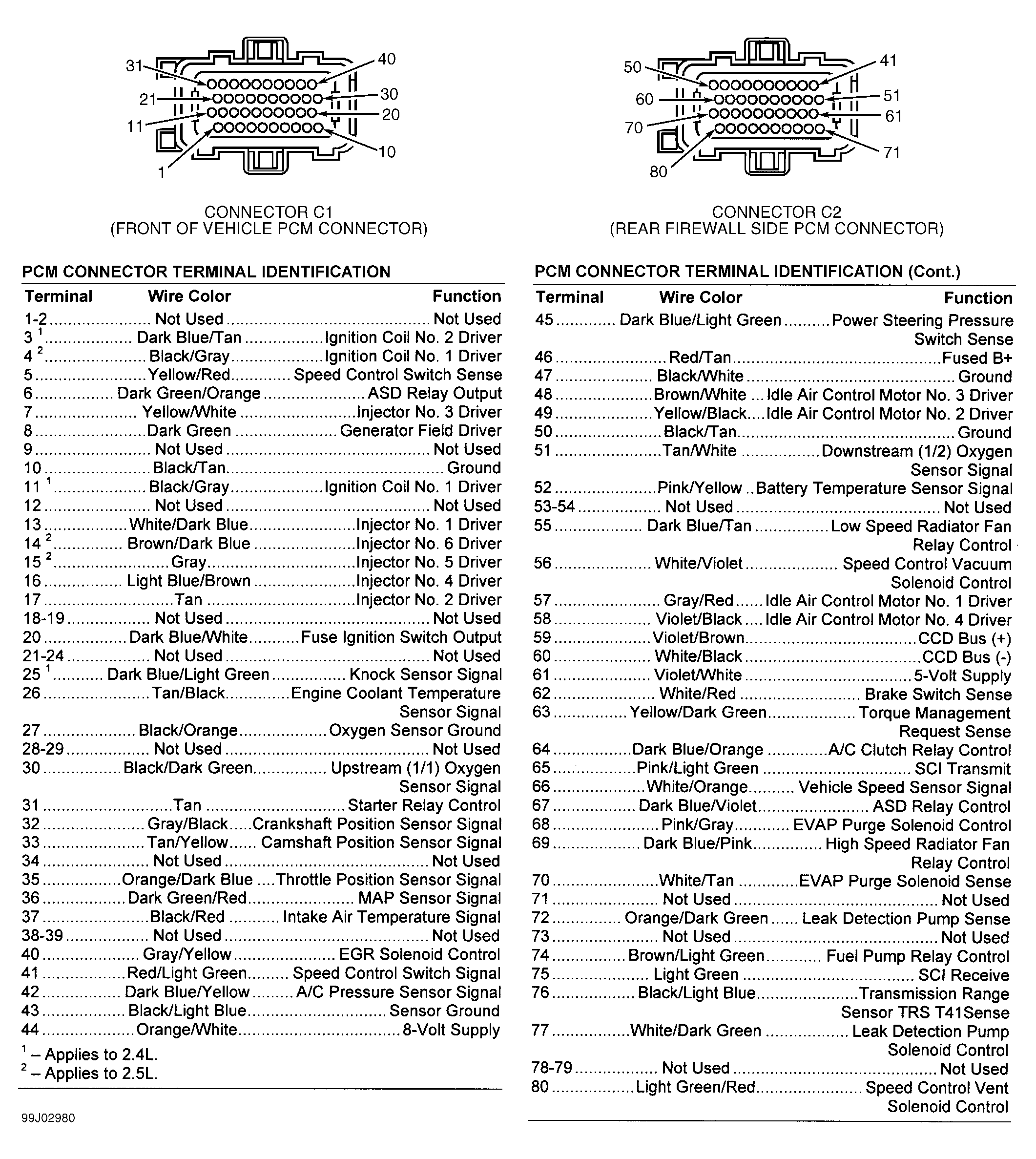

Fig 31: Powertrain Control Module Connector Terminal Identification

Courtesy of CHRYSLER CORP.

Fig 32: Identifying Speed Control Servo Connector Terminals

Courtesy of CHRYSLER CORP.

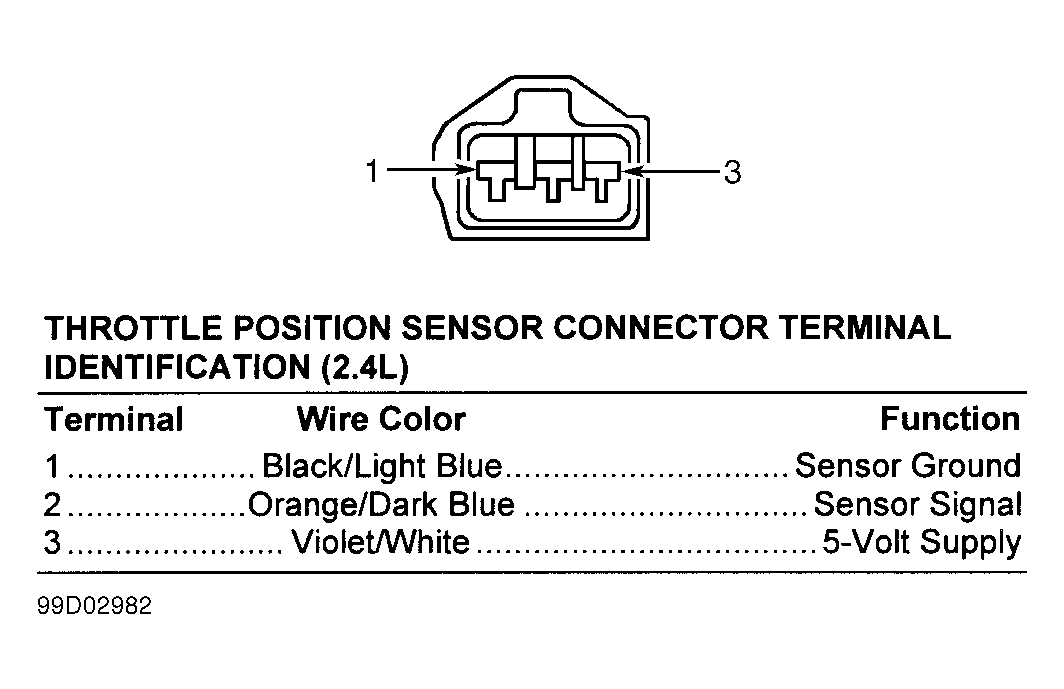

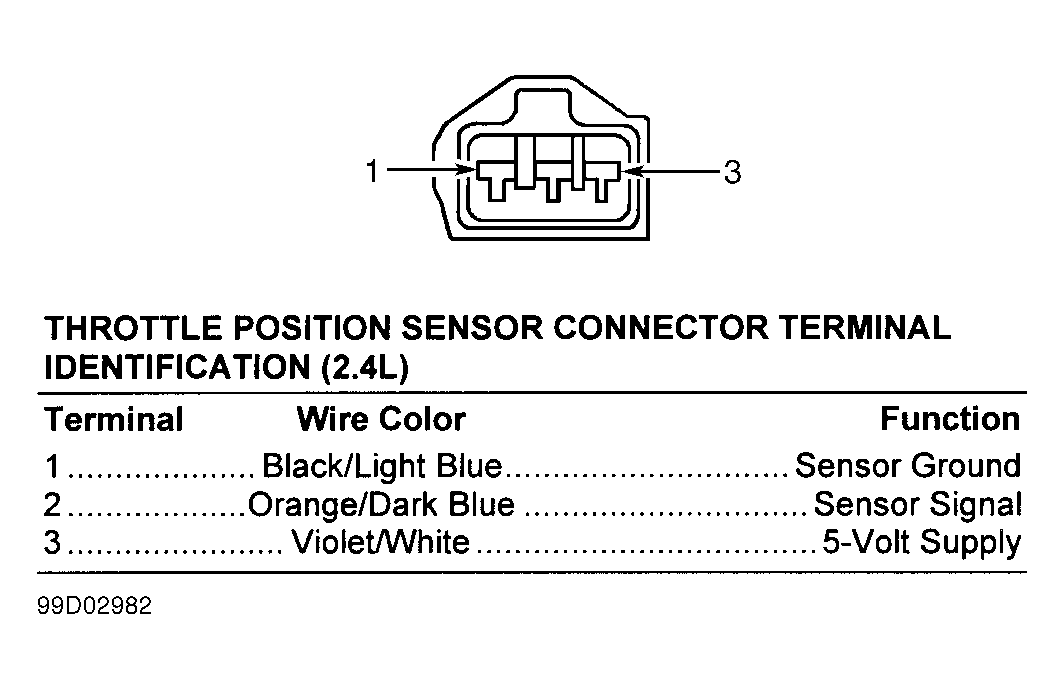

Fig 33: Identifying Throttle Position Sensor Connector Terminals (2.4L)

Courtesy of CHRYSLER CORP.

Fig 34: Identifying Throttle Position Sensor Connector Terminals (2.5L)

Courtesy of CHRYSLER CORP.

Fig 35: Identifying Transmission Control Module Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 36: Identifying Transmission Range Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 37: Identifying Upstream (1/1) Oxygen Sensor Connector Terminals

Courtesy of CHRYSLER CORP.
