Circuit Information

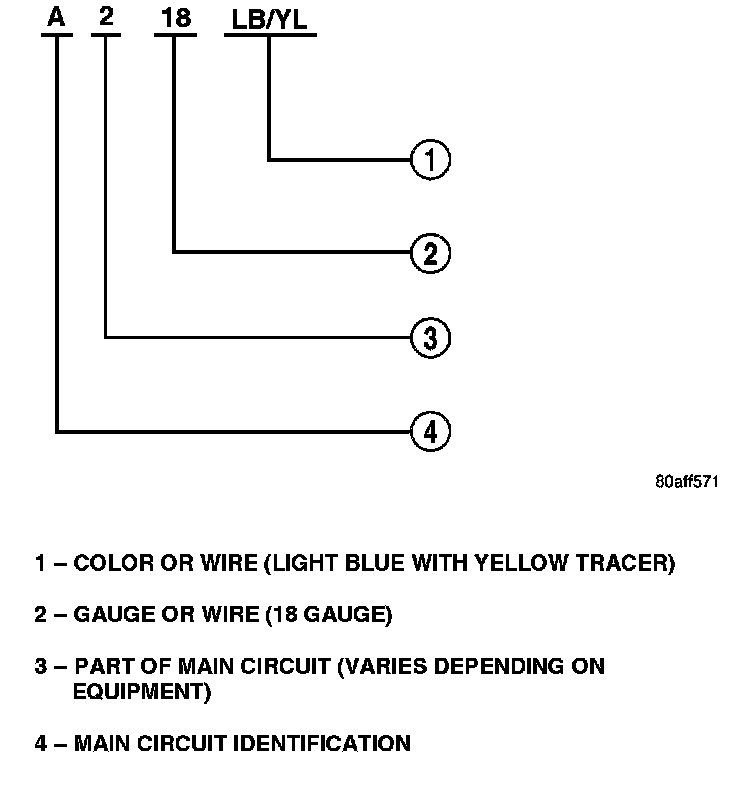

Wire Code Identification:

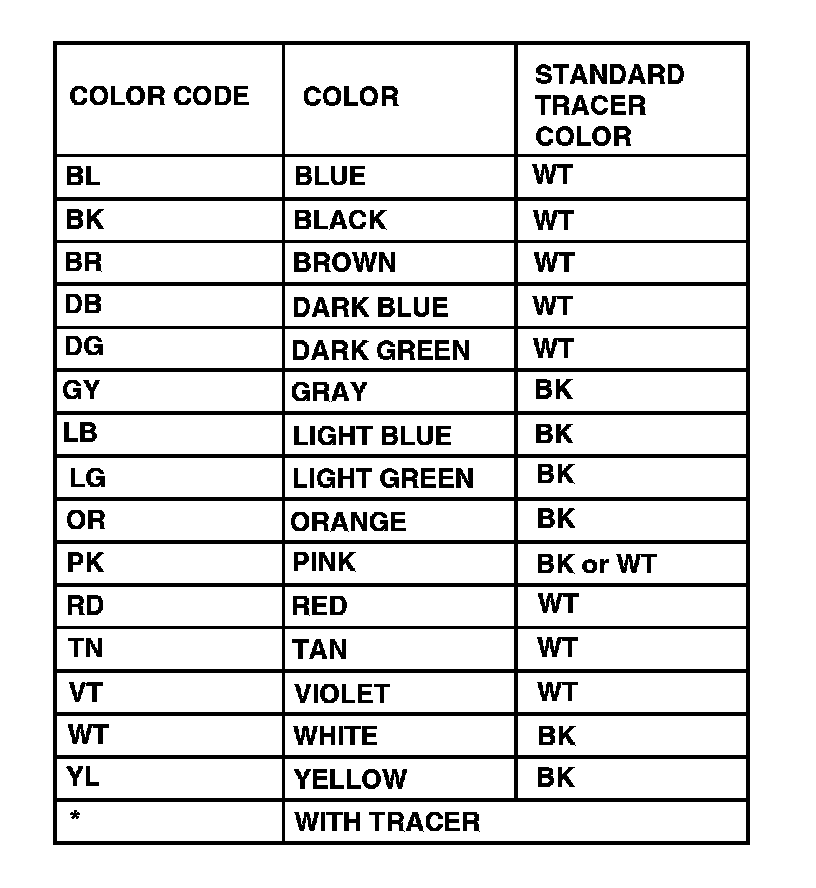

Wire Color Code Chart:
Each wire shown in the diagrams contains a code which identifies the main circuit, part of the main circuit, gauge of wire, and color.
Each wire shown in the diagrams contains a code which identifies the main circuit, part of the main circuit, gauge of wire, and color.
